| Size: | |
|---|---|
| Quantity: | |
ER Sealed Coolant Collet
XZH
65Mn
clamping part HRC55-60, elastic part HRC40-45
For clamping
ER
0.015mm
for CNC milling machine
ER11, ER16, ER20, ER25, ER32, ER40
Silver
DIN6499
0.08-0.015mm
coolant balance
ER Sealed Collet
XZH
ER Sealed Coolant Collet
Material: 65Mn Steel
Standard: DIN6499B
Type: ERS16/ERS20/ERS25/ERS32/ERS40
Hardness: clamping part HRC55-60, elastic part HRC40-45
Accuracy: 0.005mm-0.01mm
Usage: Clamping tool for the diameter

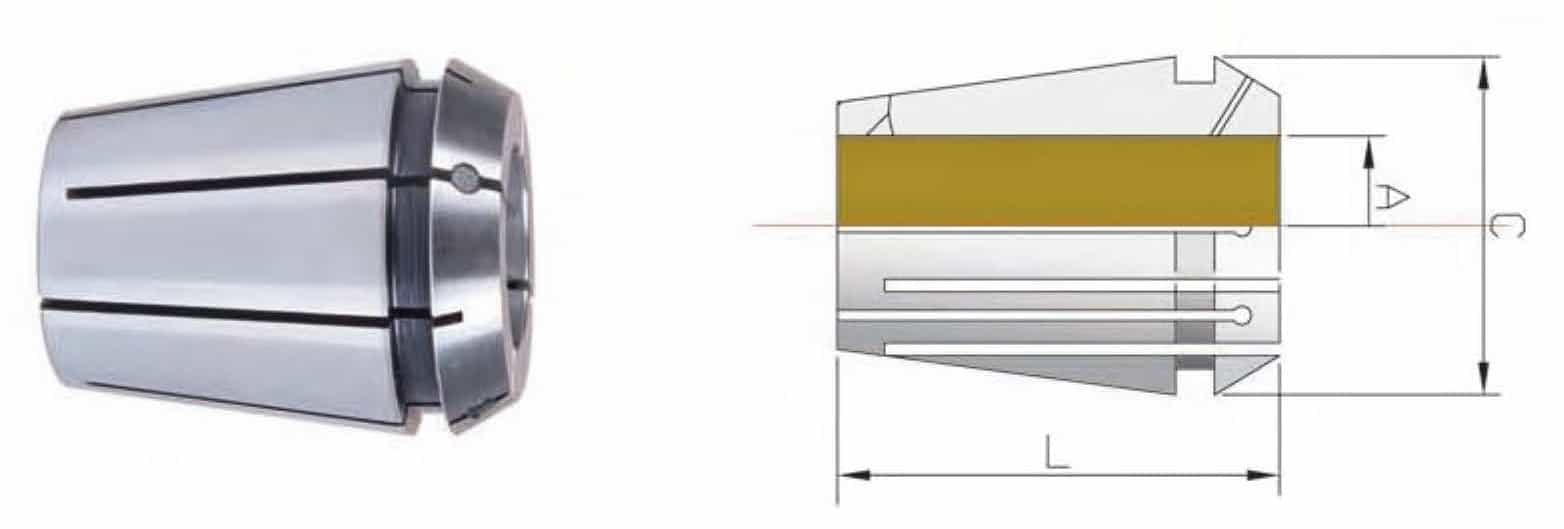

Model | C | L | Clamping Range | Wt(kg) |
ERS16 | 17 | 27.5 | 3-10 | 0.03 |
ERS20 | 21 | 31.5 | 3-13 | 0.04 |
ERS25 | 26 | 34 | 3-16 | 0.06 |
ERS32 | 33 | 40 | 3-20 | 0.1 |
ERS40 | 41 | 46 | 3-26 | 0.25 |
ER Sealed Coolant Collet
Material: 65Mn Steel
Standard: DIN6499B
Type: ERS16/ERS20/ERS25/ERS32/ERS40
Hardness: clamping part HRC55-60, elastic part HRC40-45
Accuracy: 0.005mm-0.01mm
Usage: Clamping tool for the diameter
Model | C | L | Clamping Range | Wt(kg) |
ERS16 | 17 | 27.5 | 3-10 | 0.03 |
ERS20 | 21 | 31.5 | 3-13 | 0.04 |
ERS25 | 26 | 34 | 3-16 | 0.06 |
ERS32 | 33 | 40 | 3-20 | 0.1 |
ERS40 | 41 | 46 | 3-26 | 0.25 |
