GT Precision Modular Vise
ZHORTMA
20CrMnTi Alloy steel
HRC58~62
0.005/100mm
0.005mm
CNC Milling Grinding machine
manual
Modualr vise
0.003-0.005mm
Anti-rust treatment
Machine center, CNC machine, Lathe Milling, grinding, drilling
GT125 GT150 GT175 GT200 GT300

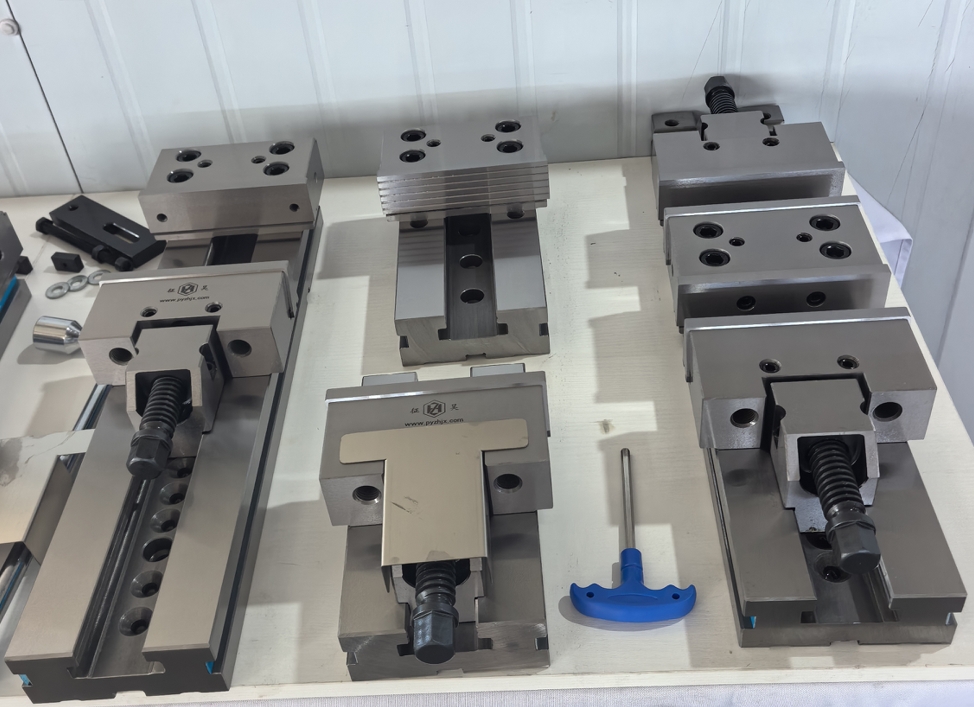

Our GT modular vise are machine tools workholding and clamping accessories
High accuracy squareness and parallelism for vise is 0.005mm
The vises are made of high quality steel material: 20CrMoTi
Jaw width: 100mm, 125mm, 150mm, 175mm, 200mm, 300mm
Modular vise composed of vise body, fix jaw, active jaw, clamping rack and lead screw.

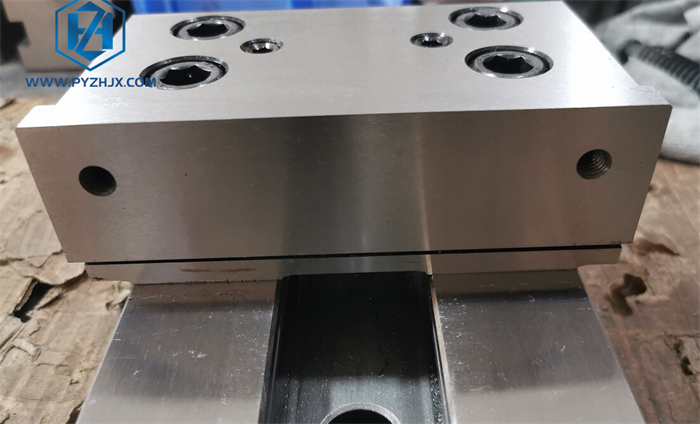

Vise jaw plates: GT Precision Modular Super Vise with Thread Hole Jaws for Aluminum Soft Jaw Installation
We supply different type vises with flat jaws, v groove jaws, or thread hole jaws.
Precision Modular Vise Parameters
| Order No. | B | H | Smax | L | Clamping force |
| GT100 | 100 | 30 | 100 | 270 | 3000 |
| GT125 | 125 | 40 | 150 | 345 | 3000 |
| GT150A | 150 | 50 | 200 | 420 | 5000 |
| GT150B | 150 | 50 | 300 | 520 | 5000 |
| GT150C | 150 | 50 | 400 | 620 | 5000 |
| GT175A | 175 | 60 | 200 | 455 | 6000 |
| GT175B | 175 | 60 | 300 | 555 | 6000 |
| GT175C | 175 | 60 | 400 | 655 | 6000 |
| GT175D | 175 | 60 | 500 | 755 | 6000 |
| GT175E | 175 | 60 | 600 | 855 | 6000 |
| GT200A | 200 | 65 | 200 | 495 | 10000 |
| GT200B | 200 | 65 | 300 | 595 | 10000 |
| GT200C | 200 | 65 | 400 | 695 | 10000 |
| GT200D | 200 | 65 | 500 | 795 | 10000 |
| GT200E | 200 | 65 | 600 | 895 | 10000 |
| GT300A | 300 | 80 | 200 | 535 | 12000 |
| GT300B | 300 | 80 | 300 | 635 | 12000 |
| GT300C | 300 | 80 | 400 | 735 | 12000 |
| GT300D | 300 | 80 | 500 | 835 | 12000 |
| GT300E | 300 | 80 | 600 | 935 | 12000 |
| GT300F | 300 | 80 | 700 | 1035 | 12000 |
| GT300G | 300 | 80 | 800 | 1135 | 12000 |
Pingyuan Zhenghao Machinery CO, LTD found in 1998, professional produced GT precision modular vise for CNC.
Our company is one of the largest production base of many kinds of CNC precision vises and accessories.
Our company has advanced technology and equipment, including auto CNC machines, grinding machine,etc.,we also has a group of advanced technical personnel and good international trade team.
Our productions export to more than 20 countries and regions. including Europe, Southeast Asia, South America.
Our company adheres to the principles of "quality first, customers supreme and reputation fundamental".
we sincerely welcome foreign customers to visit us .
Standard hardened vise jaws are excellent for gripping square or rectangular stock, but they often struggle with round, curved, or delicate parts, leading to poor clamping force or surface damage. Machinable Soft Jaws are the ultimate solution for custom workholding. By milling the exact negative shape of your workpiece directly into these blank jaws, you create a custom fixture that encapsulates the part. This maximizes the gripping surface area, ensures perfect part location (repeatability), and allows for aggressive machining without the risk of the part slipping or being crushed. Designed specifically for the GT Modular Vise system, they integrate perfectly into your existing setups.
Perfect Part Encapsulation: Machining the part's profile into the jaws provides 360-degree support (or as needed), allowing you to hold thin-walled, cast, or forged parts securely without distortion.
Two Material Options:
Aluminum Soft Jaws: Easy and fast to machine. Ideal for holding aluminum, brass, plastics, or parts with delicate surface finishes that cannot be scratched.
Steel Soft Jaws (Un-hardened): Offers greater strength and wear resistance. Perfect for longer production runs, holding steel parts, or when higher clamping forces are required.
Seamless GT Vise Compatibility: Precision-manufactured hole patterns and locating features ensure these jaws bolt perfectly onto standard GT modular vises (100mm, 125mm, 150mm, 175mm, 200mm widths).
Cost-Effective Custom Fixturing: Instead of building expensive, dedicated fixtures for every new job, soft jaws provide a rapid, low-cost way to create highly accurate, repeatable workholding solutions in minutes.
Reusability: Soft jaws can often be re-machined multiple times for different jobs by simply facing off the previous profile, maximizing your tooling investment.
Direct Manufacturer Savings: Source your vise accessories directly from our factory, bypassing middlemen for highly competitive wholesale pricing on consumable items like soft jaws.
Bulk Availability: We keep large quantities of soft jaw blanks in stock, ready for immediate shipment to keep your CNC machines running without delay.
Precision Blanks: Our soft jaws are pre-squared and parallel, saving you the time of prepping the blanks before you cut your custom profiles.
Complete Vise Ecosystem: We supply not only the soft jaws but the complete GT Precision Modular Vises, hard jaws, step jaws, and work stops.
Q1: Should I choose Aluminum or Steel soft jaws?
A: Choose Aluminum if you are machining delicate parts, need to avoid scratching the workpiece, or want to machine the jaws very quickly. Aluminum is also great for short runs. Choose Steel if you are clamping harder materials, need higher clamping pressure, or are setting up a job for a long production run where aluminum jaws might wear out too quickly.
Q2: How do I machine the soft jaws accurately?
A: To ensure the jaws hold the part accurately under pressure, you must machine them while they are clamped together. Place a spacer (often called a "jaw spacer" or "bushing") between the jaws, clamp the vise to the exact pressure you will use for the actual part, and then CNC mill the desired pocket or profile into the jaws. This pre-loads the vise and eliminates any backlash.
Q3: Will these soft jaws fit vises other than the GT series?
A: These specific soft jaws are pre-drilled and counterbored to match the bolt spacing and mounting interface of the GT Precision Modular Vise series. While they may happen to fit other brands with identical bolt patterns, we highly recommend verifying the hole spacing (center-to-center) and bolt size before ordering for non-GT vises.
Q4: Can I get custom-sized soft jaws (e.g., extra tall or extra wide)?
A:Yes. While we stock standard sizes that match the width of the vises (100mm, 150mm, etc.), we can manufacture custom soft jaw blanks (extra tall for deep parts, or extra wide to hold multiple parts side-by-side) upon request. Please provide your required dimensions when requesting a quote.
Create perfect, repeatable setups for any complex part with our Machinable Soft Jaws for GT Vises.
Contact our sales engineering team today for a complete catalog, material options, and bulk pricing.
