Product Overview

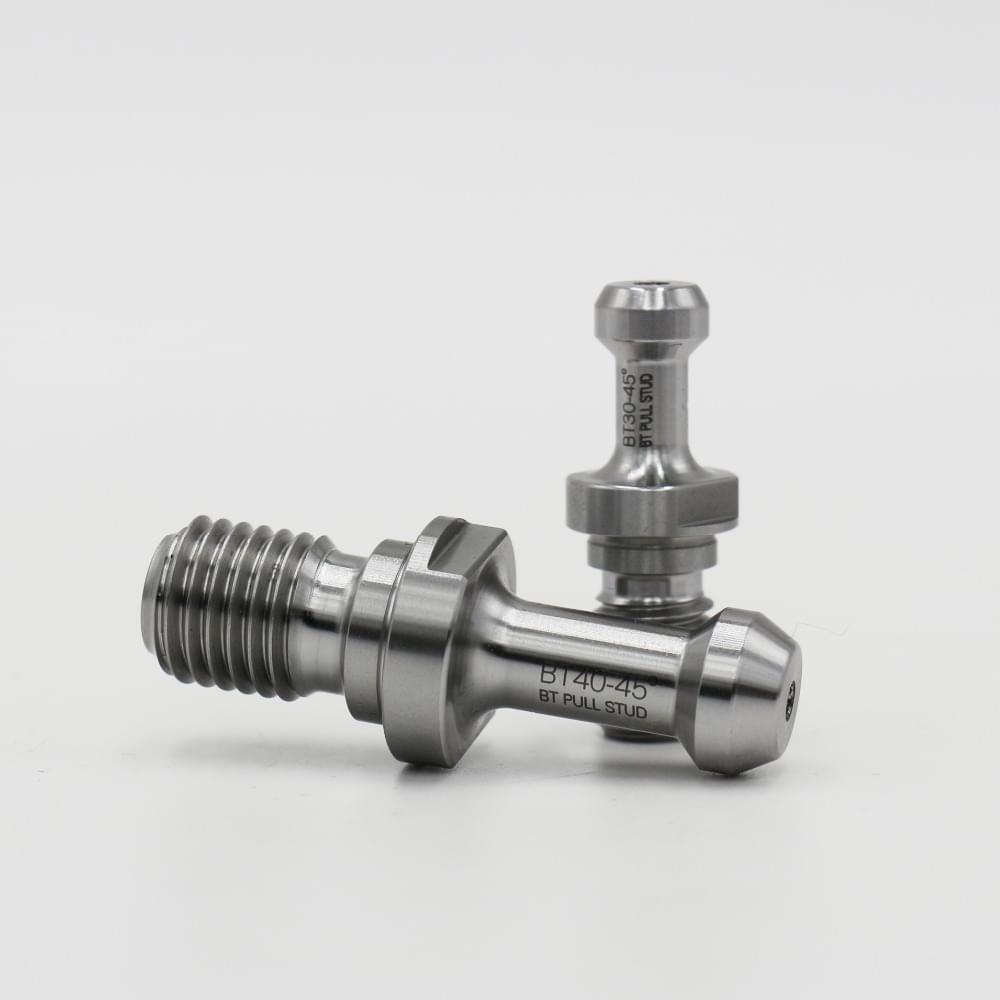

The Pull Stud, also widely known as a Retention Knob, is the vital link that locks a CNC tool holder into the machine's spindle. When a tool change occurs, the machine's internal drawbar mechanism grips the head of the pull stud and pulls the tool holder up into the spindle taper with immense force. Because it bears the entire clamping load and rotational stress during machining, a high-quality pull stud is absolutely essential for operator safety, tool rigidity, and preventing catastrophic spindle damage.

Key Features & Advantages

• Premium High-Tensile Steel: Manufactured from top-grade alloy steel (such as 20CrMnTi or SNCM420) and heat-treated to achieve a hard, wear-resistant exterior (HRC 54-58) while maintaining a tough, shock-absorbing core to prevent brittle fracture under heavy loads.

• Precision Ground Surfaces: The bearing surfaces, threads, and pilot diameters are precision-ground to ensure perfect alignment with the tool holder and smooth engagement with the machine's drawbar gripper fingers.

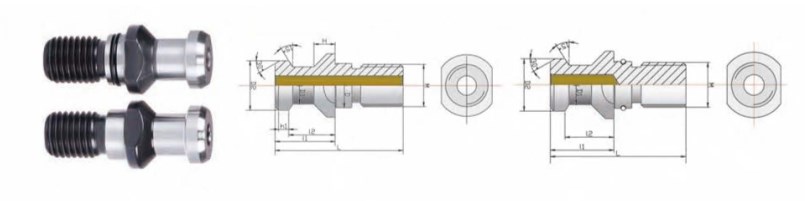

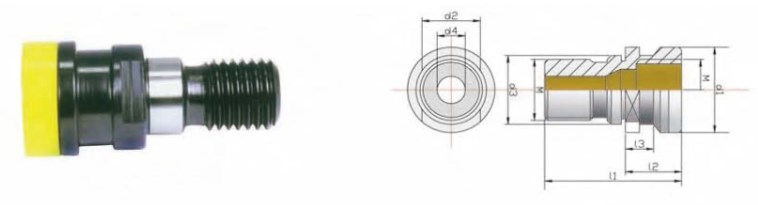

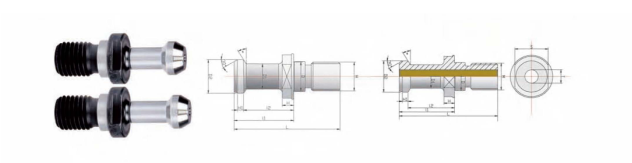

• Coolant-Through Options: Available in both solid (without hole) and coolant-through (with a central bore) designs, allowing high-pressure cutting fluid to flow directly through the spindle and tool holder to the cutting edge.

• O-Ring Seal: Many models feature a built-in O-ring groove and seal to prevent coolant leakage into the spindle taper, protecting the spindle bearings from contamination.

• Rust-Proof Coating: Treated with a black oxide finish or specialized anti-rust coating to prevent corrosion and extend the lifespan of the pull stud in wet machining environments.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source these essential CNC consumables directly from our factory for highly competitive wholesale pricing.

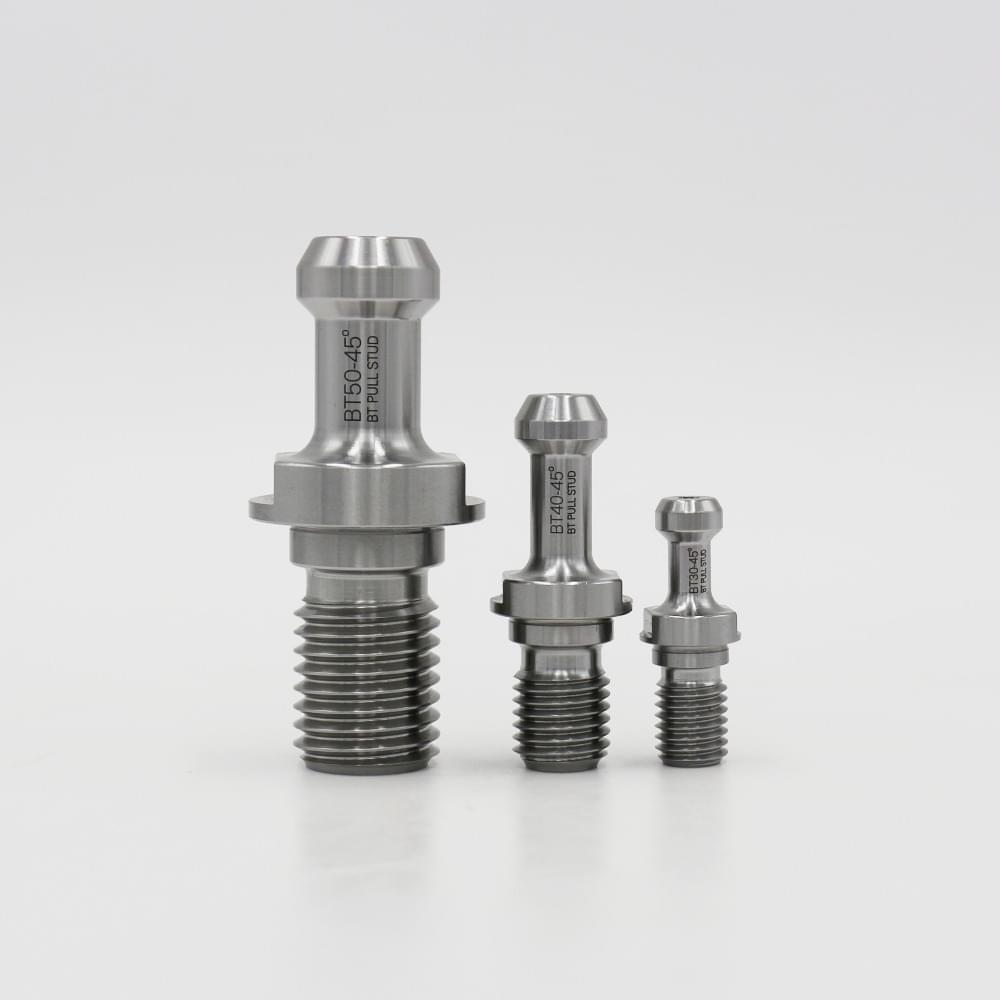

• Comprehensive Compatibility: We manufacture pull studs to fit almost every CNC machine brand (Haas, Mazak, Doosan, Okuma, Makino, etc.) and tool holder standard (BT30/40/50, CAT40/50, SK40/50).

• Strict Quality Control: Every pull stud undergoes rigorous inspection, including magnetic particle inspection (MPI) to detect any microscopic cracks or flaws before packaging, ensuring 100% reliability.

• OEM & Customization: We offer custom manufacturing for non-standard retention knobs and laser engraving of your brand logo or part numbers for retail distribution.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: Are all BT40 pull studs the same?

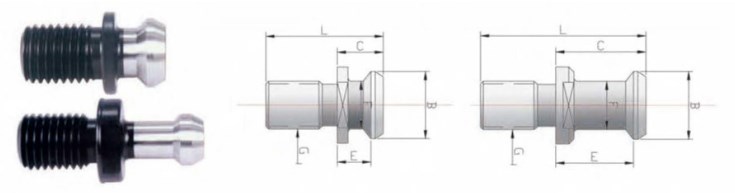

A:No! Even if you have a standard BT40 tool holder, the pull stud required depends entirely on your specific CNC machine's drawbar design. Different machines use different head angles (e.g., 45°, 60°, 90°), head diameters, and overall lengths. Always consult your machine tool manual to find the exact pull stud specification required.

Q2: How often should I replace my pull studs?

A: Pull studs are consumable items subject to metal fatigue and wear from thousands of tool changes. It is generally recommended to inspect them regularly for wear marks, fretting, or damage, and replace them every 1 to 3 years depending on usage intensity. A broken pull stud can cause a tool to fly out of the spindle, resulting in thousands of dollars in damage.

Q3: Do I need a special wrench to install a pull stud?

A: Yes. You should always use a dedicated pull stud socket wrench that fits the flats of the stud perfectly. Using standard pliers or adjustable wrenches can damage the pull stud. Furthermore, it must be tightened to the tool holder manufacturer's specified torque using a torque wrench to avoid distorting the tool holder taper.

Q4: Can I use a coolant-through pull stud on a machine without through-spindle coolant (TSC)?

A: Yes, you can generally use a pull stud with a hole in a non-TSC machine without issues. However, you cannot use a solid pull stud in a machine if you intend to use the through-spindle coolant feature, as the solid stud will block the fluid flow.

Protect your CNC spindle and ensure maximum tool rigidity with our premium Pull Studs.

Contact our sales team today for a complete catalog and bulk pricing.
