[Product Overview]

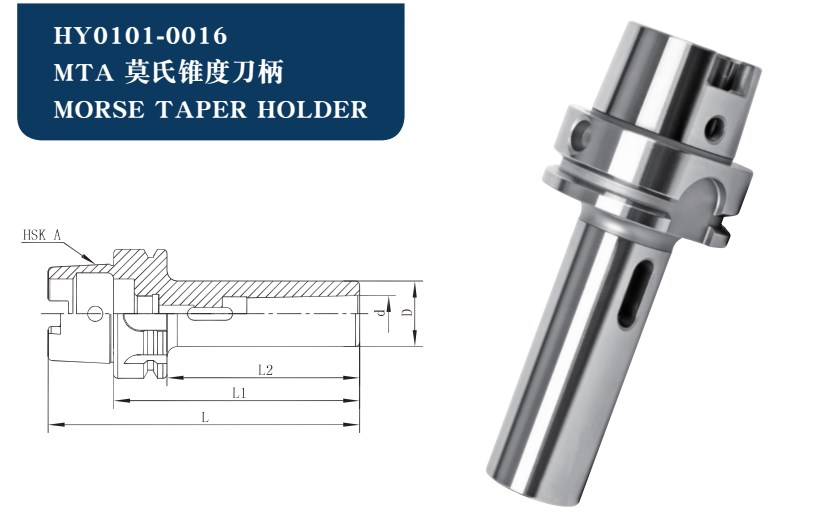

The MTA (Morse Taper with Tang) Adapter is an essential tooling accessory that bridges the gap between modern steep-taper CNC spindles and traditional Morse taper cutting tools. While solid carbide drills and ER collet chucks are common, many machine shops still rely on large, economical Morse taper high-speed steel (HSS) twist drills and reamers for heavy hole-making. The MTA adapter allows you to securely grip these tang-style tools, utilizing the internal tang slot to provide a positive mechanical drive that prevents the tool from spinning under heavy torque during drilling operations.

[Key Features & Advantages]

• Tang-Drive Security: Specifically designed with an internal slot to engage the flat tang of standard Morse taper drills (DIN 228-B). This provides a positive mechanical drive, completely eliminating the risk of the tool slipping or spinning inside the holder under heavy load.

• High-Precision Concentricity: Both the external spindle taper and the internal Morse taper are precision ground in a single setup. This ensures excellent alignment and runout accuracy, resulting in precise hole diameters and extended tool life.

• Premium Material & Hardness: Constructed from high-quality 20CrMnTi alloy steel and case-hardened to HRC 56-60. This provides a tough core to absorb drilling thrust and a hard, wear-resistant surface to maintain taper accuracy over years of use.

• Comprehensive Spindle Compatibility: Available for all major CNC and milling machine spindle types, including BT30/40/50, CAT40/50, SK40/50, and NT30/40/50.

• Full Range of MT Sizes: We offer adapters to accommodate all standard Morse taper sizes, from MTA1, MTA2, MTA3, MTA4, up to MTA5, allowing you to run everything from small reamers to massive spade drills.

[Why Partner with Pingyuan Zhenghao Machinery?]

• Direct Manufacturer Savings: Bypass trading companies and source essential CNC tooling adapters directly from our factory for highly competitive wholesale pricing.

• Strict Quality Control: Every MTA adapter undergoes rigorous inspection using precision taper gauges to ensure perfect contact area (minimum 85% taper fit) for both the machine spindle and the cutting tool.

• Durable Rust Protection: Finished with a premium black oxide or precision ground surface treatment to resist corrosion in harsh coolant environments.

• OEM & Customization: We offer laser engraving of your brand logo, part numbers, and custom specifications directly onto the tool holders for retail distribution.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: What is the difference between MTA and MTB Morse Taper Adapters?

A:

• MTA (Morse Taper Type A): Designed for tools with a flat tang at the end (like most MT twist drills and reamers). The tang engages a slot inside the adapter to prevent spinning.

• MTB (Morse Taper Type B): Designed for tools with a threaded hole at the end (like MT end mills or boring heads). These require a drawbar to pull the tool securely into the taper.

Q2: How do I remove the drill from the MTA adapter?

A: MTA adapters feature a cross-hole (drift slot) machined through the body. To remove the tool, simply insert a standard Morse taper drift key into the slot and tap it with a hammer. The wedge action of the key will easily pop the drill out of the taper.

Q3: Can I use an MTA adapter for milling operations?

A:No. MTA adapters are strictly designed for operations with axial thrust, such as drilling, reaming, and tapping. Milling creates lateral (side) forces that can cause a tang-style tool to vibrate loose and fall out of the taper, which is highly dangerous and will damage the workpiece and the tool. For milling with MT tools, you must use an MTB adapter.

Q4: What does a part number like "BT40-MTA3-75" mean?

A: This is standard tooling nomenclature:

• BT40: The machine spindle taper type and size.

• MTA3: The adapter accepts a Morse Taper #3 tool with a flat tang.

• 75: The gauge length (the distance from the spindle face to the end of the adapter) is 75mm.

Maximize your CNC machine's drilling capabilities with our rigid MTA Morse Taper Adapters.

Contact our sales team today for a complete catalog and bulk pricing.
