| Quantity: | |
|---|---|
J0106 J0108 J0110 J0113 J0116 J0120
XZH
8466100000
Alloy steel
for holding drilling bit
0.12mm-0.18mm

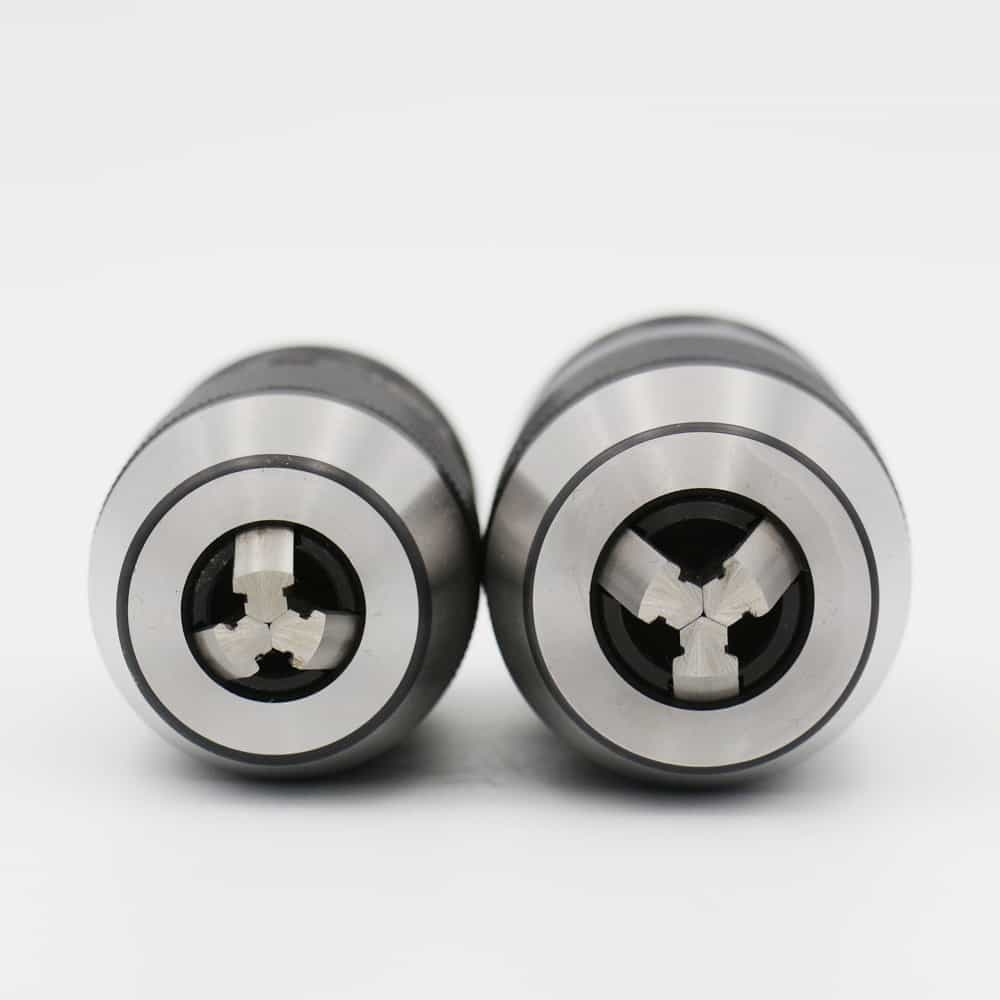

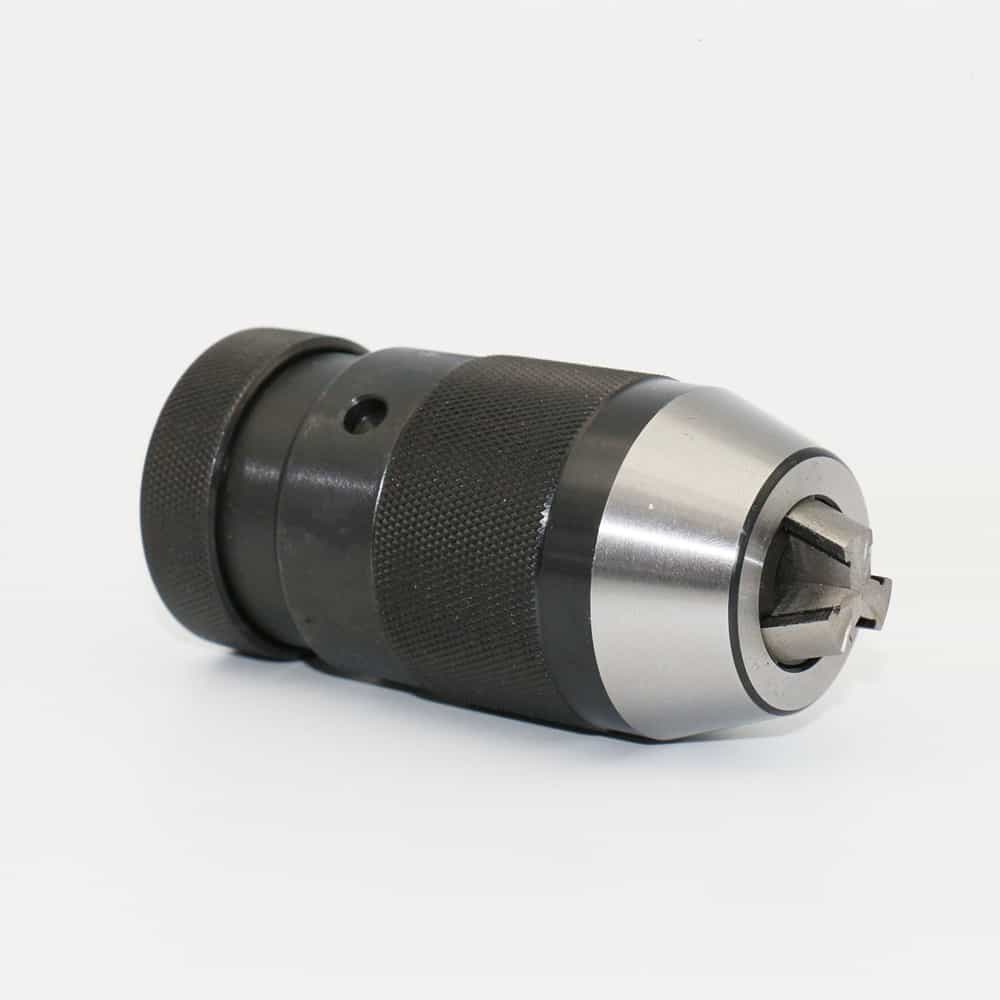

Multi Keyless Drill Chuck
XZH
1. Locking systerm: self-locking
2. Hardness: HRC45-48
3. Accuracy: below 0.10mm
4. Application: Clamp Machine Tools
Model | Capacity | Taper | d | h | D | L | l |
J0106 | 0.5-6 | B10 | 10.094 | 14.5 | 35 | 67 | 61 |
J0206 | 1/64″-1/4″ | JT1 | 9.754 | 16.669 | 35 | 67 | 61 |
J0110 | 1-10 | B12 | 12.065 | 18.5 | 42 | 86 | 78 |
J0210 | 1/32″-3/8″ | JT2 | 14.199 | 22.225 | 42 | 86 | 78 |
J0113 | 1-13 | B16 | 15.733 | 24 | 44 | 97 | 88 |
J0213 | 1/32″-1/2″ | JT33 | 15.85 | 25.4 | 44 | 97 | 88 |
J0116 | 3-16 | B16 | 15.733 | 24 | 48 | 102 | 92 |
J0216 | 1/8″-5/8″ | JT6 | 17.170 | 25.4 | 48 | 102 | 92 |
J0116 | 3-16 | B18 | 17.78 | 32 | 48 | 108 | 98 |
J0216 | 1/8″-5/8″ | JT3 | 20.599 | 30.956 | 48 | 108 | 98 |
J0120 | 5-20 | B22 | 21.3 | 30.5 | 53 | 115 | 103 |
J0220 | 3/16″-3/4″ | JT3 | 20.599 | 30.956 | 53 | 115 | 103 |
1. Locking systerm: self-locking
2. Hardness: HRC45-48
3. Accuracy: below 0.10mm
4. Application: Clamp Machine Tools
Model | Capacity | Taper | d | h | D | L | l |
J0106 | 0.5-6 | B10 | 10.094 | 14.5 | 35 | 67 | 61 |
J0206 | 1/64″-1/4″ | JT1 | 9.754 | 16.669 | 35 | 67 | 61 |
J0110 | 1-10 | B12 | 12.065 | 18.5 | 42 | 86 | 78 |
J0210 | 1/32″-3/8″ | JT2 | 14.199 | 22.225 | 42 | 86 | 78 |
J0113 | 1-13 | B16 | 15.733 | 24 | 44 | 97 | 88 |
J0213 | 1/32″-1/2″ | JT33 | 15.85 | 25.4 | 44 | 97 | 88 |
J0116 | 3-16 | B16 | 15.733 | 24 | 48 | 102 | 92 |
J0216 | 1/8″-5/8″ | JT6 | 17.170 | 25.4 | 48 | 102 | 92 |
J0116 | 3-16 | B18 | 17.78 | 32 | 48 | 108 | 98 |
J0216 | 1/8″-5/8″ | JT3 | 20.599 | 30.956 | 48 | 108 | 98 |
J0120 | 5-20 | B22 | 21.3 | 30.5 | 53 | 115 | 103 |
J0220 | 3/16″-3/4″ | JT3 | 20.599 | 30.956 | 53 | 115 | 103 |
