Product Overview

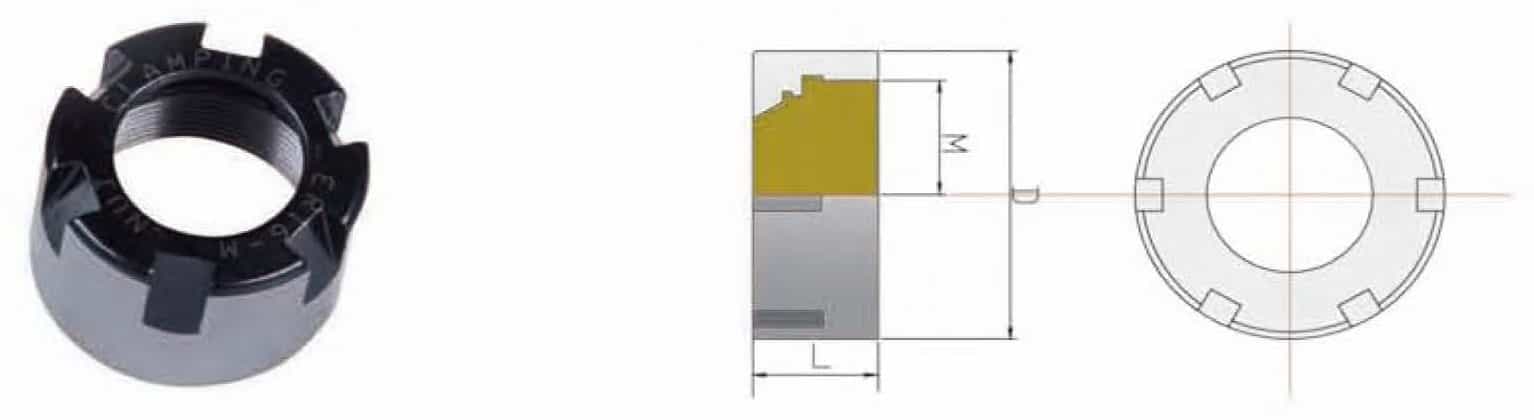

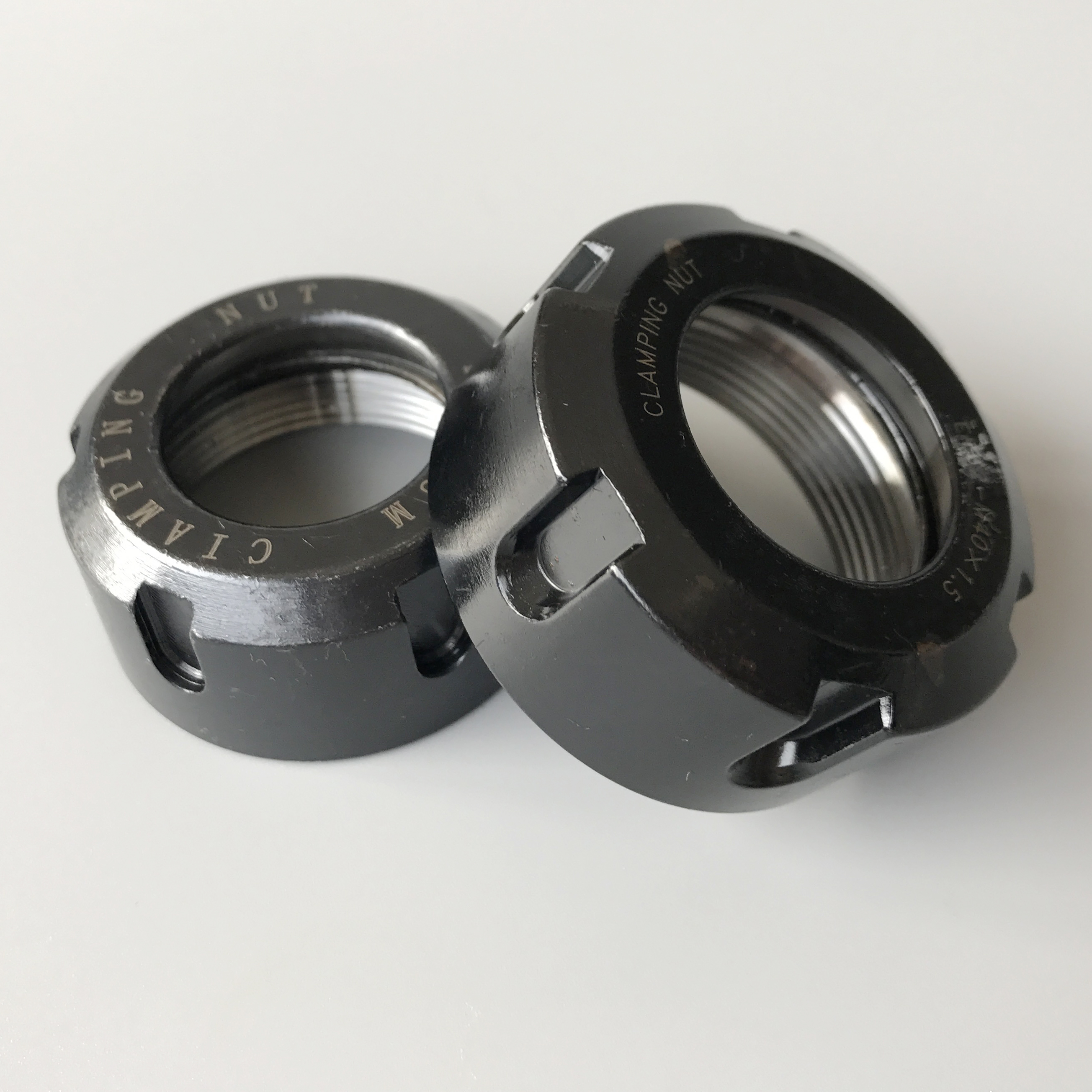

The ER-M (Mini) Collet Nut is a critical component for modern CNC machining where space is at a premium and high spindle speeds are required. Unlike standard hex or spanner-style ER nuts, the "M" (Mini) version features a significantly smaller outer diameter and a castellated design (requiring a special M-type wrench). This compact profile allows tool holders to reach deep into narrow cavities, machine close to fixtures, and operate in densely packed Swiss-style automatic lathes without interference. When paired with high-quality ER collets, these nuts provide exceptional concentricity and holding power for precision end mills, drills, and taps.

Key Features & Advantages

• Compact "Mini" Profile: The reduced outside diameter provides excellent clearance for machining in confined spaces, deep pockets, and complex multi-axis setups where standard nuts would crash.

• High-Speed Balance: Precision-ground and symmetrically designed to minimize vibration. These nuts are inherently better suited for high-speed machining (often rated for 20,000 to 30,000+ RPM) compared to standard hex nuts.

• Premium Material & Hardness: Manufactured from high-quality alloy steel (such as 42CrMo) and heat-treated to HRC 48-52. This ensures the threads resist wear and deformation, maintaining strong clamping force over thousands of tool changes.

• Precision Ground Threads: The internal threads and the internal 30-degree clamping cone are precision-ground in a single setup to guarantee perfect alignment with the collet, resulting in ultra-low T.I.R. (runout).

• Eccentric Extraction Ring: Features the standard ER eccentric internal ring design, which automatically snaps the collet out of the tool holder taper when the nut is unscrewed, making tool changes fast and easy.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium CNC accessories directly from our factory for highly competitive wholesale pricing.

• Complete Size Range: We manufacture the full spectrum of ER-M sizes, including ER8M, ER11M, ER16M, ER20M, and ER25M, along with the corresponding M-type spanner wrenches.

• Strict Quality Control: Every collet nut is inspected for thread accuracy, cone angle precision, and dynamic balance before packaging.

• OEM & Customization: We offer custom surface treatments (like black oxide or sandblasting), custom laser engraving of your brand logo, and tailored packaging for retail distributors.

Frequently Asked Questions (FAQ) - Selection Guide

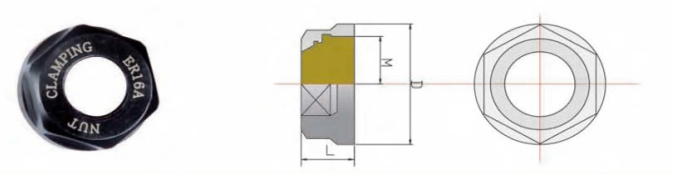

Q1: What is the difference between a standard ER nut (Type A/UM) and an ER-M nut?

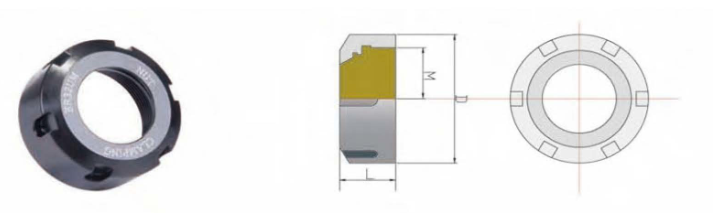

A: The main difference is the outside diameter and the wrench type. An ER-M (Mini) nut has a much smaller outer diameter, allowing it to fit into tighter spaces. Standard nuts (Type A are hex, Type UM use a hook spanner) are bulkier. Because of the small diameter, ER-M nuts use a special castellated wrench (M-wrench) that grips the slots on the front of the nut.

Q2: Can I use an ER-M nut on a standard ER tool holder?

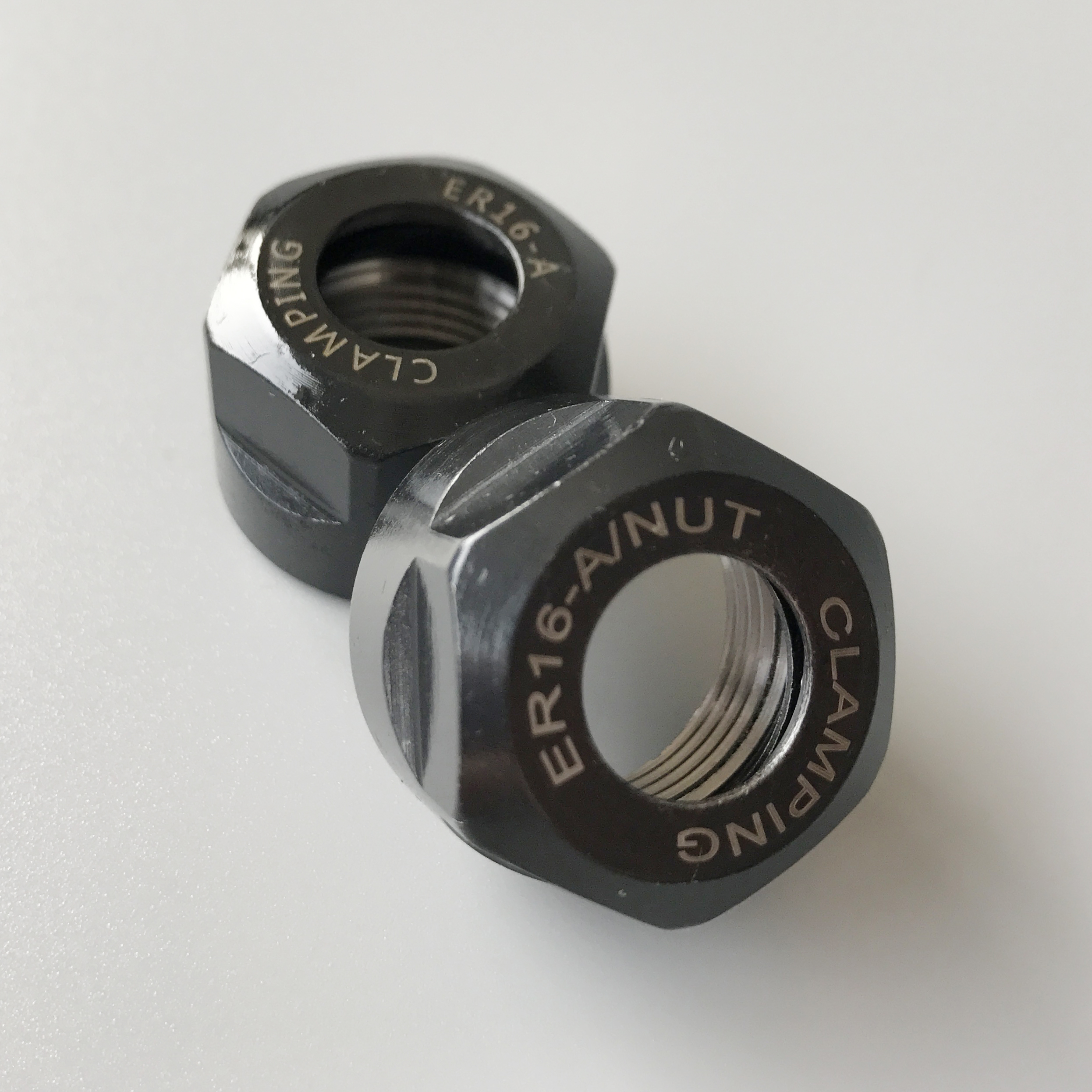

A:Yes, absolutely. The internal threads and the internal taper of an ER-M nut are identical to a standard ER nut of the same size (e.g., the threads on an ER16M nut are the same as an ER16A nut). You can swap a standard nut for a mini nut on any standard ER chuck to gain better clearance.

Q3: Do I need a special wrench for the ER-M nut?

A: Yes. You must use a dedicated ER-M Spanner Wrench. Standard open-end wrenches or hook spanners will not work and will damage the nut. The M-wrench has pins or teeth that engage with the slots on the face of the ER-M nut.

Q4: Are these nuts suitable for high-speed machining?

A: Yes, ER-M nuts are excellent for high speeds. Their smaller diameter and symmetrical design mean they have less mass and better natural balance than standard hex nuts, reducing vibration at high RPMs.

Maximize your machining clearance and high-speed performance with our Precision ER-M Mini Collet Nuts.

Contact our sales team today for a complete catalog and bulk pricing.
