You are here: Home » Products » COLLET » ER Spring Collet

ER Spring Collet

ER collets have a wide clamping range and high accuracy. While they are designed for tool holding, they work great for work holding in small lathes. With a full set of ER collets you can hold any diameter that is in the clamping range of the set.
Size:
Quantity:
  • ER8 ER16 ER20 ER25 ER32 ER40 ER50
  • 65Mn or customized
  • 0.005mm-0.015mm
  • end mill cutter clamping tools
  • ER8 ER11 ER16 ER20 ER25 ER32 ER40 ER50
  • DIN6499B

ER Spring Collet

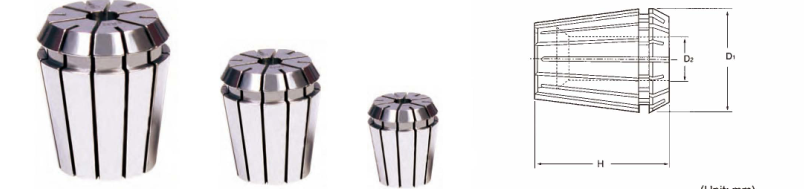

ER Collet

High accuracy spring collets

Types: ER collets

Runout: 0.005mm-0.015mm

Used for end mills clamping on machine tools collet chucks

Material: 65Mn or as per need

100% inspection before delivery

Model No.

D1

H

D2

ER11

11.5

18

1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7

ER16

17

27

1 2 3 4 5 6 7 8 9 10

ER20

21

31

2 3 4 5 6 7 8 9 10 11 12 13

ER25

26

35

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

ER32

33

40

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

ER40

41

46

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

        ER50      52    60 6-34



ER Collets bulk plastic box

bulk

Plastic suit

suit kit

Aluminum plastic box

collet
