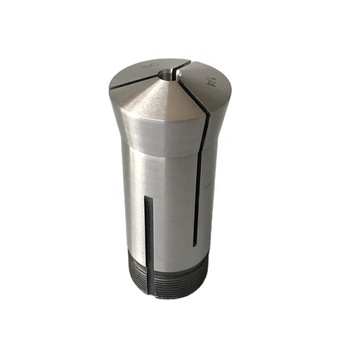

5C Collet
XZH
5C Collets
Material:65Mn
Hardness :HRC55-60
Model No.:5C

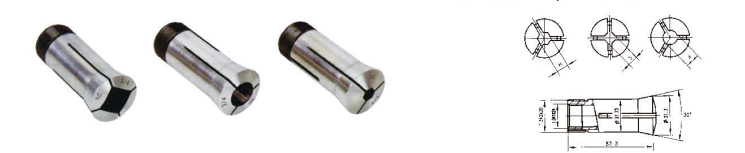

Type:Round,Square,Hex
Order No. | Type | Clamping range | Wt(KG) | |
5C-01-d | Round | 1-28 | 1/16-7/8 | 0.24 |
5C--02-S | Square | 3-29 | 1/8-3/4 | 0.24 |
5C--03-H | Hex | 3-22 | 1/8-7/8 | 0.24 |
The 5C Collet is one of the most popular workholding solutions worldwide, widely used in lathes, milling machines, grinders, and indexing fixtures. Its design allows for the gripping of bar stock through the spindle (up to 1-1/16" or 27mm diameter) or holding short workpieces with high precision. It features external threads for the drawbar and internal threads for positioning stops, making it incredibly versatile for both production and toolroom environments.
Versatile Bore Shapes: We manufacture 5C collets in Round (1/16" to 1-1/8"), Hexagon, and Square shapes to hold various types of stock material securely.
High Precision & Runout: Precision ground on all critical surfaces (body, taper, and bore) to ensure excellent concentricity (T.I.R. ≤ 0.015mm for standard, ≤ 0.005mm for high precision).
Durable Construction: Made from high-grade alloy steel (e.g., 65Mn or SUJ2), heat-treated to HRC 55-60 for maximum wear resistance and spring retention.
Standard Compatibility: Designed to fit all standard 5C spindles, collet blocks, and indexing heads, ensuring universal interchangeability.
Internal Thread Feature: Comes with standard internal threads to accept 5C work stops, allowing for precise axial positioning of workpieces.
We are a dedicated manufacturer with extensive experience in exporting 5C collets, particularly to the North American and European markets.
Complete Range: From standard fractional sizes to metric sizes, and special shapes (Hex/Square), we have the molds and tooling to produce them all.
Cost-Effective Factory Direct: By purchasing directly from our factory in China, you gain a significant price advantage over local distributors.
Customization Capable: We can produce Emergency 5C Collets (soft face) that you can machine to your specific needs, or custom bore sizes upon request.
One-Stop Sourcing: Combine your 5C collet order with our 5C Collet Blocks, 5C Collet Stops, and Spanner Wrenches for a complete workholding solution.
Q1: Do you sell 5C Collets in sets?

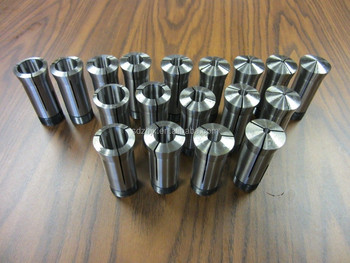

A: Yes! We offer popular 5C Collet Sets (e.g., 6-piece, 18-piece, or 72-piece sets) packaged in sturdy wooden or plastic cases. This is a great option for retailers and workshops.
Q2: Can you manufacture custom bore sizes or shapes?
A: Absolutely. Besides standard round holes, we specialize in Hexagon and Square bores. We also offer Emergency Collets (soft brass or steel face) which can be bored out by the customer for odd-shaped parts.
Q3: Do you offer OEM branding?
A: Yes, we can laser-engrave your logo, size, and part number on the face or body of the collet. We can also customize the packaging box with your brand colors and label.
Q4: What is the maximum capacity of your 5C collets?
A: The standard maximum through-capacity for a 5C collet is 1-1/16" (approx. 27mm). For larger diameters, we recommend using our 5C Step Collets (oversize head collets).
Ready to source high-quality 5C collets for your lathe or fixture needs?Our team is ready to provide you with a detailed quote and product catalog.
