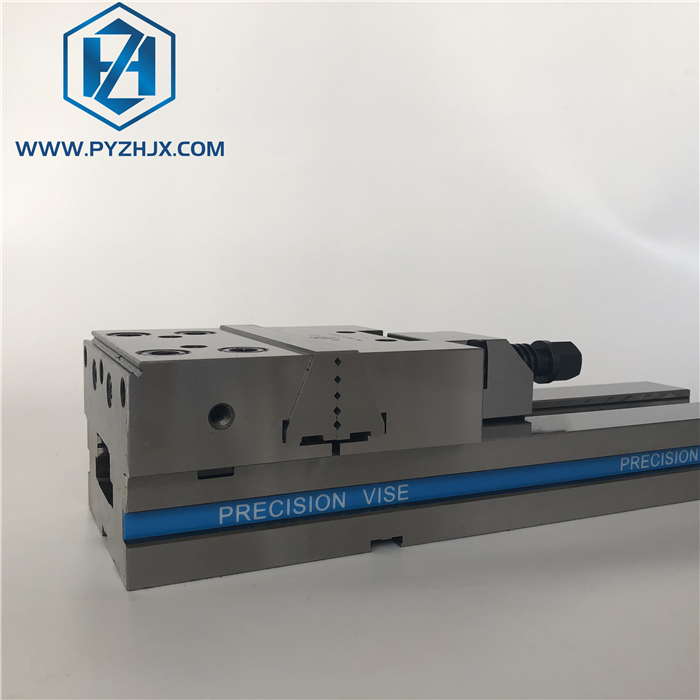

GT Precision Modular Vise
Zhenghao
8466100000
20CrMnTi Alloy steel
HRC58~62
0.005/100mm
0.005mm
CNC Milling Grinding machine
manual
Modualr vise
0.003-0.005mm
Anti-rust treatment
Machine center, CNC machine, Lathe Milling, grinding, drilling
GT100 GT125 GT150 GT175 GT200 GT300
Our GT modular vises are of machine tools workholding and clamping accessories
The preicision vises are maade of high quality steel material: 20CrMoTi
High accuracy squareness and parallelism for vise is 0.005mm
Jaw width: 100mm, 125mm, 150mm, 175mm, 200mm, 300mm
Modular vise composed of vise body, fix jaw, active jaw, clamping rack and lead screw.
Precision modular vise jaw type: flat jaws, v groove jaws, thread hole jaws.
We could also supply pair of jaws separately as your need.
Precision Modular Vise Parameters
| Order No. | B | H | Smax | L | Clamping force |
| GT100 | 100 | 30 | 100 | 270 | 3000 |
| GT125 | 125 | 40 | 150 | 345 | 3000 |
| GT150A | 150 | 50 | 200 | 420 | 5000 |
| GT150B | 150 | 50 | 300 | 520 | 5000 |
| GT150C | 150 | 50 | 400 | 620 | 5000 |
| GT175A | 175 | 60 | 200 | 455 | 6000 |
| GT175B | 175 | 60 | 300 | 555 | 6000 |
| GT175C | 175 | 60 | 400 | 655 | 6000 |
| GT175D | 175 | 60 | 500 | 755 | 6000 |
| GT175E | 175 | 60 | 600 | 855 | 6000 |
| GT200A | 200 | 65 | 200 | 495 | 10000 |
| GT200B | 200 | 65 | 300 | 595 | 10000 |
| GT200C | 200 | 65 | 400 | 695 | 10000 |
| GT200D | 200 | 65 | 500 | 795 | 10000 |
| GT200E | 200 | 65 | 600 | 895 | 10000 |
| GT300A | 300 | 80 | 200 | 535 | 12000 |
| GT300B | 300 | 80 | 300 | 635 | 12000 |
| GT300C | 300 | 80 | 400 | 735 | 12000 |
| GT300D | 300 | 80 | 500 | 835 | 12000 |
| GT300E | 300 | 80 | 600 | 935 | 12000 |
| GT300F | 300 | 80 | 700 | 1035 | 12000 |
| GT300G | 300 | 80 | 800 | 1135 | 12000 |
Pingyuan Zhenghao Machinery CO, LTD found in 1998, professional produced GT precision modular vise for CNC.
Our company is one of the largest production base of many kinds of CNC precision vises and accessories.
Our company has advanced technology and equipment, including auto CNC machines, grinding machine,etc.,we also
has a group of advanced technical personnel and good international trade team.
Our productions export to more than 20 countries and regions. including Europe, Southeast Asia, South America.
Our company adheres to the principles of "quality first, customers supreme and reputation fundamental".
We sincerely welcome foreign customers to visit us .
The true power of a GT Modular Vise lies in its adaptability, which is achieved through its Interchangeable Jaw System. Different machining operations require different gripping strategies. Standard smooth jaws are great for finished parts, but raw castings or aggressive milling operations demand specialized holding solutions. By keeping a variety of our precision vise jaws on hand, operators can quickly reconfigure their setups to hold round parts, irregular shapes, or raw stock with maximum rigidity, drastically reducing setup times and expanding the machine's capabilities.
Comprehensive Jaw Types:
Smooth Jaws: The standard hardened jaws for general-purpose clamping and holding pre-machined surfaces without marring.
Serrated / Grooved Jaws: Feature aggressive teeth that bite into raw, scaly, or hot-rolled stock, providing maximum grip for heavy roughing cuts.
Step Jaws: Designed with a precise built-in ledge, allowing parts to be seated perfectly flat without the need for separate parallel blocks.
V-Groove Jaws: Feature horizontal and vertical V-shaped channels to securely clamp cylindrical parts, shafts, and tubing.
Soft Jaws: Made of aluminum or unhardened mild steel, allowing you to custom-mill the exact profile of complex or delicate workpieces directly into the jaw.
Premium Materials & Hardness: Hard jaws are forged from high-quality alloy steel and case-hardened to HRC 58-62 for exceptional wear resistance.
Precision Ground Finish: All mating surfaces and clamping faces are precision-ground to ensure perfect parallelism and squareness, maintaining the overall accuracy of your GT vise system.
Quick Changeover: Engineered with standardized hole patterns and counterbores, allowing for fast and easy jaw swapping with standard hex keys.
Direct Manufacturer Savings: Bypass trading companies and source premium CNC vise accessories directly from our factory for highly competitive wholesale pricing.
Full Size Compatibility: We manufacture jaws to perfectly fit the entire GT series, including GT100, GT125, GT150, GT175, GT200, and GT300.
Strict Quality Control: Every set of hard jaws is rigorously inspected for dimensional accuracy and matched as a perfect pair before packaging.
OEM & Customization: We offer custom jaw manufacturing (special heights, widths, or custom step dimensions) and custom laser engraving of your brand logo.
Q1: Will these jaws fit my existing GT modular vise from another brand?
A: Yes! Our GT vise jaws are manufactured to international standard dimensions and hole spacings. They are highly compatible with most major European, American, and Asian brands of GT-style modular vises on the market.
Q2: What is the main advantage of using Step Jaws?
A: Step jaws have a precision-ground ledge built directly into the face of the jaw. This eliminates the need to use separate parallel blocks to raise the workpiece. It saves significant setup time, prevents parallels from falling over when the vise is opened, and ensures the part is seated perfectly flat.
Q3: When should I choose Soft Jaws over Hard Jaws?
A: You should use soft jaws when you are machining a part with an irregular, non-square shape (like a casting or a round flange), or when you are clamping on a highly finished surface that cannot be scratched. You simply mount the soft jaws in the vise and use your CNC mill to cut the exact negative shape of your part into the jaws for a perfect, custom fit.
Q4: Can I order custom-sized jaws?
A: Absolutely. While we stock all standard sizes, we frequently manufacture extra-tall jaws, extra-wide jaws, or jaws with custom step dimensions to meet the specific workholding needs of our clients. Contact our sales team with your drawings or requirements.
Optimize your workholding setups and tackle any machining challenge with our Interchangeable GT Precision Modular Vise Jaws.
Contact our sales team today for a complete catalog and bulk pricing.
