[Product Overview]

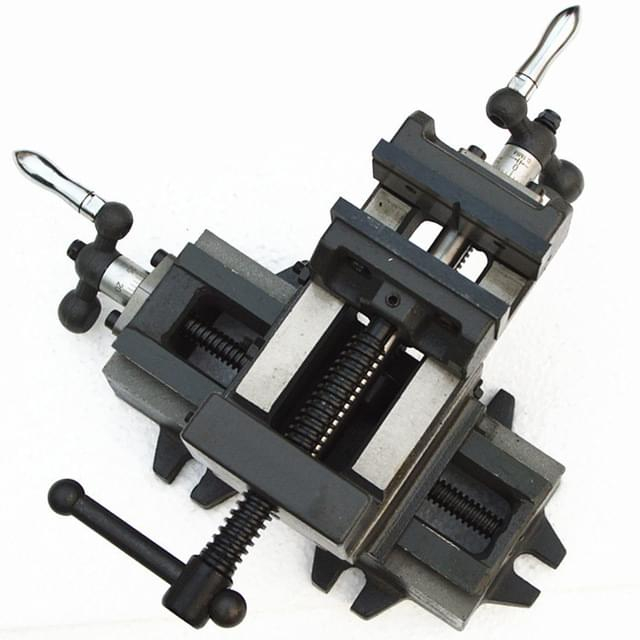

The Q97 XY Cross Slide Vise (also known as a compound vise or cross table vise) is an essential upgrade for any workshop utilizing a drill press or a light-duty milling machine. Instead of manually pushing a workpiece around the table to align holes, the operator simply secures the part in the vise jaws and uses the two handwheels to dial in the exact X and Y coordinates. This eliminates guesswork, drastically improves hole-to-hole accuracy, and allows for light linear milling or slotting operations that would be impossible with a standard stationary vise.

[Key Features & Advantages]

• Precise 2-Axis Movement: Features two independent lead screws that provide smooth, controlled travel in both the longitudinal (X-axis) and transverse (Y-axis) directions.

• Adjustable Dials: The handwheels are equipped with clear, easy-to-read graduated collars (typically in 0.1mm or 0.001" increments), allowing for precise coordinate positioning and repeatable machining.

• Heavy-Duty Cast Iron Body: Cast from high-tensile strength iron to absorb vibration and provide a rigid, stable base during drilling and light milling operations.

• Precision Dovetail Ways: The sliding surfaces are machined with precision dovetails and equipped with adjustable gibs. This allows the operator to fine-tune the sliding tension and eliminate any play (backlash) over years of use.

• Hardened Steel Jaws: The replaceable jaw plates are manufactured from hardened steel and feature V-grooves for securely gripping both flat and round workpieces.

[Why Partner with Pingyuan Zhenghao Machinery?]

• Direct Manufacturer Savings: Bypass trading companies and source premium workholding equipment directly from our factory for highly competitive wholesale pricing.

• Strict Quality Control: Every cross slide vise is hand-fitted and inspected to ensure smooth lead screw operation, parallel jaw alignment, and accurate dial readings before packaging.

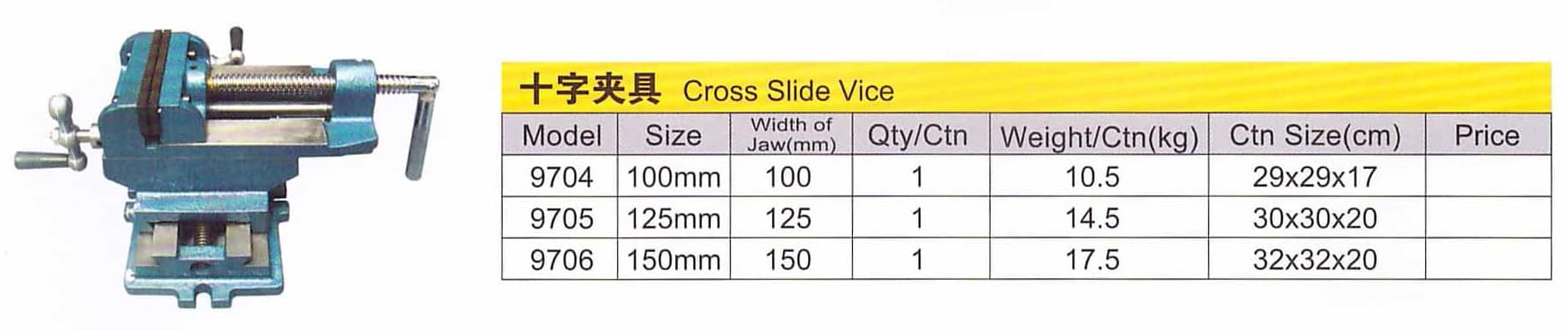

• Comprehensive Size Range: We offer the Q97 series in multiple jaw widths (e.g., 3", 4", 5", 6", 8") to suit various machine table sizes and workpiece capacities.

• OEM & Customization: We offer custom paint colors and laser engraving of your brand logo directly onto the vise body for retail distribution.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: Can I use this cross slide vise for heavy milling operations?

A: The Q97 is designed primarily for precise positioning during drilling, reaming, tapping, and light-duty milling (such as cutting shallow slots in aluminum or plastic). It is not intended for heavy roughing cuts on steel, as the dovetail ways and lead screws are not as massive as those found on a dedicated milling machine table.

Q2: How do I adjust the tension if the slides become loose over time?

A: The vise is equipped with adjustable gibs (small steel strips located along the dovetail ways) and set screws. By carefully tightening these set screws, you can remove any play or "slop" that develops from wear, ensuring the slides remain tight and accurate for the life of the tool.

Q3: What do the dials read in, metric or imperial?

A: We manufacture both metric and imperial versions. Metric dials typically have 0.1mm graduations, while imperial dials typically have 0.001" graduations. Please specify your preference when requesting a quote.

Q4: How do I mount this vise to my drill press table?

A: The base of the Q97 vise features standard mounting slots (flanges). You simply use T-bolts and nuts (or standard bolts depending on your table) to secure the vise base directly to the slots on your drill press or milling machine table.

Upgrade your drilling accuracy and versatility with our rugged Q97 cross slide vises.

Contact our sales team today for a complete catalog and bulk pricing.
