| Size: | |
|---|---|
GT Precision Modular Vise
Zhenghao
20CrMnTi Alloy steel
HRC58~62
0.005/100mm
0.005mm
CNC Milling Grinding machine
manual
Modualr vise
0.003-0.005mm
Anti-rust treatment
Machine center, CNC machine, Lathe Milling, grinding, drilling
GT100 GT125 GT150 GT175 GT200 GT300
Our GT modular vises are of machine tools workholding and clamping accessories
The preicision vises are maade of high quality steel material: 20CrMoTi
High accuracy squareness and parallelism for vise is 0.005mm
Jaw width: 100mm, 125mm, 150mm, 175mm, 200mm, 300mm

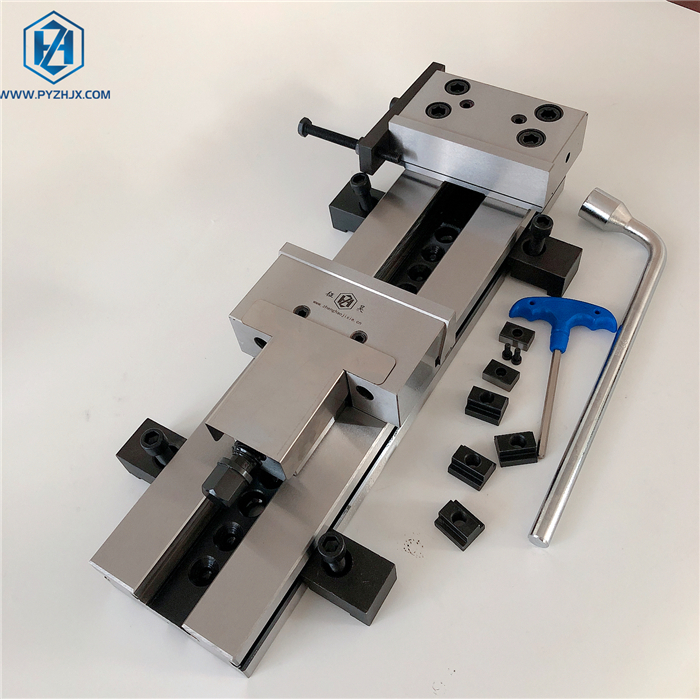

Modular vise composed of vise body, fix jaw, active jaw, clamping rack and lead screw.

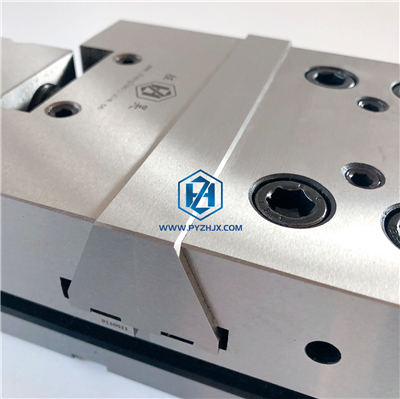

Vise jaw plates: V angle grooved jaw plate
Precision modular vise jaw type: flat jaws, v groove jaws, thread hole jaws.
We could also supply pair of jaws separately as your need.

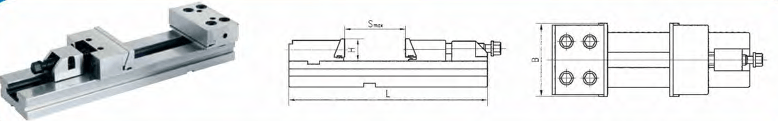

Precision Modular Vise Parameters
| Order No. | B | H | Smax | L | Clamping force |
| GT100 | 100 | 30 | 100 | 270 | 3000 |
| GT125 | 125 | 40 | 150 | 345 | 3000 |
| GT150A | 150 | 50 | 200 | 420 | 5000 |
| GT150B | 150 | 50 | 300 | 520 | 5000 |
| GT150C | 150 | 50 | 400 | 620 | 5000 |
| GT175A | 175 | 60 | 200 | 455 | 6000 |
| GT175B | 175 | 60 | 300 | 555 | 6000 |
| GT175C | 175 | 60 | 400 | 655 | 6000 |
| GT175D | 175 | 60 | 500 | 755 | 6000 |
| GT175E | 175 | 60 | 600 | 855 | 6000 |
| GT200A | 200 | 65 | 200 | 495 | 10000 |
| GT200B | 200 | 65 | 300 | 595 | 10000 |
| GT200C | 200 | 65 | 400 | 695 | 10000 |
| GT200D | 200 | 65 | 500 | 795 | 10000 |
| GT200E | 200 | 65 | 600 | 895 | 10000 |
| GT300A | 300 | 80 | 200 | 535 | 12000 |
| GT300B | 300 | 80 | 300 | 635 | 12000 |
| GT300C | 300 | 80 | 400 | 735 | 12000 |
| GT300D | 300 | 80 | 500 | 835 | 12000 |
| GT300E | 300 | 80 | 600 | 935 | 12000 |
| GT300F | 300 | 80 | 700 | 1035 | 12000 |
| GT300G | 300 | 80 | 800 | 1135 | 12000 |
Pingyuan Zhenghao Machinery CO, LTD found in 1998, professional produced GT precision modular vise for CNC.
Our company is one of the largest production base of many kinds of CNC precision vises and accessories.
Our company has advanced technology and equipment, including auto CNC machines, grinding machine,etc.,
We also has a group of advanced technical personnel and good international trade team.
Our productions export to more than 20 countries and regions. including Europe, Southeast Asia, South America.
Our company adheres to the principles of "quality first, customers supreme and reputation fundamental".
We sincerely welcome foreign customers to visit us .
The GT Precision Modular Vise is a cornerstone workholding solution for modern CNC machining centers and precision milling machines. Unlike traditional cast-iron vises, the modular design allows for rapid reconfiguration and the ability to mount multiple vises side-by-side or end-to-end on a machine table or tombstone with perfect alignment. Its sleek, low-profile design maximizes the Z-axis working envelope, while the specialized pull-down clamping mechanism ensures the workpiece remains firmly seated against the parallel blocks, completely eliminating jaw lift during heavy milling operations.
Premium Hardened Steel: Forged from high-quality alloy steel (such as 20CrMnTi) and case-hardened to HRC 58-62. This provides exceptional rigidity, wear resistance, and long-term accuracy that far surpasses standard cast-iron vises.
High Precision & Parallelism: The base, sides, and jaw mounting surfaces are all precision-ground. Parallelism and squareness are tightly controlled within 0.005mm/100mm, guaranteeing exact part positioning and repeatability.
Anti-Lift (Pull-Down) Mechanism: Features an advanced jaw design that actively pulls the workpiece downward at a 45-degree angle as clamping pressure is applied. This prevents the part from lifting and ensures it remains flat on the parallels.
Modular & Interchangeable: The jaws are easily interchangeable (choose from smooth, serrated, step jaws, or soft jaws). The vise bodies can be seamlessly combined to hold extra-long extrusions or multiple smaller parts simultaneously.
Multi-Directional Mounting: Because it is precision-ground on the bottom and both sides, the vise can be mounted vertically or horizontally, offering immense flexibility for 4-axis and 5-axis setups.
Direct Manufacturer Savings: Bypass trading companies and source premium CNC workholding solutions directly from our factory for highly competitive wholesale pricing.
Comprehensive Size Range: We manufacture the complete GT series, including popular models like GT100, GT125, GT150, GT175, GT200, and GT300 (jaw widths from 100mm to 300mm).
Strict Quality Control: Every modular vise is rigorously inspected using CMM (Coordinate Measuring Machines) to verify squareness, parallelism, and clamping force before packaging.
OEM & Customization: We offer custom laser engraving of your brand logo, custom jaw manufacturing, and tailored packaging for retail distributors.
Q1: What makes a "modular" vise different from a standard machine vise?
A: A standard vise is typically made of cast iron and is designed to be used individually. A modular vise is made of hardened steel and is precision-ground on all sides to exact identical dimensions. This allows you to mount two, three, or more modular vises perfectly in line to hold very long parts, or pack them tightly together on a tombstone for high-density machining.
Q2: What is the "anti-lift" or "pull-down" feature?
A: When you tighten a standard vise, the movable jaw tends to deflect and lift slightly, pulling the workpiece up and off the parallel blocks, which ruins your machining accuracy. Our GT modular vises feature a specialized wedge mechanism that forces the movable jaw downward as it tightens, keeping the workpiece perfectly flat and secure.
Q3: Can I mount this vise on its side?
A:Yes! Because the GT modular vise is precision-ground on the bottom and both lateral sides, it can be mounted upright or laid on its side. This provides immense flexibility for complex CNC setups, angle plates, and horizontal machining centers.
Q4: Are the jaws compatible with other brands?
A: Our GT vises are manufactured to international standard dimensions. The jaw hole patterns, spacing, and modular components are highly compatible with many other major European and global brands of modular vises on the market, making it easy to integrate into your existing tooling system.
Secure your workpieces with absolute precision and unmatched rigidity using our GT Precision Modular Vises.
Contact our sales team today for a complete catalog and bulk pricing.
