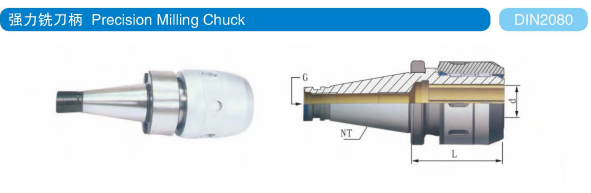

Product Overview

While traditional manual knee mills and boring machines often rely on ER collets or Weldon end mill holders, these systems can struggle with tool pull-out or lack concentricity when pushing large-diameter cutters through tough materials. The DIN 2080 NT Power Milling Chuck provides the ultimate solution for heavy-duty conventional machining. Designed with a massive steel body and a specialized straight-bore collet system, it generates immense clamping pressure. The key is the nut: it contains precision needle bearings that eliminate friction during tightening, converting your wrench torque directly into massive, uniform compressive force on the cutting tool shank.

Key Features & Advantages

• Extreme Gripping Force: The needle-bearing nut design provides dramatically higher clamping torque compared to friction-based collet nuts. This guarantees that your large solid carbide or HSS end mills will not slip, spin, or pull out, even during the most aggressive heavy-depth-of-cut (HDOC) roughing passes on manual machines.

• Maximum Rigidity: Forged from premium alloy steel (such as 20CrMnTi) and case-hardened to HRC 56-60. The ultra-thick wall construction of the chuck body absorbs heavy milling vibrations, preventing chatter and extending the life of your cutting tools.

• High Precision Runout: The internal bore and the external NT machine taper are precision-ground simultaneously to ensure a maximum Total Indicator Runout (T.I.R.) of ≤ 0.005mm (5 microns) at 3 times the tool diameter (3xD), ensuring even chip loads and superior surface finishes.

• Straight Collet System (SC/C-Type): Utilizes standard straight collets (e.g., SC32 / C32 collets) which provide full-length, 360-degree cylindrical contact around the tool shank, unlike the localized gripping of slotted ER collets or the off-center push of Weldon set screws.

• Standard Drawbar Threads: Machined with standard internal threads at the rear of the taper to perfectly match your machine's manual drawbar (e.g., M16 for NT40, M24 for NT50). Imperial (inch) threads are available upon request.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source heavy-duty conventional machine tooling directly from our factory for highly competitive wholesale pricing.

• Complete Spindle Compatibility: We manufacture the full range of NT tapers for heavy milling: NT40 (the most common size for universal milling machines) and NT50 (for heavy-duty boring and milling machines).

• Standard Capacities: Available in all major power chuck sizes: SC20 (3/4"), SC25 (1"), SC32 (1-1/4"), and SC42.

• Strict Quality Control: Every tool holder undergoes rigorous inspection using 3D CMMs and taper gauges to verify dimensional accuracy and taper angle (AT3 standard) before packaging.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: When should I use a Power Milling Chuck instead of an ER Collet Chuck on my manual mill?

A: You should upgrade to a Power Milling Chuck when performing heavy roughing, slotting, or machining tough materials (like tool steel or cast iron) using end mills larger than 12mm (1/2"). ER chucks are prone to tool pull-out under heavy axial loads; Power Chucks provide the massive grip and rigidity needed to prevent this and maximize your machine's horsepower.

Q2: What do "SC32" and "C32" mean? Are they the same?

A: Yes, they refer to the same straight collet system. "SC" stands for Straight Collet, and "C" is also a common designation. An SC32 (or C32) power chuck has a 32mm internal bore. It can hold a 32mm shank tool directly, or use SC32/C32 straight collets to hold smaller tools (e.g., 6mm, 10mm, 16mm, 20mm, 25mm).

Q3: Can I use this NT40 holder in my CNC machining center?

A:No. While NT40, BT40, and SK40 all share the same 7/24 taper angle, NT holders have a cylindrical pilot and an internal thread for a manual drawbar. They do not have the V-flange required for an Automatic Tool Changer (ATC) or the threads for a pull stud. They are strictly for manual or conventional NC machines with a drawbar.

Q4: Do I need a special wrench to tighten it?

A: Yes, Power Milling Chucks require a heavy-duty Hook Spanner Wrench (C-Spanner) that fits into the slots on the large bearing nut. Because of the needle bearings inside the nut, you can achieve massive clamping force with a standard hook wrench without needing excessive physical effort.

Eliminate tool pull-out and maximize your roughing efficiency on conventional machines with our DIN 2080 NT Power Milling Chucks.

Contact our sales team today for a complete catalog and bulk pricing.
