[Product Overview]

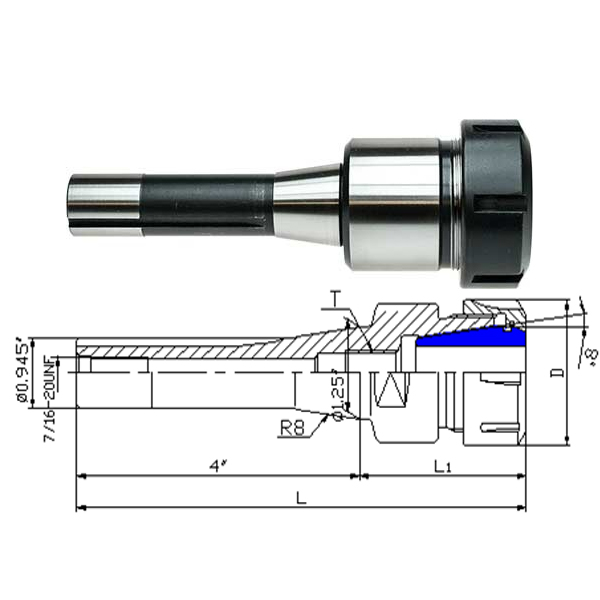

The R8 Shank ER Collet Chuck is a must-have upgrade for any traditional machine shop or toolroom. While standard R8 collets require a different collet for every single tool shank size, an R8 to ER Collet Chuck allows you to utilize the globally standardized ER collet system. This means greater clamping range, superior concentricity, and faster tool changes on your Bridgeport or manual knee mill. It provides a rigid, highly accurate connection that transmits maximum torque for both roughing and finishing operations.

[Key Features & Advantages]

• High-Precision Runout: Both the R8 external taper and the internal ER collet pocket are precision ground in a single setup. Runout (T.I.R.) is strictly controlled to ≤ 0.005mm (0.0002"), minimizing tool wear and ensuring superior surface finishes.

• Premium Material & Hardness: Constructed from high-quality 20CrMnTi alloy steel. The surface is hardened to HRC 56-60 for excellent wear resistance against chips and fretting, while the core remains tough to absorb cutting vibrations.

• Versatile ER System: Compatible with all standard DIN 6499 ER collets. A single ER32 chuck, for example, can clamp any tool shank from 2mm up to 20mm simply by changing the collet.

• Drawbar Compatibility: We manufacture these shanks with both imperial (7/16"-20 UNF) and metric (M12 x 1.75) internal threads to suit American, European, and Asian machine drawbars.

• Comprehensive Size Range: Available in R8-ER16, R8-ER20, R8-ER25, R8-ER32, and R8-ER40 configurations.

[Why Partner with Pingyuan Zhenghao Machinery?]

• Direct Manufacturer Savings: Bypass trading companies and source premium manual milling accessories directly from our factory for highly competitive wholesale pricing.

• Strict Quality Control: Every holder is inspected using advanced air gauges and concentricity testers before packaging to ensure perfect taper contact.

• One-Stop Tooling Solution: We also manufacture the matching ER Collets, Clamping Nuts, and Spanner Wrenches, ensuring perfect compatibility and performance.

• OEM & Customization: We can laser engrave your brand logo and part numbers directly onto the shanks for retail packaging.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: Why use an R8 ER Collet Chuck instead of standard individual R8 collets?

A: Standard R8 collets have a very limited collapse range (they only hold the exact size they are bored for). The ER system has a 1mm (or 0.039") collapse range per collet. This means a single ER32 chuck and a set of collets can hold any tool shank from 2mm to 20mm securely, drastically reducing the number of tool holders you need to buy and swap.

Q2: How do I know which drawbar thread I need?

A:

• Most American-made machines and genuine Bridgeport mills use a 7/16"-20 UNF imperial thread.

• Many Asian or European imported manual knee mills use an M12 x 1.75 metric thread. Please check your machine's drawbar with a nut or thread gauge before ordering.

Q3: Can I use this for heavy roughing cuts?

A: Yes. The R8 taper combined with the ER collet system provides excellent rigidity and 360-degree gripping force around the tool shank. It is highly suitable for both precision finishing and moderate-to-heavy roughing operations on manual mills.

Q4: Does the chuck come with the collets and wrench?

A: The chuck body, collets, and spanner wrench are typically sold separately so you can customize your setup. However, we do offer complete, ready-to-use packaged sets (Chuck + Collet Set + Wrench) at a discounted factory rate.

Maximize the versatility and precision of your manual milling machines.

Contact our sales team today for a complete catalog and bulk pricing.
