[Product Overview]

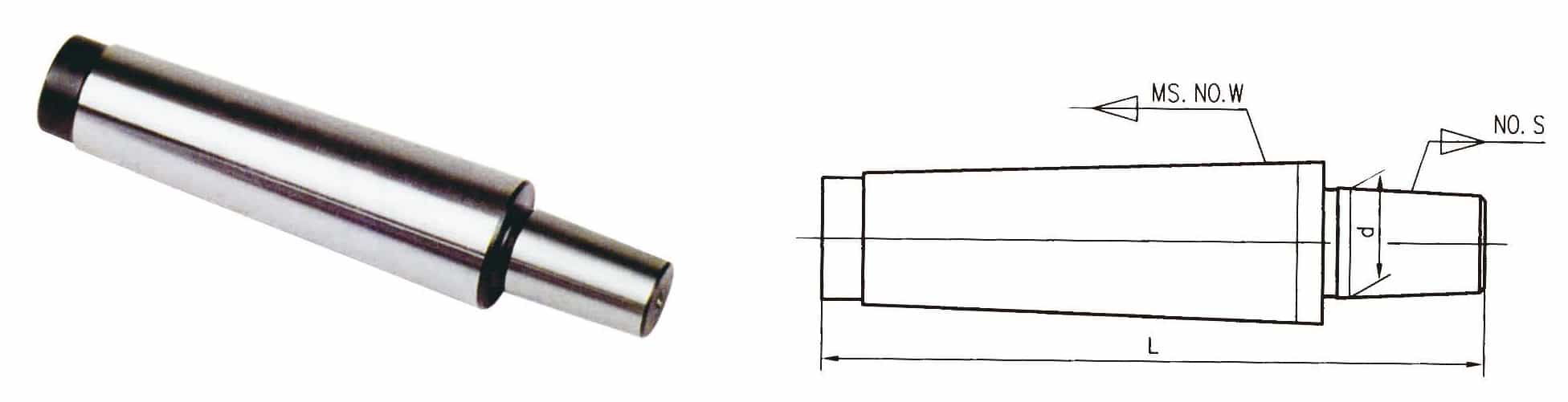

The Morse Taper Drill Chuck Arbor is the crucial bridge between your machine tool and your drill chuck. Because most keyless and keyed drill chucks feature an internal female taper (either Jacobs or DIN standard) and machine spindles feature a female Morse Taper, this double-ended male arbor is required to mate them together. Our arbors are engineered to provide a rigid, highly accurate connection that transmits maximum torque without slipping, ensuring your drilling operations remain precise and chatter-free.

[Key Features & Advantages]

• High-Precision Grinding: Both the Morse Taper and the chuck mounting taper are precision ground in a single setup. This guarantees exceptional concentricity, minimizing drill runout and extending tool life.

• Premium Hardened Steel: Manufactured from high-quality 20CrMnTi or 45# steel. The entire arbor is heat-treated to a uniform hardness of HRC 48-52, preventing scoring, wear, and deformation under heavy drilling loads.

• Dual Standard Compatibility: We manufacture arbors to fit both European DIN Standards (B10, B12, B16, B18, B22) and American Jacobs Standards (JT1, JT2, JT3, JT6, JT33).

• MTA and MTB Options:

• MTA (Tang Type): Features a flat tang at the end for quick ejection using a drift key (ideal for drill presses and lathes).

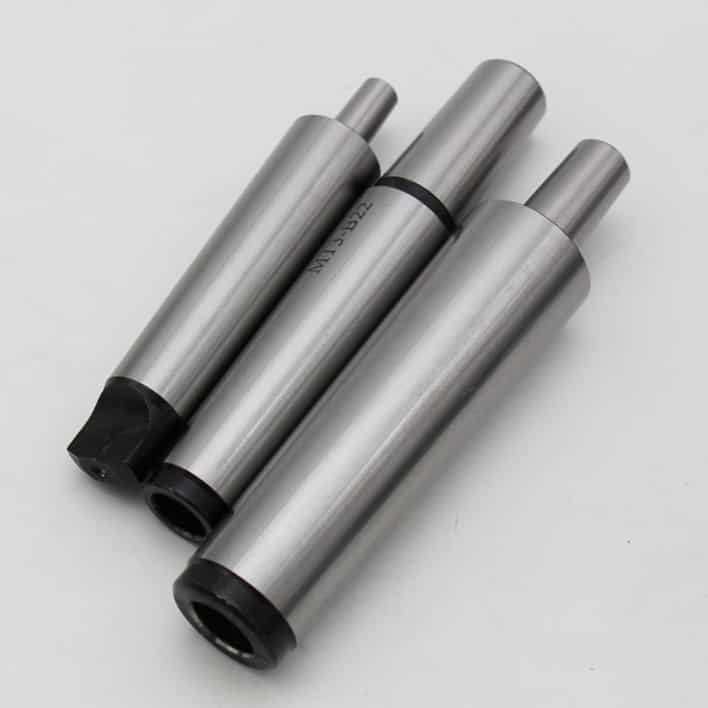

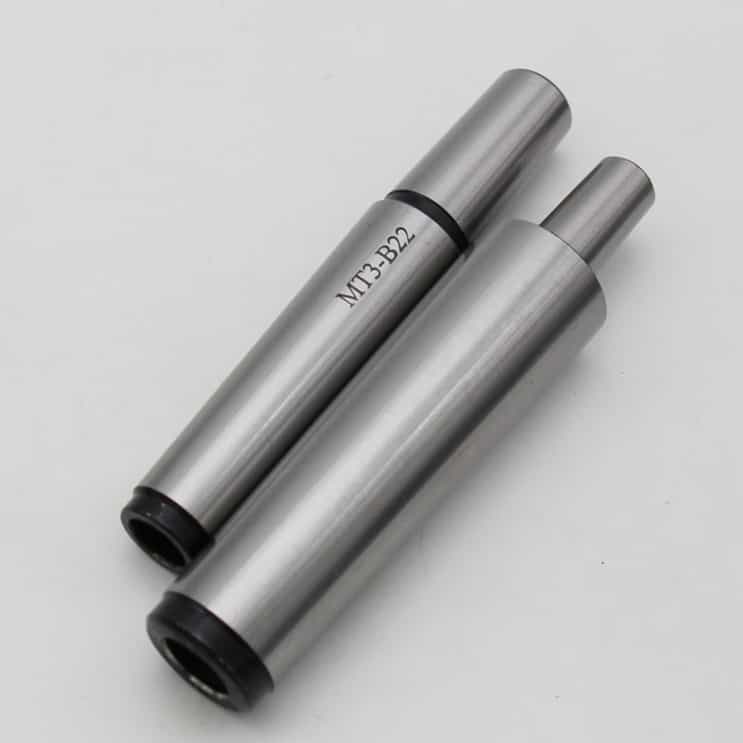

• MTB (Drawbar Type): Features an internal thread at the end for secure locking with a drawbar (essential for milling machines).

• Seamless Friction Fit: The ground surfaces provide over 85% taper contact area, creating a powerful locking force when seated.

[Why Partner with Pingyuan Zhenghao Machinery?]

• Direct Manufacturer Savings: Bypass trading companies and source directly from our factory for highly competitive wholesale pricing.

• Strict Quality Control: Every arbor is inspected using precision taper gauges to verify the angle and contact area before packaging.

• One-Stop Tooling Solution: We also manufacture the matching Keyless Drill Chucks, Keyed Drill Chucks, and Morse Taper Sleeves, ensuring perfect compatibility.

• OEM & Customization: We can laser engrave your brand logo and part numbers directly onto the arbors for easy identification and retail packaging.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: How do I choose the right arbor for my drill chuck?

A: You need to match two specifications:

1. Machine Side: Check your machine's manual to determine its spindle or tailstock taper (e.g., MT2, MT3).

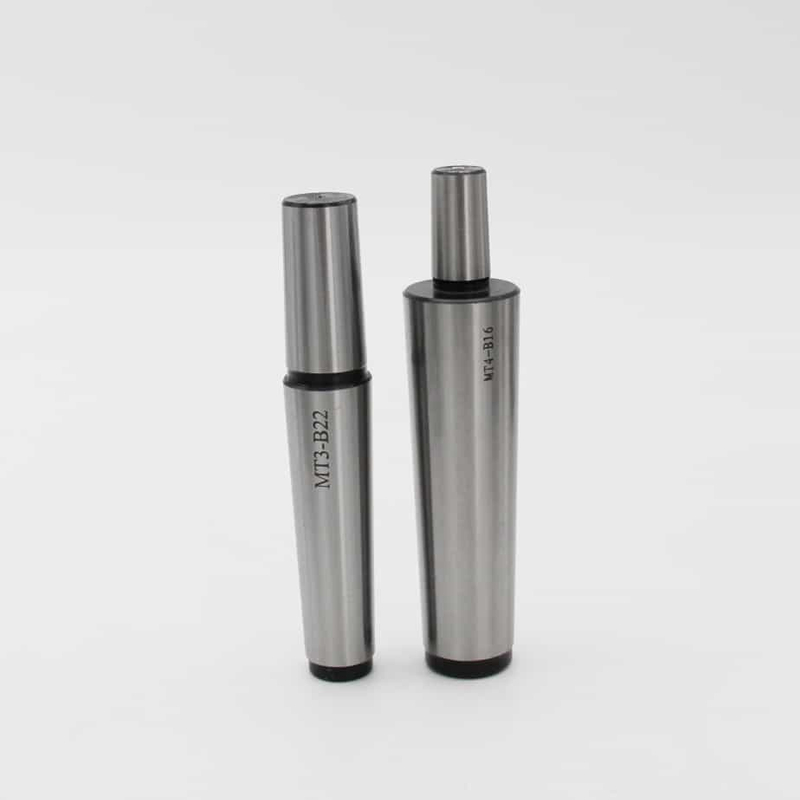

2. Chuck Side: Look at the back of your drill chuck. It will be stamped with its internal taper standard (e.g., B16, JT6). Example: If your lathe is MT3 and your chuck says B16, you need an MT3-B16 arbor.

Q2: What is the difference between a B-taper and a JT-taper?

A:

• B-Taper (DIN 238): The European standard (e.g., B12, B16). It is a shortened version of a Morse Taper.

• JT-Taper (Jacobs Taper): The American standard (e.g., JT3, JT33). They have different angles and dimensions and are not interchangeable. Always check the stamp on your chuck.

Q3: Should I choose a tang end (MTA) or threaded end (MTB)?

A:

• Use MTA (Tang) for drill presses and lathe tailstocks, where the tool is pushed into place and removed with a wedge (drift key).

• Use MTB (Threaded) for milling machines. Milling creates side loads that can cause a friction-fit taper to fall out. The drawbar thread securely locks the arbor into the spindle.

Q4: How do I install the drill chuck onto the arbor?

A: Clean both the male taper of the arbor and the female taper of the chuck thoroughly with a degreaser. Retract the chuck jaws fully. Press the chuck onto the arbor by hand, then tap the nose of the chuck firmly 2-3 times with a wooden or rubber mallet to seat the friction fit.

Ensure a rigid, dead-true connection for all your drilling operations.

Contact our sales team today for a complete catalog and bulk pricing.
