A must-have for every machine shop, our Universal Clamping Kit saves time and ensures safety during machining. The kit includes a versatile assortment of studs, nuts, step blocks, and clamps designed to fit specific T-slot table dimensions. Whether you are setting up a complex job on a Bridgeport mill or a simple drilling operation, this kit offers the flexibility and rigidity you demand.

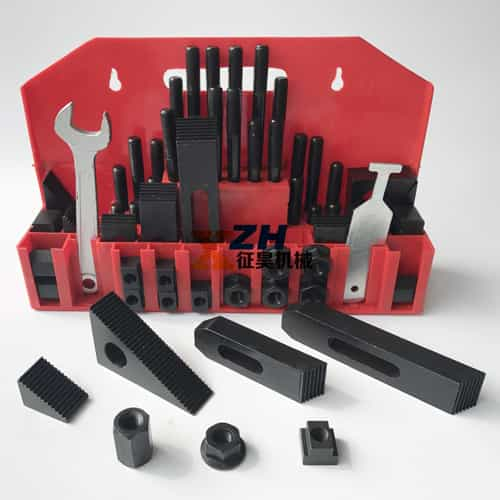

Every kit comes fully loaded with:
24x Studs: 4 pieces each of 3", 4", 5", 6", 7", and 8" lengths (or Metric equivalents: 75mm, 100mm, 125mm, 150mm, 175mm, 200mm).
6x T-Slot Nuts: Precision machined to fit your table slots perfectly.
6x Flange Nuts: For securing the clamp down.
4x Coupling Nuts: To extend stud length for tall workpieces.
6x Step Clamps: Serrated teeth for a non-slip grip.
12x Step Blocks: Serrated steps to match the clamps for adjustable height.
1x Storage Rack: Heavy-duty plastic holder that can be mounted on the wall or machine side.
Machine Tools Clamping Kit Set
Product Name: Clamping Kit Set, T-slot clamping set
Clamping kit with heat treatment hardness: HRC27-37
Material: S45C
Metric Size: M8/M10/M12/M14/M16/M18/M20 etc
Types: inch size clamping kit, metric size clamping kit

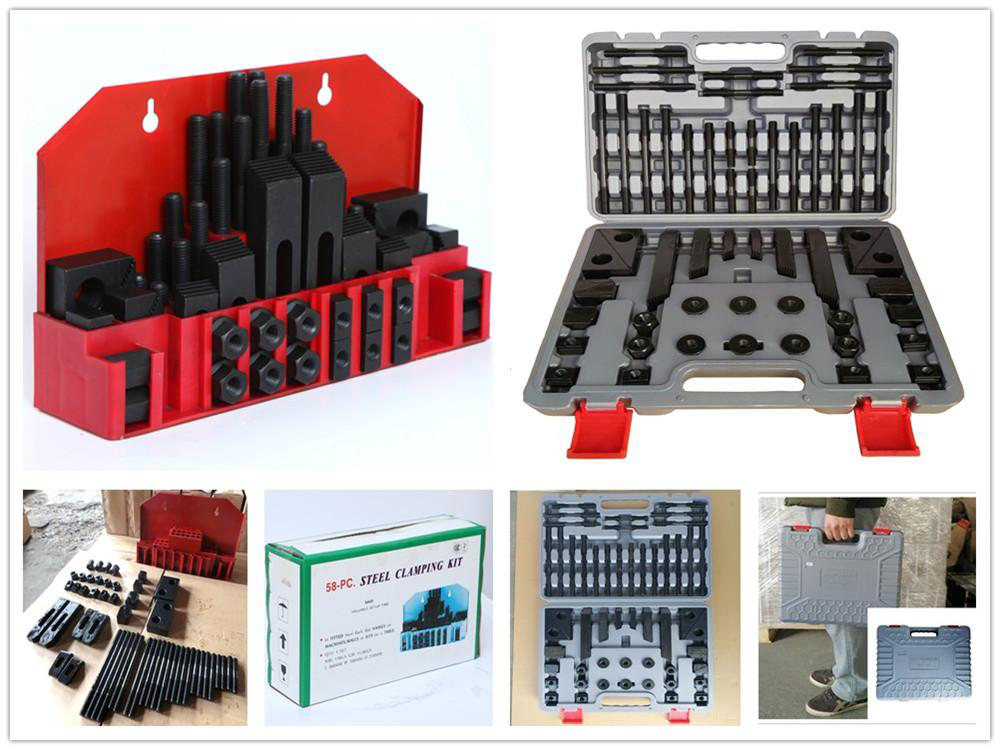

Clamping kit Packing
Clamping kit Models
Model | Taiwan Code | Table Slot | Stud Sizes | GB |
M 8*10 | CK-08 | 10 | 8-1.25P | - |
M10*12 | CK-10 | 12 | 10-1.25P | 3/8-16 |
M12*14 | CK-12 | 14 | 12-1.75P | 1/2-12 |
M14*16 | CK-14 | 16 | 14-2.0P | - |
M16*18 | CK-16 | 18 | 16-2.0P | 5/8-11 |
M18*20 | CK-18 | 20 | 18-2.5P | - |
M20*22 | CK-20 | 22 | 20-2.5P | 3/4-10 |
M22*24 | CK-22 | 24 | 24-3.0P | 7/8-9 |
Heavy-Duty Steel Construction: We use S45C steel hardened to HRC 30-35. This ensures the studs won't bend and the threads won't strip under heavy clamping pressure, unlike cheaper cast iron kits.
Black Oxide Finish: Provides a professional look and essential corrosion protection against coolant and shop humidity.
Wide Compatibility: Fits all major machine brands (Bridgeport, Haas, Mazak, etc.) with standard T-slots.
Organized Workshop: The included rack keeps your workspace tidy and ensures no parts go missing.
Factory Direct Quality: We control the heat treatment and machining process to ensure consistent quality.
Full Size Range: We stock the hard-to-find sizes (like M14 or 5/8") that many traders don't carry.
Customization: We can offer OEM packaging (your logo on the box) for distributors.
Competitive Price: Get the best value for a professional-grade steel kit.
Q1: How do I choose the right size kit for my machine?
A: You need to measure the T-Slot width of your machine table.
10mm Slot: Choose M8 Kit.
12mm Slot: Choose M10 Kit.
14mm Slot: Choose M12 Kit (Most common for small mills).
16mm Slot: Choose M14 Kit.
18mm Slot: Choose M16 Kit (Common for Bridgeport/larger mills).
20-22mm Slot: Choose M18 or M20 Kit.
Note: Imperial sizes (1/2", 5/8") are also determined by the table slot width.
Q2: Are the studs fully threaded?
A: No, the studs are double-ended threaded. This allows for easier adjustment and prevents the threads from being damaged in the middle section.
Q3: Can I buy replacement parts if I lose some?
A: Yes! We sell individual components (T-nuts, flange nuts, studs, step blocks) so you don't have to buy a whole new kit if you just need a few extras.
Q4: Do you have a stainless steel version?
A: Standard kits are Black Oxide Steel. Stainless steel kits are available via special custom order (MOQ applies) for EDM or food-grade applications.
Secure your workpieces with confidence.Get a quote for our professional 58-piece clamping kits today.
