Precision Bull Nose Live Center | Pipe & Tube Turning Center

Product Overview

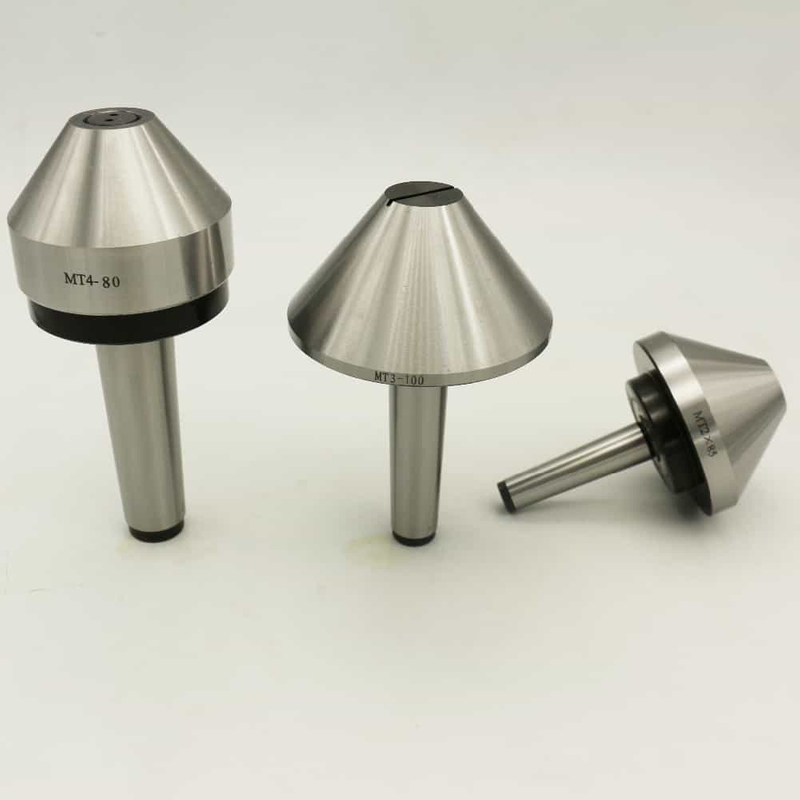

The Bull Nose Live Center (often referred to as a Pipe Center or Umbrella Center) is an essential workholding accessory for any machine shop working with tubular components. Standard 60-degree live centers are too small to support the large open ends of pipes, cylinders, or parts with large bores. The bull nose center solves this by utilizing a large-diameter, flattened cone head that seats securely against the chamfered edge or inner wall of the hollow workpiece. This provides rigid, chatter-free support at the tailstock, ensuring accurate turning, threading, and facing operations on large-diameter hollow parts.

Key Features & Advantages

• Oversized Cone Design: The large "bull nose" head is available in various diameter ranges (e.g., 50mm to 100mm, 100mm to 200mm, etc.) to accommodate a wide variety of pipe and tube sizes with a single tool.

• Heavy-Duty Bearing Assembly: Equipped with a robust combination of deep groove ball bearings, thrust bearings, and needle roller bearings to absorb the massive axial thrust and radial loads generated when machining heavy pipes.

• Premium Hardened Steel: The entire rotating head is forged from high-quality alloy steel and heat-treated to HRC 58-62, providing outstanding wear resistance against the abrasive edges of raw tubing and castings.

• Precision Ground Head: The 60-degree or 75-degree conical surface is precision-ground after assembly to ensure excellent runout accuracy (typically ≤ 0.01mm), guaranteeing that your tubular parts run true.

• Dust and Coolant Seal: Features a protective seal behind the rotating head to prevent cutting fluids, metal chips, and grinding dust from entering the bearing housing, ensuring a long service life even in harsh machining environments.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source heavy-duty lathe accessories directly from our factory for highly competitive wholesale pricing.

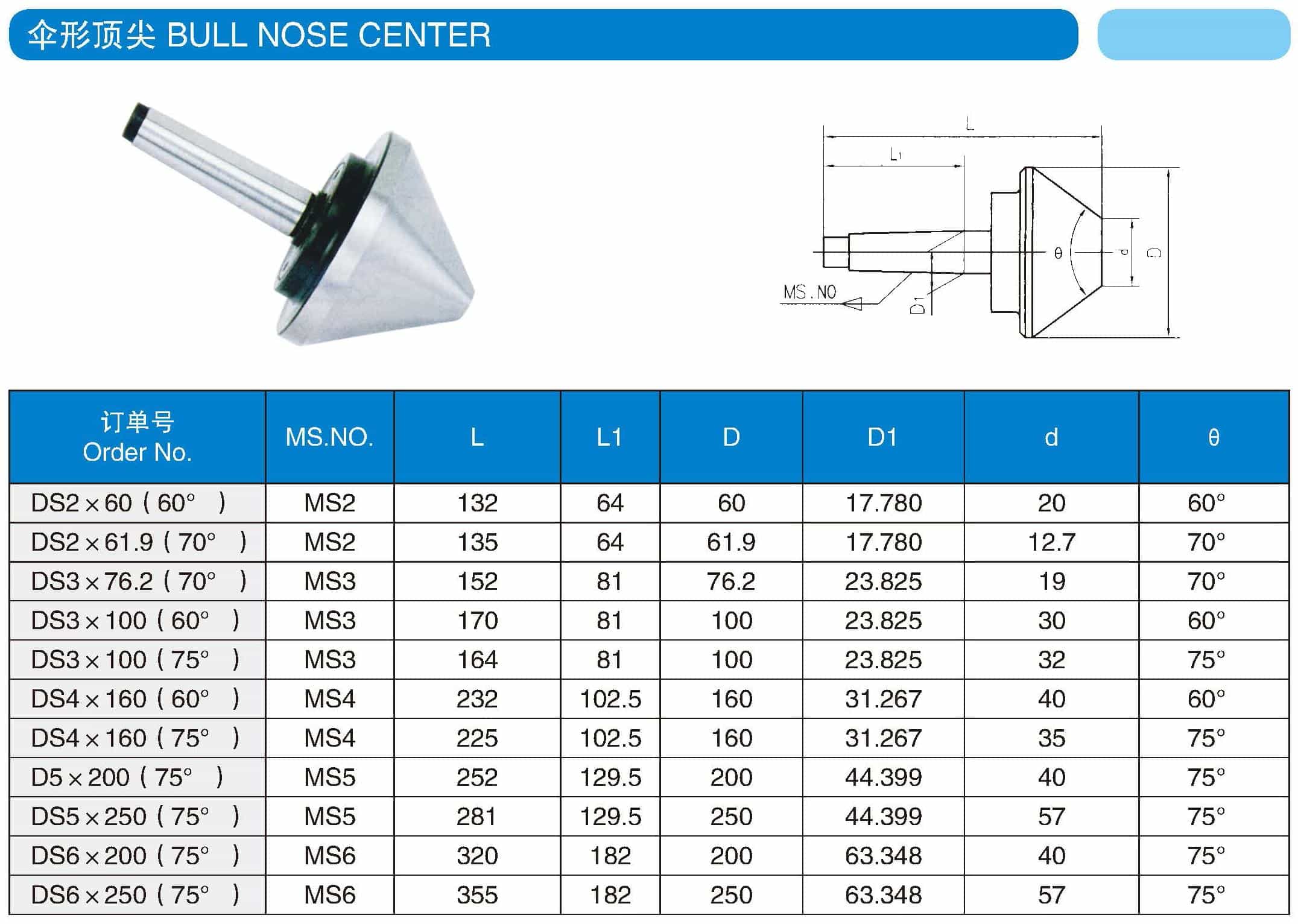

• Wide Range of Sizes: We offer bull nose centers in all standard Morse Tapers (MT3, MT4, MT5, MT6) and with various head diameters to suit everything from small tubing to massive oilfield pipes.

• Strict Quality Control: Every center is dynamically tested under load to verify bearing smoothness, heat generation, and runout accuracy before packaging.

• OEM & Customization: We offer custom head angles (e.g., 75° or 90° for specific pipe chamfers), custom laser engraving of your brand logo, and tailored packaging for retail distributors.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: How do I choose the right size Bull Nose Live Center?

A: You need to consider two factors:

1. Your Lathe's Tailstock: Choose the correct Morse Taper (e.g., MT4, MT5) that fits your machine.

2. The Workpiece Inner Diameter (ID): The bull nose head has a minimum and maximum diameter. You must select a center where the ID of your pipe falls comfortably between the small end and the large end of the bull nose cone.

Q2: Can a bull nose center be used on solid parts?

A: Generally, no. The tip of a bull nose center is flat (truncated), meaning it does not have the sharp point required to engage a standard small center hole drilled into a solid shaft. It is designed exclusively for hollow parts or parts with very large pre-machined center holes.

Q3: What angle is the cone on a bull nose center?

A: The most common angle is 60 degrees (included angle), which matches standard pipe chamfers and provides excellent centering. However, 75-degree or 90-degree heads are also available for specific applications where a steeper angle is required to handle heavier axial thrust or specific part geometries.

Q4: Is the head replaceable if it gets worn out?

A: On most standard bull nose centers, the head and the internal rotating shaft are a single solid piece for maximum rigidity, meaning the head is not replaceable. However, we do manufacture interchangeable head live centers where different sized bull nose cones can be swapped onto a single master shank.

Ensure rigid support and precision turning for all your pipe and tube machining with our Bull Nose Live Centers.

Contact our sales team today for a complete catalog and bulk pricing.
