Precision Parallel Blocks are fundamental tools for accurate machining. They are placed under the workpiece within a vise to raise it to the desired height while maintaining strict parallelism with the machine bed. Unlike makeshift spacers, our hardened parallels resist compression and wear, providing a reliable reference surface for years of daily use.
High Accuracy: Precision ground to a parallelism tolerance of ±0.005mm (0.0002") and paired in height to ±0.005mm, ensuring your workpiece sits perfectly flat.
Hardened Durability: Made from high-quality alloy steel (S45C or 20Cr), stress-relieved and hardened to HRC 48-53 to resist nicks and scratches from chips or heavy clamping forces.
Chamfered Edges: All edges are slightly chamfered to prevent damage to the vise jaws or workpiece and to allow for easy insertion.
Versatile Sets:
Thin Parallels (1/8" or ~3mm thick): Ideal for smaller parts or when maximum vise opening is needed. Common set: 10 pairs (20pcs) or 9 pairs (18pcs).
Thick Parallels (1/4" or ~6mm thick): For heavy-duty support.
Metric & Imperial: Available in 150mm length (Metric) or 6 inch length (Imperial).
Protective Case: Comes in a custom-fitted wooden or molded plastic box to protect the precision surfaces when not in use.

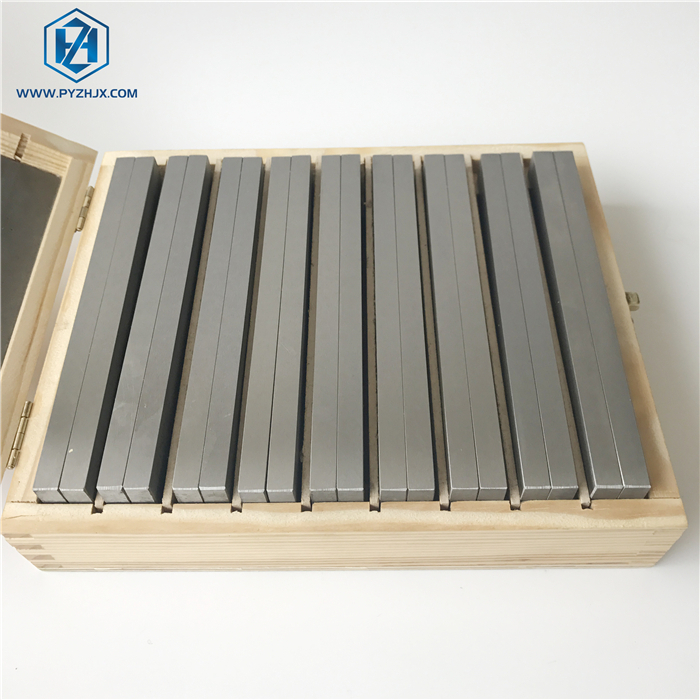

Precision Parallel Block Set
Product Name: Precision Parallel Block
Hardness: HRC55-62
Accuracy: 0.01mm
Material: Alloy Steel
Parallelism: 0.005mm
Application: Parallels, parallel blocks are used in machining operations, be it milling, drilling, turning or sometimes grinding. Usually used together with precision vises, exp. modular vises, tool vises.
| Model No. | Specification | Pcs |
| L X W X H | ||
| PB150-1 | 150X10X14(16,18,20,22,24,26,28,30,32,35,40,45,50) | 14X2 |
| PB150-2 | 150X8X14(16,18,20,22,24,26,28,30,32,35,40,45,50) | 14X2 |
| PB150-3 | 80X4X14(16,18,20,22,24,26,28,30,32,35,40,45,50) | 14X2 |
| PB150-4 | 200X10X14(16,18,20,22,24,26,28,30,32,35,40,45,50) | 14X2 |
| PB151-1 | 100X4X10(14,18,22,26,30,34,38,42) | 9X2 |
| PB151-2 | 160X4X10(14,18,22,26,30,34,38,42) | 9X2 |
| PB151-3 | 150X8.5X14(16,20,24,30,32,36,40,44) | 9X2 |
| PB151-4 | 150X10X14(16,20,24,30,32,36,40,44) | 9X2 |
| PB153-1 | 125X8X11(16,21,26,31,36) | 24X2 |
| 125X10X13(18,23,28,33,38) | ||
| 125X12X15(20,25,30,35,40) | ||
| 125X14X17(22,27,32,37,42) | ||
| PB153-2 | 150X8X11(16,21,26,31,36) | 24X2 |
| 150X10X13(18,23,28,33,38) | ||
| 150X12X15(20,25,30,35,40) | ||
| 150X14X17(22,27,32,37,42) | ||
| PB154-1 | 150X8X16(18,20,22,24,26,28,30,32,34,36,38,40,42,44,46,48,50) | 18X2 |
| PB154-2 | 150X8X17(19,21,23,25,27,29,31,33,35,37,39,41,43,45,47,49,51) | 18X2 |
| PB155-1 | 120X10X14(16,18,20,22,24,26,28,30,32,35,40) | 12X2 |
| PB155-2 | 150X10X14(16,18,20,22,24,26,28,30,32,35,40) | 12X2 |
| PB156-1 | 120X8X12(17,22,25,28,32,36,38) | 8X2 |
| PB156-2 | 160X8X12(17,22,25,28,32,36,38) | 8X2 |
| PB156-3 | 200X8X17(22,26,28,32,36,38,42) | 8X2 |
Parallel blocks packing
Consistent Quality: We inspect every pair for height consistency before packaging. You won't find mismatched pairs in our sets.
Wide Selection: From standard VP-100 series to heavy-duty VP-128 sets, we have the right size for your vise (4", 6", or 8").
Competitive Price: As a manufacturer, we offer these essential shop tools at prices that allow distributors to maintain healthy margins.
OEM Branding: We can laser mark your logo on each parallel and customize the box packaging for your brand.
Q1: What is the difference between the 18-piece and 28-piece sets?
A:
18-Piece Set (VP-118): Contains 9 pairs of parallels. Usually 1/4" thick x 6" long. Heights range from 3/4" to 1-3/4" in 1/8" increments.
28-Piece Set (VP-128): Contains 14 pairs of parallels. Usually 1/8" thick x 6" long. Offers a wider range of heights (e.g., 1/2" to 1-5/8") for finer adjustments.
Q2: Are these parallels sold individually or only in sets?
A: We primarily sell them in matched sets because keeping them paired is crucial for accuracy. However, for bulk orders, we can supply specific sizes (e.g., 100 pairs of 1/2" height) for production fixtures.
Q3: What is the tolerance on the height?
A: Within a pair, the height difference is strictly controlled to be within 0.005mm. The absolute height tolerance is typically ±0.01mm.
Q4: How do I prevent them from rusting?
A: Our parallels come with a light coat of anti-rust oil. We recommend wiping them clean before use and reapplying a light oil or rust inhibitor before storing them back in the case.
Ensure precision in every setup.Equip your shop with our high-quality steel parallel sets today.
