BT30 BT40 BT50
XZH
8466100000
Alloyed steel
56-58
for holding like shell mill cutters
BT FMB Face Mill Holder
0.005mm
Aa<0.005mm
for CNC milling machine
BT30/BT40/BT50
Silver
MAS 403 and B6339
G2.5/30000rpm

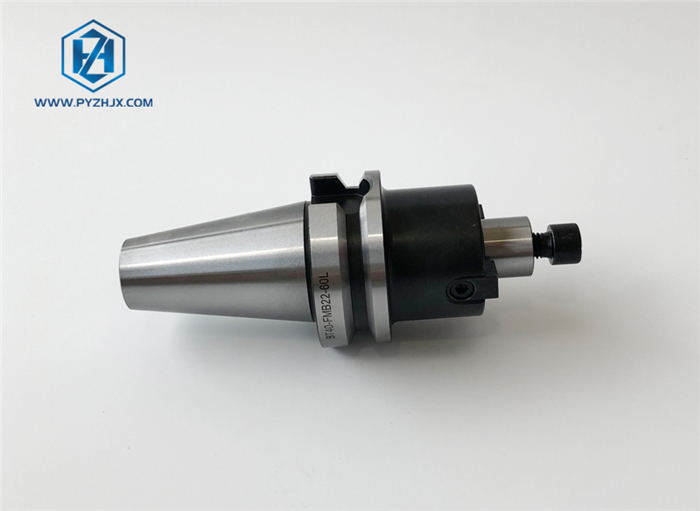

BT30 BT40 BT50 FMB Face Mill Chuck Holder
XZH
Material: Alloy case hardened steel
Taper tolerance:<at3< p="" style="box-sizing: border-box;">
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD＋B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: MAS 403 and B6339

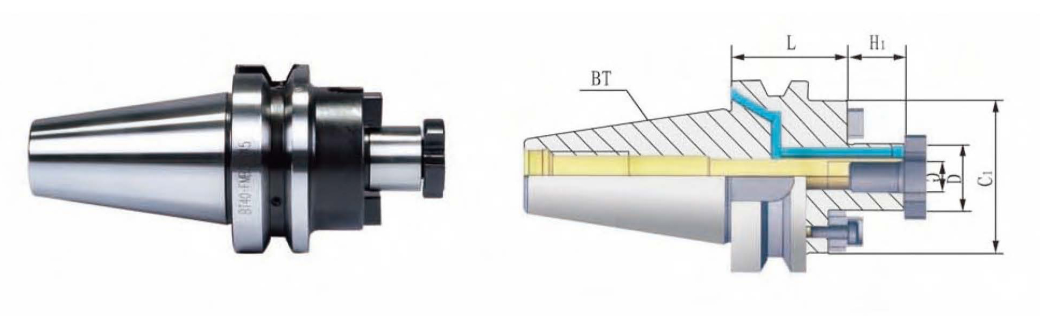

Order No. | Model | D | L | C1 | H1 | G |
11302245FB | BT30-FMB22-45 | 22 | 45 | 56 | 18 | M10 |
11302745FB | BT30-FMB27-60 | 27 | 60 | 64 | 20 | M12 |
11402245FB | BT40-FMB22-45 | 22 | 45 | 48 | 18 | M10 |
11402290FB | BT40-FMB22-90 | 22 | 60 | 48 | 18 | M10 |
11402745FB | BT40-FMB27-45 | 27 | 45 | 60 | 20 | M12 |
11402760FB | BT40-FMB27-60 | 27 | 60 | 60 | 20 | M12 |
11402790FB | BT40-FMB27-90 | 27 | 90 | 60 | 20 | M12 |
11403245FB | BT40-FMB32-45 | 32 | 60 | 63 | 21 | M16 |
11403260FB | BT40-FMB32-60 | 32 | 90 | 63 | 21 | M16 |
11404045FB | BT40-FMB40-45 | 40 | 45 | 68 | 23 | M16 |
11404060FB | BT40-FMB40-60 | 40 | 60 | 68 | 23 | M16 |
11502245FB | BT50-FMB22-45 | 22 | 45 | 48 | 18 | M10 |
11502275FB | BT50-FMB22-75 | 22 | 75 | 48 | 18 | M10 |
11502745FB | BT50-FMB27-45 | 27 | 45 | 65 | 20 | M12 |
11502775FB | BT50-FMB27-75 | 27 | 75 | 65 | 20 | M12 |
11502790FB | BT50-FMB27-90 | 27 | 90 | 65 | 20 | M12 |
11503245FB | BT50-FMB32-45 | 32 | 45 | 73 | 21 | M16 |
11503275FB | BT50-FMB32-75 | 32 | 75 | 73 | 21 | M16 |
11504045FB | BT50-FMB40-45 | 40 | 45 | 85 | 23 | M16 |
11504075FB | BT50-FMB40-75 | 40 | 75 | 85 | 23 | M16 |
115040105FB | BT50-FMB40-105 | 40 | 105 | 85 | 23 | M16 |
Material: Alloy case hardened steel
Taper tolerance:<at3< p="" style="box-sizing: border-box;">
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD＋B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: MAS 403 and B6339
Order No. | Model | D | L | C1 | H1 | G |
11302245FB | BT30-FMB22-45 | 22 | 45 | 56 | 18 | M10 |
11302745FB | BT30-FMB27-60 | 27 | 60 | 64 | 20 | M12 |
11402245FB | BT40-FMB22-45 | 22 | 45 | 48 | 18 | M10 |
11402290FB | BT40-FMB22-90 | 22 | 60 | 48 | 18 | M10 |
11402745FB | BT40-FMB27-45 | 27 | 45 | 60 | 20 | M12 |
11402760FB | BT40-FMB27-60 | 27 | 60 | 60 | 20 | M12 |
11402790FB | BT40-FMB27-90 | 27 | 90 | 60 | 20 | M12 |
11403245FB | BT40-FMB32-45 | 32 | 60 | 63 | 21 | M16 |
11403260FB | BT40-FMB32-60 | 32 | 90 | 63 | 21 | M16 |
11404045FB | BT40-FMB40-45 | 40 | 45 | 68 | 23 | M16 |
11404060FB | BT40-FMB40-60 | 40 | 60 | 68 | 23 | M16 |
11502245FB | BT50-FMB22-45 | 22 | 45 | 48 | 18 | M10 |
11502275FB | BT50-FMB22-75 | 22 | 75 | 48 | 18 | M10 |
11502745FB | BT50-FMB27-45 | 27 | 45 | 65 | 20 | M12 |
11502775FB | BT50-FMB27-75 | 27 | 75 | 65 | 20 | M12 |
11502790FB | BT50-FMB27-90 | 27 | 90 | 65 | 20 | M12 |
11503245FB | BT50-FMB32-45 | 32 | 45 | 73 | 21 | M16 |
11503275FB | BT50-FMB32-75 | 32 | 75 | 73 | 21 | M16 |
11504045FB | BT50-FMB40-45 | 40 | 45 | 85 | 23 | M16 |
11504075FB | BT50-FMB40-75 | 40 | 75 | 85 | 23 | M16 |
115040105FB | BT50-FMB40-105 | 40 | 105 | 85 | 23 | M16 |
