Italian Style Quick Change Tool Post Sets | Rapid Original Type

Product Overview

For machinists operating European-style lathes or those who demand maximum rigidity from their tooling setup, the Italian Style Quick Change Tool Post is the ultimate solution. Unlike traditional four-way tool posts that require constant shimming, this system allows you to pre-set the center height of multiple cutting tools in individual holders. When a tool change is required, simply slide the new holder onto the precision-ground dovetail block and rotate the locking handle. The internal eccentric cam mechanism instantly locks the holder with immense clamping force, creating a solid, unified mass that guarantees exact repeatability and eliminates chatter.

Key Features & Advantages

• Rapid Cam-Lock Mechanism: The heart of the Italian design. A quick turn of the handle actuates an internal cam that pulls the tool holder tightly against the prismatic dovetail. This provides incredibly fast tool changes and massive clamping force.

• Superior Rigidity & Repeatability: The large surface area of the V-shaped (prismatic) dovetail ensures perfect alignment every time a tool is mounted. It delivers exceptional repeatability (typically within 0.01mm) and absorbs heavy cutting vibrations effortlessly.

• Permanent Height Adjustment: Each tool holder is equipped with a knurled adjustment screw and locking nut. Once you set the cutting tool to the exact center height of your lathe spindle, it stays locked forever.

• Universal European Compatibility: Our tool posts and holders are manufactured to strict international standards, making them fully interchangeable with original Italian brands like Rapid Original, Boni, and other European cam-lock systems of the same size class.

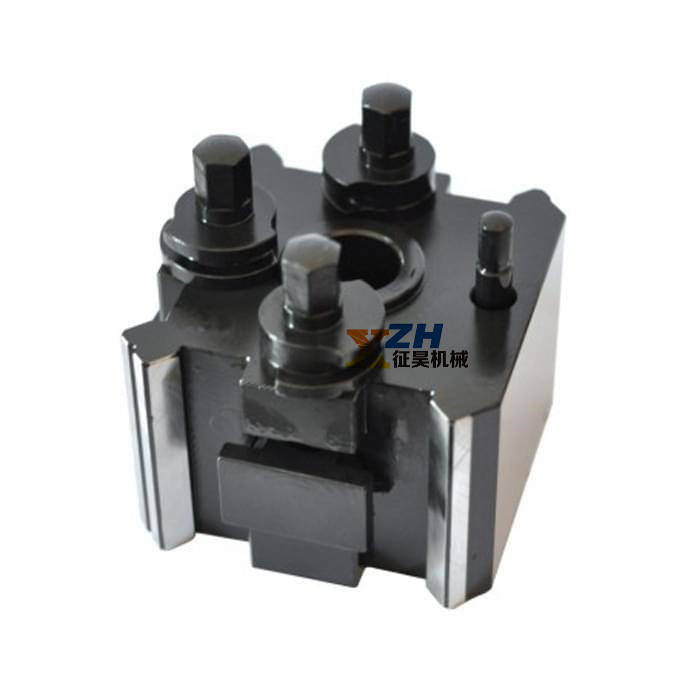

• Premium Hardened Steel: The main central block and all tool holders are forged from high-quality alloy steel, deeply case-hardened, and precision-ground to ensure lifelong accuracy and resistance to wear in demanding shop environments.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium European-style lathe tooling directly from our factory for highly competitive wholesale pricing.

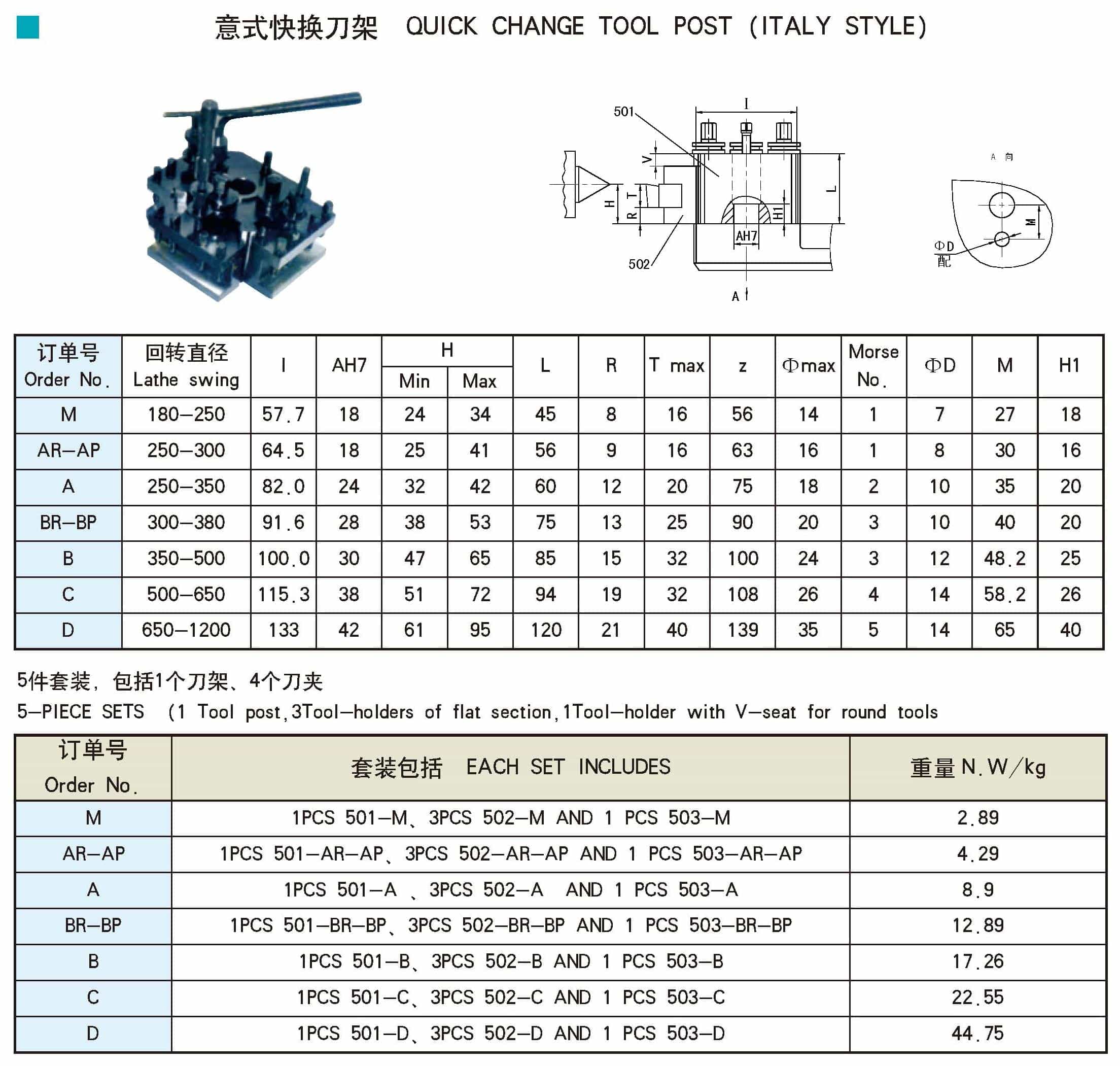

• Comprehensive Size Range: We manufacture the full spectrum of Italian tool post sizes to fit any manual lathe:

• Type M / AR: For small to light-duty lathes.

• Type BR / AP: For medium-duty toolroom lathes.

• Type CR / BP: For standard industrial lathes.

• Type DR / CP: For heavy-duty turning applications.

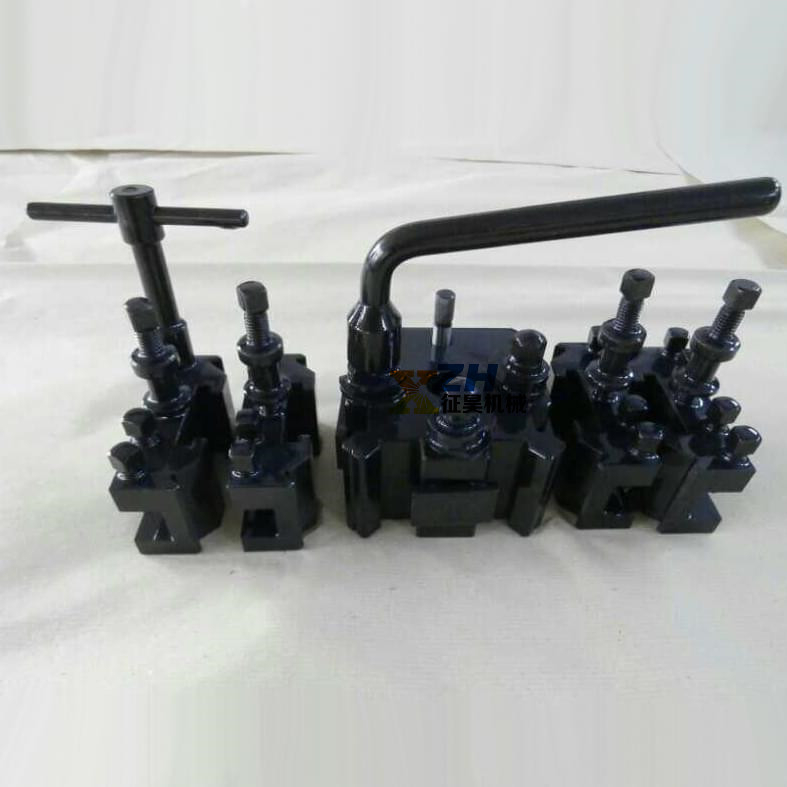

• Complete Kits Available: We offer complete sets that include the main cam-lock tool post body, wrenches, and a selection of standard holders (turning, boring, parting) to get your machine running immediately.

• Strict Quality Control: Every tool post is rigorously inspected for cam-lock smooth operation, dovetail profile accuracy, and clamping repeatability before packaging.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: What is the difference between the Italian Style and the American (Aloris) Style tool posts?

A: The primary difference lies in the locking mechanism and the dovetail profile. The American (Aloris) style uses a wedge or piston mechanism with a standard dovetail. The Italian style uses an eccentric cam-lock mechanism and a distinct prismatic (V-shaped) dovetail. Both are excellent, high-precision systems. The Italian style is the standard in Europe and is highly praised for its robust cam-locking force and extreme rigidity during heavy cuts.

Q2: How do I choose the correct size (AR, BR, CR) for my lathe?

A: The correct size is determined by your lathe's Swing Over Bed (the maximum diameter part it can turn) and the Center Height (distance from the compound rest to the spindle center). Please consult our sizing chart or provide your lathe's specifications to our sales team, and we will recommend the perfect size for your machine.

Q3: Will your tool holders fit my existing Rapid Original brand tool post?

A:Yes. Our Italian style tool posts and holders are manufactured to the same standard European dimensions. Our holders will fit your original block, and our block will accept your original holders, provided they are of the same size series (e.g., our BR holders fit a BR block).

Q4: How do I mount the tool post to my lathe's compound rest?

A: The tool post mounts via a central mounting stud and a T-nut that slides into the T-slot on your lathe's compound rest. We provide a blank (unmachined) base plate/T-nut with the kit. You or your machinist will need to mill this blank to the specific dimensions of your lathe's T-slot for a custom, rigid fit.

Experience European-standard rigidity, precision, and rapid tool changes with our Italian Style Quick Change Tool Post Sets.

Contact our sales team today for a complete catalog, sizing assistance, and bulk pricing.
