Product Overview

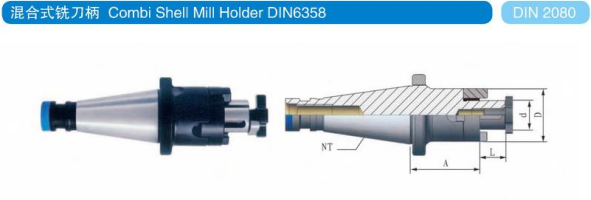

While modern CNC machines use BT or SK tapers with pull studs, thousands of reliable manual knee mills (like Bridgeport-style machines) and heavy-duty bed mills rely on the proven NT taper system. The NT Combi Shell End Mill Arbor is the essential adapter for mounting large-diameter indexable face mills or solid shell mills onto these conventional machines. By utilizing a threaded drawbar that pulls the arbor securely into the spindle taper, it provides an incredibly rigid connection. The "Combi" design further enhances its value by accommodating two different cutter drive styles, making it a highly economical and versatile tooling choice for any conventional machine shop or toolroom.

Key Features & Advantages

• Dual-Drive Versatility (Combi Design): Features a removable drive ring. Keep the ring on to drive face mills with a cross (transverse) slot. Remove the ring to expose the underlying keys for driving shell end mills with a longitudinal slot. One arbor does the work of two.

• Secure Drawbar Connection: Designed specifically for manual milling machines. The rear of the NT taper features a threaded hole to accept the machine's drawbar, pulling the arbor tightly into the spindle for maximum rigidity and safety during heavy cuts.

• High-Precision Ground Taper: The 7/24 taper and the front pilot diameter are precision-ground to ensure excellent concentricity, minimizing runout to extend the life of your cutting inserts and improve surface finishes.

• Premium Material & Hardness: Forged from high-quality alloy steel (such as 20CrMnTi) and case-hardened to HRC 56-60. This provides a tough, shock-absorbing core with a highly wear-resistant exterior, ensuring years of reliable service in demanding environments.

• Broad Compatibility: Available in standard metric pilot diameters (16mm, 22mm, 27mm, 32mm, 40mm, 50mm) to fit all standard face milling cutters and shell mills on the market.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium conventional milling accessories directly from our factory for highly competitive wholesale pricing.

• Complete NT Taper Range: We manufacture the full spectrum of NT sizes:

• NT30 (ISO30): For smaller knee mills and turret milling machines.

• NT40 (ISO40): The industry standard for medium-duty universal milling machines.

• NT50 (ISO50): For heavy-duty bed mills and large boring mills.

• Custom Drawbar Threads: We offer both Metric (e.g., M12, M16, M24) and Imperial/Whitworth (e.g., 1/2"-13, 5/8"-11, 1"-8) drawbar threads to perfectly match your specific machine's requirements.

• Strict Quality Control: Every arbor is rigorously inspected for taper accuracy, thread quality, and pilot diameter tolerances before packaging. Includes the drive ring and locking screw.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: What is the difference between an NT taper and a BT/SK taper?

A: The primary difference is how they are retained in the spindle. NT tapers (also known as ISO tapers in manual contexts) have a threaded hole at the small end and are pulled into the spindle manually using a threaded drawbar. BT and SK tapers have an internal thread designed to hold a "pull stud" (retention knob), which is grabbed automatically by the CNC machine's automatic tool changer (ATC) drawbar mechanism.

Q2: How do I know which drawbar thread I need for my NT arbor?

A: This is crucial. Drawbar threads vary by machine origin. Generally:

• NT30: Typically uses an M12 (Metric) or 1/2"-13 (Imperial) thread.

• NT40: Typically uses an M16 (Metric) or 5/8"-11 (Imperial) thread.

• NT50: Typically uses an M24 (Metric) or 1"-8 (Imperial) thread. Please check your machine's manual or measure your existing drawbar before ordering to ensure you select the correct thread type.

Q3: What does "Combi" mean for this arbor?

A: "Combi" stands for Combination. It means the arbor comes with a removable drive ring. With the ring installed, it fits face mills (which have a cross slot across the back). If you remove the ring, the exposed keys fit shell end mills (which have a slot running lengthwise down the bore).

Q4: Does the arbor come with the locking screw and drive ring?

A:Yes. All our NT Combi Shell End Mill Arbors are supplied complete with the central retaining screw and the removable drive ring. You only need to provide the cutting tool and the wrench.

Equip your manual milling machines for maximum material removal with our rugged NT30, NT40, and NT50 Combi Shell End Mill Arbors.

Contact our sales team today for a complete catalog, thread specifications, and bulk pricing.
