Product Overview

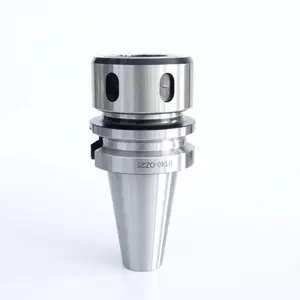

When machining complex 3D molds, steep-walled cavities, or utilizing 5-axis toolpaths, the bulky clamping nut of a standard ER collet chuck often becomes a critical point of interference. The BT SDC / DC Slim Collet Chuck is the ultimate solution for these demanding applications. By utilizing a shallow 8-degree taper collet (the SDC or DC system), the chuck body is designed with a significantly reduced outside diameter (O.D.) at the nose. This ultra-slim profile provides maximum clearance, allowing shorter, more rigid cutting tools to access deep features that would otherwise require long, vibration-prone extended-reach end mills.

Key Features & Advantages

• Ultra-Slim Profile for Deep Reach: The defining feature of the SDC/DC chuck is its narrow nose diameter. This allows the tool holder to safely clear steep walls, clamps, and complex mold geometries, making it indispensable for deep-cavity and 5-axis machining.

• High-Precision Runout: The 8-degree taper provides superior concentricity compared to standard 16-degree ER systems. We guarantee a maximum Total Indicator Runout (T.I.R.) of ≤ 0.005mm (5 microns) at the collet seat, ensuring even chip loads, extending micro-tool life, and delivering mirror-like surface finishes.

• High-Speed Dynamic Balance: Designed specifically for high-speed machining (HSM). The symmetrical, slim design naturally reduces windage and imbalance. All our BT SDC chucks are pre-balanced to G2.5 @ 25,000 RPM (or higher upon request) to protect your spindle bearings and ensure vibration-free cutting.

• Superior Clamping Rigidity: The shallow 8-degree taper creates a powerful wedging action. As the collet is drawn into the chuck, it generates immense, uniform gripping force directly around the tool shank, preventing tool pull-out and micro-vibrations during high-feed milling.

• Premium Material & Hardness: Forged from high-quality alloy steel (such as 20CrMnTi) and case-hardened to HRC 56-60. The core remains tough to absorb cutting shocks, while the precision-ground surfaces resist wear and maintain accuracy over years of heavy use.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium high-speed mold-making tooling directly from our factory for highly competitive wholesale pricing.

• Comprehensive Spindle Compatibility: We manufacture the full range of MAS 403 BT tapers: BT30 (for compact, high-speed drill/tap centers), BT40 (the industry standard for VMCs), and BT50 (for heavy-duty machining).

• Full Range of SDC/DC Capacities: Available to fit all standard slim collet sizes:

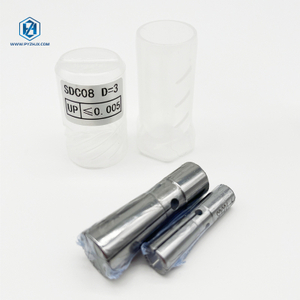

• SDC06 / DC6: For tools up to 6.0mm

• SDC08 / DC8: For tools up to 8.0mm

• SDC10 / DC10: For tools up to 10.0mm

• SDC12 / DC12: For tools up to 12.0mm

• Strict Quality Control: Every tool holder undergoes rigorous inspection using 3D CMMs, taper gauges (AT3 standard), and dynamic balancing machines before packaging.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: What is the difference between an ER chuck and an SDC/DC slim chuck?

A: The primary difference is the taper angle and the physical profile. ER chucks use a 16-degree taper and have a relatively large, bulky clamping nut. SDC/DC chucks use an 8-degree taper, allowing for a much slimmer chuck body and nut. The SDC/DC system provides vastly superior clearance for deep cavity work and generally offers better runout accuracy for micro-tools, while the ER system is better for general-purpose holding of larger shank tools.

Q2: Does the "Rear Pull" designation mean I need a special drawbar?

A:No. The term "Rear Pull" (or back-pull) in the context of SDC/DC collets refers to the internal mechanism of how the collet is seated. Some designs use a draw-nut at the rear of the collet pocket to pull the collet in, while others use a specialized flush-mounted front nut. In either case, the tool holder itself features a standard BT taper (e.g., BT40) and uses a standard pull stud (retention knob) to connect to your CNC machine's standard drawbar.

Q3: Can I use standard ER collets in this SDC chuck?

A:No, absolutely not. The taper angles are completely different (8 degrees vs. 16 degrees). You must use dedicated SDC or DC slim collets in these chucks. Attempting to use an ER collet will damage both the collet and the precision ground bore of the chuck.

Q4: Do these chucks come with the collets and the wrench?

A: The chucks come complete with the clamping nut. The SDC/DC collets and the specialized spanner wrench required to tighten the nut are typically sold separately, allowing you to choose the exact collet sizes you need for your specific cutting tools.

Maximize your tool clearance and precision in deep-cavity milling with our BT SDC / DC Slim Collet Chuck Arbors.

Contact our sales team today for a complete catalog and bulk pricing.
