Precision Solid Carbide Ball Nose End Mills | 2, 3, & 4 Flute 3D Profiling Cutters

Product Overview

The Solid Carbide Ball Nose End Mill is the essential tool for 3D profiling, multi-axis machining, and mold and die manufacturing. Unlike square end mills that leave a flat bottom, the hemispherical tip of a ball nose cutter allows it to machine complex curved surfaces, deep pockets with radiused bottoms, and smooth continuous contours without leaving distinct step-over marks. Whether you are roughing out a forging die or performing a high-speed micro-finishing pass on a medical implant, our ball nose end mills provide the precision and tool life required for demanding CNC applications.

Key Features & Advantages

• Perfect Hemispherical Geometry: The cutting edge is precision-ground to a true radius, ensuring accurate 3D contouring and smooth transitions between toolpaths.

• Micro-Grain Carbide Substrate: Made from premium ultra-fine grain tungsten steel, offering the extreme hardness needed to maintain a sharp cutting edge during prolonged finishing cycles.

• Optimized Flute Counts:

• 2-Flute: Provides maximum chip clearance. Ideal for deep slotting, roughing, and machining softer materials like aluminum or plastics where chip packing is a concern.

• 3-Flute & 4-Flute: Offers a stronger core and more cutting edges per revolution. Perfect for high-speed finishing, hard milling, and machining steels, cast iron, and titanium, resulting in superior surface finishes.

• Advanced PVD Coatings: Available with high-performance coatings like TiAlN (Titanium Aluminum Nitride) or AlTiN to withstand the extreme heat generated during hard milling, or uncoated/polished for sticky non-ferrous materials.

• Center-Cutting Design: Allows the tool to plunge directly into the material (like a drill) before beginning a milling pass, increasing versatility in pocketing operations.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source high-performance CNC cutting tools directly from our factory for highly competitive wholesale pricing.

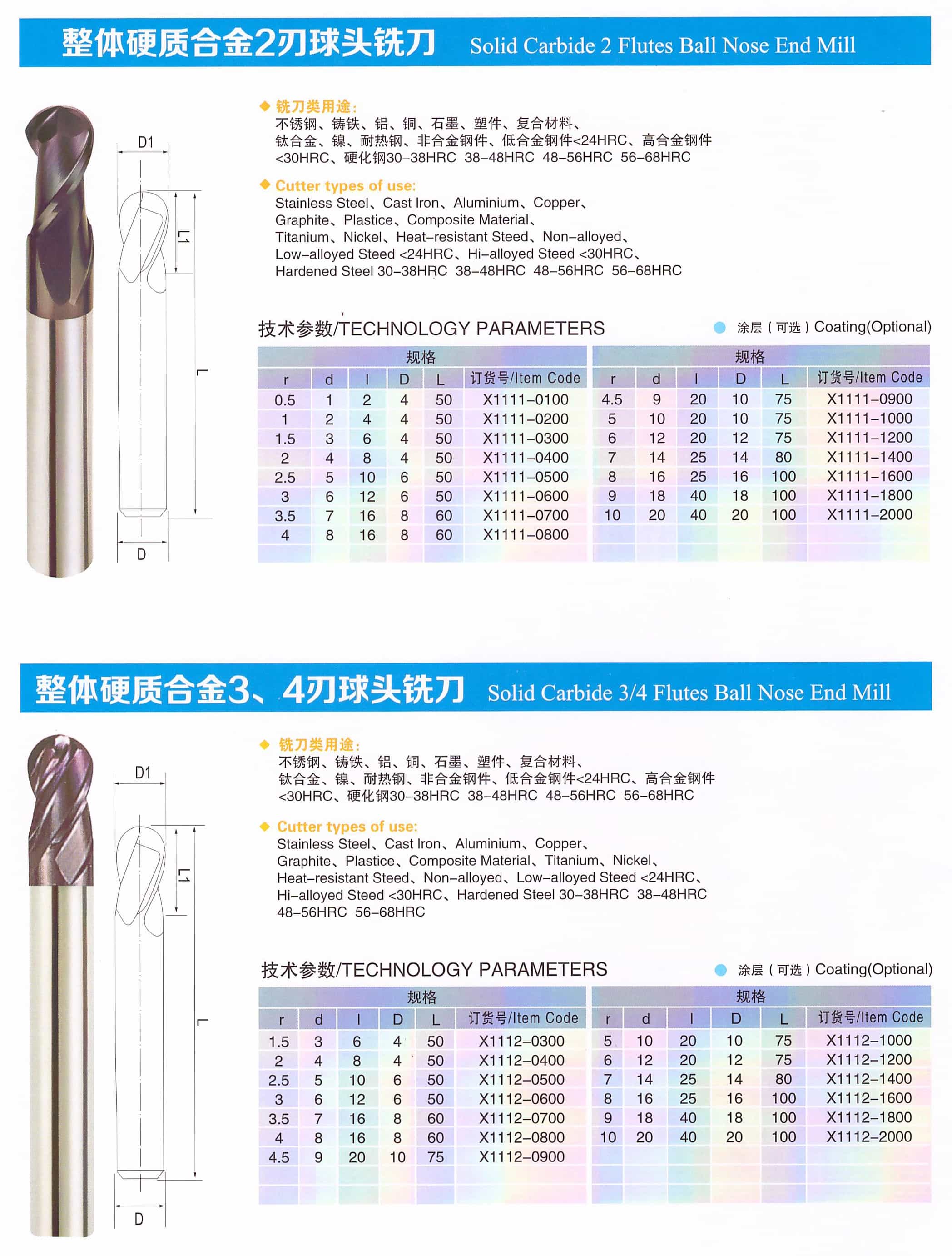

• Comprehensive Size Range: We manufacture ball nose end mills in a wide variety of diameters (from micro sizes below 1mm up to 25mm+), shank sizes, and overall lengths (including long-reach and tapered neck designs for deep cavity milling).

• Strict Quality Control: Every batch is meticulously inspected using advanced optical comparators to verify the exact radius, relief angles, and coating integrity.

• OEM & Customization: We offer custom tool grinding for specific radii, custom laser engraving of your brand logo on the shank, and tailored plastic tube packaging for retail distributors.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: When should I use a Ball Nose End Mill instead of a Square End Mill?

A: You should use a Ball Nose End Mill when you need to machine 3D contoured surfaces, complex curves, or when a blueprint calls for a full radius at the bottom of a slot or pocket. Square End Mills are used for machining flat bottoms, sharp 90-degree inside corners, and straight side walls.

Q2: How do I choose between a 2-flute and a 4-flute ball nose end mill?

A: Use a 2-flute ball nose for roughing operations, deep slotting, or when machining soft materials (like aluminum or wood) where you need maximum space for chips to escape. Use a 4-flute ball nose for finishing operations on harder materials (like steel or titanium). The extra flutes allow for faster feed rates and produce a much smoother surface finish.

Q3: What is "step-over" and why is it important with ball nose mills?

A: "Step-over" is the distance the tool moves sideways between each cutting pass. Because a ball nose mill has a round tip, leaving too large of a step-over will result in visible ridges (scallops) on the machined surface. For a smooth finish, you must use a very small step-over, which increases machining time but drastically reduces the need for manual polishing.

Q4: Can I use a ball nose end mill to plunge straight down into the material?

A: Yes, provided the end mill is center-cutting. Most of our ball nose end mills are center-cutting, meaning the flutes continue all the way to the very center of the tool tip, allowing it to plunge vertically into the workpiece like a drill.

Achieve flawless 3D contours and superior surface finishes with our premium Solid Carbide Ball Nose End Mills.

Contact our sales team today for a complete catalog and bulk pricing.
