Product Overview

When the goal is to remove large volumes of material as quickly as possible, standard flat end mills often struggle with long, stringy chips, excessive heat buildup, and severe spindle vibration. The Solid Carbide Roughing End Mill (often called a "corn cob" cutter due to its appearance) is engineered specifically to solve these problems. The distinct corrugated or wavy profile on the cutting flutes breaks the chips into tiny pieces. This chip-breaking action significantly reduces the contact area between the tool and the workpiece, lowering cutting resistance and heat generation. This allows CNC operators to push the machine with deeper depths of cut (DOC) and higher feed rates without overloading the spindle.

Key Features & Advantages

• Wavy Edge Chip Breaker: The unique scalloped cutting edge shears material into small chips, ensuring excellent chip evacuation and preventing recutting, which is critical for deep pocket milling.

• Reduced Cutting Resistance: By breaking the chips, the cutting force is distributed and reduced by up to 20-30% compared to standard end mills, reducing vibration (chatter) and protecting your machine's spindle.

• Premium Micro-Grain Carbide: Manufactured from high-quality, ultra-fine grain solid tungsten carbide, providing the perfect balance of extreme hardness for wear resistance and toughness to withstand heavy interrupted cuts.

• Advanced PVD Coatings: Coated with high-performance layers like TiAlN (Titanium Aluminum Nitride) or AlTiN, offering exceptional thermal stability and oxidation resistance, allowing for dry machining or high-speed roughing.

• High Metal Removal Rate (MRR): Designed specifically to hog out material quickly, drastically reducing cycle times and increasing overall shop productivity.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium solid carbide cutting tools directly from our factory for highly competitive wholesale pricing.

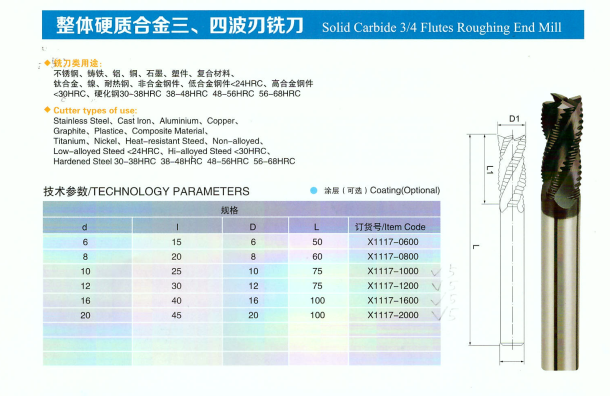

• Comprehensive Size Range: We manufacture roughing end mills in a wide variety of standard metric and imperial diameters (e.g., 4mm to 20mm+), with standard or extended reach lengths.

• 3-Flute & 4-Flute Options:

• 3-Flute: Larger chip valleys for superior chip evacuation, ideal for softer materials or heavy slotting.

• 4-Flute: Thicker core for maximum rigidity, perfect for peripheral roughing of steels and harder alloys.

• Strict Quality Control: Every batch of end mills undergoes rigorous optical inspection for edge geometry and coating thickness to guarantee consistent, high-performance cutting.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: What is the difference between a roughing end mill and a standard finishing end mill?

A: A roughing end mill has a wavy or scalloped cutting edge designed to break chips and remove material extremely fast, but it leaves a rough, grooved surface finish on the workpiece. A finishing end mill has a smooth, continuous cutting edge designed to take light cuts and leave a perfectly smooth, precise surface finish. Typically, you use a rougher first to clear the bulk of the material, followed by a finisher to achieve the final dimensions.

Q2: Should I choose a 3-flute or 4-flute roughing end mill?

A: It depends on your application. 3-flute roughers have more space between the cutting edges (larger flutes), making them excellent for slotting operations and materials where chip packing is a concern. 4-flute roughers have a thicker, stronger core and more cutting edges, making them better suited for side milling (profiling) and machining harder materials like steel and cast iron where maximum rigidity is required.

Q3: What materials can these carbide roughing end mills cut?

A: With the appropriate TiAlN/AlTiN coating, our solid carbide roughing end mills are highly effective on Carbon Steel, Alloy Steel, Tool Steel, Cast Iron, and Stainless Steel (typically up to HRC 45-50). For aluminum and non-ferrous metals, we recommend uncoated or specifically polished roughers to prevent material welding to the tool.

Q4: Can I plunge cut with a roughing end mill?

A: Yes, most of our solid carbide roughing end mills are "center-cutting," meaning they have cutting edges that go all the way to the center of the tool. This allows them to plunge directly into the material (like a drill) or ramp down into a pocket.

Slashing your cycle times and maximize your machine's potential with our High-Performance Solid Carbide Roughing End Mills.

Contact our sales team today for a complete cutting tool catalog, speed/feed recommendations, and bulk pricing.
