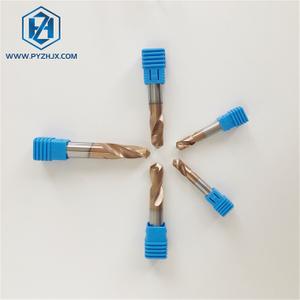

65HRC Solid Carbide Twist Drill Bits | For Hardened Steel

Product Overview

Drilling into hardened steel, tool steel, and cast iron presents significant challenges, often leading to rapid tool wear and poor hole quality with standard HSS or cobalt drills. The 65HRC Solid Carbide Twist Drill Bit is specifically developed to overcome these obstacles. Utilizing a premium micro-grain carbide substrate combined with a state-of-the-art coating, these drills maintain their cutting edge integrity at extreme temperatures. The specialized web thickness and point angle are optimized to penetrate hard materials smoothly, reducing thrust force and preventing wandering, ensuring precise, straight holes every time.

Key Features & Advantages

• Ultra-Fine Grain Carbide: Constructed from premium 0.4μm micro-grain tungsten carbide, providing the ultimate combination of extreme hardness and wear resistance required for cutting materials up to 65 HRC without edge chipping.

• Advanced High-Temp Coating: Treated with a specialized nano-coating (such as TiAlN or Blue Nano) that offers outstanding thermal stability and a low coefficient of friction, protecting the drill from immense heat generated during hard metal drilling.

• Optimized Point Geometry: Features a specialized point angle (typically 140°) and a thinned web design. This self-centering geometry reduces cutting resistance, eliminates the need for center drilling or spotting, and ensures excellent hole positional accuracy.

• Rigid Flute Design: The flutes are precision-ground to provide a strong core for maximum rigidity while maintaining smooth, polished surfaces for efficient, jam-free chip evacuation, even in deep holes.

• Versatile Application: Excels in drilling hardened alloy steels, mold steels, cast iron, and other difficult-to-machine materials on CNC machining centers and high-precision lathes.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium solid carbide drills directly from our factory for highly competitive wholesale pricing.

• Comprehensive Size Range: Available in a wide array of standard metric and fractional diameters (from 1mm to 20mm+), as well as various drilling depths (3D, 5D, 8D) to suit your specific requirements.

• Custom Tooling Solutions: Need a specific diameter, step drill, or internal coolant holes (coolant-through)? Our advanced CNC tool grinding facility can manufacture custom drills to your exact specifications.

• Strict Quality Control: Every drill bit undergoes rigorous optical inspection for diameter tolerance (typically h7), point concentricity, and coating adhesion before shipment.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: Do I need to use coolant when drilling with these 65HRC carbide drills?

A: While these drills are highly heat-resistant, using a high-pressure liquid coolant or a strong air blast/MQL (Minimum Quantity Lubrication) is highly recommended. Coolant helps flush out chips, prevents chip packing in the flutes, and maintains a stable temperature, which significantly extends the tool's life and improves hole finish. For deep holes (5D and above), coolant-through drills are the best option.

Q2: Can I use these drills in a hand drill or manual drill press?

A:No, it is highly discouraged. Solid carbide is extremely hard but also brittle compared to High-Speed Steel (HSS). Any lateral movement, vibration, or uneven feed rate—which are common in manual drilling—will almost certainly cause the carbide drill to snap. These drills are designed strictly for rigid CNC machines with precise feed control.

Q3: Do I need to spot drill before using this solid carbide drill?

A: In most cases, no. Our 65HRC carbide drills feature a specialized, self-centering point geometry with a thinned web. This allows them to penetrate the material directly without wandering. Spot drilling is usually only necessary if you are drilling on an angled, curved, or highly irregular surface.

Q4: What speeds and feeds should I use for hardened steel?

A: Drilling hardened steel requires specific parameters. Generally, you will use lower surface speeds (SFM/Vc) and precise, consistent feed rates (IPR/Fn) compared to drilling softer steels to prevent premature edge wear and work hardening of the material. We provide detailed cutting parameter charts with our product catalog to help you optimize your CNC programming for maximum tool life and efficiency.

Achieve precise holes and extended tool life in the hardest materials with our 65HRC Solid Carbide Twist Drills.

Contact our sales engineering team today for a complete cutting tool catalog, speed/feed charts, and bulk pricing.
