Product Overview

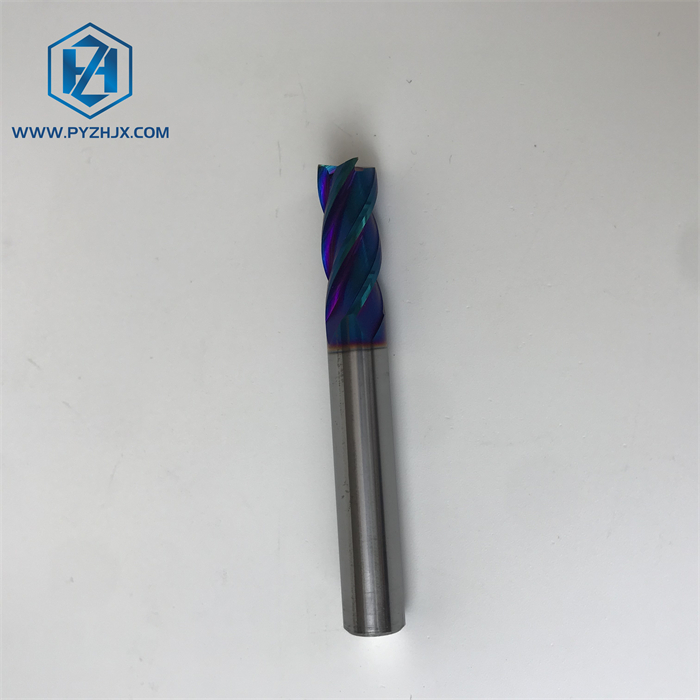

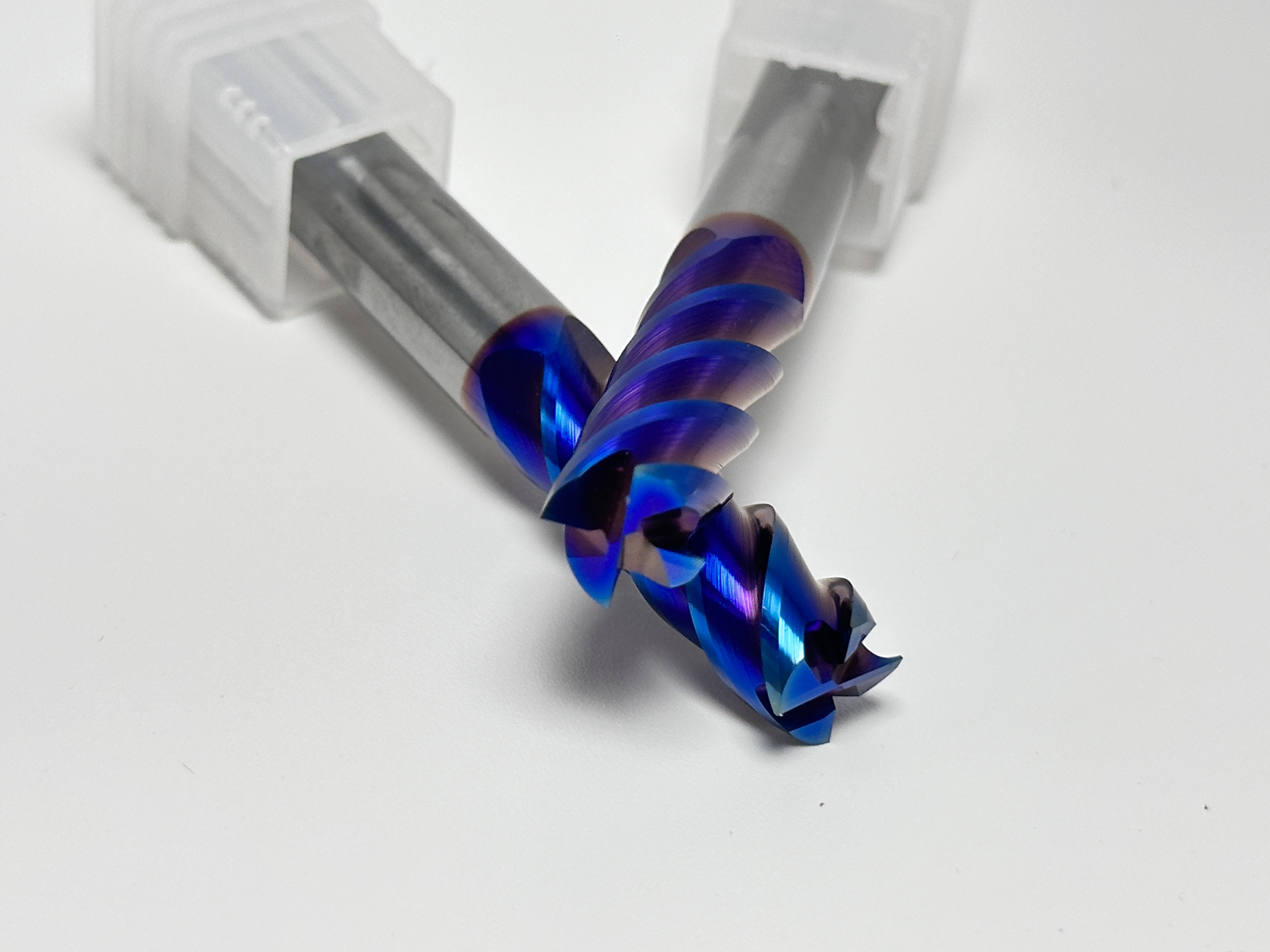

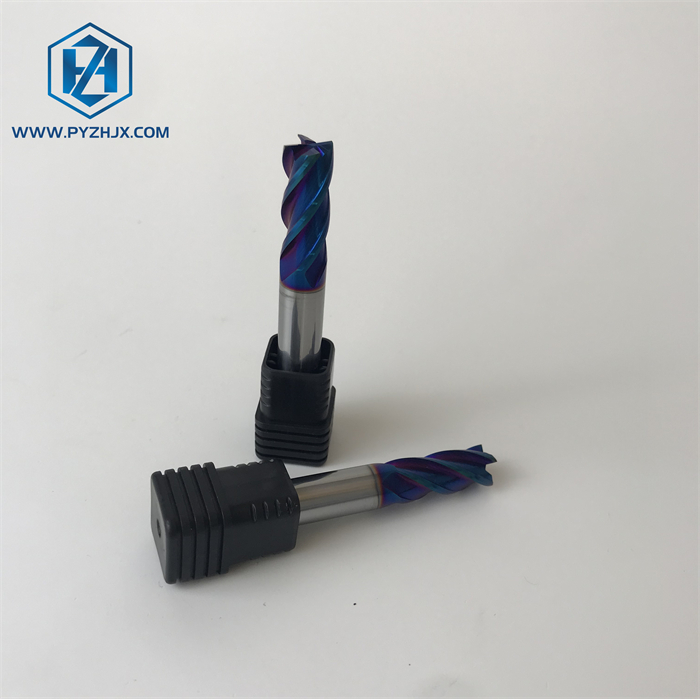

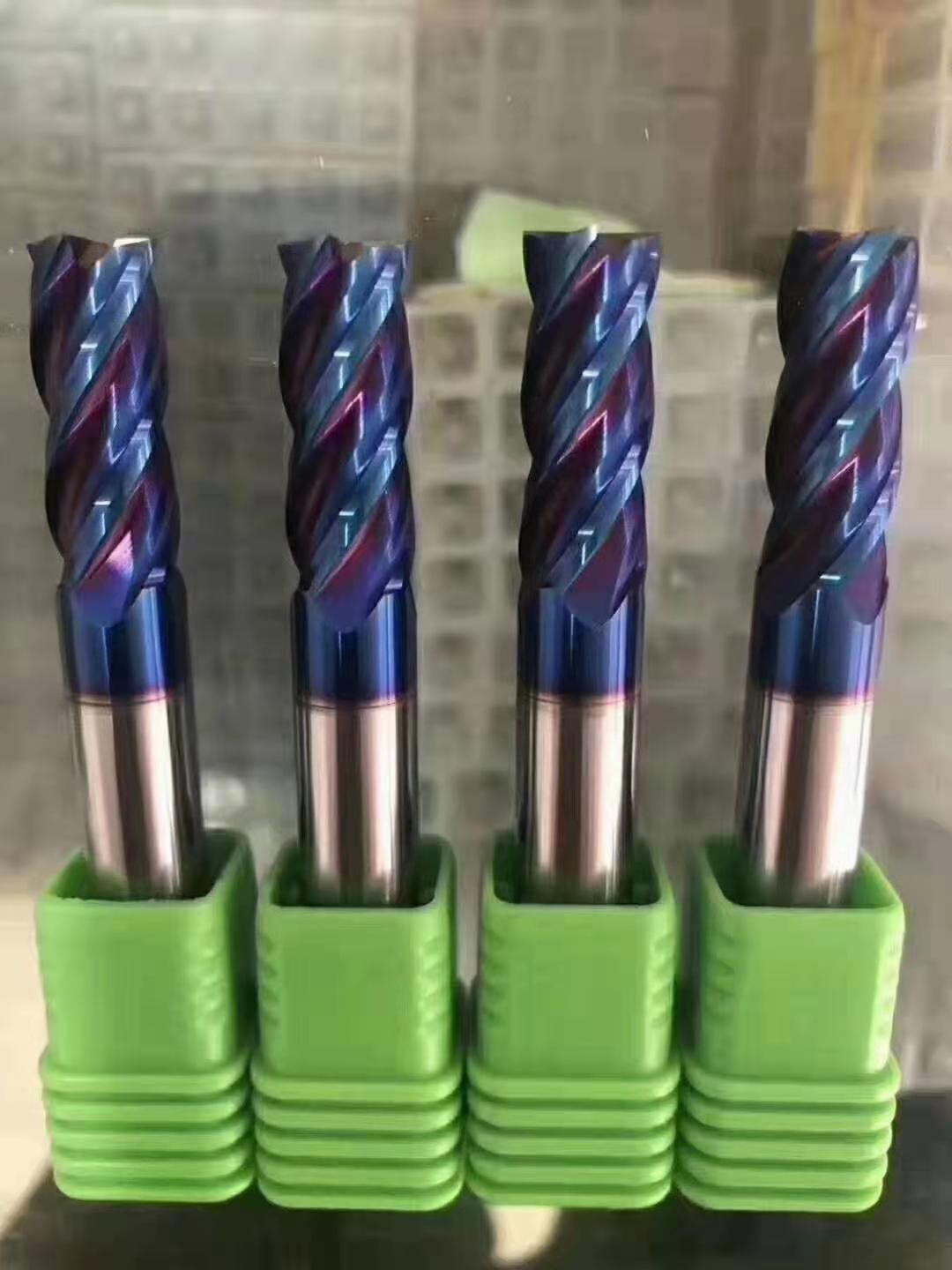

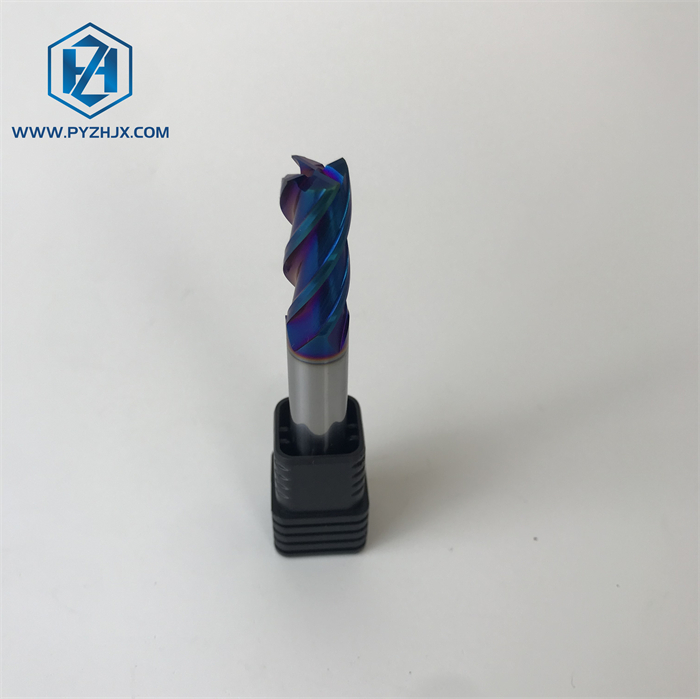

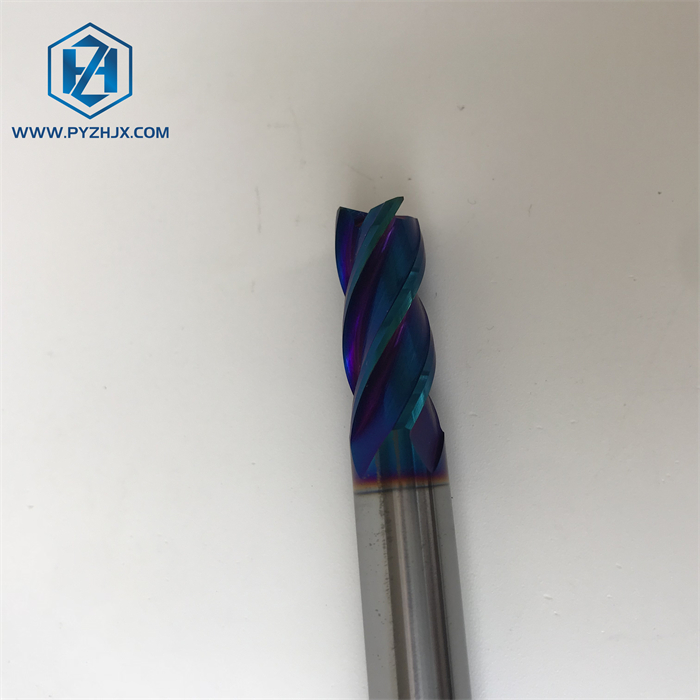

Machining hardened steels, tool steels, and superalloys requires cutting tools that can withstand extreme temperatures and abrasive wear. The ZHORTMA 65HRC 4-Flute Solid Carbide End Mill is specifically designed for these demanding applications. Utilizing a premium micro-grain carbide substrate and a state-of-the-art Blue Nano coating, these end mills maintain their sharp cutting edges even when machining materials up to 65 Rockwell C (HRC). The 4-flute design provides a strong core for maximum rigidity, reducing tool deflection and vibration to deliver mirror-like surface finishes and tight dimensional tolerances on your workpieces.

Key Features & Advantages

• Ultra-Fine Grain Carbide: Made from high-quality 0.4μm micro-grain tungsten carbide, offering the perfect balance of extreme hardness and transverse rupture strength to prevent edge chipping during interrupted cuts.

• Advanced Blue Nano Coating: The specialized Blue Nano coating provides outstanding thermal stability, oxidation resistance, and a low coefficient of friction, allowing for dry machining and high-speed milling (HSM) at elevated temperatures.

• Optimized 4-Flute Geometry: Provides a large core diameter for high rigidity, minimizing tool deflection. The cutting edge geometry is optimized for smooth shearing action and excellent surface finishes.

• Vibration Suppression: Engineered with precision edge preparation and (on select models) variable helix/unequal pitch design to effectively suppress chatter and harmonic vibrations during heavy cuts.

• Versatile Application: Excels in side milling, profile milling, step milling, and fine finishing operations on hardened steel, alloy steel, cast iron, and stainless steel.

Why Partner with Pingyuan Zhenghao Machinery?

• Direct Manufacturer Savings: Bypass trading companies and source premium ZHORTMA carbide end mills directly from our factory for highly competitive wholesale pricing.

• Complete Size Range: Available in a wide range of cutting diameters (typically from 1mm to 20mm), shank diameters, and overall lengths (standard, long, and extra-long reach) to suit any machining requirement.

• Custom Tooling Solutions: Need a specific corner radius (bull nose), extended neck, or custom geometry? Our advanced CNC tool grinding facility can manufacture custom end mills to your exact specifications.

• Strict Quality Control: Every end mill undergoes rigorous optical inspection for diameter tolerance (usually h10 or better), runout accuracy, and coating adhesion before shipment.

Frequently Asked Questions (FAQ) - Selection Guide

Q1: Can I use these 65HRC end mills on softer materials like aluminum?

A:It is not recommended. These end mills have a specific edge preparation, rake angle, and coating optimized for hard steels. Using them on soft, gummy materials like aluminum can lead to built-up edge (BUE), where the aluminum melts and welds to the flutes, causing poor finishes and rapid tool failure. Please use our specific 3-flute uncoated or DLC-coated aluminum-cutting end mills instead.

Q2: Should I use liquid coolant when milling with these Blue Nano coated end mills?

A: For milling hardened steels (over 45 HRC), dry machining with a strong air blast is generally recommended. The Blue Nano coating thrives on heat, forming a protective oxide layer. Thermal shock from liquid coolant can cause the carbide substrate to crack and the cutting edge to chip. However, for softer steels or stainless steel, liquid coolant can be used.

Q3: What is the benefit of a 4-flute design over a 2-flute or 3-flute?

A: A 4-flute end mill has a thicker core, making it much more rigid than a 2-flute or 3-flute tool. This rigidity reduces deflection, allowing for better surface finishes, higher feed rates in peripheral milling, and tighter tolerances, especially in side milling and finishing. However, the chip pockets are smaller, so it is less ideal for heavy, deep slotting where chip evacuation is critical.

Q4: What cutting speeds and feeds should I use?

A: Speeds and feeds depend heavily on the specific material hardness, depth of cut (radial and axial), and machine rigidity. As a general rule for 65HRC end mills in hardened steel, you should use higher RPMs and lighter chip loads compared to standard end mills. We provide detailed cutting parameter charts (RPM, Feed Rate, Ap, Ae) with our product catalog to help you optimize your machining process.

Achieve mirror finishes and extended tool life on the toughest materials with our ZHORTMA 65HRC Solid Carbide End Mills.

Contact our sales engineering team today for a complete cutting tool catalog, speed/feed charts, and bulk pricing.
