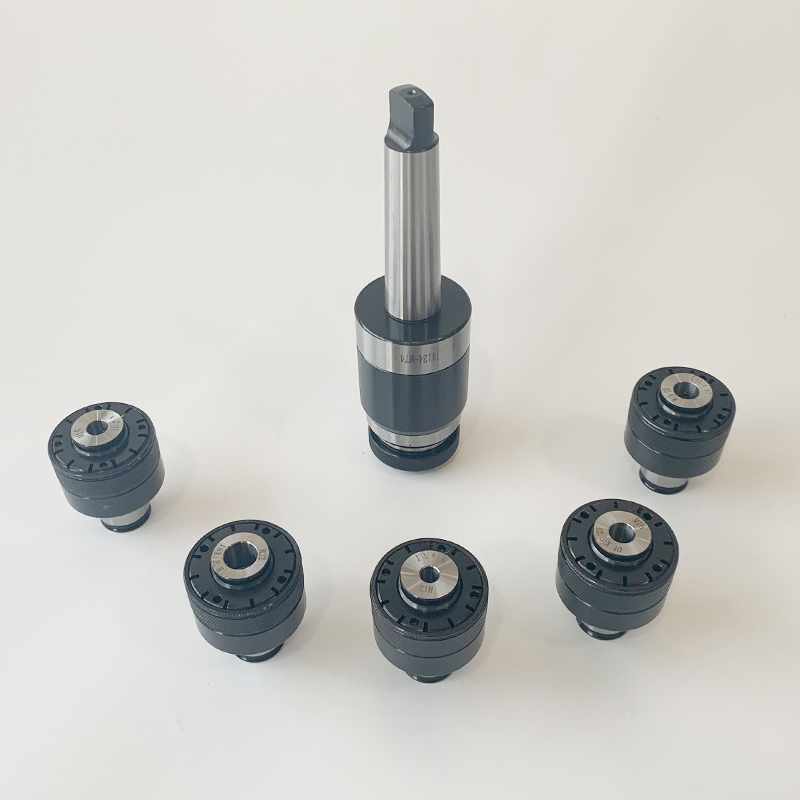

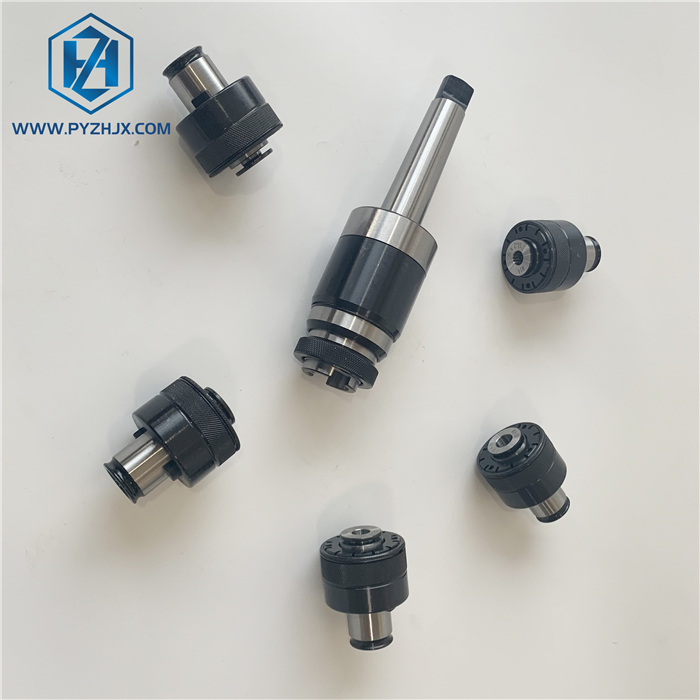

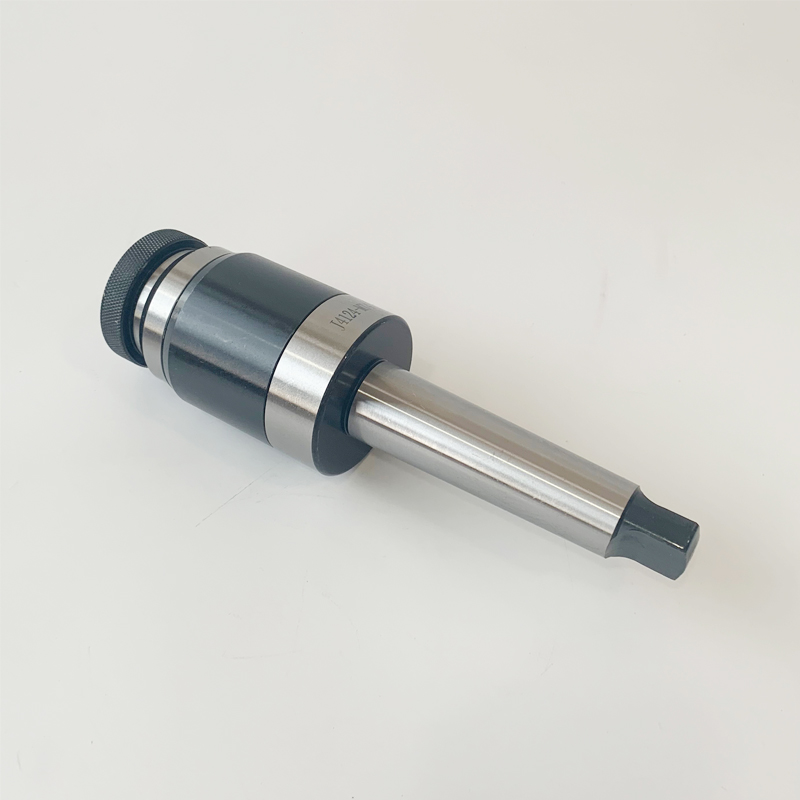

J41 Tapping Chuck MT3 J4116 M3-16 Tapping Collet Chuck Set

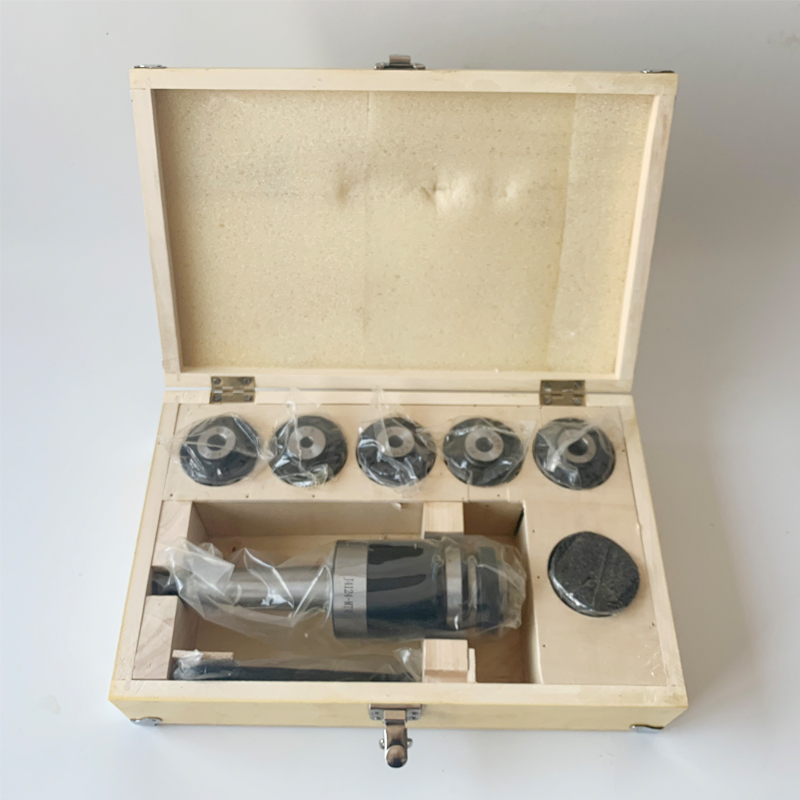

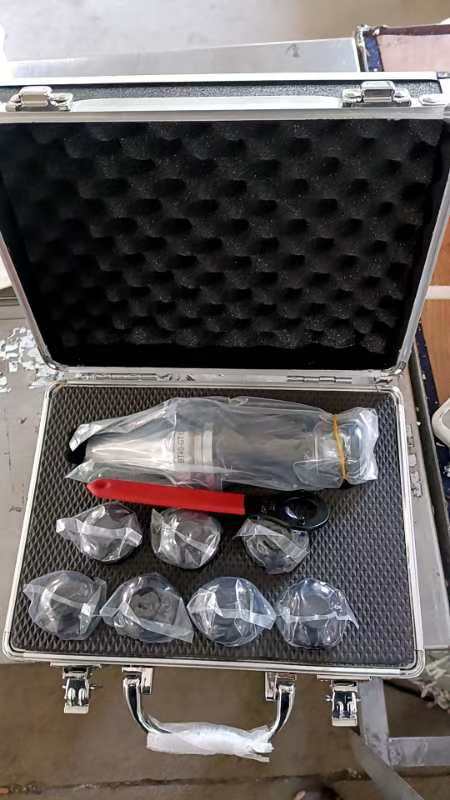

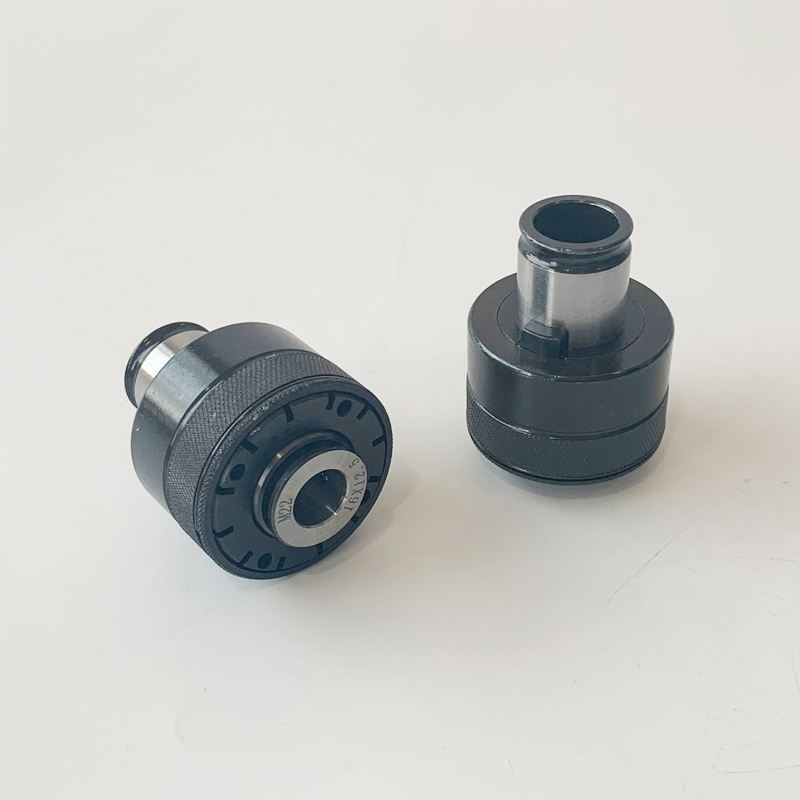

The set is consisted of a tap chuck and tap collets.
compensation device
overload torque protection
applicable to tap working on dcrill, lather, boring machine, milling machine and CNC center and so on.
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • J4112/J4116/J4124

  • ZHORTMA

  • STEEL

  • tapping machine

  • J41 TAPPING CHUCK

  • tap working on drill, lather, boring machine, milling machine, cnc machine center

  • J4112/J4116/J4124

  • grey/black

J41 Tapping Chuck MT3 J4116 M3-16 Tapping Collet Chuck Set

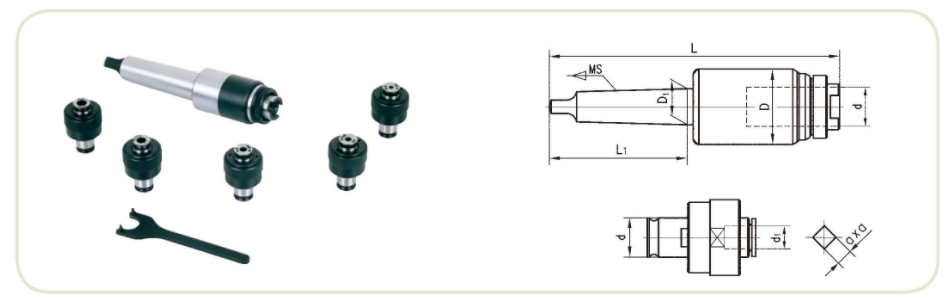

j41..

Order no shank taper D mm D1  mm d  mm L1  mm L  mm tapping range
J4112-MS2 MS2



46		 17.78



19		 75 171.5

M3-M12
J4112-MS3
 MS3 23.825 94 191
J4112-MS4 MS4 31.267 117.5 216
J4116-R8 R8 31.75 101.6 193.6
M3-M16
J4116-MS2 MS2 17.78 75 171.5
J4116-MS3 MS3 23.825 94 191
J4116-MS4 MS4 31.267 117.5 216
J4124-MS3 MS3

66		 23.825

30
 94 227
M6-24
J4124-MS4 MS4 31.267
 117.5 252
J4124-MS5 MS5 44.399 149.5 284



12Tapping range M3
 M4 M5 M6 M8 M10 M12
67model d1xa mm 4x3 4x3 5x3.8 6x5 6x5 8x6.3 9x7.1

83model

d1xa mm

 2.24x1.8 3.15x2.5 4x3.15 4.5x3.55 6.3x5 8x6.3 9x7.1








24 tapping range M12 M14 M16 M18 M20 M22 M24

67model

d1xa mm

 9X7.1 10.5X8 12.5X10 14X11 16X12 18X14.5 20X16

83model

d1xa mm

 9X7.1 11.2X9 12.5X10 14X11.2 14X11.2 16X12.5 18X14

2641



For J41 tapping chuck, you could order the tapping chuck or tapping collets separately.

Any needs contact Pingyuan Zhenghao Machinery Co.,ltd directly.
