BT30 BT40 BT50 SK30 SK40 SK50
ZH
8466100000
Alloy Steel
56-58HRC
Machine tools collet chuck tool holder clamping accessories
MAS403 shank DIN69871
0.005mm
milling machine
BT30 BT40 BT50 SK30 SK40 SK50
Silver
MAS403 / DIN69871
0.005mm
G2.5 25000rpm
BT SK Combi Shell End Mill Arbor
ZH
BT Combi End Mill Arbor
Material: alloy steel
Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: MAS403
Model | d | D | L | A |
BT30-SEMC16-45 | 16 | 32 | 17 | 45 |
BT30-SEMC22-47 | 22 | 40 | 19 | 47 |
BT30-SEMC27-49 | 27 | 48 | 21 | 49 |
BT40-SEMC16-55 | 16 | 32 | 17 | 55 |
BT40-SEMC16-100 | 16 | 32 | 17 | 100 |
BT40-SEMC22-55 | 22 | 40 | 19 | 55 |
BT40-SEMC22-100 | 22 | 40 | 19 | 100 |
BT40-SEMC27-55 | 27 | 48 | 21 | 55 |
BT40-SEMC27-100 | 27 | 48 | 21 | 100 |
BT40-SEMC32-60 | 32 | 58 | 24 | 60 |
BT40-SEMC32-100 | 32 | 58 | 24 | 100 |
BT40-SEMC40-60 | 40 | 70 | 27 | 60 |
BT40-SEMC40-100 | 40 | 70 | 27 | 100 |
BT50-SEMC16-70 | 16 | 32 | 17 | 70 |
BT50-SEMC22-70 | 22 | 40 | 19 | 70 |
BT50-SEMC27-70 | 27 | 48 | 21 | 70 |
BT50-SEMC32-70 | 32 | 58 | 24 | 70 |
BT50-SEMC40-70 | 40 | 70 | 27 | 70 |
Package and shipment
Packing: 1pcs/plastic bag, plastic box inside ,carton box outside can also packing as your request.
Shipping: 3-7days after payment, by international express or as your request.
Company Profile
Pingyuan Zhenghao Machinery CO, LTD was found in 1998, professional produced GT precision modular vise, quick change tool post, tool holder, collets, end mills. It is a professional manufacturer of CNC lathe accessories in china. We have export experience for more than 10 years , Our productions export to more than 20 countries and regions.
Our company adheres to the principles of "quality first, customers supreme and reputation fundamental". we sincerely welcome foreign customers to visit us .
BT Combi End Mill Arbor
Material: alloy steel
Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: MAS403
Model | d | D | L | A |
BT30-SEMC16-45 | 16 | 32 | 17 | 45 |
BT30-SEMC22-47 | 22 | 40 | 19 | 47 |
BT30-SEMC27-49 | 27 | 48 | 21 | 49 |
BT40-SEMC16-55 | 16 | 32 | 17 | 55 |
BT40-SEMC16-100 | 16 | 32 | 17 | 100 |
BT40-SEMC22-55 | 22 | 40 | 19 | 55 |
BT40-SEMC22-100 | 22 | 40 | 19 | 100 |
BT40-SEMC27-55 | 27 | 48 | 21 | 55 |
BT40-SEMC27-100 | 27 | 48 | 21 | 100 |
BT40-SEMC32-60 | 32 | 58 | 24 | 60 |
BT40-SEMC32-100 | 32 | 58 | 24 | 100 |
BT40-SEMC40-60 | 40 | 70 | 27 | 60 |
BT40-SEMC40-100 | 40 | 70 | 27 | 100 |
BT50-SEMC16-70 | 16 | 32 | 17 | 70 |
BT50-SEMC22-70 | 22 | 40 | 19 | 70 |
BT50-SEMC27-70 | 27 | 48 | 21 | 70 |
BT50-SEMC32-70 | 32 | 58 | 24 | 70 |
BT50-SEMC40-70 | 40 | 70 | 27 | 70 |
Package and shipment
Packing: 1pcs/plastic bag, plastic box inside ,carton box outside can also packing as your request.
Shipping: 3-7days after payment, by international express or as your request.
Company Profile
Pingyuan Zhenghao Machinery CO, LTD was found in 1998, professional produced GT precision modular vise, quick change tool post, tool holder, collets, end mills. It is a professional manufacturer of CNC lathe accessories in china. We have export experience for more than 10 years , Our productions export to more than 20 countries and regions.
Our company adheres to the principles of "quality first, customers supreme and reputation fundamental". we sincerely welcome foreign customers to visit us .

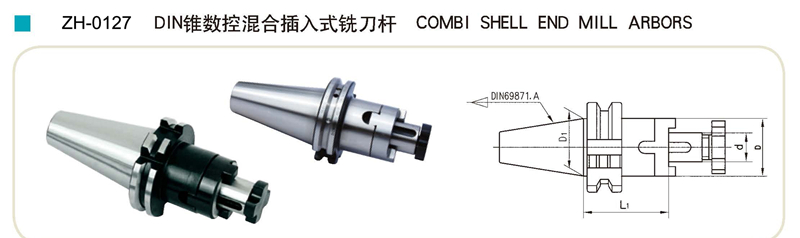

DIN69871 SK Combi End Mill Arbor
Material: alloy steel
Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: DIN69871
Model | d | D | L | A |
SK30-SEMC16-50 | 16 | 32 | 17 | 50 |
SK30-SEMC22-50 | 22 | 40 | 19 | 50 |
SK30-SEMC27-55 | 27 | 48 | 21 | 55 |
SK30-SEMC32-60 | 32 | 58 | 24 | 60 |
SK40-SEMC16-55 | 16 | 32 | 17 | 55 |
SK40-SEMC16-100 | 16 | 32 | 17 | 100 |
SK40-SEMC22-55 | 22 | 40 | 19 | 55 |
SK40-SEMC22-100 | 22 | 40 | 19 | 100 |
SK40-SEMC27-55 | 27 | 48 | 21 | 55 |
SK40-SEMC27-100 | 27 | 48 | 21 | 100 |
SK40-SEMC32-60 | 32 | 58 | 24 | 60 |
SK40-SEMC32-100 | 32 | 58 | 24 | 100 |
SK40-SEMC40-60 | 40 | 70 | 27 | 60 |
SK40-SEMC40-100 | 40 | 70 | 27 | 100 |
SK50-SEMC16-55 | 16 | 32 | 17 | 55 |
SK50-SEMC16-100 | 16 | 32 | 17 | 100 |
SK50-SEMC22-55 | 22 | 40 | 19 | 55 |
SK50-SEMC22-100 | 22 | 40 | 19 | 100 |
SK50-SEMC27-55 | 27 | 48 | 21 | 55 |
SK50-SEMC27-100 | 27 | 48 | 21 | 100 |
SK50-SEMC32-60 | 32 | 58 | 24 | 60 |
SK50-SEMC32-100 | 32 | 58 | 24 | 100 |
SK50-SEMC40-60 | 40 | 70 | 27 | 60 |
SK50-SEMC40-100 | 40 | 70 | 27 | 100 |
Package and shipment
Packing: 1pcs/plastic bag, plastic box inside ,carton box outside can also packing as your request.
Shipping: 3-7days after payment, by international express or as your request.
DIN69871 SK Combi End Mill Arbor
Material: alloy steel
Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Max. Run out: <0.005mm
Surface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: DIN69871
Model | d | D | L | A |
SK30-SEMC16-50 | 16 | 32 | 17 | 50 |
SK30-SEMC22-50 | 22 | 40 | 19 | 50 |
SK30-SEMC27-55 | 27 | 48 | 21 | 55 |
SK30-SEMC32-60 | 32 | 58 | 24 | 60 |
SK40-SEMC16-55 | 16 | 32 | 17 | 55 |
SK40-SEMC16-100 | 16 | 32 | 17 | 100 |
SK40-SEMC22-55 | 22 | 40 | 19 | 55 |
SK40-SEMC22-100 | 22 | 40 | 19 | 100 |
SK40-SEMC27-55 | 27 | 48 | 21 | 55 |
SK40-SEMC27-100 | 27 | 48 | 21 | 100 |
SK40-SEMC32-60 | 32 | 58 | 24 | 60 |
SK40-SEMC32-100 | 32 | 58 | 24 | 100 |
SK40-SEMC40-60 | 40 | 70 | 27 | 60 |
SK40-SEMC40-100 | 40 | 70 | 27 | 100 |
SK50-SEMC16-55 | 16 | 32 | 17 | 55 |
SK50-SEMC16-100 | 16 | 32 | 17 | 100 |
SK50-SEMC22-55 | 22 | 40 | 19 | 55 |
SK50-SEMC22-100 | 22 | 40 | 19 | 100 |
SK50-SEMC27-55 | 27 | 48 | 21 | 55 |
SK50-SEMC27-100 | 27 | 48 | 21 | 100 |
SK50-SEMC32-60 | 32 | 58 | 24 | 60 |
SK50-SEMC32-100 | 32 | 58 | 24 | 100 |
SK50-SEMC40-60 | 40 | 70 | 27 | 60 |
SK50-SEMC40-100 | 40 | 70 | 27 | 100 |
Package and shipment
Packing: 1pcs/plastic bag, plastic box inside ,carton box outside can also packing as your request.
Shipping: 3-7days after payment, by international express or as your request.
