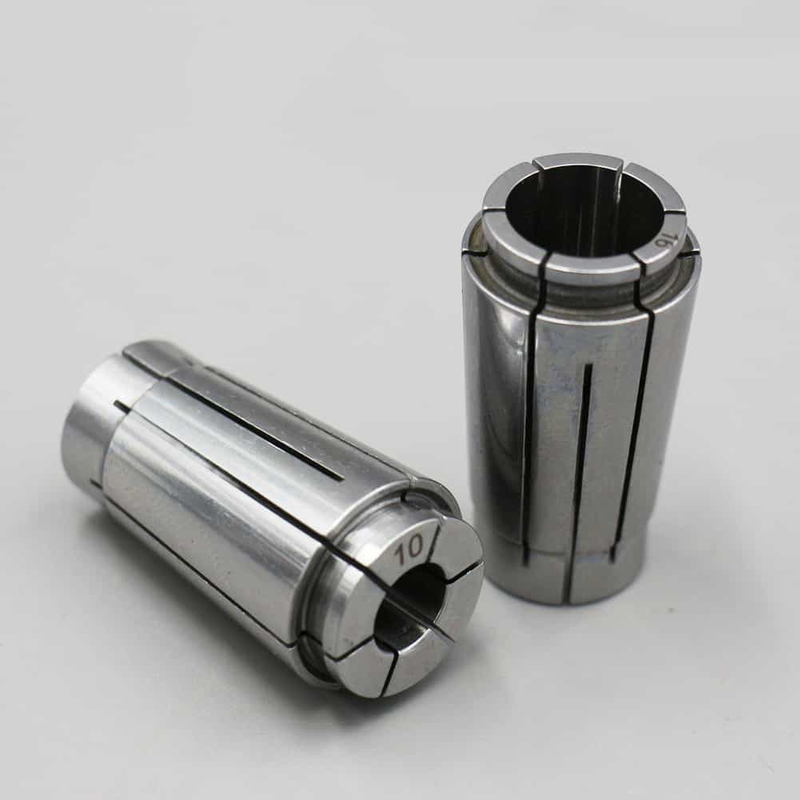

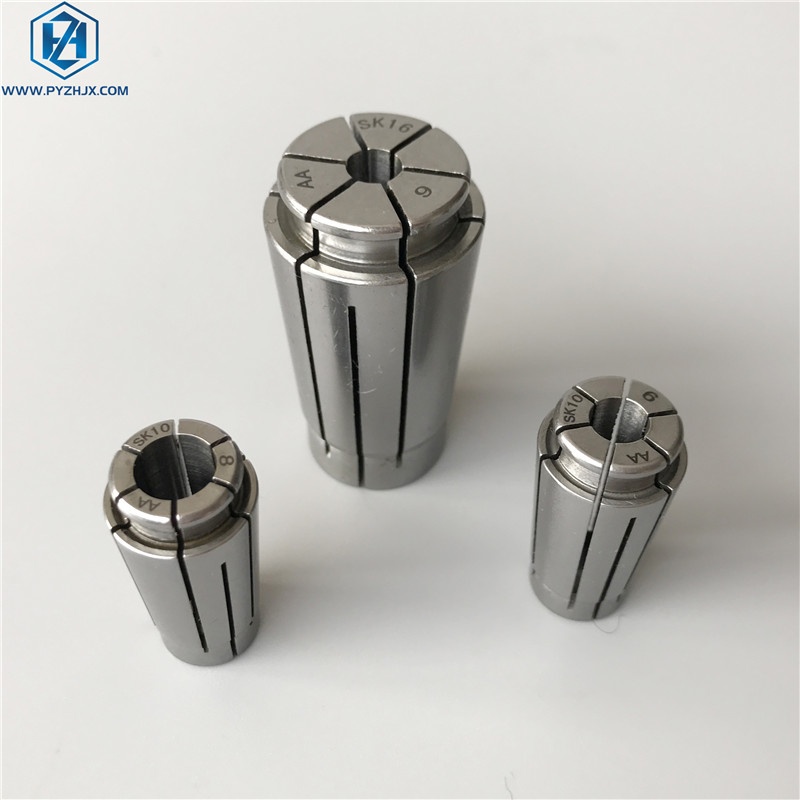

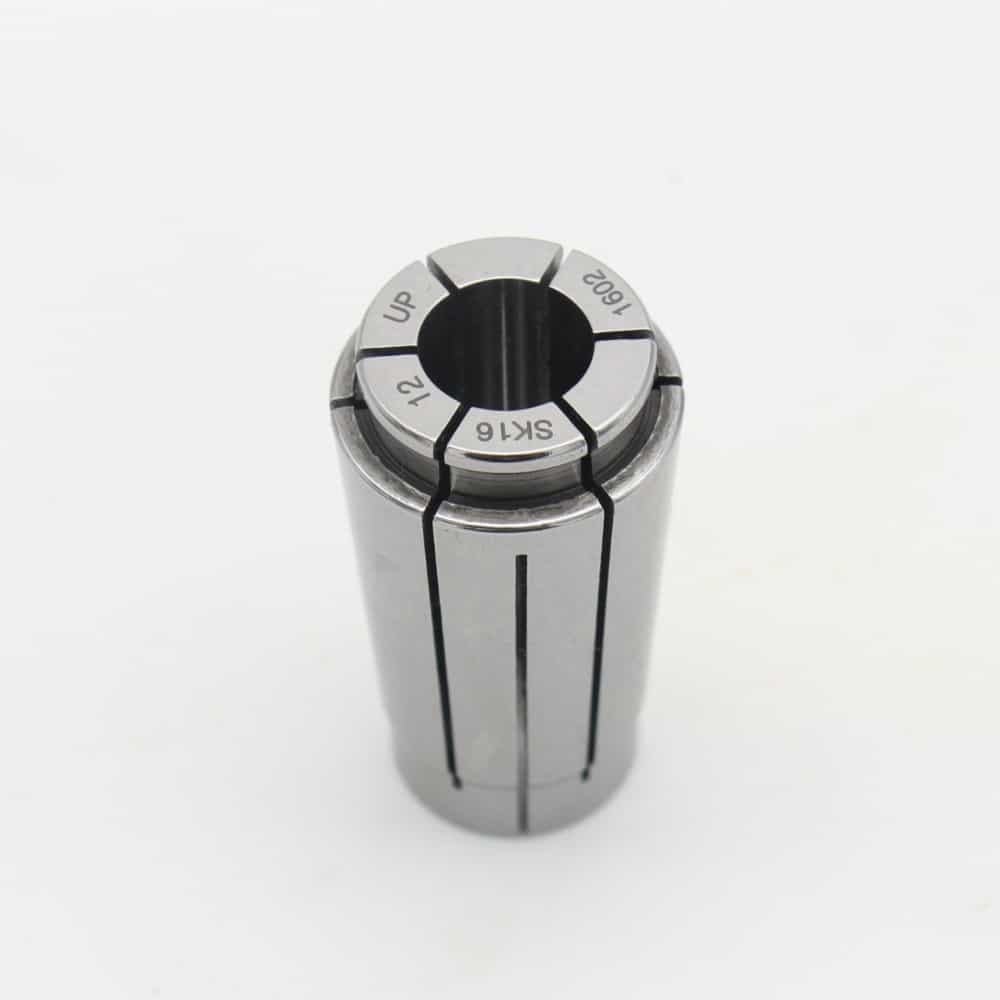

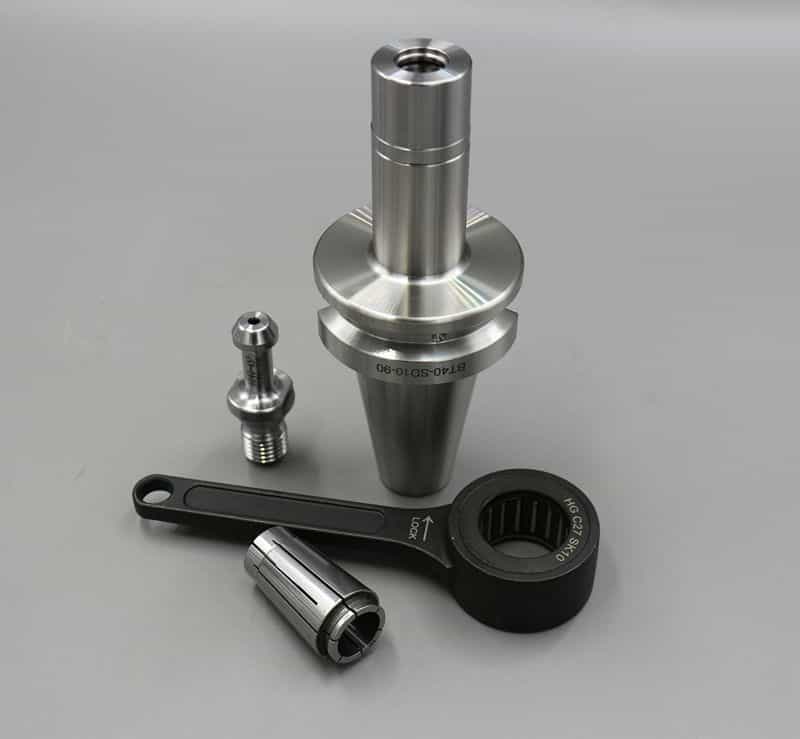

SK High Speed Precision Collet

Quantity:

Product Name: SK High Speed Precision Collet

Material: 65Mn Steel

Standard: DIN6499B

Type: SK6/SK10/SK16/SK25

Hardness: HRC44-48

Accuracy: <0.005mm

Usage: Clamping tool for the diameter

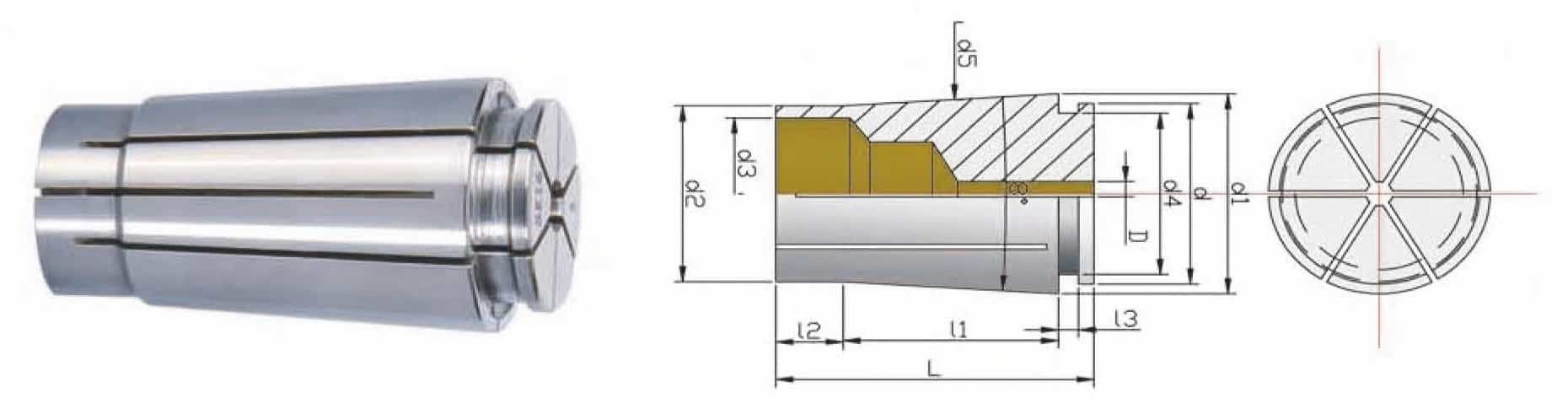

SK High Speed Precision Collet

Model

L

L1

L2

L3

d

d1

d2

d3

d4

d5

SK06

25.7

17.5

4

2.4

9.26

10.5

7.5

6

7.8

9.964

SK10

32

22

5

2.5

13.7

15.6

12

10

12

15.013

SK16

46

32

8

2.8

21

24.6

18.8

16

19

23.939

SK26

58

43

8.5

3.6

31

35.6

28.9

25.5

28.2

35.029
