Views: 0 Author: Nancy Liu Publish Time: 2026-05-18 Origin: Zhenghao Machinery
When buyers evaluate collets for CNC machining or industrial clamping applications, price and size are often the first considerations. However, one of the most important factors that determines whether a collet will perform reliably over time is the material it is made from.
The material used in a spring collet affects everything: clamping force, runout accuracy, elasticity, wear resistance, fatigue life, and resistance to deformation under repeated use. A collet made from the wrong material or processed incorrectly may look identical to a high-quality one on the outside, but will fail to deliver consistent performance in real machining conditions.
This article explains what materials are used in high-quality spring collets, why material selection matters, and what buyers should look for when evaluating a collet supplier's manufacturing standards.
At Zhenghao, we manufacture precision spring collets across multiple series — including ER collets, OZ collets, SDC slim collets, and DIN6343 round collets — using carefully selected spring steel and controlled heat treatment processes designed to deliver consistent performance across every batch.
A spring collet is not a static component. Every time it is used, it is compressed to clamp a tool or workpiece, then released to return to its original shape. This cycle is repeated thousands of times over the collet's service life.
To perform reliably through this repeated stress, the collet material must provide:
Sufficient hardness to resist wear and maintain dimensional accuracy
Adequate elasticity to spring back to its original shape after each clamping cycle
High fatigue resistance to withstand repeated compression without cracking or deforming
Good toughness to avoid brittle fracture under load
Dimensional stability to maintain accuracy over time and temperature variation
No single generic steel grade can satisfy all of these requirements equally well. This is why high-quality collet manufacturers use specifically selected spring steel grades, combined with precisely controlled heat treatment, rather than standard structural steel or unspecified alloys.
The industry-standard material for precision spring collets is spring steel — a category of high-carbon or alloy steel specifically engineered to provide the combination of hardness, elasticity, and fatigue resistance that collets require.
High carbon content contributes to hardness and wear resistance after heat treatment
Alloying elements such as chromium, silicon, manganese, or vanadium improve toughness, fatigue life, and hardenability
Heat treatability allows the material to be hardened and tempered to precise specifications
Consistent elastic behavior ensures reliable spring-back performance after repeated clamping cycles
Spring steel is not a single grade but a family of materials. The specific grade selected by a manufacturer determines the upper limit of performance that can be achieved through subsequent processing.
Different manufacturers may use different spring steel grades depending on their production standards and target performance levels. Some of the most commonly referenced grades in precision tooling include:
High-carbon spring steels, typically with carbon content in the range of 0.60% to 0.90%, offer good hardness and wear resistance after heat treatment. They are cost-effective and widely used in standard-grade collets.
However, high-carbon steels can be more susceptible to brittleness if heat treatment is not carefully controlled, which makes process consistency especially important.
Chromium-silicon alloy spring steels offer improved fatigue resistance and toughness compared to plain high-carbon grades. The addition of chromium enhances hardenability and corrosion resistance, while silicon improves elastic strength.
This type of alloy steel is commonly used in higher-performance spring components where fatigue life and consistent spring-back are critical requirements.
Chromium-vanadium spring steels are known for excellent toughness, fatigue resistance, and impact strength. They are often selected for demanding applications where the collet is subjected to high clamping forces or high-speed operation.
Rather than expecting every supplier to disclose proprietary material grades, buyers should ask:
Is the collet made from spring steel?
Can you confirm the material category or grade family?
Is the material consistent across production batches?
Do you have material certificates available for bulk orders?
A supplier who cannot answer these questions clearly is a potential risk for quality-sensitive procurement.
Selecting the right spring steel grade is only the first step. The material must then be processed through a carefully controlled heat treatment sequence to develop the required mechanical properties.
Even the best spring steel, if improperly heat treated, will produce a collet that is either too brittle, too soft, or inconsistent in performance.

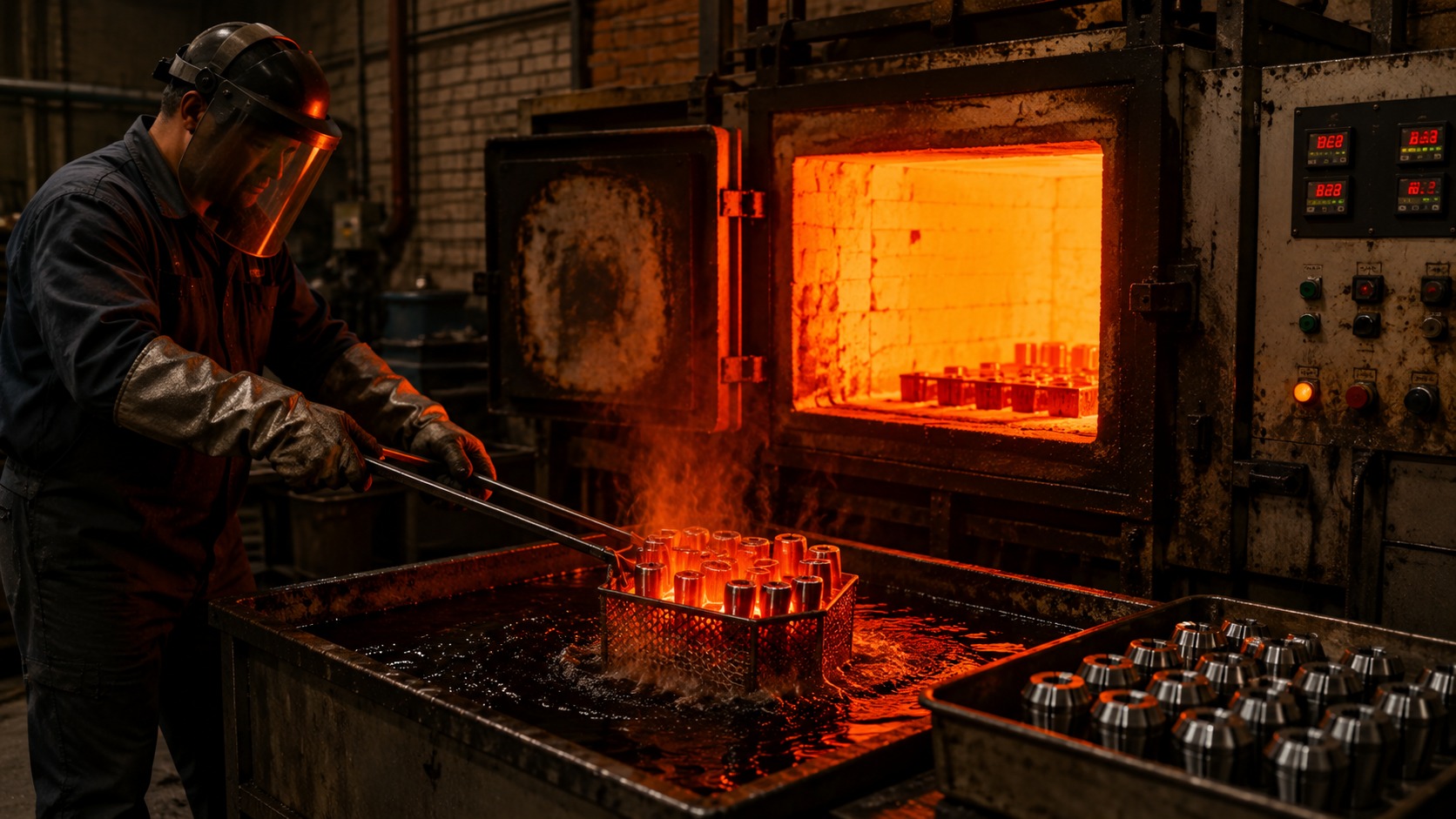

The collet is heated to a specific austenitizing temperature, then rapidly quenched to transform the steel microstructure into martensite. This step develops the high hardness needed for wear resistance and dimensional stability.
The quenching medium (oil, water, or air) and the precise temperature profile must be controlled carefully to avoid distortion, cracking, or uneven hardness distribution.
After hardening, the collet is tempered at a lower temperature to reduce brittleness while retaining sufficient hardness. The tempering temperature determines the final balance between hardness and toughness.
For spring collets, this balance is critical:
Too hard: the collet becomes brittle and may crack under clamping stress
Too soft: the collet loses its spring-back ability and clamping force diminishes quickly
In some manufacturing processes, a stress-relieving step is included to reduce internal stresses introduced during machining or forming. This helps improve dimensional stability and reduces the risk of distortion during use.
A correctly heat-treated spring collet will exhibit:
Consistent hardness across the entire collet body
Reliable elastic behavior through thousands of clamping cycles
Resistance to permanent deformation
Long service life with stable clamping accuracy
Zhenghao applies precise heat treatment to all spring collets, ensuring that hardness, elasticity, and fatigue resistance are consistently achieved across production batches.
The relationship between material quality and clamping accuracy is direct and significant.
A collet that is properly hardened maintains its dimensions more consistently over time. Softer collets tend to deform gradually under repeated clamping loads, causing the bore diameter to change and runout to increase.
A collet made from properly tempered spring steel will return to its exact original shape after each clamping cycle. This means the clamping diameter remains consistent, and runout stays within specification even after extended use.
Spring collets are subjected to cyclic stress every time they are clamped and released. A material with poor fatigue resistance will develop micro-cracks in the slot areas over time, eventually leading to reduced clamping force, increased runout, or collet failure.
High-quality spring steel with proper heat treatment significantly extends fatigue life, which translates directly into longer service intervals and lower replacement costs for end users.
Zhenghao's spring collets are designed to maintain clamping accuracy in the range of 0.008 mm to 0.015 mm depending on the model — a level of performance that depends not only on precision grinding but on the underlying material quality and heat treatment consistency.
Material and heat treatment establish the foundation of collet quality, but the final dimensional accuracy is achieved through precision grinding.
After heat treatment, collets are ground to their final dimensions using CNC grinding equipment. This step determines:
The exact bore diameter and taper angle
The outer profile dimensions
The surface finish quality
The final runout performance
Precision grinding cannot compensate for poor material or inconsistent heat treatment. If the base material is too soft or the heat treatment is uneven, the collet will not hold its ground dimensions reliably during use.
This is why high-quality collet manufacturing requires all three elements to work together:
Correct material selection
Controlled heat treatment
Precision grinding
Removing or compromising any one of these steps will reduce the overall quality of the finished collet.
For buyers evaluating collets, there are several practical indicators that may suggest inferior material or heat treatment:
Unusual surface color: Uneven or patchy discoloration after heat treatment may indicate inconsistent processing
Surface pitting or roughness: May suggest poor material quality or inadequate grinding
Visible cracks near slots: A sign of brittle material or over-hardening
Rust on new collets: May indicate insufficient carbon content or poor surface treatment
Rapid loss of clamping force: Suggests the material is too soft or the heat treatment is insufficient
Increased runout after short use: Indicates dimensional instability due to material deformation
Collet cracking during normal use: Points to over-hardening or poor toughness
Inconsistent performance between collets in the same batch: Suggests poor process control
Supplier cannot specify the material grade
No hardness test data available
No material certificates for bulk orders
Unwillingness to discuss heat treatment process details
When evaluating a collet supplier, the following questions will help you assess the seriousness of their material and process standards:
Question | What a Good Answer Looks Like |
What material do you use for your collets? | Spring steel, with specific grade or category confirmed |
Is the heat treatment done in-house? | Yes, with controlled furnaces and defined process parameters |
What hardness range do your collets achieve? | Specific Rockwell hardness range provided |
Can you provide material certificates? | Yes, available for bulk orders upon request |
How do you ensure batch-to-batch consistency? | Defined process controls, regular hardness testing, inspection records |
What is the expected service life of your collets? | Reasonable estimate based on normal use conditions |
Suppliers who answer these questions clearly and specifically are demonstrating a level of manufacturing seriousness that is worth noting. Suppliers who deflect, generalize, or cannot answer are a potential risk.
To understand why spring steel is the correct choice, it helps to compare it with lower-quality alternatives that some manufacturers may use to reduce costs:
Property | Spring Steel | Standard Carbon Steel | Generic Alloy Steel |
Hardness after heat treatment | High and consistent | Variable | Variable |
Elasticity / spring-back | Excellent | Poor to moderate | Moderate |
Fatigue resistance | High | Low | Moderate |
Dimensional stability | High | Low | Moderate |
Suitability for collets | Ideal | Not recommended | Marginal |
Long-term clamping accuracy | Maintained | Degrades quickly | Inconsistent |
The performance gap between spring steel and inferior alternatives becomes most visible after extended use. A collet made from the wrong material may perform acceptably when new but will deteriorate rapidly, leading to increased runout, reduced clamping force, and eventual failure.
For buyers and distributors, this means that material quality directly affects customer satisfaction, return rates, and the reputation of the products you supply.
A manufacturer who is confident in their material quality will be willing to discuss it openly. Transparency about material grades, heat treatment processes, and hardness specifications is a strong indicator of a supplier who takes quality seriously and has nothing to hide.
Conversely, a supplier who is vague about materials, deflects technical questions, or claims that material details are proprietary without providing any verifiable information should be approached with caution.
When sourcing collets for bulk orders, OEM programs, or long-term supply relationships, material transparency should be treated as a basic requirement rather than an optional extra.
The material used in a spring collet is not a minor detail — it is the foundation of everything the collet is designed to do. Spring steel, selected for its combination of hardness, elasticity, and fatigue resistance, is the correct material for high-quality collets. Combined with controlled heat treatment and precision grinding, the right material enables a collet to deliver consistent clamping accuracy, reliable spring-back performance, and long service life across thousands of operating cycles.
For buyers evaluating collet suppliers, material quality should be one of the first criteria assessed — not an afterthought. Ask for material specifications, request hardness data, and test samples under real conditions before committing to bulk orders.
Zhenghao manufactures precision spring collets from premium spring steel with controlled heat treatment, producing consistent clamping accuracy of 0.008 mm to 0.015 mm across our ER, OZ, SDC, and DIN6343 collet series. We also manufacture a comprehensive range of CNC tool holders from 20CrMnTi alloy steel, hardened to HRC 58–62 with taper accuracy conforming to AT3 grade, for buyers seeking a complete one-stop tooling supply solution.
To request samples, material documentation, or discuss your bulk order requirements, contact us at zhjx@pyzhjx.com or +86-18660185316.
Spring steel provides the ideal combination of hardness, elasticity, and fatigue resistance required for collets. It allows the collet to maintain consistent clamping force and spring back to its original shape reliably after thousands of clamping cycles.
Not reliably. Visual inspection can reveal some surface quality issues, but the most important properties — hardness, elasticity, and fatigue resistance — can only be verified through testing or supplier documentation. Requesting hardness test reports and sample testing is the most reliable approach.
The appropriate hardness range depends on the specific steel grade and collet design, but in general, a well-made spring collet should be hard enough to resist wear while retaining enough toughness to avoid brittleness. Ask your supplier for the specific Rockwell hardness range for their products.
Yes, significantly. Proper heat treatment stabilizes the collet dimensions and ensures consistent elastic behavior. Inconsistent or inadequate heat treatment can cause dimensional instability, reduced spring-back, and accelerated wear — all of which negatively affect clamping accuracy over time.
Higher-quality spring steel and controlled heat treatment processes add to manufacturing cost, which is reflected in the price. However, the total cost of ownership is usually lower with quality collets because they last longer, maintain accuracy better, and generate fewer customer complaints or returns.
Ask for the material grade or category, hardness test data, heat treatment process details, and material certificates for bulk orders. A reliable manufacturer will be able to provide this information clearly and specifically.
