Views: 0 Author: Nancy Liu Publish Time: 2026-05-20 Origin: Zhenghao Machinery
Table of Contents

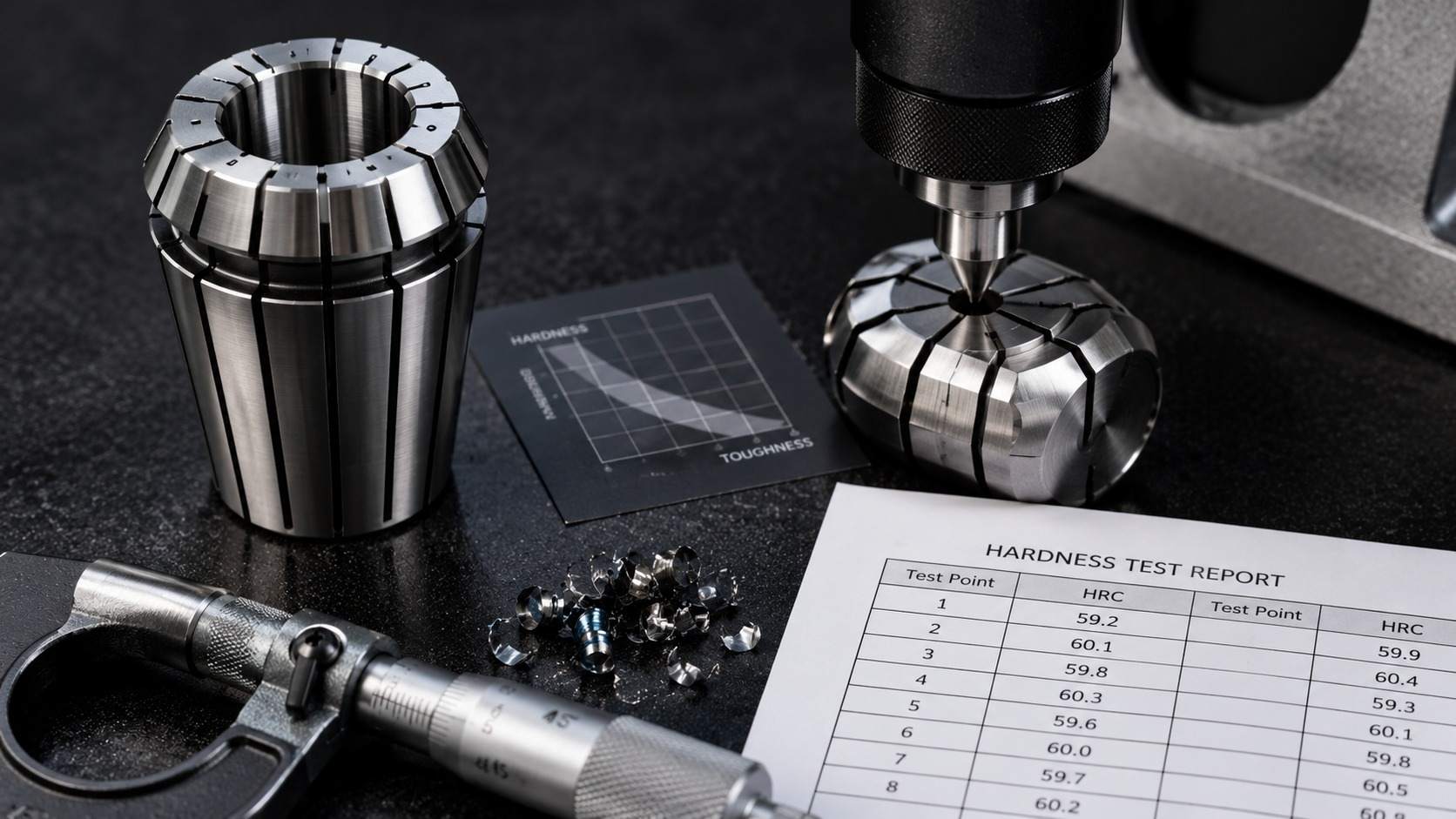

When buyers compare collets from different suppliers, they often focus on price, size range, and stated accuracy. Heat treatment is rarely the first topic that comes up in a purchasing conversation. Yet it is one of the most important manufacturing steps that determines whether a collet will perform reliably over its entire service life — or fail prematurely after only a short period of use.
Heat treatment transforms the mechanical properties of the steel used in a collet. It determines hardness, toughness, elasticity, fatigue resistance, and dimensional stability. Without proper heat treatment, even a collet made from the best spring steel will not deliver the clamping accuracy, spring-back performance, and service life that precision machining demands.
This article explains what heat treatment involves, why it matters for collet performance, what happens when it is done incorrectly, and how buyers can evaluate a supplier's heat treatment capability before placing a bulk order.
At Zhenghao, all precision spring collets — including our ER collets, OZ collets, SDC slim collets, and DIN6343 round collets — undergo controlled heat treatment as a core part of the manufacturing process, ensuring consistent mechanical properties and reliable performance across every production batch.
Heat treatment is a controlled process of heating and cooling metal to alter its microstructure and achieve specific mechanical properties. In collet manufacturing, heat treatment is applied after the collet has been rough-machined to shape, and before final precision grinding.
The goal of heat treatment for spring collets is to achieve:
High hardness for wear resistance and dimensional stability
Controlled toughness to prevent brittle fracture under clamping stress
Reliable elasticity so the collet springs back to its original shape after each clamping cycle
Fatigue resistance to withstand thousands of repeated compression and release cycles
Dimensional stability so the collet maintains its accuracy throughout its service life
These properties cannot be achieved through material selection alone. The same spring steel grade, processed with different heat treatment parameters, will produce collets with significantly different performance characteristics.

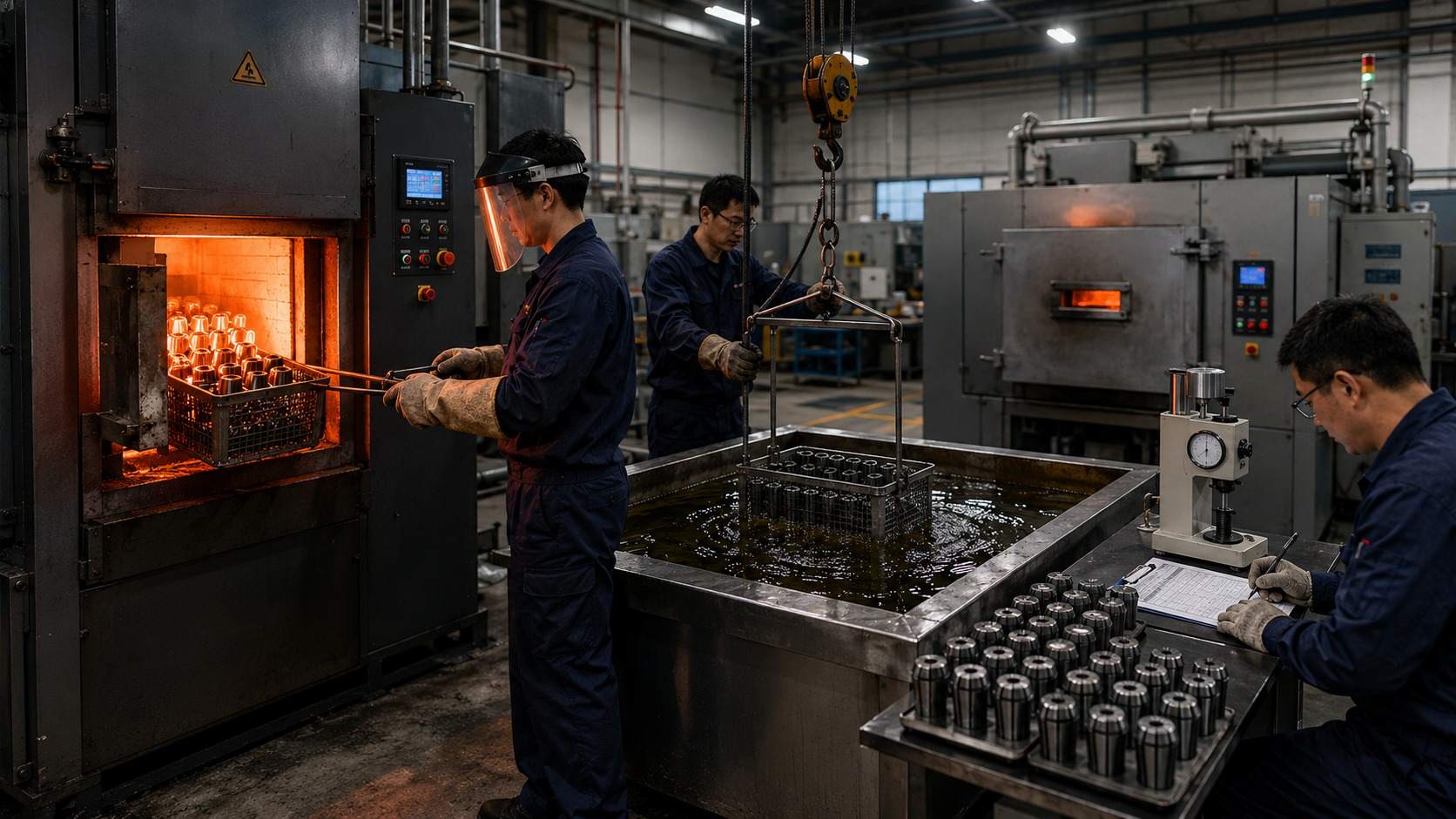

A properly executed heat treatment process for precision spring collets involves three main stages. Each stage plays a specific role in developing the final mechanical properties of the finished collet.
Hardening is the first and most critical stage. The collet is heated to a specific austenitizing temperature — the point at which the steel's microstructure transforms into austenite, a phase that can be converted into hard martensite through rapid cooling.
Once the correct temperature is reached and held for a sufficient time to ensure uniform heating throughout the part, the collet is rapidly cooled — a process called quenching. The quenching medium (typically oil for alloy spring steels) and the cooling rate are carefully controlled to achieve the desired hardness while minimizing distortion and the risk of cracking.
The result of successful hardening is a collet with high hardness and wear resistance. However, at this stage the steel is also very brittle and not yet suitable for use. This is why hardening must always be followed by tempering.
What can go wrong during hardening:
Heating to the wrong temperature produces inconsistent hardness
Uneven heating causes hardness variation across the collet body
Incorrect quench rate leads to distortion, cracking, or soft spots
Contaminated quench medium affects surface quality and hardness uniformity
After hardening, the collet is reheated to a lower temperature — the tempering temperature — and held there for a defined period before cooling. Tempering reduces the brittleness introduced by hardening while retaining a controlled level of hardness.
For spring collets, the tempering temperature is carefully selected to achieve the correct balance between:
Hardness: sufficient to resist wear and maintain dimensional accuracy
Toughness: sufficient to withstand repeated clamping stress without cracking
Elasticity: sufficient to ensure reliable spring-back after each clamping cycle
This balance is the defining characteristic of a well-made spring collet. Getting it right requires not only the correct tempering temperature but also precise control of the holding time and cooling rate.
What can go wrong during tempering:
Tempering at too low a temperature leaves the collet too brittle
Tempering at too high a temperature reduces hardness excessively, resulting in poor wear resistance and loss of spring-back
Inconsistent tempering across a batch produces collets with variable performance
In some manufacturing processes, a stress-relieving step is included either before or after hardening and tempering. This low-temperature treatment reduces internal stresses introduced during machining or forming, improving dimensional stability and reducing the risk of distortion during subsequent processing or in-service use.
While not always a separate step in every manufacturing process, stress relief contributes to the overall consistency and dimensional accuracy of the finished collet.
The effects of heat treatment are not abstract. They translate directly into measurable performance characteristics that affect every aspect of how a collet behaves in real machining conditions.
A collet that has been properly hardened and tempered maintains its dimensional accuracy more consistently over time. The hardened steel resists deformation under clamping loads, which means the bore diameter and taper geometry remain stable through repeated use.
Collets with insufficient hardness tend to deform gradually. As the bore diameter changes, runout increases and clamping consistency deteriorates — even if the collet was accurate when new.
Zhenghao's spring collets achieve clamping accuracy of 0.008 mm to 0.015 mm depending on the model — a performance level that depends on both precision grinding and the dimensional stability provided by correct heat treatment.
The elastic behavior of a spring collet — its ability to return to its original shape after being compressed — is directly determined by the tempering stage of heat treatment.
A correctly tempered collet will:
Spring back fully and consistently after each clamping cycle
Maintain consistent clamping force across thousands of uses
Hold the tool or workpiece securely without slipping
A collet that has been over-tempered (too soft) will lose its spring-back ability progressively. The clamping force decreases, the collet no longer grips the tool firmly, and machining accuracy deteriorates. In severe cases, the tool may slip during cutting, creating a safety risk.
Every time a collet is clamped and released, the material in the slot areas is subjected to cyclic stress. Over time, this repeated stress can initiate micro-cracks that propagate until the collet fails.
The fatigue resistance of the collet material — which is significantly enhanced by proper heat treatment — determines how many clamping cycles the collet can withstand before failure. A collet with good fatigue resistance will provide a much longer service life, reducing replacement frequency and total cost of ownership.
The hardened surface of a properly heat-treated collet resists wear from contact with the tool holder taper and the tool shank. Collets with insufficient hardness wear more quickly, leading to:
Gradual increase in runout
Reduced clamping force
Poor fit with the tool holder
More frequent replacement
Understanding the consequences of poor heat treatment helps buyers recognize quality problems and evaluate supplier capability more effectively.
If the hardening temperature is too high or the quench rate is too aggressive, the collet becomes excessively hard and brittle. This can result in:
Cracking during the clamping operation
Chipping at the collet slots under normal use
Sudden failure rather than gradual wear
Collets that break rather than deform when overloaded
If the hardening temperature is too low or the quench is insufficient, the collet does not reach the required hardness. This results in:
Rapid wear of the bore and taper surfaces
Quick loss of clamping force
Increasing runout after short use
Permanent deformation of the collet slots
Even if individual collets are within specification, batch-to-batch inconsistency in heat treatment creates serious problems for buyers:
Variable performance between collets in the same order
Customer complaints about inconsistent tool holding
Difficulty maintaining machining quality when collets are replaced
Higher return and replacement rates
This is why process control — not just the heat treatment process itself — is a critical indicator of supplier quality. A manufacturer with controlled, repeatable heat treatment processes will produce consistent results across large production batches.
For buyers sourcing collets in bulk, evaluating a supplier's heat treatment capability is an important part of the overall quality assessment. Here are the key questions and indicators to consider:
Question | What a Reliable Answer Looks Like |
Is heat treatment done in-house or outsourced? | In-house, with controlled furnaces and defined process parameters |
What hardness range do your collets achieve? | Specific Rockwell hardness range provided with supporting data |
How do you control batch-to-batch consistency? | Defined process parameters, regular hardness testing, inspection records |
Can you provide hardness test reports? | Yes, available upon request for bulk orders |
What quenching medium do you use? | Oil quench for alloy spring steels is standard |
How do you detect heat treatment defects? | Hardness testing, visual inspection, dimensional verification after treatment |
Request hardness test data for the specific collet models you are considering
Test samples for clamping force consistency and spring-back behavior
Perform repeated clamping tests to assess fatigue behavior over a short evaluation period
Compare runout before and after extended use to check dimensional stability
Ask for factory information about heat treatment equipment and process controls
A manufacturer who performs heat treatment in-house with controlled equipment and documented processes has a significant quality advantage over one who outsources this step or cannot describe their process in specific terms.
One of the most important distinctions between collet manufacturers is whether heat treatment is performed in-house or outsourced to a third-party processor.
Direct control over process parameters (temperature, time, quench rate)
Faster feedback loop for quality issues
Better batch traceability
More consistent results across production runs
Ability to optimize parameters for specific collet designs
Less direct control over process consistency
Potential for variation between different outsourced batches
Slower response to quality problems
Reduced traceability
Higher risk of inconsistency when outsourced provider changes parameters
For buyers placing large or repeat orders, a manufacturer with in-house heat treatment capability offers a more reliable foundation for consistent quality over time.
Heat treatment does not operate in isolation. Its effectiveness depends on what comes before and after it in the manufacturing sequence.
The base material must be a suitable spring steel grade with the right composition to respond correctly to heat treatment. Inferior steel will not achieve the required properties regardless of how well the heat treatment is executed. This is why material selection and heat treatment must be considered together as a system.
You can read more about the importance of material selection in our related article on what material should a high-quality spring collet be made of.
After heat treatment, the collet is precision ground to its final dimensions. The stability of these dimensions during grinding — and during subsequent use — depends directly on the quality of the heat treatment. A collet that has been properly hardened and tempered will hold its ground dimensions reliably. A poorly heat-treated collet may distort during grinding or change dimensions during use.
The combination of correct material, controlled heat treatment, and precision grinding is what enables Zhenghao's collets to achieve consistent clamping accuracy of 0.008 mm to 0.015 mm across production batches.
While there is no single universal standard that specifies heat treatment parameters for collets in isolation, the performance outcomes of heat treatment — particularly hardness and dimensional accuracy — are governed by the standards that collets must conform to.
For example:
DIN6499 (ER collets) specifies dimensional tolerances and clamping accuracy that can only be consistently achieved with proper heat treatment
DIN6343 (round collets) similarly requires dimensional consistency that depends on stable material properties
Zhenghao manufactures collets conforming to DIN6499 and DIN6343 as applicable, with heat treatment processes designed to support the dimensional and performance requirements of these standards.
Our CNC tool holders are manufactured from 20CrMnTi alloy steel, carburized and hardened to HRC 58–62, with taper accuracy conforming to AT3 grade — another example of how controlled heat treatment is applied consistently across our full product range.
A supplier who is willing to discuss their heat treatment process in specific terms — including the steel grade, hardening temperature range, quench medium, tempering temperature, and hardness targets — is demonstrating a level of manufacturing seriousness that is directly relevant to product quality.
Conversely, a supplier who cannot or will not provide this information is a potential risk, particularly for buyers who:
Require consistent quality across large batches
Supply products under their own brand
Serve customers in demanding machining applications
Have experienced quality problems with collets from previous suppliers
Heat treatment transparency should be treated as a basic requirement in supplier qualification, not an optional extra.
Heat treatment is not a background manufacturing detail — it is one of the most important factors that determines whether a spring collet will deliver consistent clamping accuracy, reliable spring-back, long fatigue life, and stable performance throughout its service life.
The three core stages of hardening, tempering, and stress relieving must all be executed correctly and consistently to produce collets that perform as intended. Errors or inconsistencies in any stage can result in collets that are too brittle, too soft, dimensionally unstable, or variable in performance between batches.
For buyers evaluating collet suppliers, heat treatment capability — including whether it is performed in-house, how process consistency is controlled, and whether hardness data is available — should be a standard part of the supplier qualification process.
Zhenghao applies controlled heat treatment to all precision spring collets across our ER, OZ, SDC, and DIN6343 series, ensuring consistent hardness, reliable elasticity, and stable clamping accuracy of 0.008 mm to 0.015 mm across production batches. Combined with premium spring steel and precision grinding, our heat treatment process is a core part of what makes Zhenghao collets a reliable choice for CNC machining applications worldwide.
We also manufacture a full range of CNC tool holders with heat treatment to HRC 58–62, providing buyers with a complete, quality-consistent tooling supply from a single manufacturer.
To learn more, request samples, or discuss your bulk order requirements, contact us at zhjx@pyzhjx.com or +86-18660185316.
Heat treatment transforms the mechanical properties of the spring steel used in collets, developing the hardness, toughness, elasticity, and fatigue resistance needed for reliable clamping performance and long service life.
Improperly heat-treated collets may be too brittle and prone to cracking, too soft and prone to deformation, or inconsistent in performance between units. All of these outcomes reduce clamping accuracy, shorten service life, and increase replacement costs.
Request hardness test data from the supplier, test samples for spring-back consistency and clamping force, and perform repeated clamping tests to assess fatigue behavior. Visual inspection can reveal some surface issues but cannot verify the internal properties developed by heat treatment.
In-house heat treatment generally offers better process control, faster quality feedback, and more consistent batch-to-batch results. It is a positive indicator of a manufacturer's commitment to quality and their ability to maintain consistency across large production runs.
Proper heat treatment stabilizes the collet dimensions and ensures consistent elastic behavior, both of which are essential for maintaining clamping accuracy over time. Insufficient or inconsistent heat treatment causes dimensional instability and loss of spring-back, leading to increased runout and reduced clamping force.
The appropriate hardness depends on the specific steel grade and collet design. In general, a well-made spring collet should be hard enough to resist wear and maintain dimensions while retaining sufficient toughness to withstand repeated clamping stress. Ask your supplier for the specific Rockwell hardness range and supporting test data for their products.
