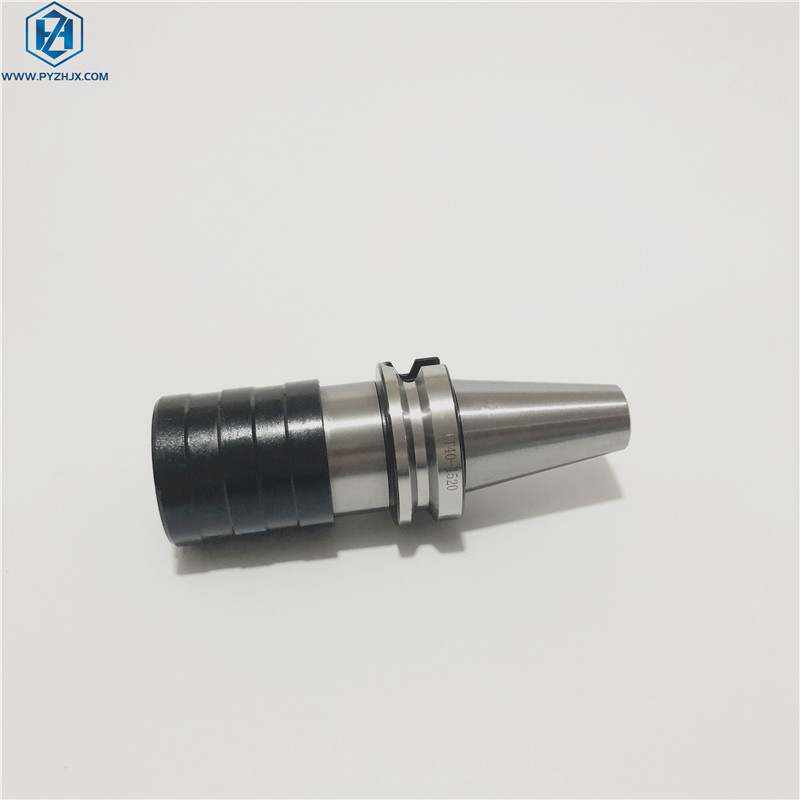

J45 Tapping Chuck M5-M20 B40-20 BT40 J4520 Tapping Collet Chuck Set

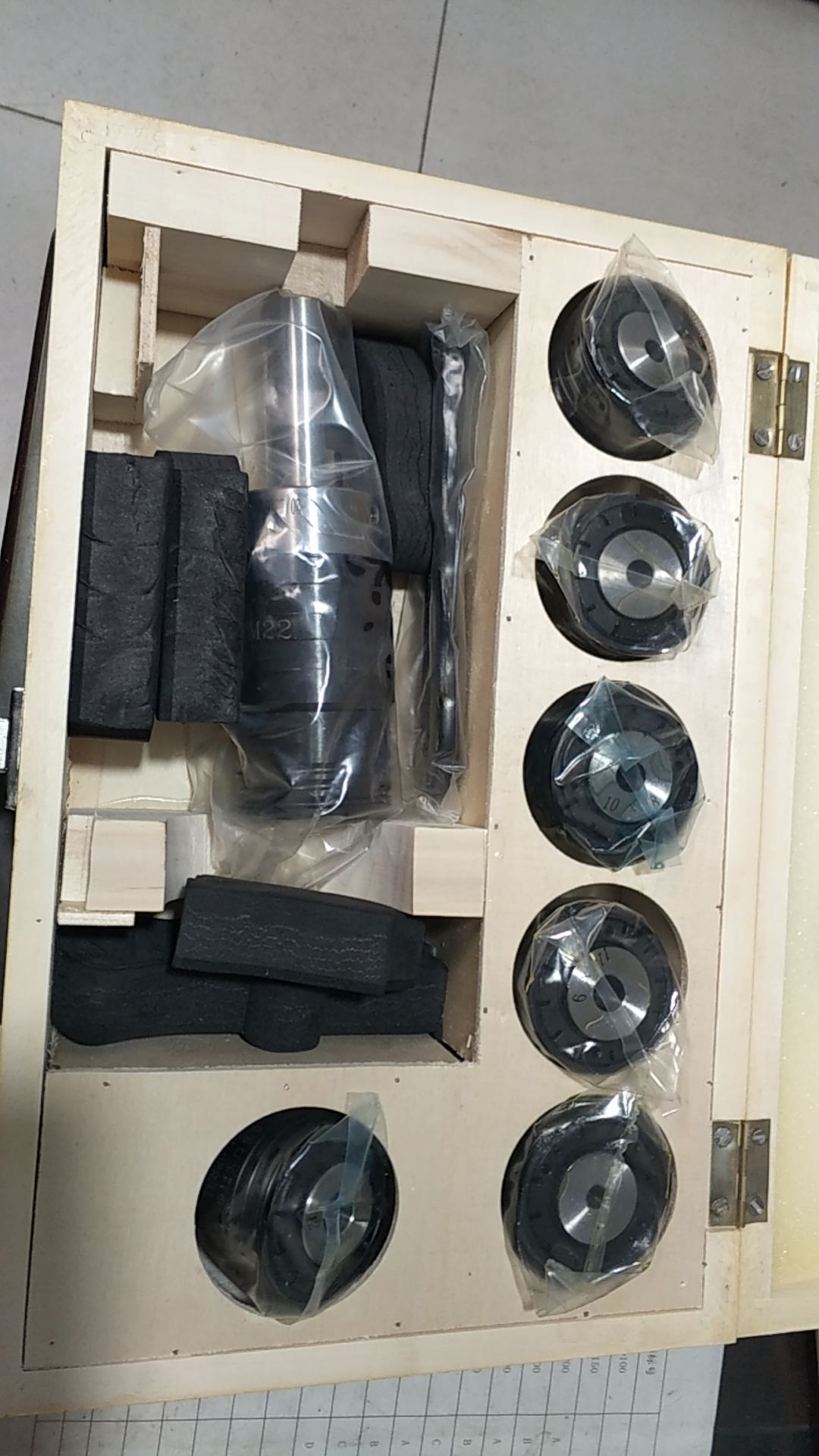

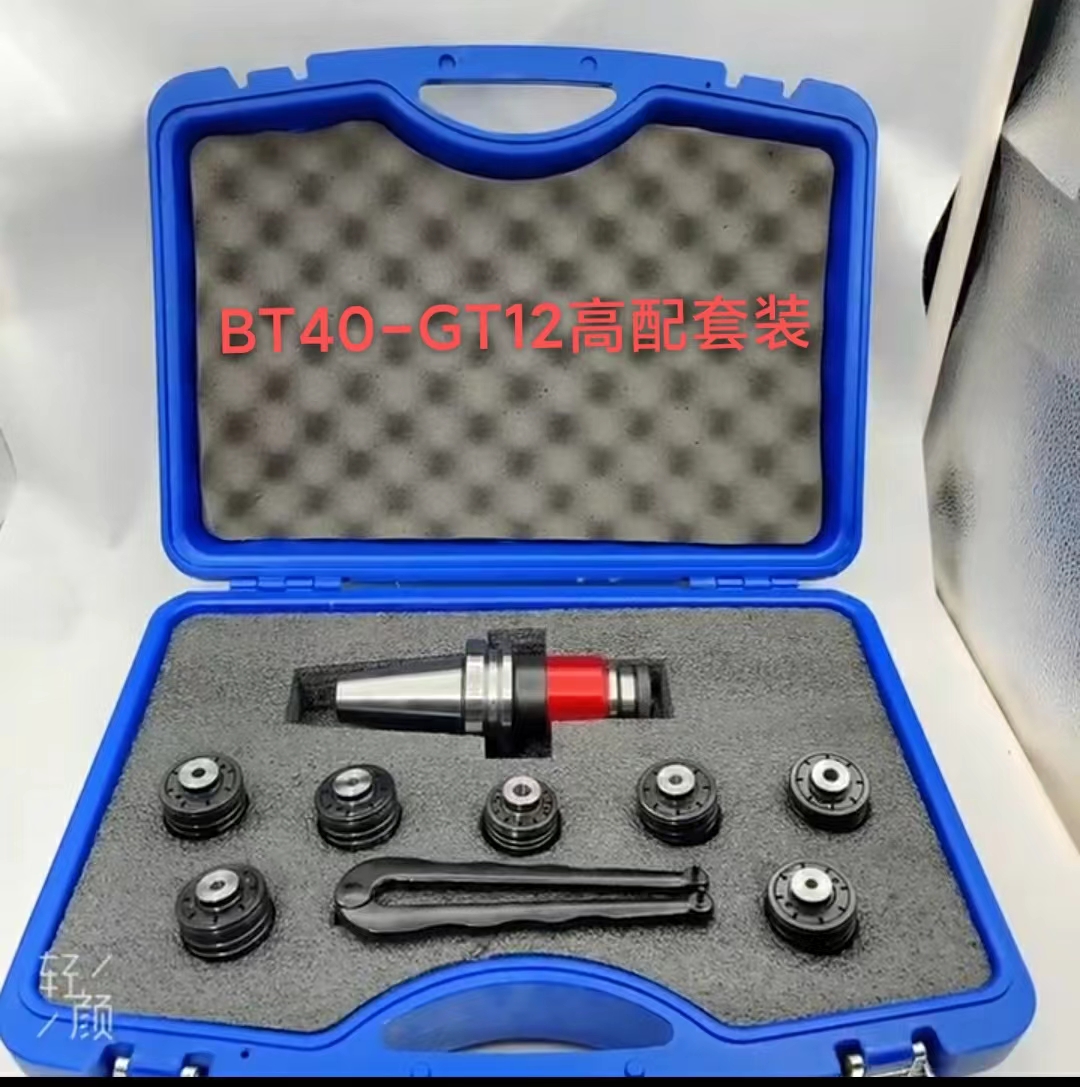

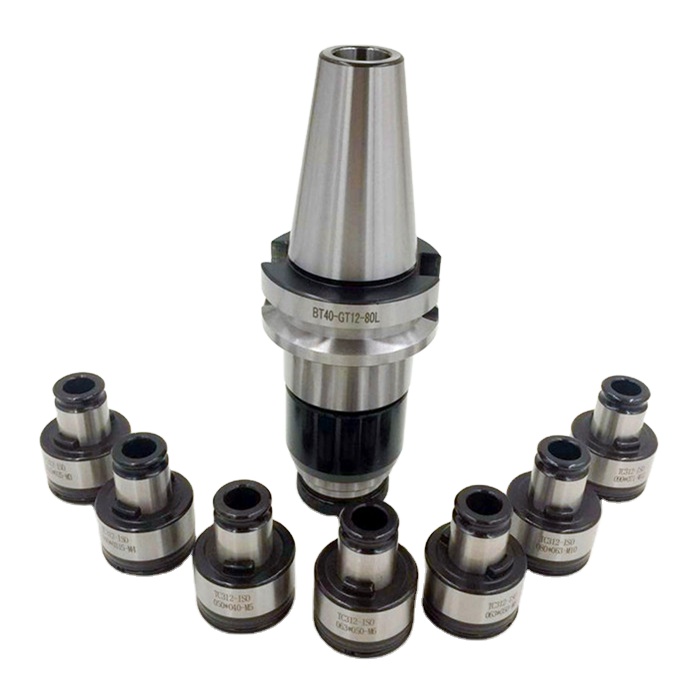

The set is consisted of a tap chuck and tap collets.
compensation device
overload torque protection collets
applicable to tap working on tapping machine
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • J4512/j4520/j4536

  • ZHORTMA

  • STEEL

  • tapping machine

  • J45 TAPPING CHUCK

  • tap working on drill, lather, boring machine, milling machine, cnc machine center

  • J4512/j4520/j4536

  • grey/black


J45 Tapping Chuck M5-M20 B40-20 BT40 J4520 Tapping Collet Chuck Set

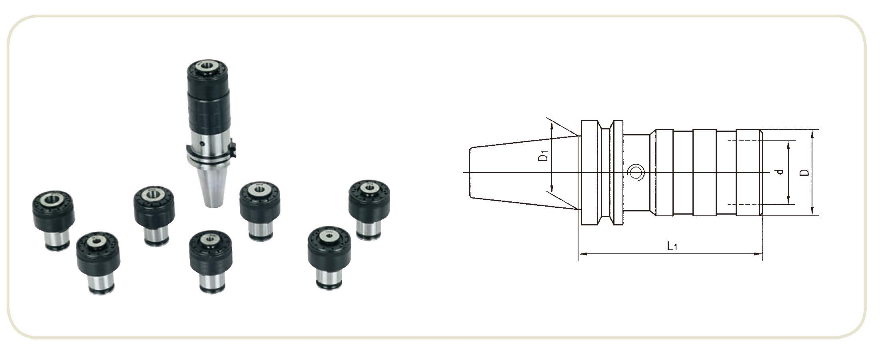

j45

Order no shank taper D mm D1  mm d  mm L1  mm tapping range
D30-12 DIN69871.30



        36		 31.75



       19		 70.1



M3-M12
D40-12 DIN69871.40 44.45 66.7
D50-12 DIN69871.50 69.85 66.7
B30-12 BT30 31.75 69.6
B40-12 BT40 44.45 74.6
B50-12 BT50 69.85 85.6
D30-20 DIN69871.30

         56		 31.75



      31

 89.6




M5-M20
D40-20 DIN69871.40 44.45 89.6
D50-20 DIN69871.50 69.85 89.6
B30-20 BT30 31.75 94.6
B40-20 BT40 44.45 97.5
B50-20 BT50 69.85 108.5
D30-36 DIN69871.30






         80

 31.75





     48

 126.1




M11-36
D40-36 DIN69871.40 44.45 146
D50-36 DIN69871.50 69.85 144
B30-36 BT30 31.75 129
B40-36 BT40 44.45 149
B50-36 BT50 69.85 160

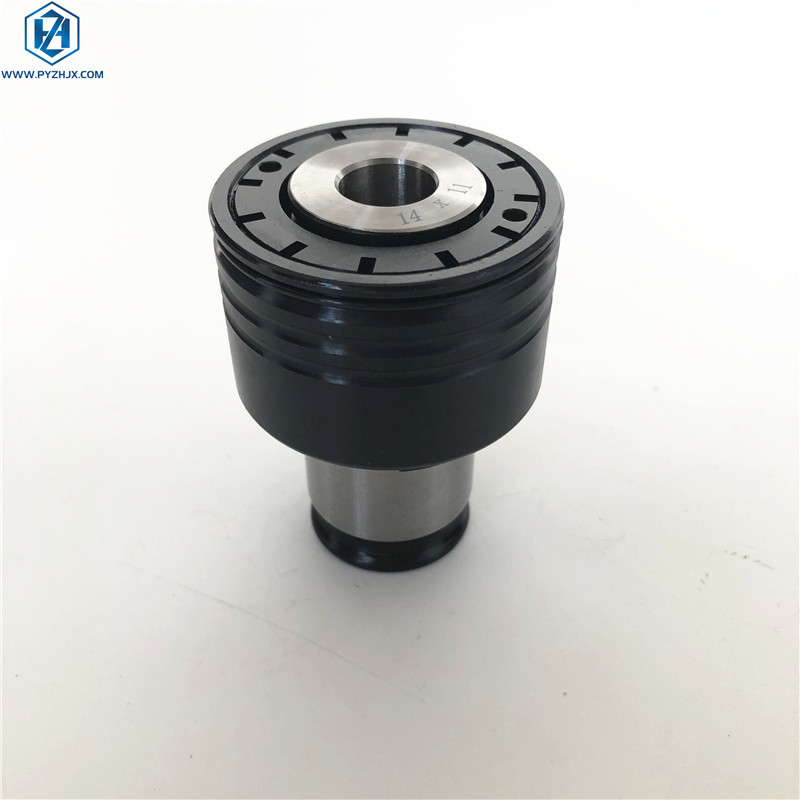

BT40 4520 (8)tapping collet06

j45



For J45 tapping chuck, you could order the tapping chuck or tapping collets separately.

Any needs contact Pingyuan Zhenghao Machinery Co.,ltd directly.
