Views: 0 Author: Nancy Liu Publish Time: 2026-05-25 Origin: Zhenghao Machinery
One of the most practical questions buyers, machinists, and procurement managers ask about collets is also one of the hardest to answer with a single number: how long does a collet actually last?
The honest answer is that collet service life varies enormously depending on the quality of the collet itself, the application it is used in, how it is maintained, and how it is operated. A high-quality collet used correctly in a light-duty application may last for years. The same collet used incorrectly in a demanding high-speed application may show signs of wear within weeks.
Understanding what drives collet service life — and what shortens it — is valuable for anyone making purchasing decisions, managing tooling inventory, or trying to reduce total cost of ownership in a machining operation.
This article explains the key factors that affect how long a collet lasts, how to recognize when a collet needs to be replaced, and how to extend service life through correct selection, use, and maintenance. These principles apply across all major collet types, including the ER collets, OZ collets, SDC slim collets, and DIN6343 round collets manufactured by Zhenghao.
Before discussing how long a collet lasts, it is important to define what "end of service life" actually means in practice.
A collet does not typically fail suddenly in the way a cutting tool might break. Instead, it degrades gradually. Service life ends when the collet can no longer perform its primary function — holding a tool or workpiece accurately and securely — to the standard required by the application.
The practical indicators that a collet has reached the end of its service life include:
Runout exceeds the acceptable tolerance for the application
Clamping force has decreased to the point where tool slip is a risk
The collet no longer springs back fully after release
Visible wear or damage to the bore, taper, or slot areas
The collet no longer fits properly in the tool holder or chuck
In precision machining applications, even a small increase in runout beyond the acceptable threshold is sufficient reason to replace a collet, even if it shows no visible damage.
While it is impossible to give a single definitive figure, industry experience and manufacturing knowledge suggest the following general ranges for spring collets under normal operating conditions:
Application Type | Typical Clamping Cycles | Approximate Duration |
Light-duty, low-speed machining | 50,000 – 100,000+ cycles | Several years |
General CNC machining | 20,000 – 50,000 cycles | 1 – 3 years |
High-speed, high-load machining | 10,000 – 30,000 cycles | Months to 1 year |
Aggressive or abrasive environments | Highly variable | Requires regular inspection |
These figures assume correct use, proper maintenance, and collets of adequate quality for the application. Poor-quality collets, incorrect use, or inadequate maintenance can reduce service life significantly — sometimes by an order of magnitude.
For buyers sourcing collets in bulk, understanding these ranges helps with inventory planning, replacement scheduling, and total cost of ownership calculations.
The single most important factor determining how long a collet lasts is the quality of the material and heat treatment used in its manufacture.
Hardness: A properly hardened collet resists wear on the bore, taper, and outer surfaces. A softer collet wears more quickly, leading to dimensional changes and increased runout.
Fatigue resistance: The slot areas of a collet are subjected to cyclic stress every time the collet is clamped and released. High-quality spring steel with proper heat treatment resists fatigue crack initiation and propagation, extending service life significantly.
Elasticity: A correctly tempered collet maintains its spring-back behavior through thousands of clamping cycles. A poorly tempered collet loses elasticity progressively, reducing clamping force and accuracy.
Dimensional stability: A well heat-treated collet holds its dimensions under repeated load. An under-hardened collet deforms gradually, causing runout to increase over time.
The difference in service life between a high-quality collet and a low-quality one made from inferior material or with inconsistent heat treatment can be dramatic — sometimes a factor of five to ten times or more.
Zhenghao manufactures all spring collets from premium spring steel with controlled heat treatment, producing consistent hardness, reliable elasticity, and fatigue resistance designed to support long service life across demanding machining applications.
The operating environment has a major influence on how quickly a collet wears.
Higher spindle speeds generate more heat and vibration, both of which accelerate collet wear. Collets used in high-speed machining centers operating at 15,000 RPM or above will wear more quickly than those used in lower-speed applications.
Heavy cutting operations — such as roughing passes with large depths of cut — impose higher clamping loads on the collet. Repeated exposure to high clamping forces accelerates fatigue in the slot areas and can cause the collet bore to deform over time.
Machining hard or abrasive materials generates more heat and vibration, which increases wear on the collet bore and taper surfaces. Applications involving hardened steel, titanium, or abrasive composites are particularly demanding.
Exposure to cutting fluids, chips, and contaminants can affect collet condition. Abrasive particles that enter the collet bore or taper interface accelerate wear. Corrosive coolants can damage surface coatings and promote rust if collets are not properly cleaned and stored.
One of the most common causes of premature collet wear is using the collet outside its intended clamping range.
Every collet has a defined clamping range — the range of tool or workpiece diameters it is designed to grip. For example, an ER collet with a nominal bore diameter of 10 mm typically has a clamping range of 1 mm (e.g., 9.0 mm to 10.0 mm).
Clamping at the extreme ends of the range places uneven stress on the collet slots, accelerating fatigue
Using a collet that is too large for the tool shank results in uneven clamping contact, increased runout, and rapid wear of the bore
Using a collet that is too small requires excessive compression, which overstresses the spring steel and shortens fatigue life dramatically
Always select a collet whose nominal bore diameter matches the tool shank diameter as closely as possible. Avoid using collets at the extreme ends of their clamping range for regular production work.
Choosing the right collet size from the start is one of the simplest and most effective ways to extend service life. Our full range of ER, OZ, SDC, and DIN6343 collets covers a comprehensive set of bore diameters to ensure the right size is always available.
How a collet is installed and tightened has a direct impact on both immediate performance and long-term service life.
Over-tightening the collet nut:
Applying excessive torque to the collet nut compresses the collet beyond its designed clamping range. This overstresses the slot areas, accelerates fatigue crack development, and can cause permanent deformation of the collet bore. Over-tightening is one of the most common causes of premature collet failure.
Under-tightening the collet nut:
Insufficient clamping force allows the tool to slip during cutting. The resulting micro-movement between the tool shank and collet bore causes fretting wear — a particularly damaging form of surface wear that rapidly degrades the bore diameter and increases runout.
Installing the collet without seating it properly:
If the collet is not correctly seated in the tool holder taper before tightening, the clamping force is distributed unevenly. This causes localized stress concentrations that accelerate wear and fatigue.
Using a damaged or worn collet nut:
A worn collet nut may not apply clamping force evenly, leading to uneven compression of the collet and accelerated wear.
Use a torque wrench to apply the manufacturer-recommended tightening torque
Ensure the collet is fully and correctly seated before tightening
Inspect the collet nut regularly and replace it when wear is detected
Never use a collet that does not seat smoothly in the tool holder
Contamination is a major but often overlooked cause of accelerated collet wear.
Chips and swarf entering the collet bore or taper interface act as abrasives, wearing the contact surfaces with every clamping cycle
Coolant residue that dries inside the collet can harden and create uneven contact surfaces
Rust and corrosion from inadequate cleaning or storage damage the bore and taper surfaces, increasing runout and reducing clamping force
Oil and grease contamination on the taper interface can reduce friction and cause the collet to seat inconsistently
Clean the collet bore, outer taper, and tool holder taper before every tool change
Use a clean, lint-free cloth or dedicated cleaning tool
Remove all chips, coolant residue, and debris before reinstalling
Apply a light film of appropriate tool holder oil to the taper surfaces if recommended by the manufacturer
Never blow compressed air directly into the collet bore while it is installed in the spindle
Collets that are not in use must be stored correctly to prevent damage that shortens their effective service life.
Store collets in a clean, dry environment away from moisture and corrosive atmospheres
Use individual protective tubes or cases to prevent contact damage between collets
Apply a light anti-rust coating to collets that will be stored for extended periods
Keep collets organized by size to prevent incorrect selection and installation
Avoid storing collets in areas exposed to temperature extremes or direct sunlight
Zhenghao supplies collets with appropriate individual packaging and, for complete sets, wooden storage cases that protect collets during storage and transport while keeping them organized for workshop use.
The condition of the tool holder that the collet is used with directly affects collet service life.
A worn or damaged tool holder taper creates uneven contact with the collet outer surface, causing localized stress and accelerated wear
A worn collet pocket in the tool holder allows the collet to move slightly during clamping, increasing runout and causing fretting wear
Contamination in the tool holder taper transfers to the collet surface and acts as an abrasive
Inspect tool holder tapers regularly for wear, damage, and contamination
Replace worn tool holders promptly — continuing to use a worn holder will accelerate collet wear and increase runout
Clean tool holder tapers thoroughly before every collet installation
Zhenghao manufactures a comprehensive range of CNC tool holders covering BT, SK, CAT, NT, and HSK taper systems, all precision machined to AT3 grade taper accuracy. Using quality-matched collets and tool holders from the same manufacturer helps ensure consistent interface geometry and reduces the risk of premature wear from mismatched components.

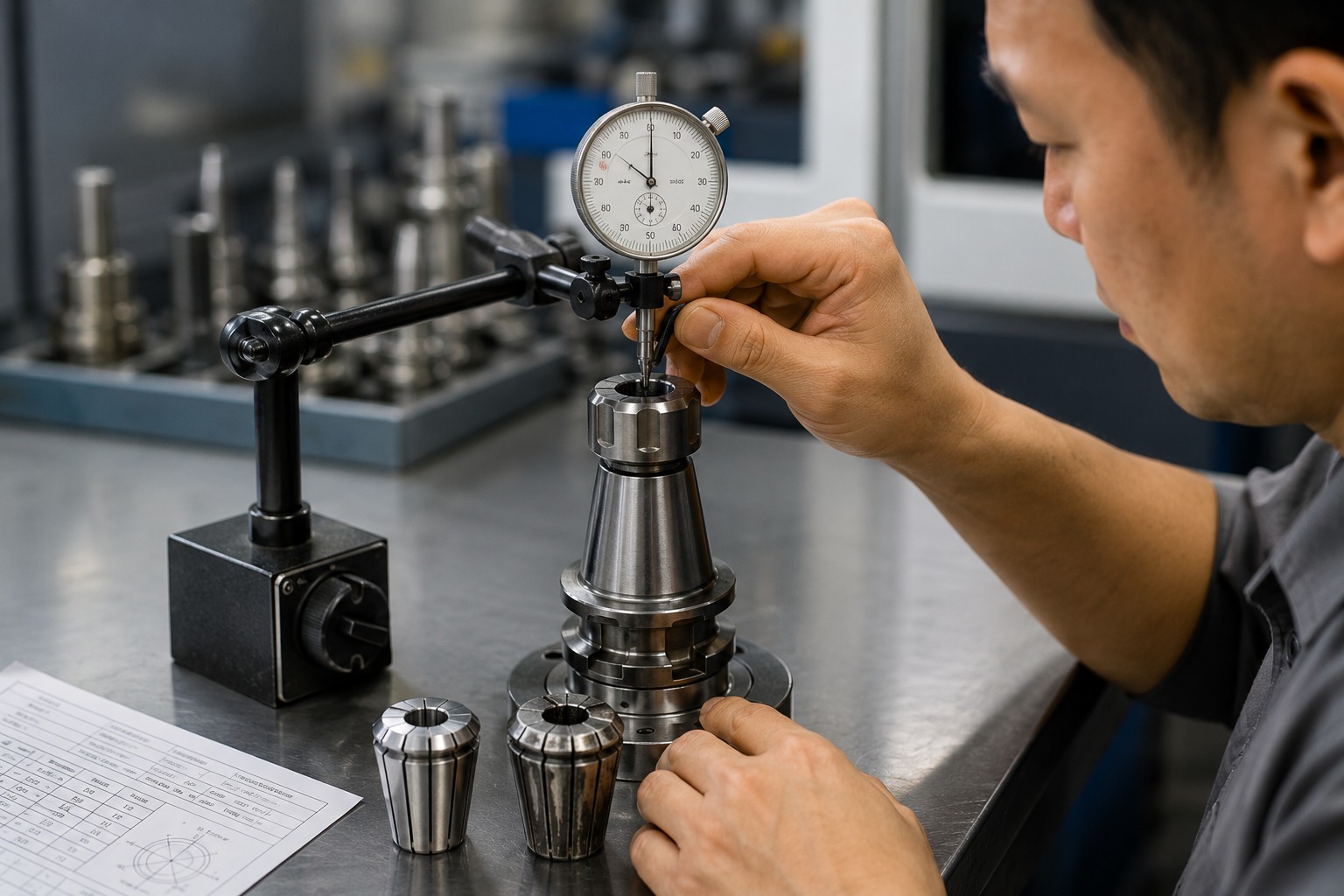

Knowing when to replace a collet is just as important as knowing how to extend its life. Using a worn collet beyond its service life creates machining quality problems and, in some cases, safety risks.
Symptom | Likely Cause | Action |
Runout exceeds acceptable tolerance | Bore wear or deformation | Replace collet |
Tool slip during cutting | Loss of clamping force | Replace collet immediately |
Collet does not spring back fully | Loss of elasticity | Replace collet |
Visible wear marks on bore surface | Abrasive wear | Replace collet |
Collet does not seat smoothly in holder | Taper wear or damage | Replace collet |
Visible cracks near slots | Fatigue cracking | Replace collet immediately |
Increasing surface roughness on workpieces | Runout increase | Inspect and replace if needed |
Collet nut difficult to tighten or release | Deformation or contamination | Inspect and replace if needed |
High-production environments: Inspect collets every 1–3 months or after a defined number of tool changes
General machining: Inspect collets every 6 months or when machining quality issues are observed
Low-volume or precision work: Inspect before critical jobs and whenever runout measurements show an increase
For buyers and procurement managers, collet service life is directly linked to total cost of ownership (TCO). A collet that costs more upfront but lasts three times as long as a cheaper alternative is almost always the better economic choice when all costs are considered.
Cost Factor | Low-Quality Collet | High-Quality Collet |
Unit purchase price | Lower | Higher |
Replacement frequency | High | Low |
Scrap and rework from runout issues | Higher | Lower |
Tool damage from slippage | Higher risk | Lower risk |
Downtime for collet changes | More frequent | Less frequent |
Customer complaints (for distributors) | More likely | Less likely |
Total cost over 12 months | Often higher | Often lower |
For distributors and OEM buyers, the quality of the collets you supply also affects your customers' perception of your brand. Collets that wear quickly or perform inconsistently generate complaints and returns that cost far more than the price difference between quality tiers.
Collet service life is not fixed — it is the result of multiple interacting factors including material quality, heat treatment, application conditions, correct size selection, installation practice, cleanliness, storage, and tool holder condition. Understanding these factors allows buyers, machinists, and procurement managers to make better decisions about collet selection, use, and replacement scheduling.
The most important single factor is collet quality itself. A collet made from premium spring steel with controlled heat treatment, precision grinding, and consistent dimensional accuracy will outlast a lower-quality alternative in virtually every application — and deliver better machining results throughout its service life.
Zhenghao manufactures precision spring collets across our ER, OZ, SDC, and DIN6343 series using premium spring steel and controlled heat treatment, achieving consistent clamping accuracy of 0.008 mm to 0.015 mm and the fatigue resistance needed for long service life in demanding machining applications. Combined with our full range of CNC tool holders — precision machined to AT3 grade taper accuracy and hardened to HRC 58–62 — we offer a complete, quality-matched tooling supply solution for global buyers.
To request samples, discuss bulk order requirements, or learn more about our product range, contact us at zhjx@pyzhjx.com or +86-18660185316.
Under normal operating conditions, a high-quality spring collet can handle tens of thousands of clamping cycles before showing significant wear. The exact number depends on application conditions, clamping loads, spindle speed, and maintenance practices. Light-duty applications may see 50,000 cycles or more; high-speed, high-load applications may see fewer.
The most common causes are over-tightening the collet nut, using the collet outside its intended clamping range, contamination of the bore or taper surfaces, and poor base material or heat treatment quality. All of these can be addressed through correct selection, proper installation technique, and regular cleaning.
In most cases, no. Once the bore diameter has worn beyond the acceptable tolerance or the collet has lost its spring-back behavior, reconditioning is not practical or cost-effective. Replacement is the correct course of action.
This depends on the application intensity and quality requirements. In high-production CNC environments, collets should be inspected every one to three months and replaced when runout or clamping force measurements fall outside acceptable limits. Establishing a regular inspection schedule is more reliable than waiting for visible symptoms.
Yes, indirectly. Collets that are correctly matched to the tool shank diameter — so that the tool is clamped near the middle of the collet's clamping range — experience more even stress distribution and longer fatigue life than collets used at the extreme ends of their range.
In most cases, yes. Higher-quality collets last longer, maintain accuracy better, and generate fewer machining problems and customer complaints. When total cost of ownership is considered — including replacement frequency, scrap, rework, and downtime — quality collets typically deliver a lower overall cost than cheaper alternatives.
