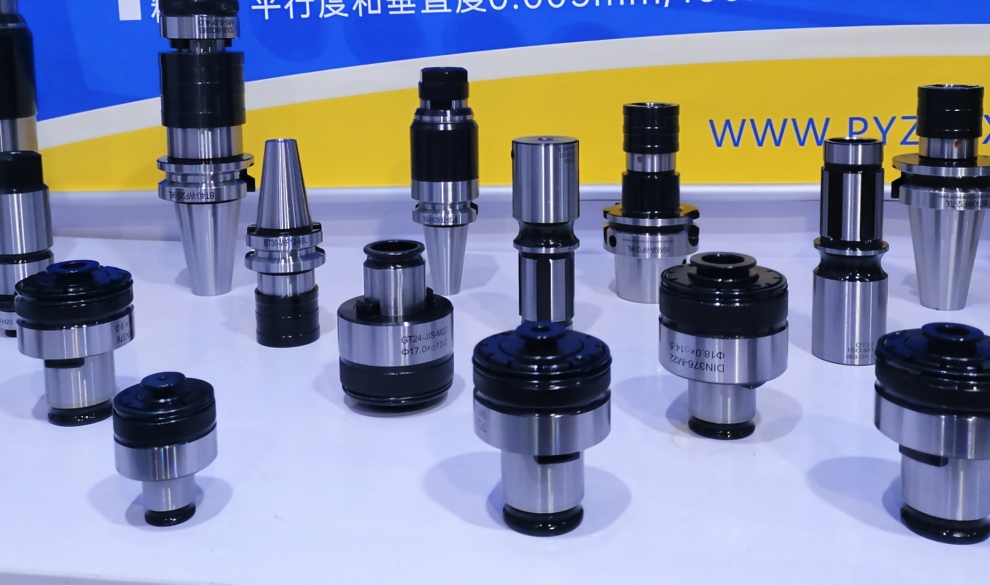

A broken tap can stop production quickly—especially when a threaded hole is deep inside a nearly finished part. When this happens repeatedly, shops often look at the tapping holder first.
The holder matters, but it is only one part of the system. To choose between a rigid tapping holder and a tension-compression tapping holder, you must first understand how the machine coordinates spindle rotation with axial feed.
In simple terms:
A rigid tapping setup relies on the CNC machine to synchronize spindle rotation and feed accurately.
A tension-compression tapping holder provides axial movement to help accommodate a mismatch between the tap’s required feed and the machine’s actual feed.
Neither approach is automatically better for every machine or every hole. The correct choice depends on the machine’s tapping capability, the tap, the workpiece and the process.
This guide explains the differences and gives buyers a practical checklist before ordering.
A tap advances by approximately one thread pitch for each spindle revolution. During machine tapping, the spindle and feed axis must therefore move together at the correct rate—and reverse in a coordinated way at the bottom of the hole.
A CNC machine with a properly configured rigid tapping function is designed to manage that synchronization. In this type of process, the machine controls the relationship between spindle position and axis movement, rather than relying on substantial axial movement in the holder to absorb feed errors.
If the machine does not support rigid tapping, or if its spindle and feed are not synchronized closely enough for the intended process, an appropriate compensation holder may be needed.
Before choosing a holder, check the machine builder’s documentation. A machine having a “tapping cycle” does not, by itself, confirm that it supports rigid tapping in the way your proposed holder and process require.

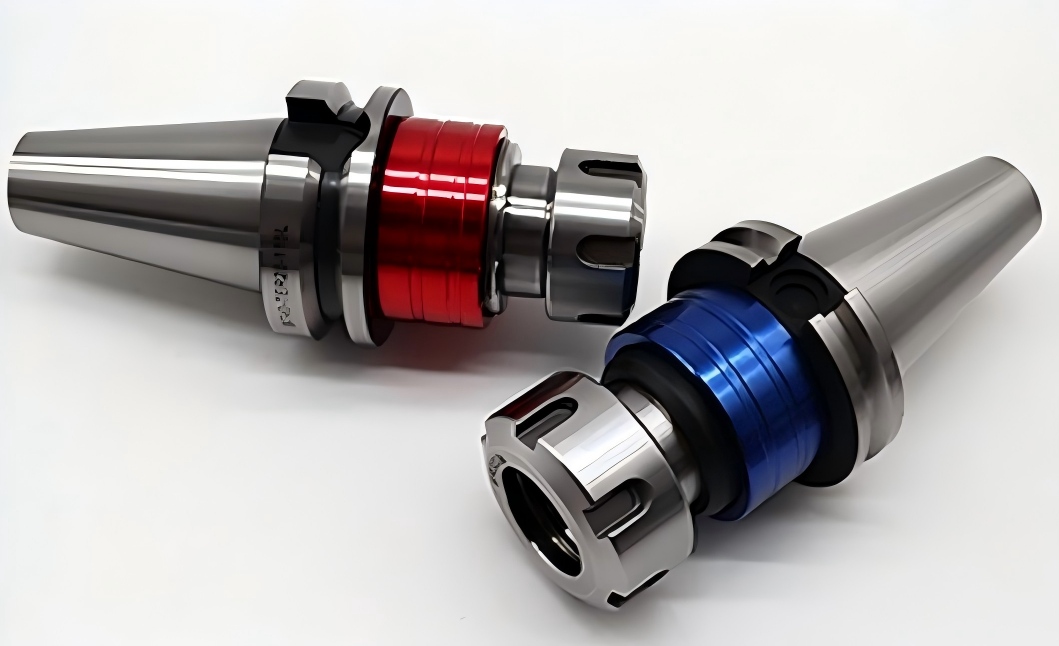

In a rigid tapping application, the holder grips the tap while the CNC machine controls the tapping motion. The holder generally has little or no axial travel compared with a conventional tension-compression holder.
Its purpose is to hold the tap securely and accurately within a machine-controlled tapping process.
Depending on the product design, a tapping holder sold for rigid tapping may use a tap collet, a quick-change adapter or another clamping arrangement. Some designs also incorporate a small amount of compliance. For this reason, it is important to review the actual holder specification, rather than assuming every product labeled “rigid tapping holder” is built in exactly the same way.
A rigid tapping setup is a logical option when:
The machine builder confirms that the machine supports rigid tapping
The CNC tapping cycle is correctly configured
The tap, holder and machine interface are compatible
The process is stable enough to control entry, depth and reversal consistently
A suitable rigid tapping process can simplify the tooling arrangement, but it does not eliminate the need to check tap geometry, hole preparation, coolant or lubrication, and cutting parameters.

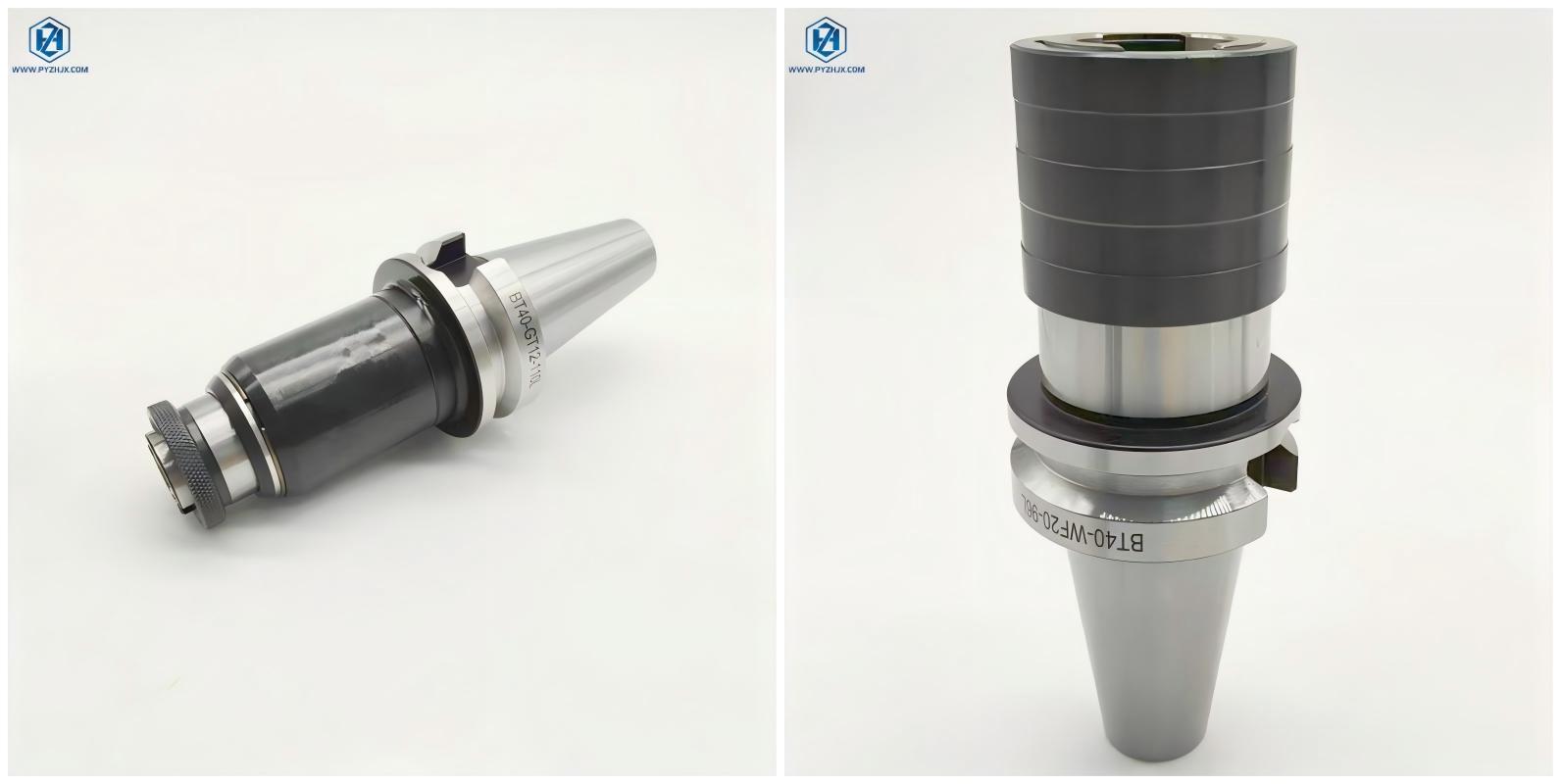

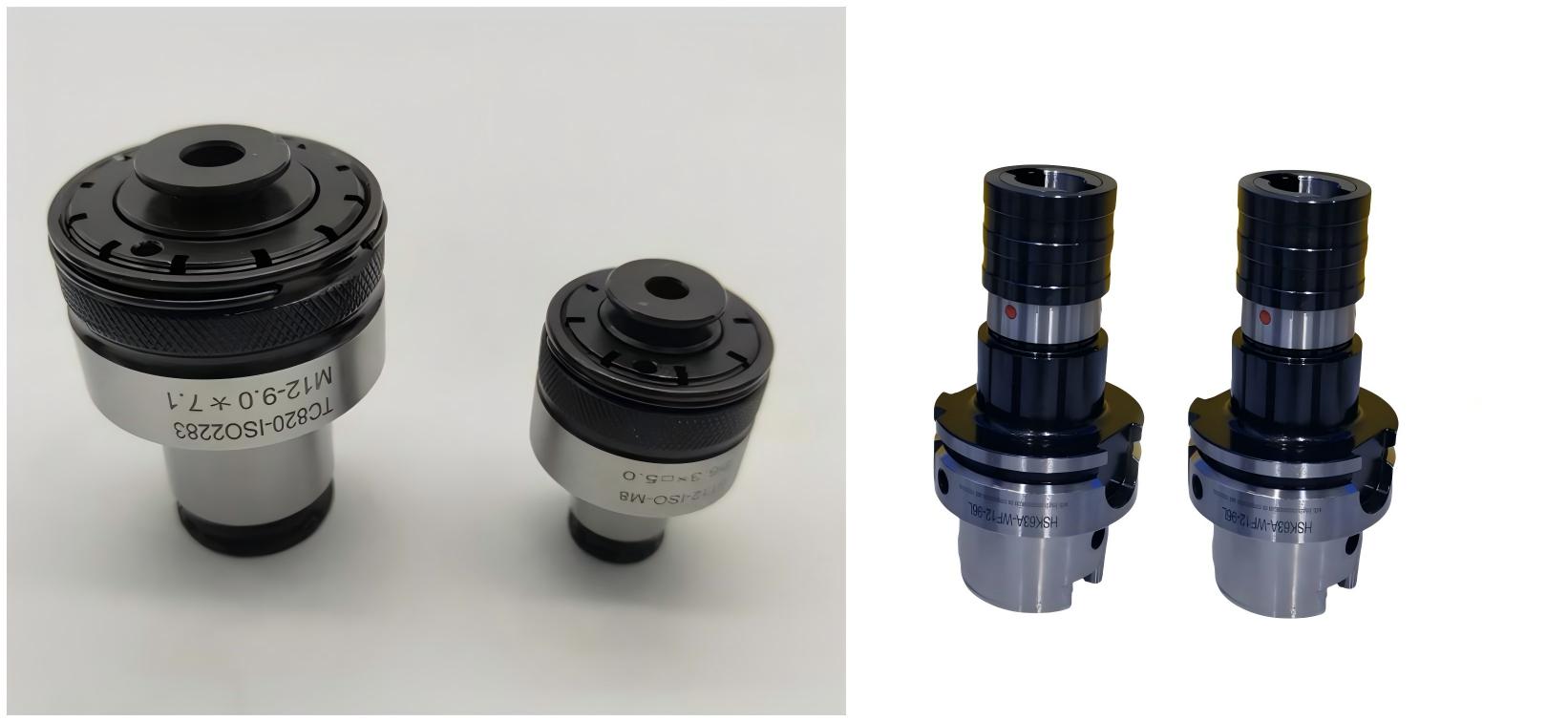

A tension-compression tapping holder allows controlled axial movement in two directions:
Compression as the tap enters and advances into the hole
Tension as conditions change during withdrawal and reversal
That movement helps the holder accommodate a difference between the axial feed commanded by the machine and the feed required by the rotating tap.
These holders are often considered for machines or processes where spindle rotation and axis feed are not synchronized as precisely as a rigid tapping process requires. They may also be used where a specific tapping application benefits from axial compensation, subject to the machine builder’s and holder manufacturer’s guidance.
Axial compensation is not a substitute for correct programming or process setup. Excessive mismatch, incorrect reversal, poor hole preparation or the wrong tap can still cause damaged threads or broken tools.
Selection factor | Rigid tapping setup | Tension-compression holder |
How feed mismatch is managed | Primarily through machine synchronization | Holder provides axial compensation |
Machine requirement | Confirmed rigid tapping capability | Depends on machine and tapping cycle |
Holder axial travel | Little or none, depending on design | Designed with specified tension and compression travel |
Key setup concern | Correct spindle–feed synchronization | Correct compensation range and tapping procedure |
Best first question | “Does my machine support rigid tapping?” | “How much compensation does this process need?” |
The table describes the operating principles, not a universal ranking of thread quality or tool life. Either approach can perform poorly if the machine, holder, tap and cutting conditions are mismatched.
Choose a holder intended for rigid tapping after confirming that your CNC machine supports the process.
It is particularly worth evaluating when you want to use the machine’s synchronized tapping cycle and your tooling can be specified for that operation. Make sure the holder fits both sides of the application:
Machine side: spindle interface, retention requirements and tool changer compatibility
Tool side: tap shank diameter, square drive dimensions where applicable, and clamping method
Also verify the machine’s tapping program and the tap manufacturer’s recommendations. A holder alone cannot make an unsupported machine perform rigid tapping.
Consider a tension-compression holder when the tapping process calls for axial compensation rather than depending entirely on rigid spindle–feed synchronization.
Before ordering, confirm:
The holder’s tension and compression travel
The compatible tap size or adapter
The machine-side interface
Whether the holder is suitable for your machine’s tapping cycle
The required tapping depth and available clearance
The available travel matters. Too little compensation may not address the feed mismatch; choosing a holder without understanding its travel can also complicate depth control and setup. Use the holder manufacturer’s specifications and the machine builder’s instructions together.
Check the machine manual or ask the machine builder. Record the CNC control model and machine model if you are requesting technical advice from a supplier.
Specify the thread size, pitch, tap type, shank diameter and square dimensions where applicable. Do not select a holder based only on the thread designation—for example, M8 does not fully describe the tap’s clamping dimensions.
Blind holes require particular attention to usable tapping depth, chip management and reversal. The holder must suit the available space and intended process.
Confirm whether you need a BT, BBT or another spindle interface, along with the correct size and retention requirements. If you are unsure about BT and BBT, see our guide to BT vs BBT tool holders.
If taps are breaking, first identify when the failure occurs: entry, cutting, the bottom of the hole or reversal. The cause may involve feed synchronization, hole size, chips, lubrication, tap selection or holder setup. Changing the holder without diagnosing the problem may not fix it.
Rigid tapping is a machine capability, not a feature supplied by the holder alone. Verify the function before selecting the tooling.
Tap clamping dimensions can vary. Confirm the tap shank and drive dimensions against the holder or adapter specification.
For a tension-compression holder, its axial travel is a functional specification. Make sure it is appropriate for the tapping process and that your setup accounts for it.
An undersized pre-drilled hole, unsuitable tap, poor chip evacuation or incorrect cutting conditions can cause failures even with a correctly selected holder.
The correct tap adapter is not enough if the holder’s spindle interface, pull stud or automatic tool changer compatibility is wrong.
A detailed inquiry helps a supplier recommend the correct configuration and reduces the risk of supplying a holder that does not suit the end user’s machine.
Include:
Machine make, model and CNC control
Confirmed rigid tapping capability, if applicable
Spindle interface and retention specification
Tap sizes and tap shank dimensions
Through-hole or blind-hole application
Workpiece material
Required holder type or compensation travel, if known
Quantity, packaging and OEM requirements
If you are building a broader CNC tooling range, you can also discuss related products such as tool holders, collets and workholding accessories. Zhenghao Machinery’s available categories can be viewed on our Products page. Specific tapping holder configurations and customization options should be confirmed for your inquiry.
A rigid tapping setup relies primarily on the machine to synchronize spindle rotation and feed. A tension-compression holder provides axial movement to help accommodate feed mismatch during the tapping process.
Do not assume you can. First check the machine builder’s guidance and the holder’s intended application. The holder does not create spindle–feed synchronization that the machine lacks.
No holder can guarantee that. Compensation can help address an appropriate feed mismatch, but tap breakage can also result from incorrect hole size, unsuitable taps, chips, lubrication or programming.
No. On a machine with properly configured rigid tapping capability, a suitable rigid tapping setup may be used. The correct choice depends on the machine and application.
Provide the tap’s shank diameter and, where applicable, its square drive dimensions. Thread size and pitch are useful, but they are not always enough to identify the correct clamping component.
No. BT40 or BBT40 identifies the machine-side interface. You must also confirm the holder’s tapping function, tap-clamping dimensions, length and retention requirements.
The most reliable selection process starts with the machine’s tapping capability, then moves to the holder and tap dimensions.
If you are sourcing tapping holders for a machine shop, distribution business or OEM product line, send Zhenghao Machinery your machine model, spindle specification, tap details and application requirements. Our team can review the relevant product options and confirm specifications before quotation.
