Parallelism 0.005 mm / 100 mm · Squareness 0.005 mm / 100 mm
Packaging
Custom fumigation solid wood crates with dedicated anti-shock inserts
Delivery
Full export standard — anti-rust, anti-moisture, anti-vibration, stackable
Client Background and Why They Chose Zhenghao
The client is a UK-based precision engineering company specialising in high-end precision component manufacturing — including precision mould tooling, hardware finishing, and tight-tolerance part production. Their production lines run surface grinders, CNC milling centres, and wire EDM machines around the clock, placing extreme demands on the accuracy and consistency of every workholding fixture in use.
When sourcing QGG precision grinding vises for a new production expansion, the client's procurement team evaluated multiple suppliers. Their shortlist criteria were uncompromising:
Product precision: Parallelism and squareness of 0.005 mm or better — non-negotiable for grinding applications
Material and heat treatment: Full alloy steel construction with documented heat treatment process
Export packaging standard: Custom protective packaging capable of surviving long-haul ocean freight without any precision surface damage
Supplier reliability: Proven production capacity and quality consistency for repeat orders
Zhenghao — founded in 2016 and operating as one of China's largest dedicated precision vise manufacturers, with a monthly production capacity exceeding 800 precision vises — met every criterion. After reviewing our technical specifications, production process documentation, and sample products, the client placed the order.

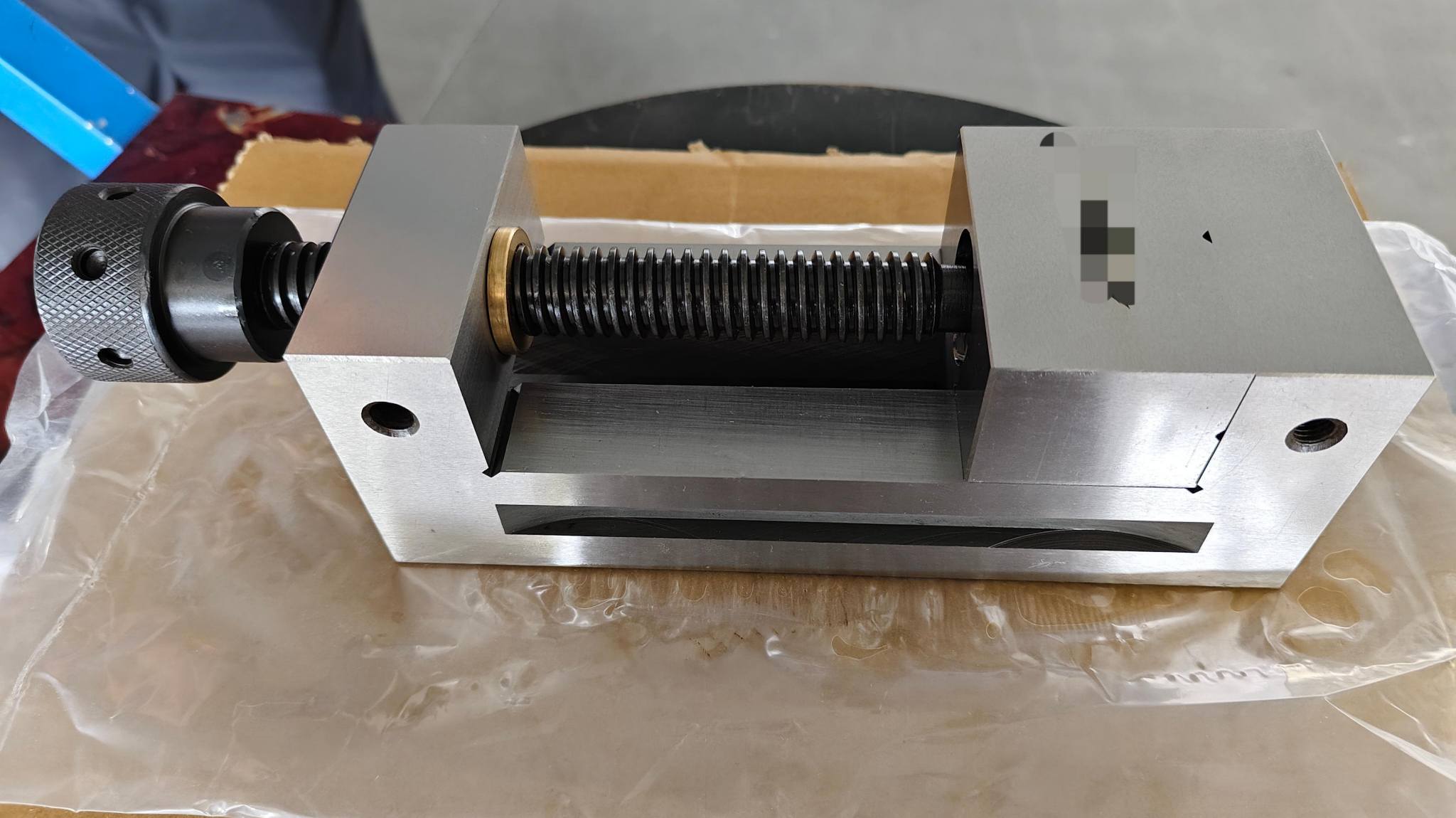

The Product: QGG High-Precision Grinding Vise
The QGG series is Zhenghao's dedicated precision grinding vise line, engineered specifically for the exacting demands of surface grinding, precision milling, and wire EDM workholding.
What Makes the QGG Vise Suitable for Grinding Applications
Grinding is the most precision-sensitive of all machining operations. A surface grinder removes material in micron-level increments — which means any inaccuracy in the workholding fixture translates directly and unavoidably into the finished part geometry. The QGG vise is designed with this reality in mind:
All six faces precision ground: Every reference surface is ground to the same 0.005 mm standard, ensuring that the workpiece is held in a true, consistent plane relative to the grinding wheel
Deep cryogenic treatment after heat treatment: The cryogenic process relieves residual stress in the alloy steel, stabilising the material structure and preventing the dimensional drift that can occur in conventionally heat-treated vises over time
Zero jaw lift design: The movable jaw incorporates a pull-down mechanism that actively seats the workpiece against the vise bed as clamping force is applied — critical in grinding where even 0.002 mm of jaw lift would produce a measurable error in the ground surface
High surface hardness (HRC 58–62): Ensures that the jaw faces and reference surfaces resist wear and maintain their precision geometry through extended production use
This combination of material quality, heat treatment process, and precision grinding makes the QGG vise the correct workholding choice for any application where the finished part tolerance is measured in microns.
The Challenge: Why Standard Packaging Was Not Acceptable
For most industrial products, standard cardboard box or foam packaging is adequate for domestic or short-haul delivery. For the QGG precision grinding vise, it is not — and this client knew it.
The client's requirements went beyond simple product protection. They articulated four specific packaging challenges that any supplier needed to solve:
Challenge 1 — Precision Surface Protection During Long-Haul Freight
The QGG vise jaw faces and reference surfaces are precision-ground to 0.005 mm. A single impact, scratch, or deformation on any of these surfaces — caused by vibration, shock, or contact with packaging materials during ocean freight — directly compromises the vise's precision and renders it unsuitable for grinding applications.
Standard foam padding absorbs light impacts but provides insufficient resistance to the sustained vibration and occasional sharp shocks of ocean container transport over thousands of kilometres.
Challenge 2 — Custom Fit for Multiple Vise Specifications
This order included QGG vises in multiple jaw width specifications. The client explicitly refused standard off-the-shelf wooden crates, which are designed for generic dimensions and leave gaps around the product that allow movement during transit.
The requirement was clear: each vise specification must have a custom-dimensioned crate with dedicated internal inserts that hold the vise in a fixed position with zero movement tolerance.
Challenge 3 — Long-Term Anti-Rust and Anti-Moisture Protection
The delivery route involves ocean freight followed by warehouse storage before the vises enter production. Ocean freight environments are high-humidity; warehouse storage periods can extend for weeks or months. Precision alloy steel surfaces are vulnerable to oxidation in these conditions — and rust on a precision ground surface is irreversible damage.
The client required a packaging solution that provides long-term anti-rust and anti-moisture protection throughout the entire journey and storage period.
Challenge 4 — Standardised Labelling for Warehouse Management
The client operates a structured factory warehouse management system. Incoming goods must be clearly labelled with product model, specification, batch number, and quantity — in a format that supports rapid goods-in verification, systematic storage allocation, and efficient retrieval for production.
Zhenghao's Solution: Full Custom Packaging and Delivery Process
Zhenghao's response to these four challenges was not a compromise — it was a complete, purpose-designed packaging and delivery system built specifically for this order.
Before any packaging begins, every QGG vise in the batch undergoes a full individual quality inspection by our QC team.
Inspection items for each unit:
Parallelism measurement across the full jaw width — verified against the 0.005 mm / 100 mm standard
Squareness measurement on all reference faces — verified against the 0.005 mm / 100 mm standard
Surface finish inspection on all precision-ground faces — checked for any grinding marks, scratches, or surface irregularities
Jaw movement check — lead screw operation, movable jaw travel, anti-lift mechanism function
Visual inspection of all external surfaces for any cosmetic defects
Only units that pass all inspection items proceed to packaging. Any unit with a measurement outside tolerance or a surface defect is removed from the batch and returned to production.
After passing inspection, each vise receives a professional anti-rust oil treatment applied to all precision surfaces. The anti-rust oil forms a protective film that inhibits oxidation throughout the transit and storage period.

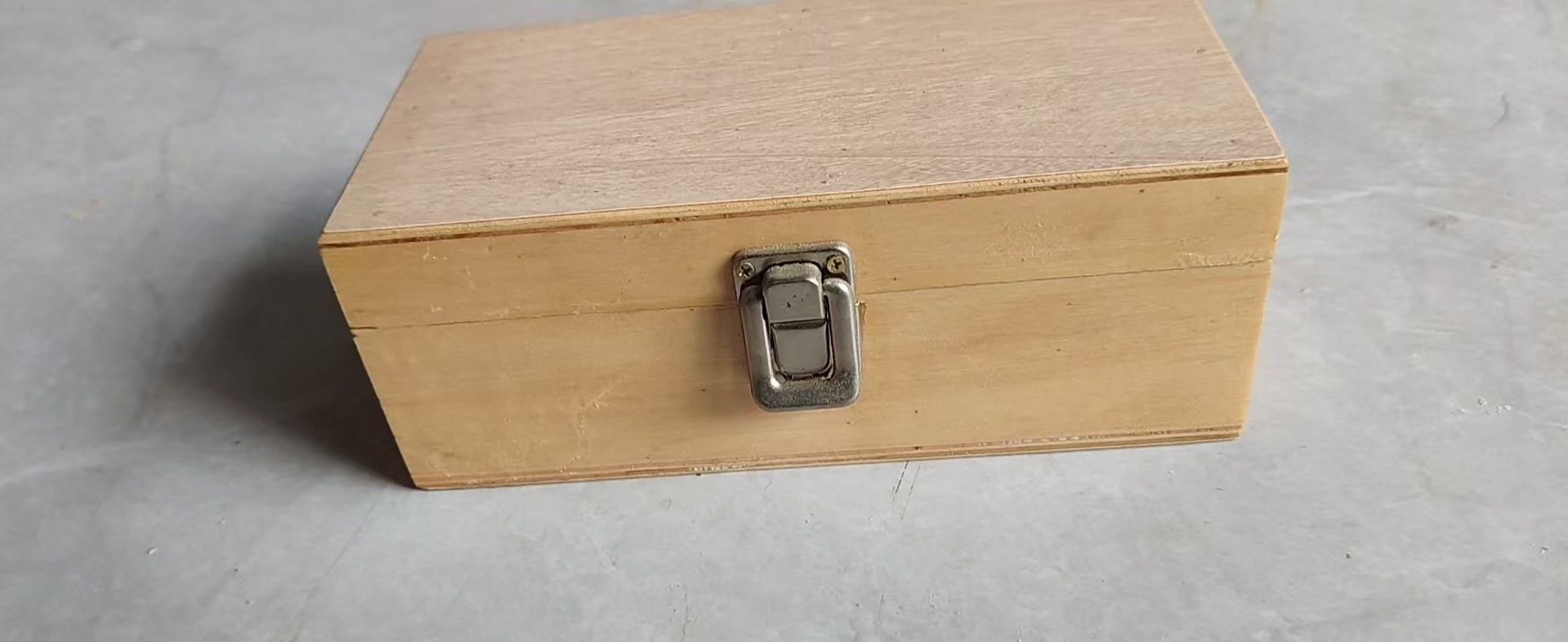

Based on the exact dimensions of each QGG vise specification in the order, our packaging team designed and manufactured custom fumigation solid wood crates — one crate design per vise specification.
Crate construction details:
Fumigation treatment: All wood panels are fumigated in compliance with ISPM 15 international phytosanitary standards — a mandatory requirement for wood packaging used in export shipments to the UK and EU. The fumigation certificate is included with each shipment.
Panel thickness: Heavy-gauge solid wood panels selected for compressive strength and resistance to the stacking loads of warehouse storage
Internal dimensions: Precisely calculated for each vise specification — the internal cavity matches the vise dimensions with minimal clearance, eliminating any possibility of movement within the crate

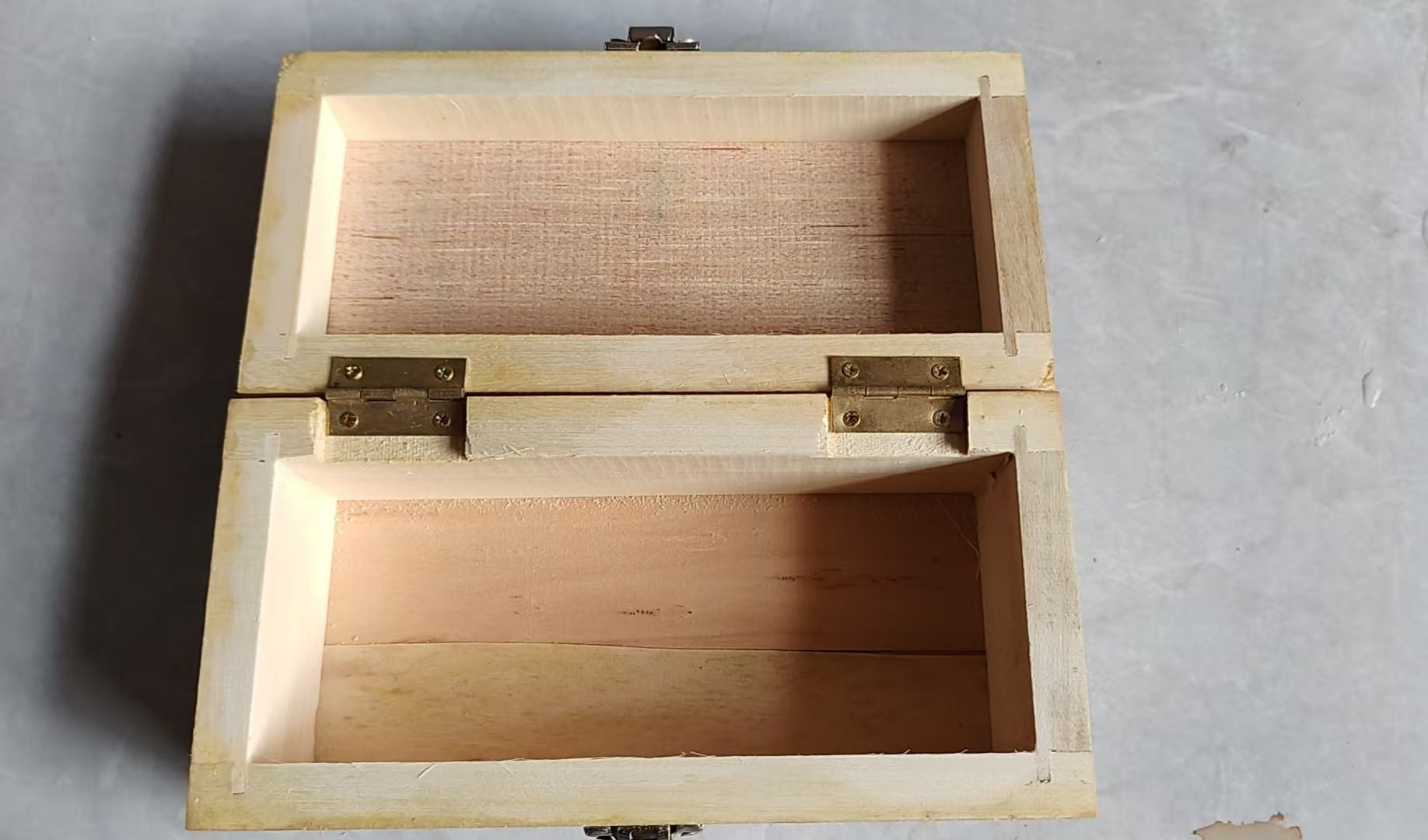

Custom internal inserts and fixing slots: Each crate contains custom-machined internal inserts and fixing slots that conform to the exact profile of the vise body. The vise sits in its dedicated position and is held firmly by the insert geometry — not by friction or foam compression
Sealed construction: All crate joints and seams are sealed to prevent moisture ingress during ocean transit
Stage 3 — Multi-Layer Individual Protection

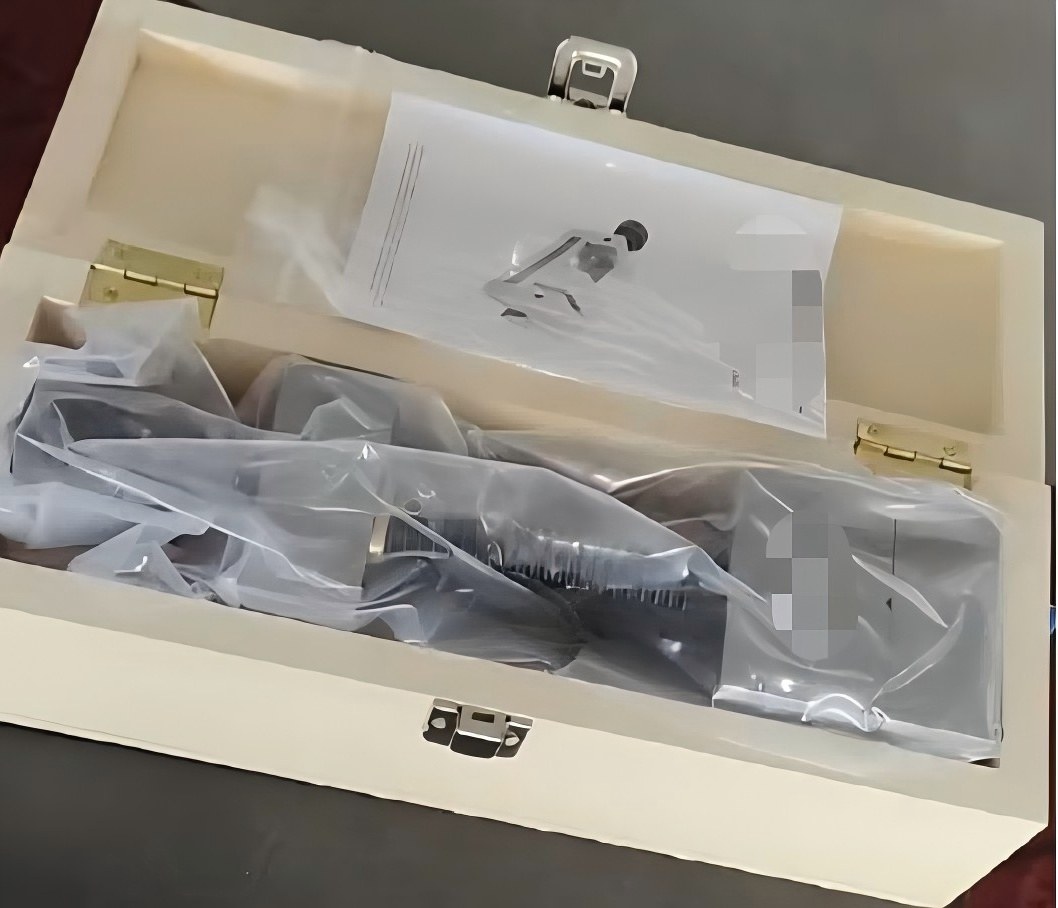

Before each vise is placed into its crate, it receives individual multi-layer protective treatment:
Layer 1 — Anti-rust oil film: Applied during the QC stage, covering all precision surfaces.
Layer 2 — Moisture-barrier film wrapping: Each vise is individually wrapped in a moisture-barrier film that seals the anti-rust oil treatment and isolates the metal surfaces from ambient humidity. The film is sealed to prevent any air exchange.
Layer 3 — Anti-shock pearl cotton padding: The moisture-barrier wrapped vise is then enclosed in anti-shock pearl cotton padding. The pearl cotton provides cushioning against vibration and impact loads during transit, protecting the precision surfaces from any mechanical shock that penetrates the outer crate.
Layer 4 — Custom crate with dedicated insert: The padded vise is placed into its custom crate position, seated in the dedicated fixing slot. The insert geometry holds the vise in position; the pearl cotton provides the final layer of shock absorption between the vise and the insert walls.
Layer 5 — Crate sealing and reinforcement: The crate is closed, sealed at all joints, and reinforced with steel banding for maximum structural integrity during stacking and handling.
Stage 4 — Standardised Labelling and Final Inspection
Before the crates leave our facility, every unit goes through a final verification and labelling process:
Product verification: Each crate is opened and the contents verified against the order specification — model number, jaw width, quantity

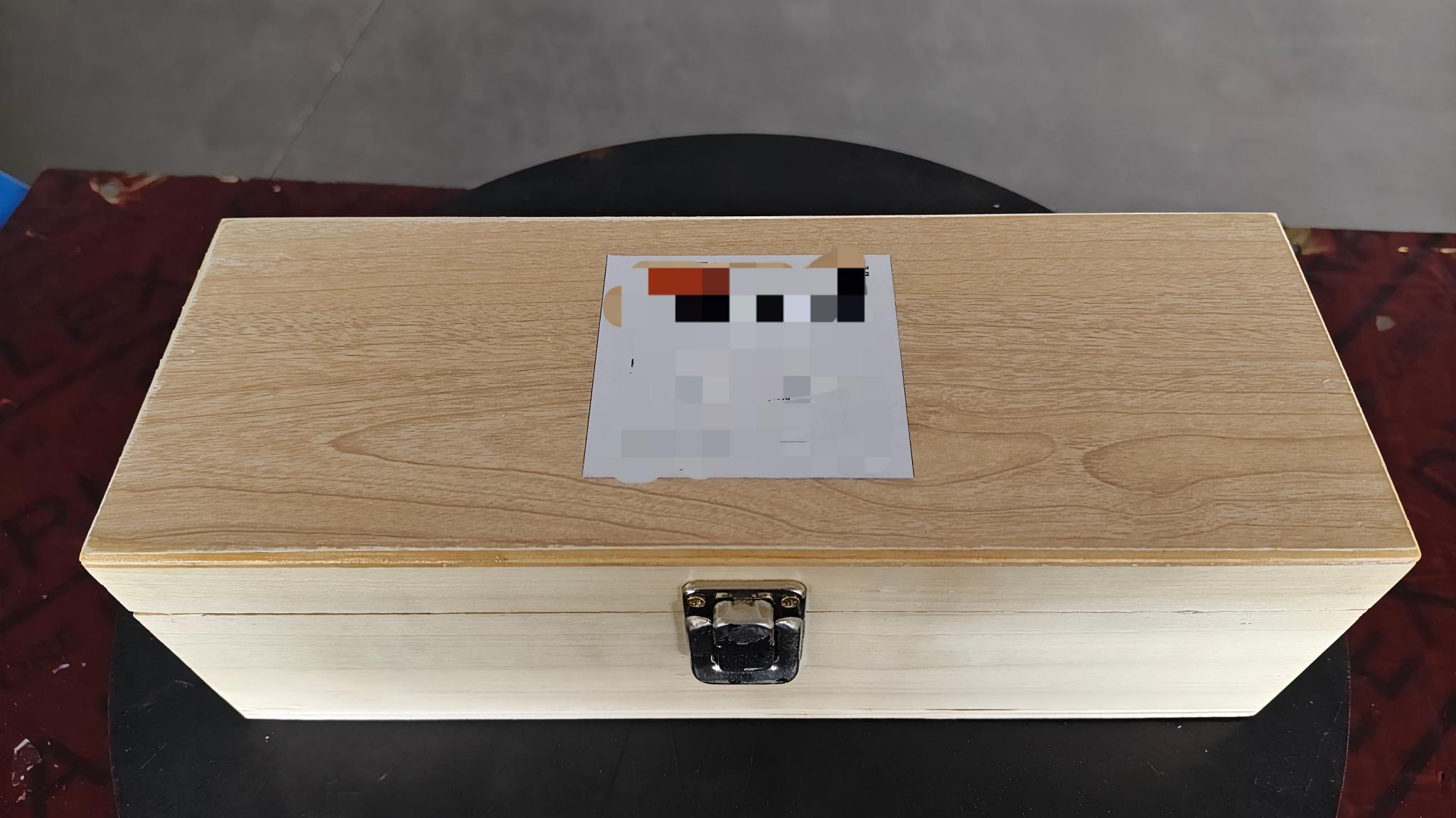

Label application: Clear, durable labels are applied to each crate face showing: product model, jaw width specification, batch number, quantity, Zhenghao manufacturer information, and handling instructions (fragile, this side up, keep dry)
Packing list: A complete packing list is prepared showing all crate numbers, contents, and quantities — formatted for the client's warehouse management system
Final count and cross-check: All crates are counted and cross-checked against the order before loading
Stage 5 — Loading, Dispatch, and Logistics Tracking

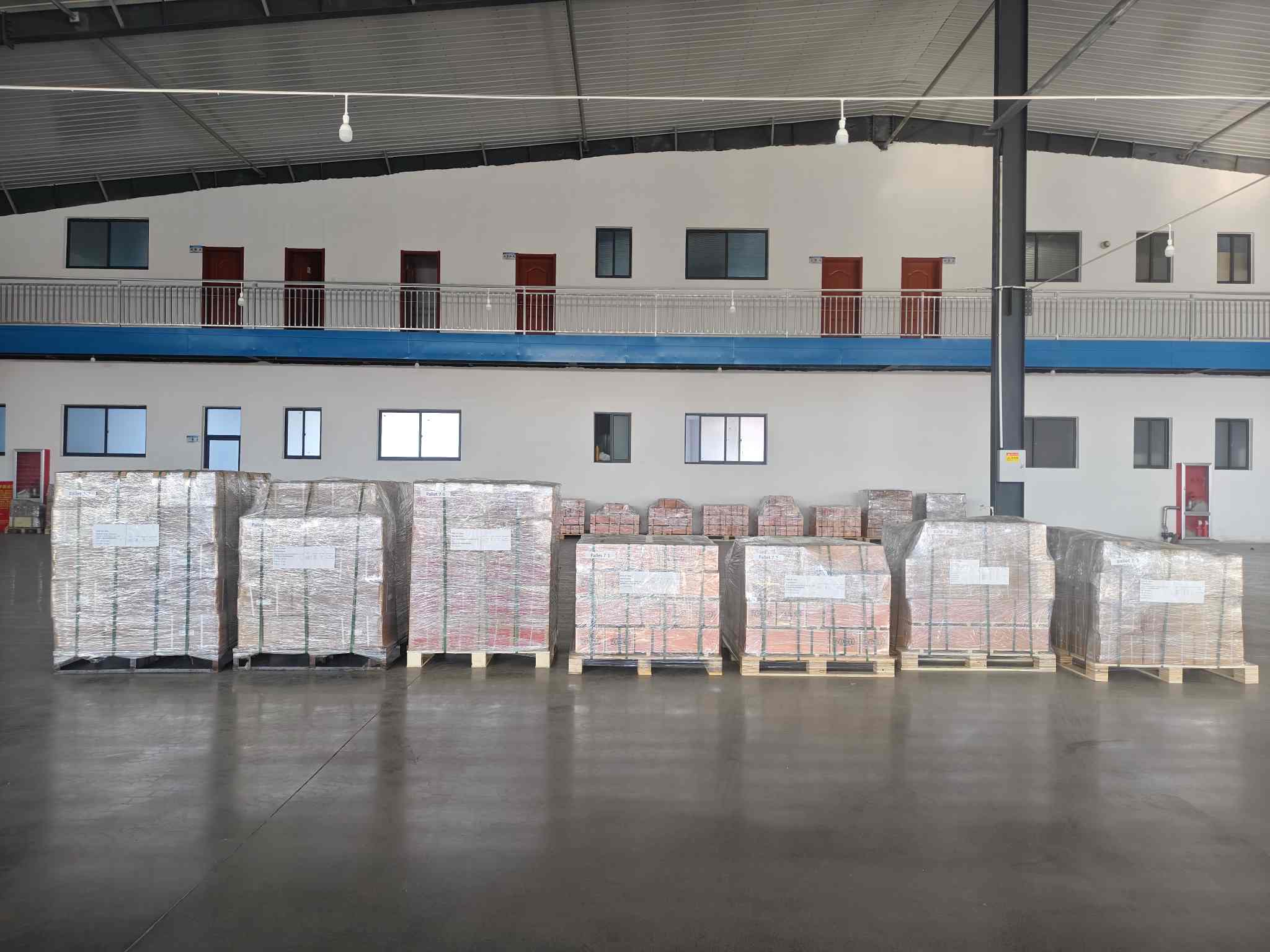

Completed crates are loaded systematically — stacked according to the crate structural rating to prevent over-loading of lower crates — and sealed in the shipping container.
A dedicated logistics coordinator tracks the shipment from dispatch through to delivery, providing the client with real-time updates on container location and estimated arrival. Any customs documentation, fumigation certificates, or import compliance paperwork required for UK customs clearance is prepared and provided in advance.
Delivery Outcome and Client Feedback
The shipment arrived at the client's UK facility on schedule, with all crates intact and showing no signs of impact damage or moisture ingress.
The client's goods-in team conducted a full incoming inspection:
All QGG vises passed incoming precision measurement — parallelism and squareness within the 0.005 mm / 100 mm specification on every unit
Zero surface damage — no scratches, marks, or deformation on any precision-ground surface
Zero rust or oxidation — the anti-rust oil treatment and moisture-barrier packaging performed as specified throughout the transit and storage period
Packaging condition: All crates arrived structurally intact; internal inserts had held every vise in its fixed position with no movement
The client's feedback highlighted three specific aspects of the delivery:
"The custom crate design is exactly what we needed — each vise is held in a fixed position with no movement at all. We've had precision tools damaged in transit before with other suppliers. Not a single issue here."
"The labelling format matches our warehouse system perfectly. Goods-in took less than 30 minutes for the full batch."
"The vises went straight onto the machines after incoming inspection. No rework, no adjustment needed."
The client confirmed a follow-on order for additional QGG vise specifications and requested that the same custom packaging specification be maintained for all future shipments.
Why This Delivery Demonstrates Zhenghao's Full-Service Capability
This project illustrates something that product specifications alone cannot convey: the difference between a supplier that manufactures a product and a partner that delivers a complete solution.
Product precision is the foundation
The QGG vise's 0.005 mm parallelism and squareness specification is not a marketing claim — it is a measured, documented, and individually verified result of a manufacturing process that runs from raw material selection through forging, heat treatment, deep cryogenic processing, precision CNC machining, and final grinding. Our production process is the same process used to supply clients in Germany, the USA, Japan, and now the UK.
Quality inspection is not optional
Every unit in this batch was individually measured before packaging. This is not an additional service — it is the standard Zhenghao process. A vise that passes our outgoing inspection will pass the client's incoming inspection. That consistency is what allows the client to put vises directly onto machines without re-inspection.
Packaging is part of the product
A precision vise that arrives damaged is not a precision vise. The custom fumigation crate, the multi-layer individual protection, the dedicated internal inserts — these are not extras. They are the packaging system required to deliver a 0.005 mm precision product intact over a long-haul ocean freight route. Zhenghao designs and manufactures the packaging with the same attention to specification as the product itself.
Export compliance is handled end-to-end
ISPM 15 fumigation certification, customs documentation, packing lists formatted for the client's warehouse system — these details matter for international buyers. Zhenghao's export team handles all of this as part of the standard delivery process.
Competitive pricing without precision compromise
Zhenghao's business model is built on one principle: provide the precision that clients in Germany, the USA, and Japan expect, at a price point that makes direct factory sourcing genuinely competitive. The QGG vise is manufactured in the same facility, on the same equipment, by the same team that produces vises for these markets. The UK client receives the same product at factory-direct pricing.
QGG Precision Grinding Vise: Technical Reference
For buyers evaluating the QGG series for grinding, milling, or EDM applications:
Certifications and compliance: ISPM 15 fumigation certification available for all wood packaging; export documentation prepared for UK, EU, US, and other major import markets.

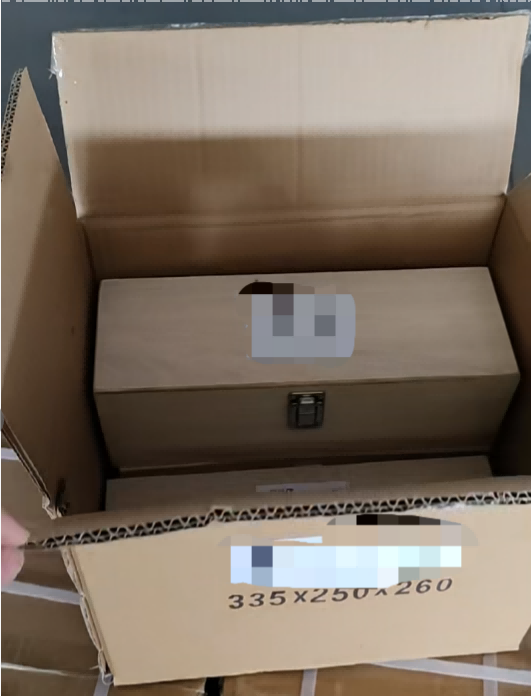

Zhenghao's Packaging and Delivery Options
For buyers with specific packaging or delivery requirements, Zhenghao offers the following options as standard services — not special requests:
Requirement
Zhenghao Solution
Standard export
Cardboard box with foam padding and anti-rust treatment
Long-haul ocean freight
Custom fumigation solid wood crate with dedicated inserts
High-humidity routes
Moisture-barrier film + desiccant packs + sealed crate
Multi-specification batch
Per-specification custom crate dimensions and insert designs
Custom label format matched to client's WMS requirements
Fumigation certification
ISPM 15 certificate included with all wood packaging shipments
Conclusion: A Delivery Standard Built for Precision Products
The QGG precision grinding vise is a product that demands — and receives — a delivery standard to match its precision specification. From individual QC measurement and anti-rust treatment at the point of manufacture, through custom fumigation crate design and multi-layer protective packaging, to real-time logistics tracking and export compliance documentation, every step of the Zhenghao delivery process is designed to ensure that what leaves our facility in perfect condition arrives at the client's facility in the same condition.
For the UK client in this case study, the result was a batch of QGG vises that passed incoming inspection on every unit, went directly onto production machines, and set the standard for all future orders.
If you have requirements for QGG precision grinding vises, GT precision modular vises, or any other precision workholding products — with standard or custom packaging, in small trial quantities or large production batches — contact Zhenghao to discuss your specific requirements.
What precision standard does the QGG grinding vise meet?
The QGG series meets a parallelism and squareness specification of 0.005 mm / 100 mm, verified by individual measurement of every unit before shipment. This precision level is suitable for surface grinding, precision milling, wire EDM, and precision inspection applications.
Why is fumigation certification required for wood packaging exports to the UK?
The UK (and most countries) requires that all solid wood packaging materials used in international shipments comply with ISPM 15 — the International Standards for Phytosanitary Measures No. 15. This standard requires that wood packaging be heat-treated or fumigated to eliminate the risk of transporting wood pests across borders. Zhenghao provides ISPM 15 fumigation certificates with all wood packaging shipments as standard.
Can Zhenghao manufacture custom packaging for non-standard vise specifications?
Yes. Custom packaging design is a standard Zhenghao service. For any vise specification — standard or custom — we design and manufacture crates and internal inserts to match the exact product dimensions. Provide your product specifications and delivery requirements and our packaging team will design the appropriate solution.
What is the minimum order quantity for custom wooden crate packaging?
There is no separate minimum order quantity for custom packaging — the packaging is designed as part of the product delivery for any order. For small trial orders, standard export packaging is available; custom wooden crate packaging is available for any order size where the client's transit or storage requirements justify it.
How does Zhenghao ensure precision is maintained during transit?
Through the combination of individual QC inspection before packaging, professional anti-rust oil treatment, moisture-barrier film wrapping, anti-shock pearl cotton padding, and custom-fit wooden crate inserts that hold each vise in a fixed position with zero movement. This multi-layer system is designed specifically to protect precision-ground surfaces from the vibration, shock, and humidity of long-haul ocean freight.
Does Zhenghao support OEM branding on packaging?
Yes. Zhenghao supports full OEM and ODM services including custom product labelling, branded packaging, and custom documentation. This is particularly relevant for distributors and resellers who source under their own brand. Contact us to discuss your specific branding requirements.
