A precision modular vise is only as accurate as the setup behind it. The GT series vise body is manufactured to 0.005 mm squareness and parallelism — but that precision is meaningless if the vise is mounted incorrectly on the machine table, if the T-slots are contaminated with chips, or if the alignment procedure is skipped or rushed.
Incorrect vise setup is one of the most common sources of dimensional error in CNC machining. A vise that is misaligned by even 0.02 mm relative to the machine X-axis will introduce a corresponding angular error into every part it holds. In a production batch of 50 parts, that error is present in every single one.
This guide provides a complete, step-by-step procedure for correctly mounting, aligning, and verifying a GT precision modular vise on a CNC machining center. It covers single-vise setups, multi-vise arrays, and the specific considerations that apply when using different vise configurations from the Zhenghao GT series.
Before starting the setup procedure, ensure the following tools and materials are on hand:
GT precision modular vise (GT100 through GT300, or ZQ83/ZQ84 variant as applicable)
T-slot bolts and nuts matched to the machine table T-slot width
Torque wrench for controlled bolt tightening
Dial test indicator (DTI) with magnetic base — resolution of 0.001 mm or better
Clean lint-free cloths or shop rags
Deburring tool or fine file for removing any burrs from the table surface
Soft-faced mallet (optional, for minor position adjustment)
Parallel bars if needed for workpiece height positioning
The machine table is the reference surface for everything that follows. Any contamination, burr, or raised feature on the table surface will transfer directly into the vise mounting position and introduce error that no amount of alignment can correct.
Use a brush and compressed air to remove all chips, coolant residue, and swarf from the T-slots. Pay particular attention to the slot shoulders — the flat surfaces on either side of the T-slot opening — as these are the primary reference surfaces for the T-slot nuts.
Even a small chip trapped under a T-slot nut will tilt the nut, creating uneven clamping force and a slight angular offset in the vise position.
Wipe the entire table surface in the vise mounting area with a clean cloth. Remove all coolant film, oil, and debris. Run your fingertip across the surface to check for any raised features.
Inspect the table surface and T-slot edges for burrs, dings, or raised metal from previous setups. Any raised feature under the vise base will rock the vise and prevent it from sitting flat.
Use a deburring tool or fine flat file to carefully remove any raised edges. Re-clean the surface after deburring.
Apply a thin film of machine oil to the table surface in the mounting area. This prevents corrosion, reduces fretting between the vise base and table, and makes future vise removal easier. Do not apply excessive oil — a thin film is sufficient.
Wipe the bottom face of the GT vise body thoroughly with a clean cloth. The vise base is precision-ground to 0.005 mm flatness — any contamination on this surface will compromise that precision.
Check the base for burrs or raised features from previous use. If any are found, carefully remove them with a fine file and re-clean.
Confirm that the correct jaw type is installed for the intended operation. If a jaw change is needed, this is the right time to do it — before the vise is mounted on the table.
For guidance on selecting the correct jaw type for your workpiece, refer to the complete GT vise jaw selection guide.
Open and close the vise through its full travel to confirm smooth, consistent movement. Check that the movable jaw moves without binding and that the anti-lift mechanism is functioning — the jaw should pull slightly downward as clamping force is applied, not lift upward.
For standard CNC milling operations, the GT vise is mounted with the fixed jaw facing the column (toward the back of the machine). This orientation places the fixed jaw — the more rigid of the two jaws — on the side that receives the primary cutting force direction in most milling operations.
The movable jaw faces the operator. This allows easy access to the lead screw for clamping and unclamping.
Insert T-slot bolts into the machine table T-slots at the positions corresponding to the mounting holes in the GT vise base. The GT vise base is designed with standard T-slot bolt spacing — confirm that the bolt positions match the table T-slot layout before proceeding.
Do not tighten the bolts at this stage. Leave them loose enough that the vise can still be slid and rotated on the table surface for alignment.

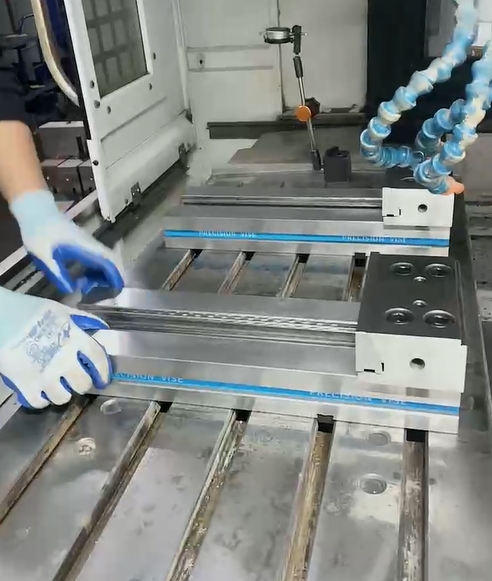

Carefully lower the vise body onto the table, engaging the T-slot bolts through the mounting holes in the base. Ensure the vise sits flat on the table surface with no rocking.
If the vise rocks, lift it off the table and re-inspect both the table surface and the vise base for contamination or raised features. Do not attempt to correct rocking by tightening the mounting bolts unevenly — this will distort the vise body and introduce error.
Before using a dial indicator for precision alignment, perform a rough alignment by eye and by reference to the machine table T-slots.
The machine table T-slots run parallel to the X-axis. By aligning the GT vise body so that the fixed jaw face is parallel to the T-slot direction, you achieve a rough alignment to the machine X-axis. This gets the vise close enough for the dial indicator alignment to proceed efficiently.
Use the T-slot bolt positions as a guide — if the bolts are centered in the mounting holes, the vise is approximately square to the table.
Once the vise is roughly aligned, snug the T-slot bolts lightly — enough to hold the vise in position but still allowing it to be tapped for fine adjustment. Do not fully tighten at this stage.
This is the most critical step in the setup procedure. The goal is to align the fixed jaw face of the GT vise parallel to the machine X-axis to within the required tolerance for your application.
For most precision CNC milling applications, alignment to within 0.005 mm over the full jaw width is the target — matching the precision of the GT vise body itself.

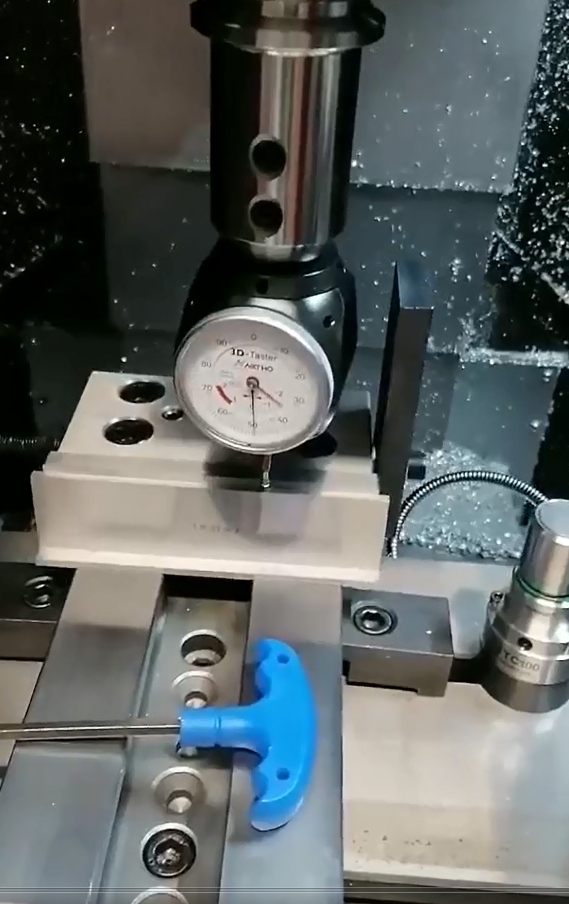

Mount a dial test indicator (DTI) in the machine spindle using a magnetic base or indicator holder. Position the indicator stylus so that it contacts the fixed jaw face of the vise, with the stylus oriented perpendicular to the jaw face.
Set the indicator to approximately mid-travel so that it can read both positive and negative deflection.
Move the machine X-axis slowly across the full width of the fixed jaw face while watching the indicator reading. Note the total indicator reading (TIR) — the difference between the maximum and minimum readings across the full traverse.
For a GT150 vise (150 mm jaw width), you are traversing 150 mm and looking for a TIR of 0.005 mm or less.
If the TIR exceeds your target tolerance, the vise needs to be rotated slightly on the table to bring the fixed jaw face into alignment with the X-axis.
Method for correction:
Identify which end of the jaw face is reading high (indicator deflects toward the jaw) and which end is reading low (indicator deflects away from the jaw)
Use a soft-faced mallet to tap the high end of the vise body gently in the direction that will rotate the vise to reduce the error
Re-traverse the X-axis and check the TIR again
Repeat until the TIR is within your target tolerance
Important: Only tap the vise body itself — never tap the jaw plates or the lead screw. Apply taps to the solid body of the vise, away from precision surfaces.
After achieving the target TIR across the full jaw width, verify the reading at both ends of the jaw face individually. The indicator should read within tolerance at both ends and at all points in between.
Once alignment is confirmed, tighten the T-slot mounting bolts to the correct torque using a torque wrench. Tighten bolts evenly — alternate between bolts rather than fully tightening one before the other — to avoid introducing a twist into the vise body.
Recommended tightening sequence: Snug all bolts finger-tight → tighten to 50% torque alternating → tighten to full torque alternating.
After fully tightening the mounting bolts, re-traverse the X-axis with the dial indicator to confirm that the alignment has not shifted during tightening. It is common for the vise to shift slightly as the bolts are tightened — if the TIR has increased beyond tolerance, loosen the bolts slightly, re-align, and re-tighten.
For setups where the Z-axis reference is taken from the top of the vise jaw or the vise bed, verify that the vise height is consistent across the full mounting area.
Move the indicator stylus to contact the vise bed (the flat surface between the jaws where the workpiece sits). Traverse the X-axis across the full vise bed width and note the TIR.
For a GT series vise, the vise bed should be flat to within 0.005 mm — consistent with the overall precision standard of the vise body.
If the Z-axis reference is taken from the top of the fixed jaw, traverse the indicator across the top face of the fixed jaw and verify flatness.
Once the vise is aligned and verified, establish the work coordinate system (WCS) in the CNC controller.
The X zero is typically set at the center of the vise jaw width, or at one end of the fixed jaw face, depending on the part program convention. Use the indicator or an edge finder to locate the jaw face precisely and set the X and Y offsets in the controller.
The Z zero is typically set at the top of the workpiece after clamping, or at the vise bed surface if a consistent part height is being maintained through step jaws or parallel bars.
Record the WCS offset values in the machine controller and in the job setup sheet. This allows the setup to be re-established quickly if the vise is removed and remounted.
Before running the first part, clamp a test workpiece and verify its position.
Before clamping any workpiece, clean the jaw faces and vise bed thoroughly. Even a small chip between the jaw face and the workpiece will introduce a positioning error.
Place the workpiece against the fixed jaw and lower it onto the vise bed (or onto parallel bars if height positioning is needed). Before applying full clamping force, tap the workpiece lightly downward with a soft mallet to ensure it is fully seated on the vise bed or parallels.
A workpiece that is not fully seated will be lifted by the jaw lift effect when clamping force is applied, even in vises with anti-lift mechanisms. The anti-lift mechanism in the GT series movable jaw is designed to pull the workpiece down as clamping is applied — but this only works correctly if the workpiece is already in contact with the vise bed before clamping begins.
Apply clamping force using the lead screw. For most applications, firm hand tightening is sufficient. For heavy roughing operations or hard materials, use a torque wrench or tommy bar to apply higher clamping force.
Do not over-tighten. Excessive clamping force can distort thin-walled or soft workpieces, and can also introduce a small bowing deflection in the vise body that slightly opens the jaw faces at the center. For precision work, use the minimum clamping force that securely holds the workpiece against the expected cutting forces.
After clamping, use the dial indicator to verify that the workpiece is sitting flat on the vise bed and that the clamping face is parallel to the X-axis. Check for any rocking or tilting.
One of the key advantages of the GT precision modular vise is its ability to be mounted in arrays of multiple units on the same machine table. The precision-ground body ensures that multiple GT vises placed side-by-side are automatically co-planar — but the setup procedure still requires care to realize this advantage fully.

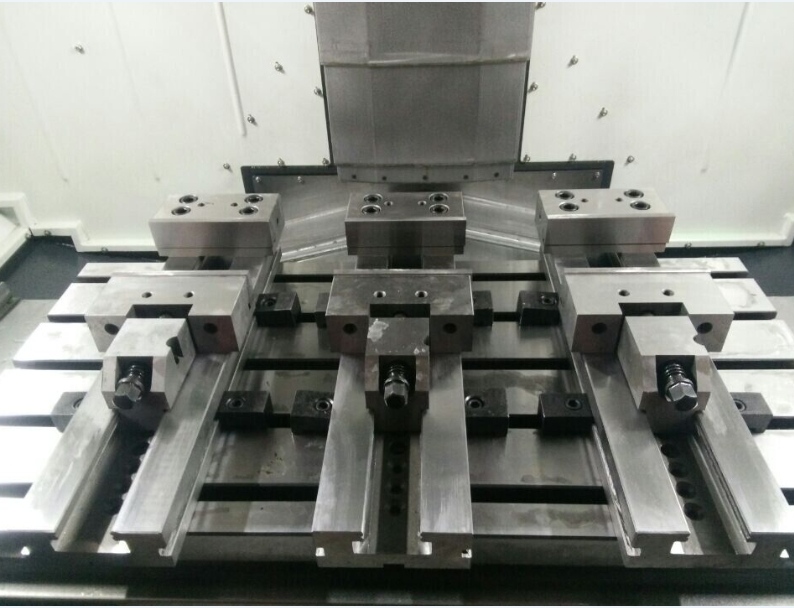

When mounting two GT vises side-by-side for a multi-part setup:
Mount and align the first vise using the full procedure described above
Place the second vise adjacent to the first, with the two vise bodies in contact or at the intended spacing
Traverse the dial indicator across the fixed jaw face of both vises in a single X-axis pass
The TIR across both jaw faces combined should be within your target tolerance — typically 0.005 mm to 0.010 mm for a two-vise array
If the second vise is out of alignment, adjust it independently using the same tapping procedure as for a single vise
Tighten both vises and re-verify
Because all GT vise bodies are precision-ground to the same 0.005 mm standard, the alignment of a multi-vise array is significantly faster than aligning multiple standard vises — the precision ground body does most of the work.
For high-volume production setups using the ZQ83 Double Action Dual-Station Vise, the same alignment procedure applies — align the fixed center jaw face to the X-axis, verify across the full jaw width, and tighten.
The ZQ84 Two-Piece Precision Modular Vise — designed for oversized workpieces — requires a slightly different approach because the fixed jaw section and movable jaw section are independent.
Mount and align the fixed jaw section first, using the dial indicator procedure described above
Position the movable jaw section at the required distance from the fixed jaw section along the X-axis
Align the movable jaw section so that its jaw face is parallel to the fixed jaw face — traverse the indicator across both jaw faces in a single X-axis pass to verify co-linearity
Tighten both sections and re-verify
For very long workpieces supported by multiple ZQ84 sets, align all fixed jaw sections first, verify co-linearity across all of them, then position and align the movable jaw sections.
In production environments where the vise is removed from the machine table between jobs and remounted for subsequent runs, the re-setup time can be minimized by:
After the initial setup, record the WCS offset values precisely. When the vise is remounted, re-align using the dial indicator procedure and re-establish the WCS offset. If the vise is remounted in the same T-slot positions with the same bolt torque, the WCS offset should be very close to the recorded values — requiring only minor adjustment.
For setups where the vise is removed and remounted frequently, consider using T-slot keys or locating pins in the vise base that engage the T-slot walls directly. This provides a mechanical reference that reduces re-alignment time significantly.
Maintain a setup sheet for each job that records:
Vise model and jaw type used
T-slot bolt positions and torque values
WCS offset values (X, Y, Z)
Dial indicator TIR achieved during alignment
Any notes on workpiece seating or clamping force
A complete setup sheet allows any operator to re-establish the setup accurately, even if they were not present for the original setup.
Error | Cause | Prevention |
Vise rocks on table | Chip or burr under vise base | Thoroughly clean table and vise base before mounting |
Alignment shifts during bolt tightening | Uneven bolt tightening sequence | Tighten bolts alternately in stages to full torque |
Workpiece lifts during clamping | Workpiece not seated before clamping | Tap workpiece down before applying full clamping force |
TIR increases after tightening | Vise body distortion from uneven bolt load | Use correct torque and alternating tightening sequence |
Parts vary in Z height across batch | Chips on vise bed between parts | Clean vise bed before every part loading |
Indicator reads differently at jaw ends | Jaw plate not seated correctly | Remove and re-seat jaw plate; check for chips under jaw |
Workpiece moves during heavy roughing | Insufficient clamping force or wrong jaw type | Increase clamping force; switch to lattice jaw for raw stock |
Multi-vise array out of co-planarity | Second vise not independently aligned | Align each vise individually; verify across all jaw faces |
A correctly set up GT precision modular vise will maintain its accuracy throughout a production run if basic maintenance practices are followed:
Clean the vise bed between parts — chips on the vise bed are the single most common cause of part-to-part height variation in batch production
Check jaw face cleanliness before each clamping — a chip between the jaw face and the workpiece introduces a positioning error that is difficult to detect without re-measuring
Inspect the lead screw periodically — apply a small amount of machine oil to the lead screw thread at the start of each shift to maintain smooth operation and consistent clamping force
Check mounting bolt torque at the start of each shift — vibration from machining can gradually loosen mounting bolts; re-torque if any movement is detected
For setups using the GT Quick-Change Jaw Vise, clean the quick-change jaw interface before each jaw swap to prevent chip contamination in the locking mechanism.
All GT series precision modular vises share the following specifications relevant to setup and alignment:
Specification | Value |
Squareness and parallelism | 0.005 mm / 100 mm |
Repeatability | 0.003 – 0.005 mm |
Material | 20CrMnTi alloy steel |
Hardness | HRC 58–62 |
Available jaw widths | 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 300 mm |
Clamping force range | 3,000 N (GT100) – 12,000 N (GT300) |
These specifications define the maximum accuracy achievable with a correctly set up GT vise. The setup procedure described in this article is designed to ensure that this accuracy is fully realized in practice.
Setting up a precision modular vise correctly is a straightforward process when the steps are followed in the right order: clean the table, prepare the vise, position and rough-align, use a dial indicator for precision alignment, tighten correctly, verify, and establish the WCS. Skipping or rushing any of these steps introduces errors that compound through the entire production run.
The GT precision modular vise is designed to make this process as efficient as possible. The precision-ground body on all six sides means that a correctly mounted GT vise is inherently close to alignment before the dial indicator is even used. The anti-lift movable jaw mechanism ensures that workpieces seat correctly under clamping force. And the modular design means that multi-vise arrays can be aligned faster than any equivalent setup using standard milling vises.
