If you are sourcing workholding equipment for a CNC machining center, you will quickly encounter two broad categories of vise: the standard milling vise and the precision modular vise. Both are designed to clamp workpieces on a machine table, but they differ significantly in design philosophy, precision level, flexibility, and suitability for different production environments.
Understanding these differences is essential for making the right purchasing decision — whether you are equipping a new machining center, upgrading an existing workholding setup, or sourcing vises for resale to CNC workshops.
This article explains what distinguishes a precision modular vise from a standard milling vise, where each type excels, and how to determine which solution is appropriate for your specific application. All modular vise examples in this article refer to the GT series precision modular vises manufactured by Zhenghao, available in a full range of jaw widths and configurations.
A standard milling vise — sometimes called a machine vise or toolmaker's vise — is the traditional workholding solution found on manual milling machines and entry-level CNC machining centers worldwide.
Single fixed body with an integrated base, fixed jaw, and movable jaw
Fixed jaw width — the jaw width is determined by the vise body and cannot be changed
Non-interchangeable jaws — jaw plates are bolted on but are typically only replaced when worn, not swapped between operations
Manual lead screw operation with a single clamping direction
Swivel base option — many standard vises include a swivel base that allows the vise to be rotated on the table to clamp at different angles
Moderate precision — parallelism and squareness typically in the range of 0.02 mm to 0.05 mm depending on the grade
Cast iron or mild steel construction in most standard grades
Lower clamping force compared to precision modular vises of equivalent jaw width
Standard milling vises are widely available, relatively low in cost, and adequate for general manual milling, drilling, and light CNC work where high precision and fast changeover are not critical requirements.
A precision modular vise is a purpose-engineered workholding system designed specifically for the demands of modern CNC machining centers — where accuracy, repeatability, rigidity, and setup efficiency are all critical.
Precision-ground body on all six sides, providing a consistent reference surface for mounting and alignment
Interchangeable jaw system — different jaw types can be fitted to the same vise body to suit different workpiece geometries and operations
Modular design — multiple vise bodies can be mounted side-by-side or end-to-end on the machine table, perfectly aligned, for multi-part setups
High-grade alloy steel construction — Zhenghao GT series vises are manufactured from 20CrMnTi alloy steel, hardened to HRC 58–62
High precision — squareness and parallelism of 0.005 mm across all critical surfaces
Anti-lift movable jaw — engineered to pull the workpiece down onto the vise bed as clamping force is applied, preventing upward lifting during heavy cuts
High clamping force — GT series vises are rated from 3,000 N (GT100) to 12,000 N (GT300)
No swivel base — the modular vise is designed to be mounted directly and squarely on the machine table, with alignment achieved through the precision-ground body rather than angular adjustment

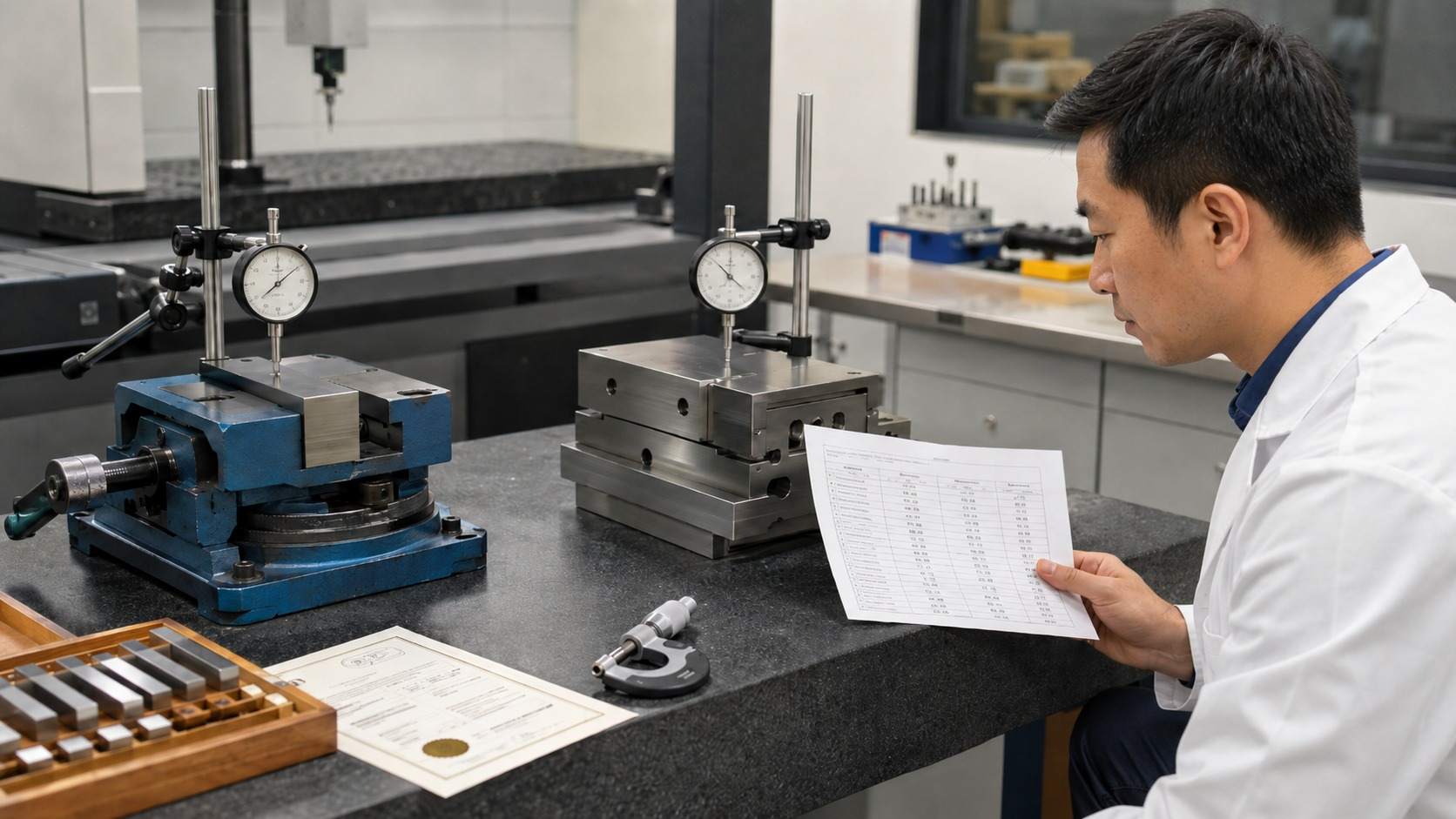

This is the most fundamental difference between the two categories.
A standard milling vise is manufactured to general tolerances. Parallelism and squareness of 0.02 mm to 0.05 mm are typical for mid-range standard vises. For manual milling or rough CNC work, this level of accuracy is often acceptable.
A precision modular vise is manufactured to a significantly tighter standard. Zhenghao GT series vises achieve 0.005 mm squareness and parallelism across all critical ground surfaces. This level of accuracy is essential for:
Precision CNC milling where dimensional tolerances are tight
Grinding machine applications where surface finish and geometry are critical
Second-operation work where the part must be located accurately relative to previously machined features
Multi-vise setups where all vises must be perfectly co-planar
Precision Criterion | Standard Milling Vise | GT Precision Modular Vise |
Squareness | 0.02 – 0.05 mm typical | 0.005 mm |
Parallelism | 0.02 – 0.05 mm typical | 0.005 mm |
Repeatability | Moderate | 0.003 – 0.005 mm |
Surface finish on ground faces | Moderate | Precision ground |
A standard milling vise typically has fixed jaw plates that are bolted on. While the jaw plates can technically be replaced, this is usually done only when they are worn — not as a routine part of setup. The jaw geometry is fixed, and adapting to different workpiece shapes requires additional fixturing or soft jaw machining.
A precision modular vise is designed from the ground up for jaw interchangeability. The GT series supports a full range of jaw types — flat jaws, step jaws, V-groove jaws, lattice jaws, thread hole jaws, and elevation jaws — all of which fit the same vise body. This means a single vise body can be adapted to clamp:
Flat pre-machined parts (flat jaw)
Raw stock for roughing (lattice jaw)
Cylindrical workpieces (V-groove jaw)
Parts requiring consistent height positioning (step jaw)
Complex or delicate profiles (thread hole jaw + aluminum soft jaw)
Tall workpieces requiring side access (elevation jaw)
This flexibility eliminates the need to purchase multiple dedicated vises for different workpiece types, and allows operators to reconfigure their workholding quickly as production requirements change.
View the full range of interchangeable jaw types for GT modular vises

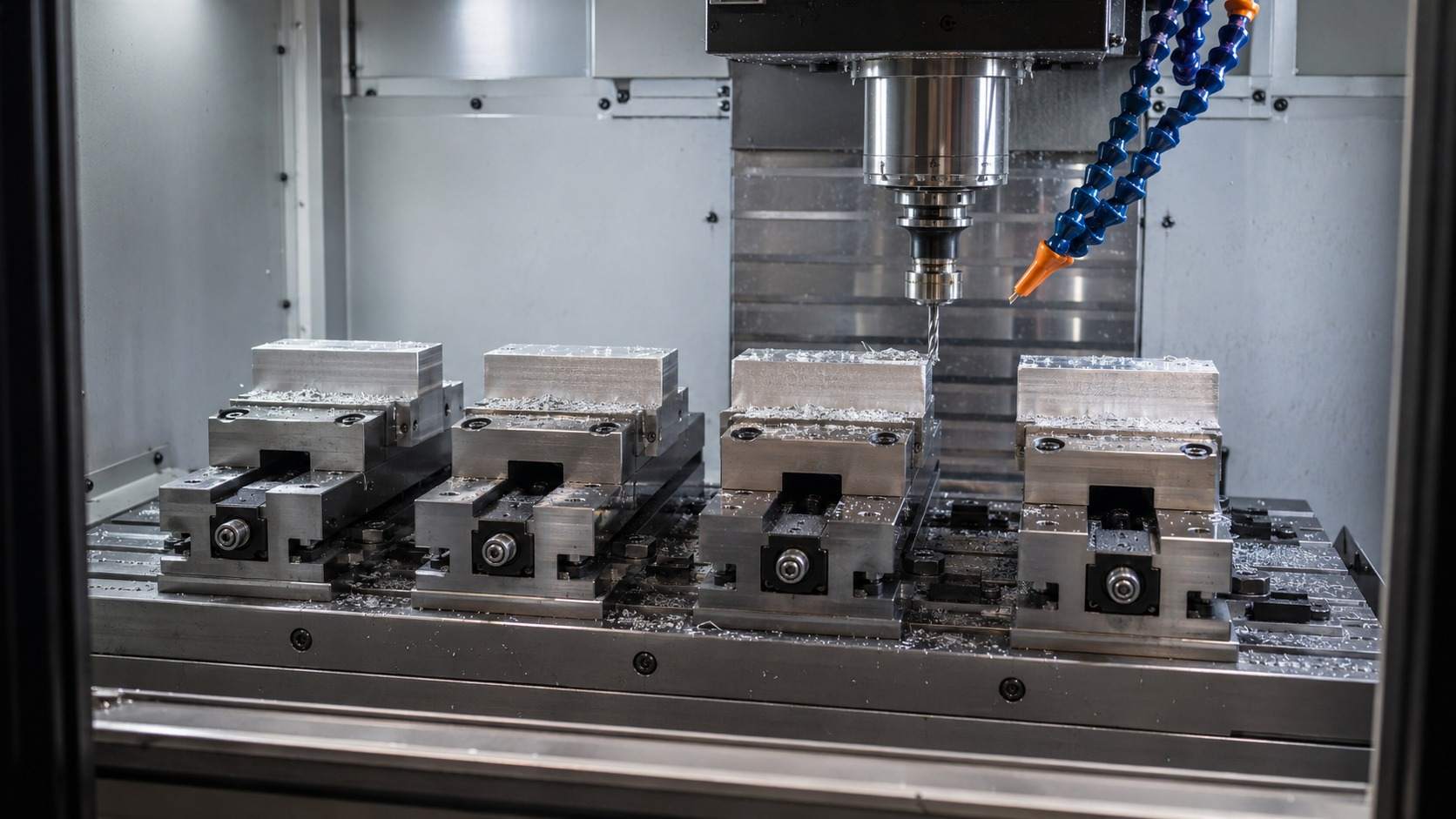

One of the defining features of a precision modular vise — and one that has no equivalent in standard milling vises — is the ability to mount multiple units side-by-side in a perfectly aligned array.
Because the GT modular vise body is precision-ground on all six sides to the same 0.005 mm tolerance, multiple vises placed next to each other on the machine table are automatically co-planar and co-linear. There is no need for individual alignment of each vise — the precision of the ground body ensures that all units in the array share the same reference plane.
This capability enables:
Multi-part setups: Clamp 2, 4, 6, or more identical parts simultaneously in a single machine cycle
Long workpiece support: Multiple vises supporting a single long workpiece at multiple points
Tombstone and pallet fixtures: Dense, repeatable workholding arrays on horizontal machining centers
Unattended batch production: Load multiple parts, run the full batch, unload — minimizing operator intervention
A standard milling vise, even if multiple units are placed on the same table, requires individual alignment of each vise and does not guarantee co-planarity between units.
When a workpiece is clamped in a standard milling vise and cutting forces are applied, there is a tendency for the movable jaw to lift slightly — pulling the workpiece upward and away from the vise bed. This "jaw lift" effect introduces a small but significant positional error, particularly in precision work.
Standard milling vises address this with varying degrees of success, depending on the design quality. Many standard vises have no specific anti-lift mechanism.
Precision modular vises incorporate a purpose-engineered anti-lift pull-down mechanism in the movable jaw. As clamping force is applied, the movable jaw is actively pulled slightly downward, pressing the workpiece firmly against the vise bed. This eliminates jaw lift and ensures that the workpiece remains in its intended position throughout the machining operation.
For precision CNC work, this is not a minor detail — jaw lift of even 0.01 mm can cause dimensional errors that are unacceptable in tight-tolerance applications.
Standard milling vises are commonly manufactured from cast iron or mild steel. Cast iron provides good vibration damping and is adequate for general milling, but has lower tensile strength and wear resistance compared to alloy steel.
Precision modular vises use higher-grade materials. Zhenghao GT series vises are manufactured from 20CrMnTi alloy steel — a chromium-manganese-titanium alloy steel that provides:
Higher tensile strength than cast iron or mild steel
Superior hardenability, allowing the vise to be hardened to HRC 58–62
Better wear resistance on sliding and clamping surfaces
Greater dimensional stability under repeated clamping loads
Longer service life with maintained accuracy
The hardened alloy steel construction means that the vise maintains its precision over a much longer service life than a cast iron standard vise, which is particularly important for production environments where the vise is used intensively.
Precision modular vises are engineered to deliver significantly higher clamping forces than standard milling vises of equivalent jaw width, due to their optimized lead screw design and rigid alloy steel construction.
GT series clamping force ratings:
Model | Jaw Width | Clamping Force |
GT100 | 100 mm | 3,000 N |
GT125 | 125 mm | 3,000 N |
GT150 | 150 mm | 5,000 N |
GT175 | 175 mm | 6,000 N |
GT200 | 200 mm | 10,000 N |
GT300 | 300 mm | 12,000 N |
Higher clamping force means the workpiece is held more securely during aggressive cutting operations, reducing the risk of workpiece movement, chatter, and dimensional error.
Standard milling vises are frequently offered with a swivel base that allows the vise body to be rotated on the table to clamp at angles other than 0° and 90°. This is useful on manual milling machines where angular setups are common.
Precision modular vises do not include a swivel base. This is a deliberate design choice: the swivel base introduces an additional interface between the vise and the machine table, which adds compliance and reduces the rigidity and accuracy of the setup. For CNC machining, angular workpiece orientation is achieved through the CNC program rather than by rotating the vise, so the swivel base is unnecessary and its absence is a quality advantage rather than a limitation.
Standard milling vises typically have a relatively simple base with T-slot bolt positions. The base may not be precision-ground, and alignment on the table requires the use of a dial indicator to square the vise to the machine axis.
Precision modular vises have a precision-ground base that provides a consistent, repeatable reference surface. Combined with the precision-ground sides of the vise body, this allows the vise to be mounted and aligned quickly and accurately. In production environments where the same vise is removed and remounted regularly, the precision base significantly reduces the time required for re-alignment.
Feature | Standard Milling Vise | GT Precision Modular Vise |
Squareness / parallelism | 0.02 – 0.05 mm | 0.005 mm |
Repeatability | Moderate | 0.003 – 0.005 mm |
Construction material | Cast iron / mild steel | 20CrMnTi alloy steel |
Hardness | Moderate | HRC 58–62 |
Jaw interchangeability | Limited | Full interchangeable jaw system |
Modular multi-vise setup | Not supported | Fully supported |
Anti-lift mechanism | Rarely included | Standard feature |
Clamping force | Moderate | Up to 12,000 N |
Swivel base | Often available | Not included (by design) |
Precision ground base | Not always | Yes — all six sides |
Suitable for CNC precision work | Marginal | Yes — purpose-designed |
Suitable for manual milling | Yes | Yes |
Suitable for multi-part batch production | Limited | Yes |
Price | Lower | Higher (better TCO) |
A standard milling vise remains a practical choice in the following situations:
Manual milling machines where CNC-level precision is not required
Low-volume or one-off work where setup flexibility and angular adjustment are more important than repeatability
Entry-level CNC applications where tolerances are relatively loose (±0.05 mm or wider)
Budget-constrained setups where the cost of a precision modular vise cannot be justified by the production volume
Applications requiring angular clamping where a swivel base is genuinely needed
A precision modular vise is the correct choice when:
Tight dimensional tolerances are required (±0.01 mm or tighter)
Repeatability is important — parts must be located consistently across multiple setups or shifts
Multiple jaw types are needed for different workpiece geometries
Multi-part setups are used to maximize machine utilization
High clamping force is needed for aggressive milling or hard materials
Long-term accuracy is required — the hardened alloy steel construction maintains precision over a much longer service life than cast iron
Production volume justifies the investment in higher-quality workholding
For any serious CNC production environment, the precision modular vise is not a luxury — it is the appropriate tool for the job.
Zhenghao's GT series provides a complete precision modular vise system that covers the full range of CNC workholding requirements:
GT Standard Vise with Interchangeable Jaws — the foundation of the system, adaptable to any workpiece type through the full range of jaw options
GT Quick-Change Jaw Vise — for high-mix production environments where jaw changeover speed is critical
ZQ83 Double Action Dual-Station Vise — for high-volume production where two parts must be clamped simultaneously
ZQ84 Two-Piece Vise — for oversized workpieces that exceed the capacity of standard single-body vises
All GT series vises share the same 20CrMnTi alloy steel construction, HRC 58–62 hardness, and 0.005 mm precision standard — ensuring consistent quality and interchangeability across the entire product range.
The difference between a standard milling vise and a precision modular vise is not simply a matter of price. It is a difference in design intent, manufacturing standard, material quality, and suitability for the demands of modern CNC machining.
A standard milling vise is a general-purpose tool adequate for manual work and low-precision CNC applications. A precision modular vise is a purpose-engineered workholding system designed to deliver the accuracy, repeatability, rigidity, and flexibility that precision CNC production requires.
For buyers equipping CNC machining centers, upgrading existing workholding, or sourcing vises for distribution to professional workshops, the precision modular vise is the correct long-term investment. The higher upfront cost is offset by better machining results, longer service life, faster setups, and greater production flexibility.
To explore Zhenghao's full GT precision modular vise range, or to discuss bulk order requirements, OEM customization, or technical specifications, contact us at zhjx@pyzhjx.com or +86-18660185316.
Yes. A precision modular vise can be used on any machine with a standard T-slot table, including manual milling machines. However, the precision and modular features are most fully utilized on CNC machining centers where repeatability and multi-part setups are important.
No. Precision modular vises are designed to be mounted directly and squarely on the machine table. Angular workpiece orientation in CNC machining is handled through the CNC program. The absence of a swivel base is a design advantage — it eliminates an additional interface that would reduce rigidity and accuracy.
Zhenghao GT series modular vises achieve 0.005 mm squareness and parallelism. A typical mid-range standard milling vise achieves 0.02 mm to 0.05 mm. This represents a four to ten times improvement in accuracy, which is significant in tight-tolerance CNC applications.
Yes. This is one of the key advantages of the modular design. Because all GT series vise bodies are precision-ground to the same 0.005 mm tolerance on all six sides, multiple units mounted side-by-side are automatically co-planar, enabling multi-part setups without individual alignment of each vise.
The GT series supports flat jaws, step jaws, V-groove jaws, lattice jaws, thread hole jaws, and elevation jaws, as well as custom-profile jaws manufactured to customer specifications. All jaw types are interchangeable on the same GT vise body.
For precision CNC applications, yes. 20CrMnTi alloy steel offers higher tensile strength, superior hardenability (allowing hardening to HRC 58–62), better wear resistance, and greater dimensional stability under repeated clamping loads compared to cast iron. This translates directly into longer service life with maintained accuracy.
