If you are sourcing a CNC machine vise for the first time — or re-evaluating your current workholding setup — one of the first decisions you will face is whether to use a standard CNC machine vise or a modular CNC vise system.
Both types are widely used in precision milling, but they serve different production needs. Choosing the wrong type can result in wasted table space, longer setup times, inconsistent part quality, and unnecessary cost.
This article compares modular and standard CNC vises across the factors that matter most to CNC machinists, process engineers, and tooling buyers: accuracy, flexibility, setup time, productivity, cost, and long-term value.
At Zhenghao Machinery, we manufacture both GT Precision Modular Vises and standard precision milling vises for customers across Europe, North America, Southeast Asia, and beyond. Our goal in this guide is to give you an honest, practical comparison — not a sales pitch.
A standard CNC machine vise is a reliable, cost-effective choice for single-part setups, general milling, and lower production volumes.
A modular CNC vise system is the better investment when you need to machine multiple parts per cycle, standardize workholding across machines, reduce setup time, or scale production without adding equipment.
If you run a high-mix, low-to-medium volume shop, or if you operate more than two CNC machining centers, a modular vise system will almost always deliver a better return over time.

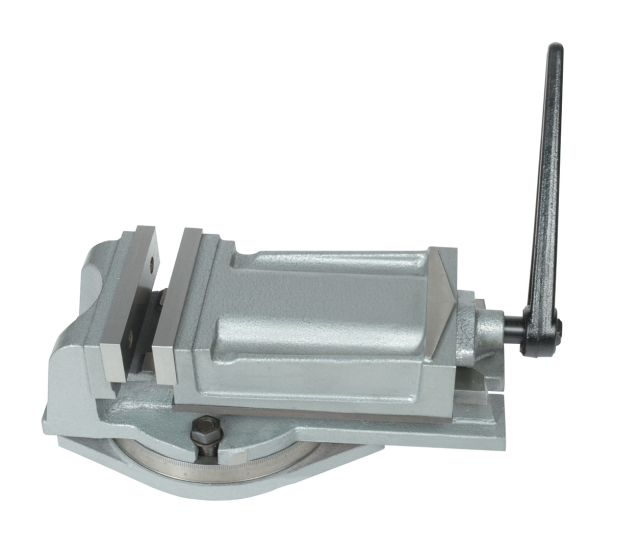

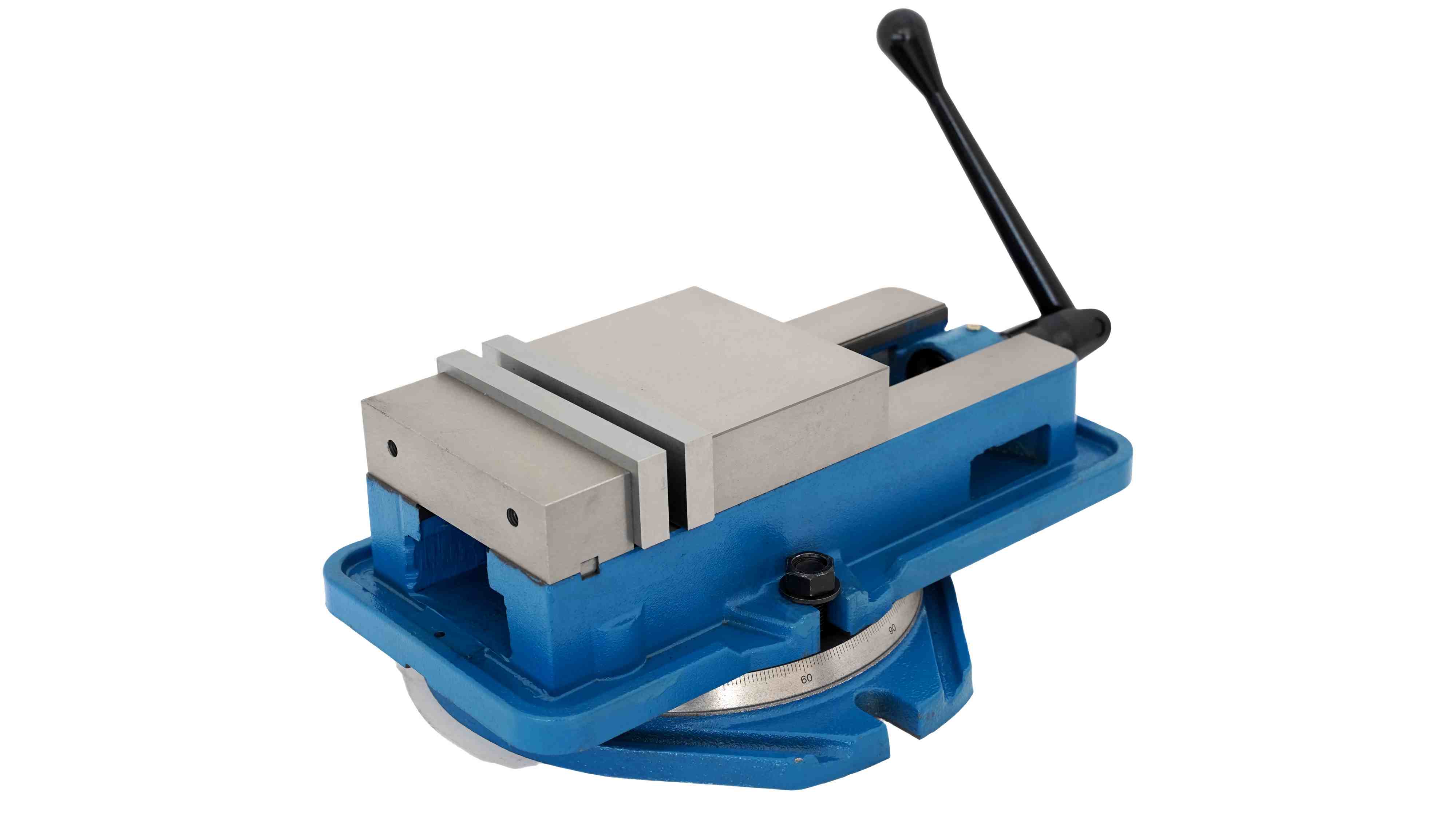

A standard CNC machine vise is a fixed-body workholding device designed to clamp a single workpiece on a CNC milling machine table. It typically consists of:
A fixed jaw
A movable jaw driven by a lead screw
A precision-ground base for table mounting
Mounting slots or holes compatible with T-slots
Standard CNC vises are available in a wide range of jaw widths — commonly from 80 mm to 200 mm — and are suitable for most general milling applications.
They are straightforward to set up, widely available, and relatively affordable. For many small shops or single-machine operations, a standard precision milling vise is entirely sufficient.

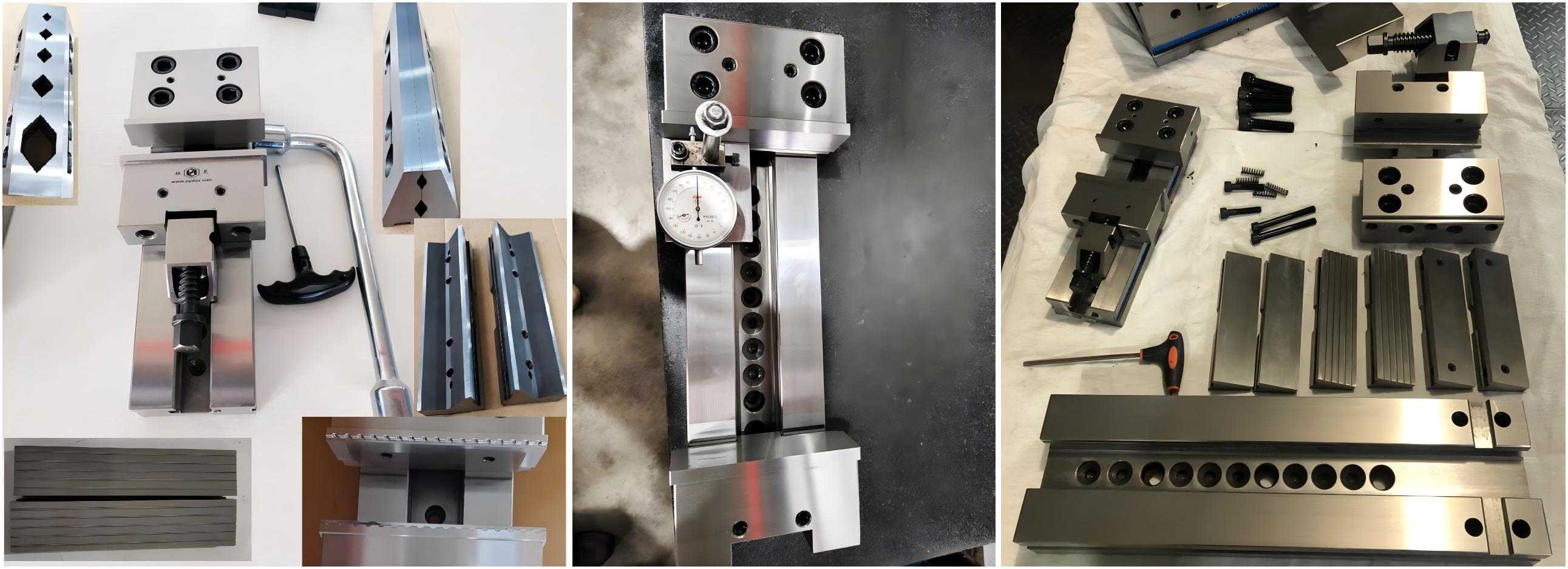

A modular CNC vise system is designed to be configured, combined, and adapted to different workpiece sizes, production volumes, and machine table layouts.
Key features of a modular vise system typically include:
Interchangeable jaw widths and body lengths
Compatibility with quick-change jaw systems
Ability to mount multiple vise units on a single table
Consistent base height and mounting dimensions across the product family
Standardized locating features for repeatable positioning
Expandable configurations as production needs grow
The GT Precision Modular Vise from Zhenghao Machinery is a good example: it is available in a wide range of jaw widths and body lengths — from GT100×100 to GT300×600 — allowing customers to build a workholding configuration that matches their machine table and production requirements precisely.
Comparison Factor | Standard CNC Vise | Modular CNC Vise |
Initial cost | Lower | Higher |
Setup time | Moderate | Faster with quick-change jaws |
Parts per cycle | Typically one | Multiple possible |
Table space efficiency | Moderate | Higher with multi-unit layout |
Jaw interchangeability | Limited | High |
Scalability | Low | High |
Accuracy | Good | Good to excellent |
Suitable for batch production | Acceptable | Well suited |
Suitable for high-mix production | Acceptable | Well suited |
Long-term value | Moderate | Higher for growing operations |
Typical applications | General milling, single parts | Batch milling, multi-part cycles |
Both standard and modular CNC vises can achieve high accuracy when manufactured to proper standards. However, there are some important distinctions.
A standard CNC vise is typically designed for general-purpose use. Accuracy depends on the quality of the grinding, the lead screw design, and the jaw guidance mechanism.
A modular CNC vise is usually built to tighter tolerances because it is intended for repeatable, multi-part production. The base, jaw interface, and locating features are often held to stricter standards to ensure consistent positioning across multiple vise units and repeated setups.

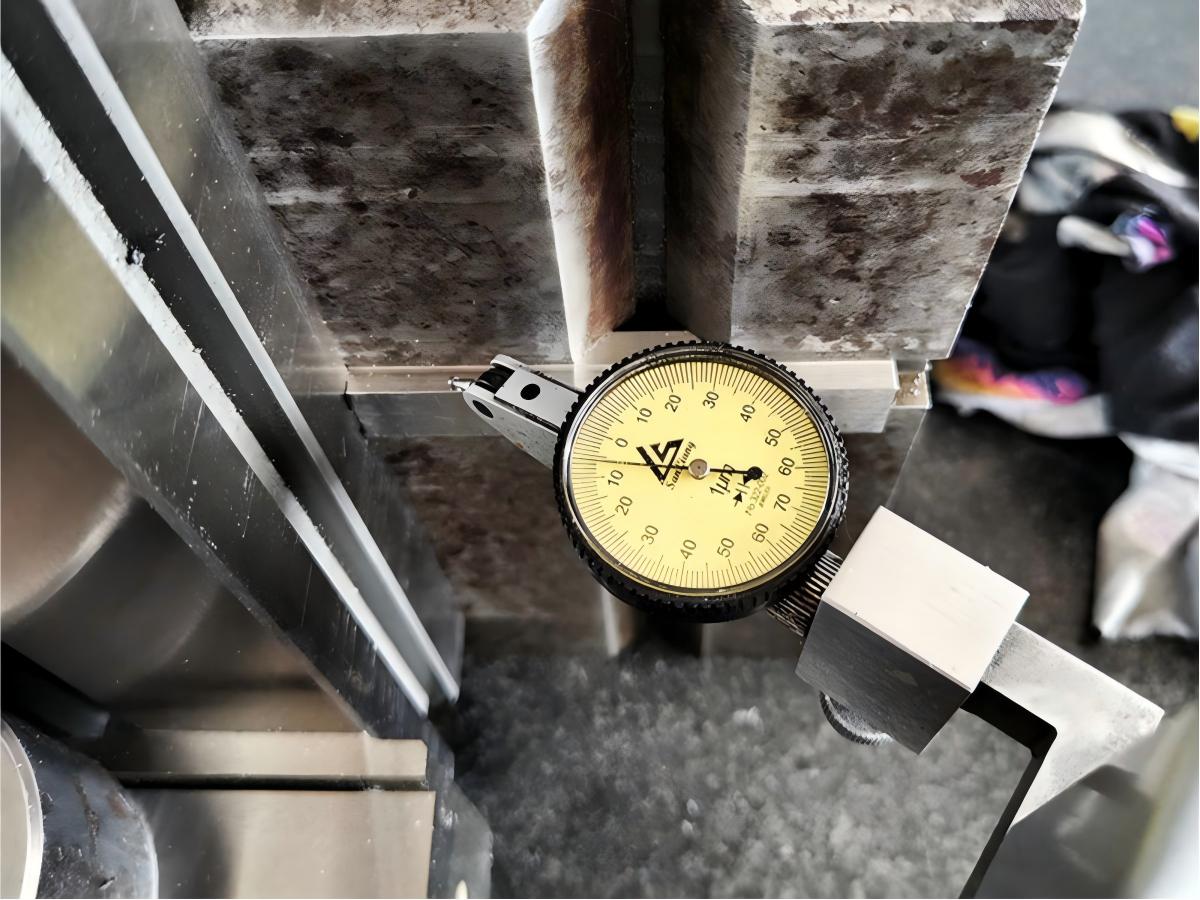

When evaluating any precision CNC milling vise, request specifications for:
Jaw parallelism
Jaw perpendicularity to the base
Base flatness
Jaw lift during clamping
Repeat positioning accuracy after jaw changes
Inspection method and available documentation
Do not rely on general descriptions such as "precision ground" or "high accuracy." Ask for specific values and confirm whether they are supported by inspection data.

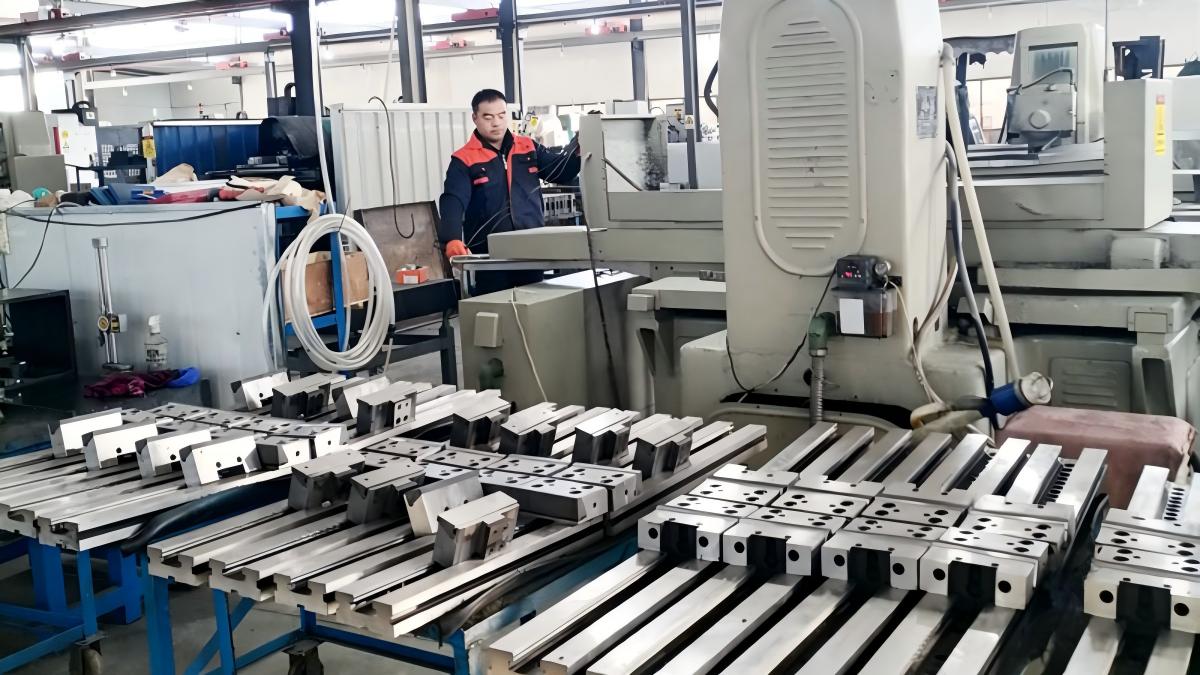

At Zhenghao Machinery, our GT Precision Modular Vises are manufactured through a process that includes forging, rough machining, heat treatment, and precision CNC grinding — the same quality discipline we apply across our full product range. Learn more about our manufacturing approach on the Zhenghao homepage.
Setup time is one of the most significant differences between standard and modular vise systems — and one of the most important factors for shops focused on productivity.
With a standard vise, each setup typically requires:
Mounting the vise on the table
Aligning the vise to the machine axis
Probing the jaw face and vise bed
Setting the work coordinate offset
Verifying the setup before running
This process can take 15 to 30 minutes per vise, depending on operator experience and machine type.
A modular vise system with standardized mounting and quick-change jaws can significantly reduce this time:
The vise body remains on the table between jobs
Jaw changes take minutes rather than requiring full realignment
Work offsets can be saved and recalled for repeat jobs
Multiple vise units share consistent base heights and locating references
For high-mix production environments — where different parts are machined on the same machine — this time saving compounds across every job change. Over a week or a month, the productivity difference is substantial.
One of the strongest arguments for a modular CNC vise system is the ability to machine multiple parts in a single cycle.
With a standard vise, most setups clamp one workpiece at a time. The machine cuts the part, the operator stops the cycle, unloads the finished part, loads a new blank, and restarts.
With a modular vise system, the table can hold two, four, six, or more workpieces simultaneously — depending on part size, vise configuration, and available table travel. The machine runs a longer cycle, and the operator loads and unloads parts during cutting time rather than waiting for the spindle to stop.
Consider a shop machining a small aluminum component with a cycle time of 4 minutes per part. With one standard vise, the machine produces 15 parts per hour — assuming 1 minute for loading and unloading.
With a modular vise layout holding four parts simultaneously, the same machine can produce significantly more parts per hour, with less operator intervention per part.
This is not a theoretical benefit. It is one of the most common reasons why precision machining shops upgrade from standard vises to modular workholding systems.
For practical guidance on setting up multiple vises on a CNC table, including alignment, referencing, and work offset strategy, visit our blog article on multi-vise setups.
A standard CNC vise is designed for a fixed jaw width and opening range. If your parts change significantly in size, you may need a different vise — or you may be forced to use a vise that is not well matched to the workpiece.
A modular CNC vise system addresses this through:
Multiple jaw width options within the same product family
Interchangeable jaws — hard jaws, soft jaws, step jaws, quick-change jaws
Adjustable body configurations for longer or wider workpieces
Consistent base dimensions so different configurations can be used on the same machine without re-referencing
This flexibility is especially valuable for:
Contract machining shops with diverse customer parts
OEM manufacturers with multiple product lines
Shops that machine both small and large components
Operations that need to switch between aluminum, steel, and other materials
A standard CNC vise typically has a lower initial purchase price than a modular vise system. This is a real difference, and it matters — especially for smaller shops or buyers with limited tooling budgets.
However, the total cost of a workholding decision includes more than the purchase price. Consider:
Cost Factor | Standard Vise | Modular Vise |
Purchase price | Lower | Higher |
Setup labor per job | Higher | Lower |
Parts per machine hour | Fewer | More |
Jaw replacement cost | Moderate | Moderate |
Scalability investment | New vise needed | Add to existing system |
Downtime for changeover | Higher | Lower |
For a shop running one machine with low production volume, a standard vise may offer the best value. For a shop running three or more machines with regular batch production, the modular system typically pays for itself within months through reduced setup time and higher output per machine hour.
Use this guide to match your situation to the right vise type:
You run one or two CNC machines
Your production volume is low to moderate
You typically machine one part at a time
Your workpiece sizes are consistent
Your budget for workholding is limited
You are setting up a new shop or expanding cautiously
You run three or more CNC machining centers
You need to machine multiple parts per cycle
You frequently change between different part sizes
Setup time is a significant cost in your operation
You want to standardize workholding across machines
You are planning to scale production
You need quick-change jaw capability
You have a mix of dedicated production machines and flexible machining centers
Some machines run high-volume repeat jobs while others handle custom work
You want to standardize on one vise platform but need different configurations
Whether you are sourcing a standard or modular CNC vise, the quality of the manufacturer matters as much as the product specification.
When evaluating a CNC vise supplier, ask:
What manufacturing process is used? Forged bodies, heat-treated components, and precision CNC grinding are indicators of a serious manufacturer.
What accuracy specifications are guaranteed? Request specific values, not general descriptions.
What jaw options are available? Standard hard jaws, soft jaw blanks, step jaws, and quick-change systems should all be available or customizable.
Can the vise be customized? OEM branding, custom jaw profiles, and special configurations are important for distributors and OEM buyers.
What is the inspection process? Ask whether inspection reports are available and what quality standards are applied.
Can multiple products be consolidated into one shipment? For international buyers, combining vises, toolholders, collets, and accessories in one order reduces logistics cost.
What export packaging is available? Proper packaging is essential for sea freight and international delivery.
Zhenghao Machinery has been manufacturing precision machine tool accessories since 1998. Our product range includes GT Precision Modular Vises, QGG precision toolmaker vises, high-density double-station vises, BT and BBT toolholders, ER collets, tapping holders, shrink fit holders, carbide end mills, and clamping kits — all available from a single supplier.

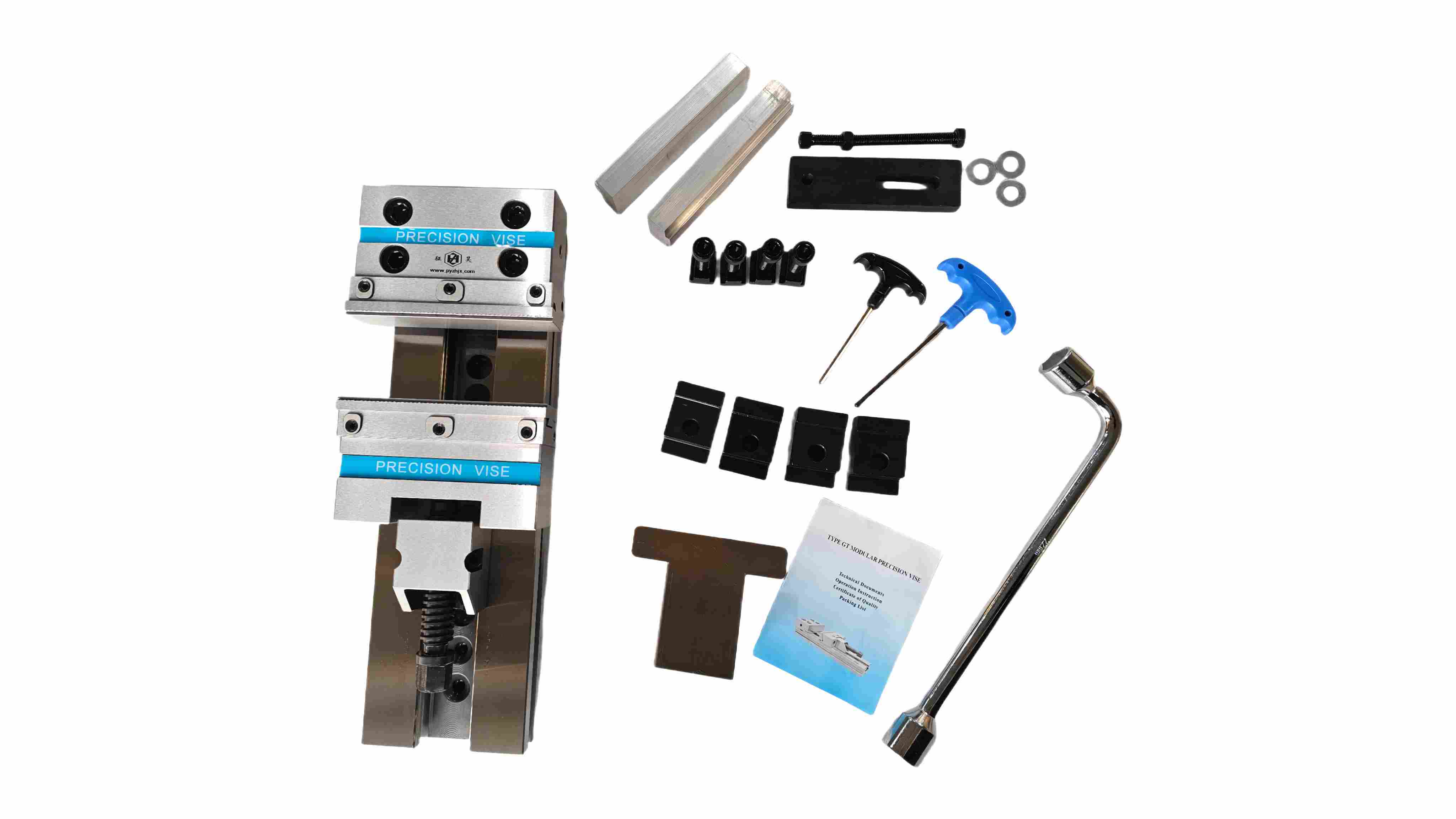

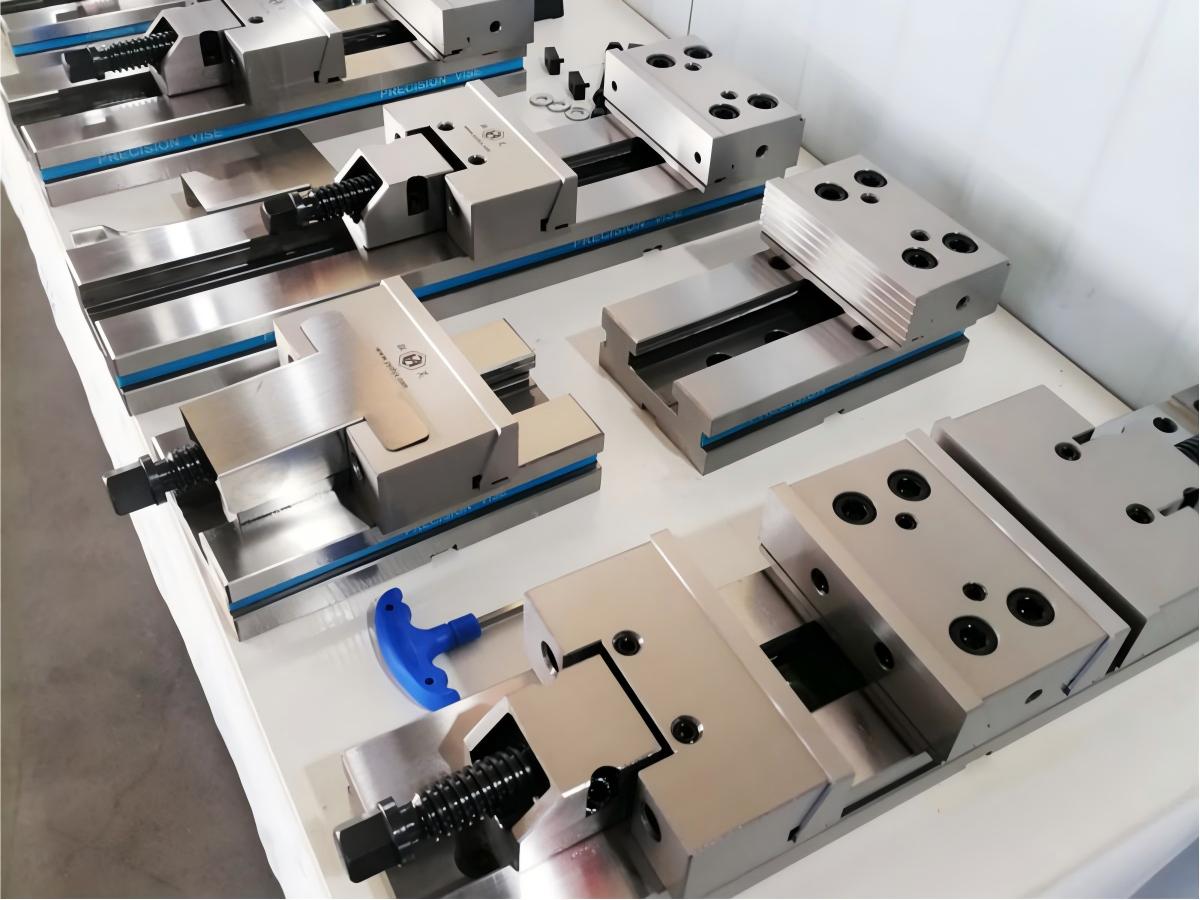

The GT Precision Modular Vise is Zhenghao Machinery's primary modular workholding product, designed for CNC milling applications where accuracy, rigidity, and configuration flexibility are required.
Key features of the GT series include:
Wide range of jaw widths and body lengths (GT100×100 to GT300×600)
Quick-change jaw system option for faster setup
Precision-ground base and jaw surfaces
Robust body construction for heavy milling and long-cycle operations
Compatible with standard T-slot machine tables
Available in single and multi-vise configurations
Suitable for 3-axis, 4-axis, and 5-axis machining centers
The GT series is used by precision machining shops, OEM manufacturers, and tooling distributors in the UK, Europe, North America, and Asia.
Browse the full GT Precision Modular Vise range and other CNC workholding products on our All Products page.
A standard CNC vise is designed for single-part clamping with a fixed jaw width and body size. A modular CNC vise system offers interchangeable jaws, multiple body configurations, and the ability to mount several vise units on one machine table for multi-part production.
Yes. Modular CNC vises are compatible with standard 3-axis machining centers. The key requirement is that the machine table has sufficient T-slot spacing and travel to accommodate the vise configuration you choose.
This depends on the machine table size, T-slot layout, available axis travel, and the size of the vises. Many 3-axis VMCs can accommodate two to six vises depending on the configuration. For guidance on specific setups, contact our team with your machine model and table dimensions.
Not necessarily by default — accuracy depends on the manufacturing quality of the specific product. However, modular vise systems are typically built to tighter tolerances because they are designed for repeatable multi-part production. Always request specific accuracy specifications from any supplier.
The GT series supports hard jaws, soft jaw blanks, step jaws, and quick-change jaw configurations. Custom jaw profiles can also be discussed based on specific workpiece requirements.
Yes. Zhenghao Machinery offers a range of CNC workholding and toolholding products — including vises, ER collets, BT and BBT toolholders, tapping holders, shrink fit holders, and carbide end mills — that can be consolidated into a single shipment. This reduces logistics cost and simplifies import documentation for international buyers.
Yes. We support OEM customers and distributors with custom branding, packaging, and product configuration options. Contact us with your requirements to discuss feasibility and minimum order quantities.
Send us your machine model, required jaw width and body length, quantity, jaw type preference, and any OEM or customization requirements. Our team will respond with product recommendations, specifications, and pricing.
Whether you need a standard precision milling vise for a single-machine setup or a full modular workholding system for a multi-machine production floor, Zhenghao Machinery can support your requirements.
To get started, share with us:
Your CNC machine model and table size
Workpiece dimensions and material
Required jaw width and opening
Production volume and batch size
Whether quick-change jaws or OEM service are needed
