When engineers and procurement managers evaluate CNC precision vises, most of the conversation centres on jaw width, clamping force, and opening capacity. These are important specifications. But there is a more fundamental question that determines whether a vise will hold its precision over months and years of production use — or slowly degrade until it becomes a source of scrap parts:
What is the vise made of?
The two dominant materials in the precision vise market are cast iron and alloy steel. At first glance, both seem reasonable choices for a machine tool component. Cast iron has been used in machine tools for over a century. It is inexpensive, easy to cast into complex shapes, and has good vibration-damping properties.
But in a CNC precision vise — a component where dimensional stability, surface hardness, impact resistance, and long-term accuracy are not optional features but core requirements — cast iron and alloy steel are not equivalent alternatives. They are fundamentally different materials with fundamentally different performance profiles.
At Pingyuan Zhenghao Machinery, every vise we manufacture — from the GT Series Precision Modular Vise to the ZQ83 Double Action Dual-Station Vise — is manufactured from 20CrMnTi alloy steel, forged and precision-ground to HRC 58–62 hardness. This is not a marketing claim. It is a material engineering decision, and this article explains exactly why it matters for your machining operation.
20CrMnTi is a low-carbon, chromium-manganese-titanium case-hardening alloy steel widely used in high-stress mechanical components across the automotive, aerospace, and precision tooling industries. The designation breaks down as follows:
20 — carbon content of approximately 0.20%, giving the core excellent toughness and ductility
Cr (Chromium) — improves hardenability, wear resistance, and corrosion resistance
Mn (Manganese) — increases strength and hardenability; improves the steel's response to heat treatment
Ti (Titanium) — refines grain structure, improving both strength and toughness simultaneously
The critical property of 20CrMnTi is what happens after carburizing and quenching heat treatment: the outer surface achieves a hardness of HRC 58–62, while the core retains its original toughness and impact resistance. This combination — a hard surface over a tough core — is precisely what a precision vise needs.
Property | 20CrMnTi Alloy Steel (HRC 58–62) | Grey Cast Iron (HB 180–240) |
Surface hardness | HRC 58–62 | HB 180–240 (≈ HRC 18–24) |
Tensile strength | 1,080 MPa (after heat treatment) | 150–300 MPa |
Impact toughness | High — tough core absorbs shock | Low — brittle, fractures under impact |
Wear resistance | Excellent — hardened surface resists abrasion | Moderate — softer surface wears progressively |
Dimensional stability under load | High — elastic deformation, returns to original geometry | Lower — susceptible to micro-deformation under repeated clamping cycles |
Machinability for precision grinding | Excellent — can be ground to sub-micron tolerances | Good — but surface hardness limits achievable finish |
Fracture mode | Ductile — deforms before fracturing | Brittle — fractures suddenly without warning |
Corrosion resistance | Good (with Cr content) | Moderate — prone to surface oxidation |
The numbers tell a clear story. But the real-world implications for a CNC vise are worth examining in detail.
A CNC precision vise is not a static fixture. Over its service life, it experiences thousands — potentially hundreds of thousands — of clamping cycles. Every cycle applies and releases clamping force on the jaw faces, the guide surfaces, the lead screw interface, and the vise body itself.
In a cast iron vise, the jaw faces and guide surfaces have a hardness of approximately HB 180–240 — equivalent to roughly HRC 18–24. This is adequate for light-duty workholding. But under the repeated contact stress of CNC milling operations, these surfaces wear. The wear is gradual and invisible until it has accumulated to the point where it affects part accuracy.
The mechanism is straightforward:
Worn jaw faces no longer present a flat, consistent clamping surface → workpiece positioning becomes inconsistent
Worn guide surfaces allow the movable jaw to develop lateral play → repeatability degrades

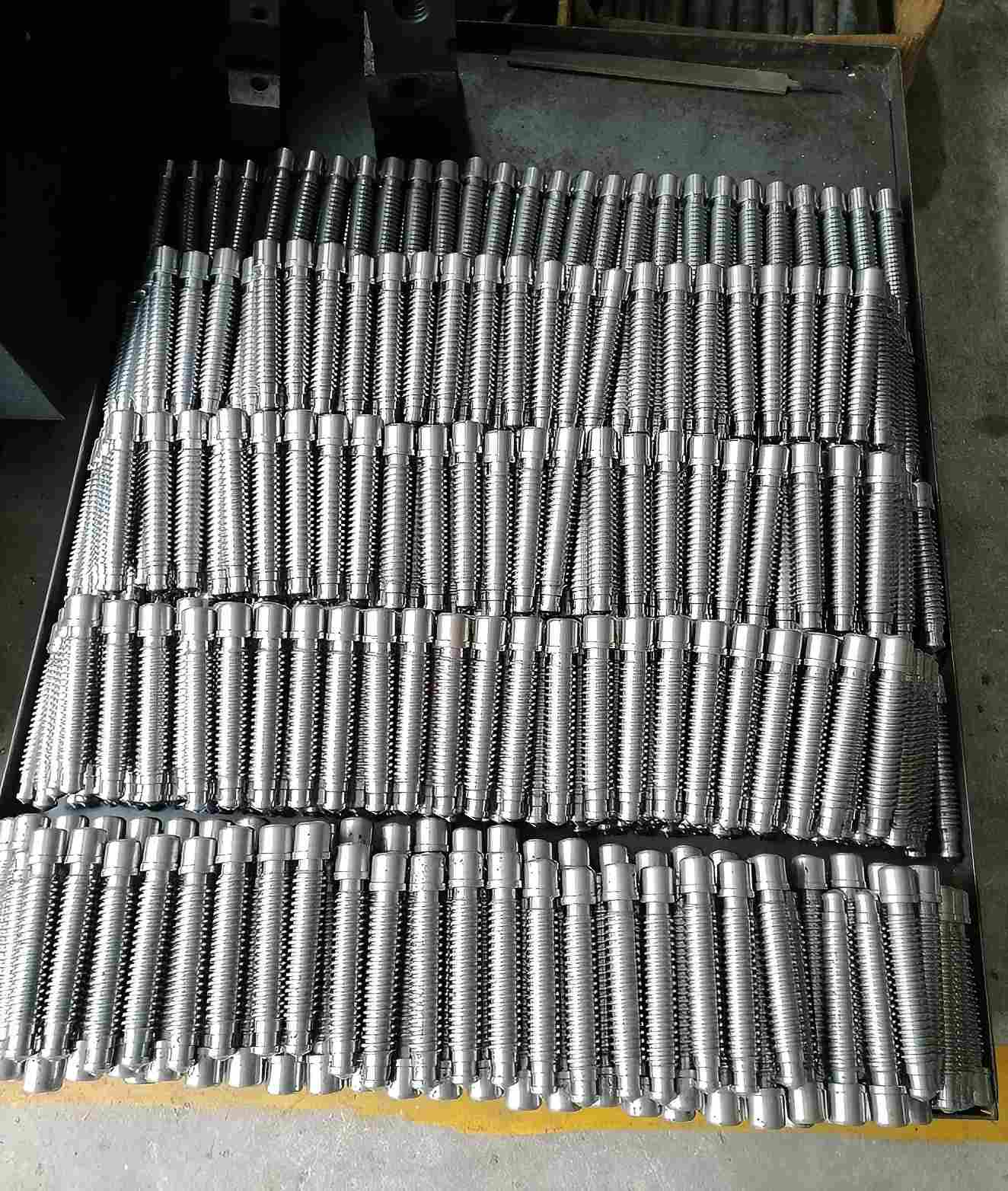

Worn lead screw interfaces introduce backlash → the jaw does not return to the same position on successive clamping cycles
By contrast, a 20CrMnTi alloy steel vise hardened to HRC 58–62 has a surface that is approximately 2.5–3× harder than cast iron. The wear rate on hardened alloy steel sliding surfaces is dramatically lower. The jaw faces, guide surfaces, and lead screw interfaces maintain their geometry over a service life that is measured in years of production use, not months.
For a precision machining operation where the vise is the primary reference for workpiece positioning, this is not a minor advantage. It is the difference between a vise that holds 0.005 mm repeatability for three years and one that drifts to 0.02 mm repeatability within twelve months.

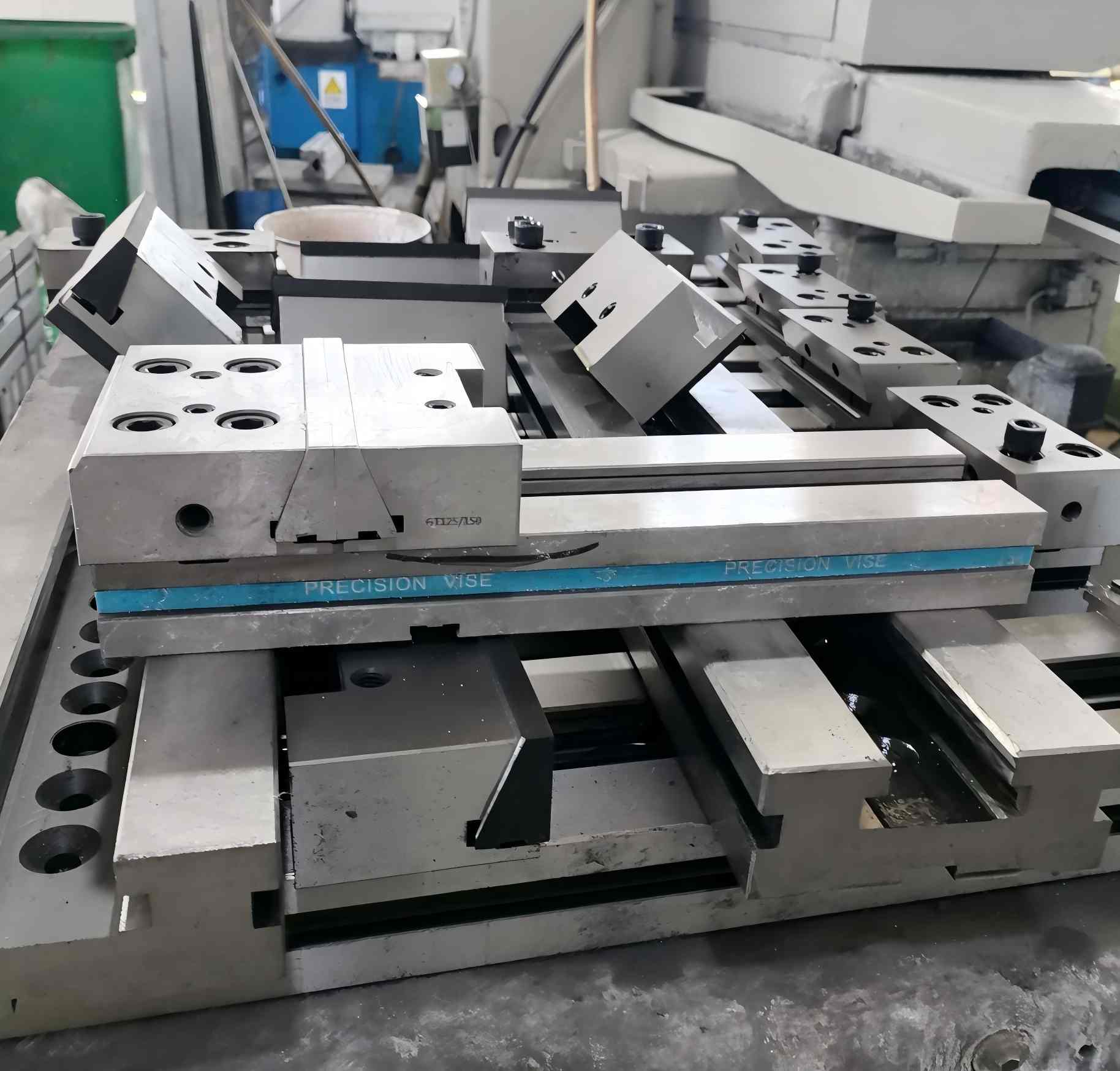

Our GT Series Precision Modular Vises are precision-ground to 0.005 mm squareness and parallelism on all reference surfaces — a specification that is only achievable and only maintainable with hardened alloy steel as the base material.
Cast iron's most significant mechanical limitation is its brittleness. Grey cast iron has essentially zero ductility — it does not deform plastically before fracturing. When subjected to a sudden impact load — a dropped workpiece, a tool crash, an interrupted cut with high radial force — cast iron fractures. The failure is sudden and without warning.
20CrMnTi alloy steel behaves completely differently. Despite its hardened surface, the low-carbon core retains high impact toughness. Under the same sudden impact load, the steel deforms elastically — absorbing the energy — and returns to its original geometry. It does not fracture. In a severe impact, it may deform permanently at the point of impact, but it will not shatter.
In a production environment, this difference has practical consequences:
Cast iron vise failure scenario:
A tool crash on a 5-axis machining centre transmits a sudden lateral force to the vise. The cast iron movable jaw cracks at a stress concentration point — typically at the guide rail interface. The vise is destroyed. The machine is down while a replacement is sourced and installed. The workpiece may also be damaged.
20CrMnTi alloy steel vise failure scenario:
The same tool crash transmits the same force. The alloy steel vise absorbs the impact elastically. The vise survives intact. The machine returns to production after the tool is replaced and the program is corrected.
This is not a hypothetical scenario. Tool crashes happen in every production environment. The question is not whether your vise will experience an impact load — it is whether your vise will survive it.
The ZQ83 Double Action Precision Vise — which simultaneously clamps two workpieces and therefore experiences higher combined clamping forces than a single-station vise — is specifically manufactured from forged 20CrMnTi alloy steel to ensure the structural integrity required for dual-station high-force clamping applications.
Precision is not just about what a vise measures when it leaves the factory. It is about what it measures after six months of three-shift production. This is where the material choice becomes decisive.
CNC machining generates heat — from cutting, from coolant cycling, from the machine's own thermal output. A vise on a production machine experiences repeated thermal cycles throughout every shift. Both cast iron and alloy steel expand and contract with temperature, but the key difference is how they respond to repeated thermal cycling.
Cast iron, being a brittle material, is more susceptible to micro-cracking at stress concentration points under repeated thermal cycling. These micro-cracks are invisible to the naked eye but progressively degrade the structural integrity of the vise body, allowing micro-deformation under clamping load that accumulates over time.
20CrMnTi alloy steel, with its ductile core, accommodates thermal cycling through elastic deformation without micro-cracking. The vise body returns to its original geometry after each thermal cycle.
The manufacturing process for a precision vise introduces residual stresses into the material — from forging, machining, and heat treatment. In cast iron, these residual stresses can cause stress relief deformation over time, particularly when the vise is subjected to repeated clamping loads. A vise body that was flat and square when it left the factory may develop a measurable warp after a year of production use.
In 20CrMnTi alloy steel, the heat treatment process — carburizing, quenching, and tempering — is specifically designed to produce a controlled residual stress state that is stable under production conditions. The precision-ground reference surfaces maintain their geometry because the material beneath them is stable.
This is why the GT Quick-Change Jaw Vise — designed for high-mix production environments where the vise is in continuous use across multiple setups per shift — is manufactured from the same 20CrMnTi alloy steel standard. High-frequency use demands a material that maintains its geometry under continuous loading and unloading cycles.
The final precision of a vise is determined not just by the material's inherent properties but by what the material allows the manufacturer to do in the grinding process.
Precision grinding — the operation that produces the flat, square reference surfaces that define a vise's accuracy — requires a material that can be ground to a consistent, stable surface finish without smearing, tearing, or leaving residual surface stresses that cause dimensional drift.
Cast iron can be precision-ground, but its relatively low hardness means that the ground surface is more susceptible to:
Micro-scratching from abrasive particles in the machining environment
Surface deformation under the contact stress of clamping
Progressive loss of surface flatness as the soft surface wears
20CrMnTi alloy steel at HRC 58–62 responds to precision grinding differently. The hardened surface:
Accepts a finer surface finish — the hard, uniform microstructure produces a more consistent ground surface
Resists micro-scratching from abrasive contamination in the machining environment
Maintains its ground geometry under repeated clamping contact stress
This is why Zhenghao's GT Series vises achieve and maintain 0.003–0.005 mm repeatability — a specification that requires both the precision of the grinding process and the stability of the material to sustain it in production use.
Zhenghao's vises are not just manufactured from 20CrMnTi alloy steel — they begin as forged alloy steel billets. This is a further step beyond simply using the correct alloy.
Forging — the process of shaping metal under high compressive force — produces a grain structure that is fundamentally different from cast material. In a forged component:
The metal grain flows continuously through the part geometry, following the shape of the component
There are no internal voids, porosity, or inclusions — defects that are inherent in cast material
The aligned grain structure provides higher strength and toughness in the directions of highest stress
For a vise body, where the highest stresses occur at the guide rail interfaces and the lead screw housing, the aligned grain structure of a forged billet provides superior resistance to fatigue and deformation compared to a cast body of the same alloy.
The combination — forged 20CrMnTi alloy steel, carburized and quenched to HRC 58–62, precision-ground to 0.005 mm — represents the complete material and process specification for a vise that will hold its precision over years of production use.
The purchase price of a cast iron vise is typically lower than an equivalent alloy steel vise. This is the primary reason cast iron vises remain in the market. But the purchase price is only one component of the total cost of ownership.
Consider the full cost calculation over a three-year production horizon:
Cost Component | Year 1 | Year 2 | Year 3 |
Purchase price | $X | — | — |
Scrap rate from accuracy degradation | Low | Medium | High |
Replacement cost (vise worn beyond usable precision) | — | — | $X |
Downtime for replacement and re-qualification | — | — | Significant |
Total 3-year cost | $X + escalating scrap + replacement |
Cost Component | Year 1 | Year 2 | Year 3 |
Purchase price | $X + premium | — | — |
Scrap rate from accuracy degradation | Negligible | Negligible | Negligible |
Replacement cost | — | — | — |
Downtime for replacement | — | — | — |
Total 3-year cost | $X + premium only |
The premium for a hardened alloy steel vise over a cast iron equivalent is typically 15–30% at purchase. The scrap rate difference — particularly in precision applications like automotive components, mold making, or aerospace parts — can easily exceed this premium within the first year of production.
A single batch of scrapped parts from a worn cast iron vise can cost more than the price difference between the two vises. And unlike the vise, scrapped parts cannot be recovered.
The 20CrMnTi alloy steel standard is not limited to a single product line at Zhenghao. It is the material specification across our complete precision vise range:
Our flagship workholding product. Available in jaw widths from 100 mm to 300 mm, with clamping forces from 3,000 N (GT100) to 12,000 N (GT300). All specifications manufactured from 20CrMnTi alloy steel, hardened to HRC 58–62, precision-ground to 0.005 mm squareness and parallelism.

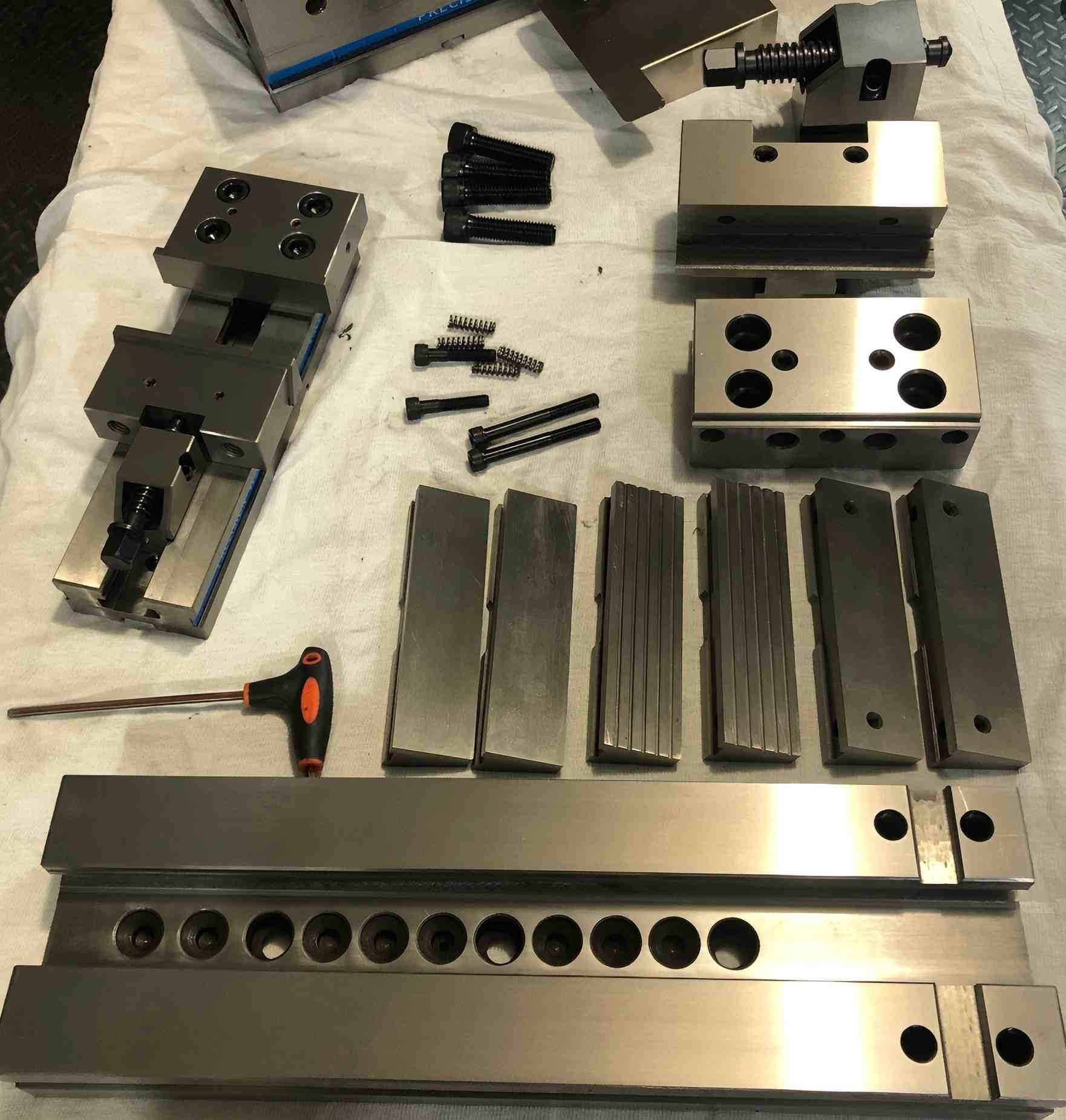

The GT Series supports a full range of interchangeable jaw types — flat jaws, V-groove jaws, step jaws, thread hole jaws, and elevation jaws — all manufactured from the same alloy steel standard as the vise body itself. The jaw hardness matches the vise body hardness, ensuring consistent wear characteristics across the entire clamping interface.
For high-mix production environments requiring rapid jaw changeover without sacrificing precision. The Quick-Change Jaw System allows jaw swaps in seconds while maintaining the same 0.005 mm repeatability standard — possible only because the jaw interface geometry is maintained by hardened alloy steel surfaces that do not deform under the repeated engagement and disengagement of the quick-change mechanism.
For high-volume production requiring maximum parts per cycle. The ZQ83 Double Action Vise clamps two workpieces simultaneously with a single lead screw operation. The dual-station design places higher structural demands on the vise body than a single-station design — demands that are met by the forged 20CrMnTi alloy steel construction.
The choice between cast iron and 20CrMnTi alloy steel in a CNC precision vise is not a choice between two equivalent materials at different price points. It is a choice between two fundamentally different performance profiles:
What you need from a precision vise | Cast iron | 20CrMnTi alloy steel |
Surface hardness to resist wear over 100,000+ clamping cycles | ✗ | ✓ |
Impact toughness to survive tool crashes without fracturing | ✗ | ✓ |
Dimensional stability under repeated thermal cycling | Partial | ✓ |
Precision-ground surfaces that maintain 0.005 mm over years | ✗ | ✓ |
Structural integrity for high-force dual-station clamping | Partial | ✓ |
Long-term repeatability without progressive accuracy degradation | ✗ | ✓ |
At Zhenghao, we made the material decision once — 20CrMnTi alloy steel, forged, hardened to HRC 58–62, precision-ground — and we apply it consistently across every vise we manufacture. The result is a vise that delivers the same precision on day one, month six, and year three.
Explore our full precision vise range at www.pyzhjx.com/products.html, or contact our technical team to discuss the right vise specification for your application.
Email: zhjx@pyzhjx.com
Phone / WhatsApp: +86-18660185316
20CrMnTi offers an optimal combination of properties for precision vise applications: the low carbon content (0.20%) ensures a tough, ductile core that resists fracture under impact loads, while the chromium, manganese, and titanium alloying elements provide excellent hardenability and grain refinement. After carburizing and quenching, the surface achieves HRC 58–62 — sufficient hardness for long-term wear resistance — while the core retains its toughness. Alternative alloys either achieve similar surface hardness with lower core toughness (making them more brittle) or achieve similar toughness with lower surface hardness (making them less wear-resistant). 20CrMnTi strikes the right balance for a component that must be both hard and tough.
A cast iron vise can be used for CNC milling, but it is not suitable for applications requiring consistent precision over extended production runs. Cast iron vises are adequate for light-duty or low-volume work where accuracy requirements are modest (±0.05 mm or looser). For precision machining — automotive components, mold making, aerospace parts, or any application requiring ±0.01 mm or tighter — the wear characteristics and brittleness of cast iron make it a poor choice for long-term production use.
Jaw hardness affects both the wear rate of the jaw face and the clamping force distribution on the workpiece. Soft jaws (cast iron or unhardened steel) deform slightly under clamping force, which can cause the workpiece to shift position as the jaw face conforms to the workpiece surface. Hardened alloy steel jaws (HRC 58–62) maintain their geometry under clamping force, providing a consistent, repeatable clamping reference. For precision workholding, hardened jaws are essential. Zhenghao's GT interchangeable jaw range is manufactured from the same 20CrMnTi alloy steel standard as the vise body.
Hardened alloy steel vises are more difficult to re-machine than cast iron vises if they are physically damaged. However, the significantly lower probability of damage — due to the material's impact toughness and wear resistance — means that repair is rarely necessary. A cast iron vise that is easier to repair is also easier to damage. In practice, a well-maintained 20CrMnTi alloy steel vise will outlast multiple cast iron vises in the same application without requiring repair.
Under normal production conditions — regular cleaning, periodic lubrication of the lead screw and guide surfaces, and protection from severe impact loads — a Zhenghao GT Series vise manufactured from 20CrMnTi alloy steel at HRC 58–62 is designed for a service life exceeding five years of continuous production use while maintaining its 0.005 mm precision specification. The actual service life depends on the specific application, clamping force levels, and maintenance practices. Contact our technical team for application-specific guidance.
