Choosing a CNC machine vise is not simply a matter of selecting the largest jaw width or the lowest purchase price. The right vise must match your machine table, part geometry, material, machining process, accuracy requirements, and expected production volume.
For CNC machining shops, OEM manufacturers, and tooling distributors, a well-selected precision CNC milling vise can improve setup consistency, protect part quality, reduce changeover time, and increase the number of parts machined in one cycle.
This guide explains the most important factors to consider when choosing a CNC machine vise, including vise size, jaw opening, clamping force, accuracy, modularity, and multi-vise workholding strategy.
At Zhenghao Machinery, we manufacture and supply CNC workholding solutions including GT precision modular vises, quick-change jaw vises, high-density double-station vises, and QGG precision toolmaker vises for global machining customers.
Before selecting a CNC milling vise, confirm these seven points:
Machine table size and T-slot layout
Workpiece dimensions and clamping area
Required jaw width and maximum jaw opening
Material hardness and required clamping force
Machining accuracy and repeatability requirements
Single-part, batch, or multi-part production needs
Whether interchangeable jaws or a modular vise system is required
The best CNC vise is the one that provides enough rigidity and clamping force without obstructing tool access, deforming the workpiece, or consuming unnecessary table space.
The first step is to match the vise footprint with your machining center table.
A vise that is too small may not provide sufficient rigidity for heavy milling. A vise that is too large can reduce available tool travel, block access to the workpiece, increase setup difficulty, and limit the number of vises that can be installed on the table.
When evaluating a CNC machine vise, check:
Overall vise length, width, and height
Mounting hole locations
T-slot compatibility
Distance between the vise and machine spindle
Available X-axis, Y-axis, and Z-axis travel
Clearance for long cutting tools and toolholders
Number of vises required per setup
For example, a compact 3-axis machining center may benefit from a smaller vise configuration, while a large VMC may support multiple 150 mm, 200 mm, or larger modular vises.
A properly planned multi-vise setup can significantly improve spindle utilization. For setup guidance, visit our CNC machining and workholding blog, where we share practical information about vise alignment, work offsets, maintenance, and machining efficiency.
Two of the most important dimensions are jaw width and maximum jaw opening.
Jaw width affects the contact area between the vise and the workpiece. A wider jaw generally provides better support for larger parts and can help distribute clamping pressure more evenly.
However, wider is not always better. For small components, a very wide vise may occupy valuable table space and make it harder to arrange multiple workholding stations.
Typical selection logic:
Workpiece Type | Recommended Vise Consideration |
Small precision components | Compact or mini precision vise |
General CNC milled parts | Medium-width precision modular vise |
Long or wide workpieces | Larger jaw width and longer bed configuration |
High-volume production parts | Multiple vises or high-density double-station vise |
Thin-wall or delicate parts | Custom soft jaws and controlled clamping force |
The maximum opening must accommodate the largest workpiece dimension that needs to be clamped. Always allow additional clearance for jaw steps, soft jaws, parallels, locating features, or fixtures.
Do not choose a vise based only on its maximum opening. A workpiece may fit inside the jaws but still be poorly supported if the clamping surface is too small or the part overhang is excessive.
For a broader range of vise configurations, including GT modular vises and other CNC workholding products, visit our product collection.
Clamping force is essential for preventing part movement during milling, drilling, tapping, and other operations. But excessive clamping force can distort thin-wall parts, leave jaw marks, or affect dimensional accuracy after unclamping.
The correct clamping force depends on:
Workpiece material
Workpiece wall thickness
Machining allowance
Cutting depth and width
Cutter diameter
Toolpath direction
Cutting parameters
Jaw contact area
Whether the operation is roughing or finishing
For heavy roughing operations on steel or cast iron, a rigid vise with high clamping stability is typically required. For aluminum housings, thin plates, precision-ground parts, or finished surfaces, the focus should shift toward controlled clamping and well-designed soft jaws.
Choose a vise that offers stable clamping and repeatable positioning, then optimize the actual clamping force according to the part and process. A high-quality precision CNC vise should support secure workholding without requiring unnecessary force.
When sourcing a precision machine vise, buyers should look beyond general claims such as “high accuracy” or “precision ground.” Ask for clear, measurable specifications and inspection standards.
Important accuracy indicators include:
Jaw parallelism
Jaw perpendicularity
Base flatness
Repeat clamping consistency
Jaw lift control
Screw and sliding mechanism smoothness
Positioning repeatability after jaw changes
Inspection method and inspection report availability
For high-precision milling, grinding, EDM, or inspection applications, even small deviations in vise geometry can affect finished part quality.
During clamping, some conventional vises may cause the movable jaw to lift slightly. This can pull the workpiece upward and reduce machining consistency.
A well-designed CNC milling vise helps maintain stable downward clamping behavior and minimizes unwanted workpiece movement. This is especially important for precision finishing, multi-part machining, and jobs with tight flatness or height tolerances.
Before placing a volume order, request:
Product drawings
Dimensional specifications
Accuracy inspection information
Sample evaluation options where applicable
Application recommendations based on your machine and parts
As a manufacturer with integrated production capability, Zhenghao Machinery can support customers with product selection, OEM requirements, packaging coordination, and technical communication.

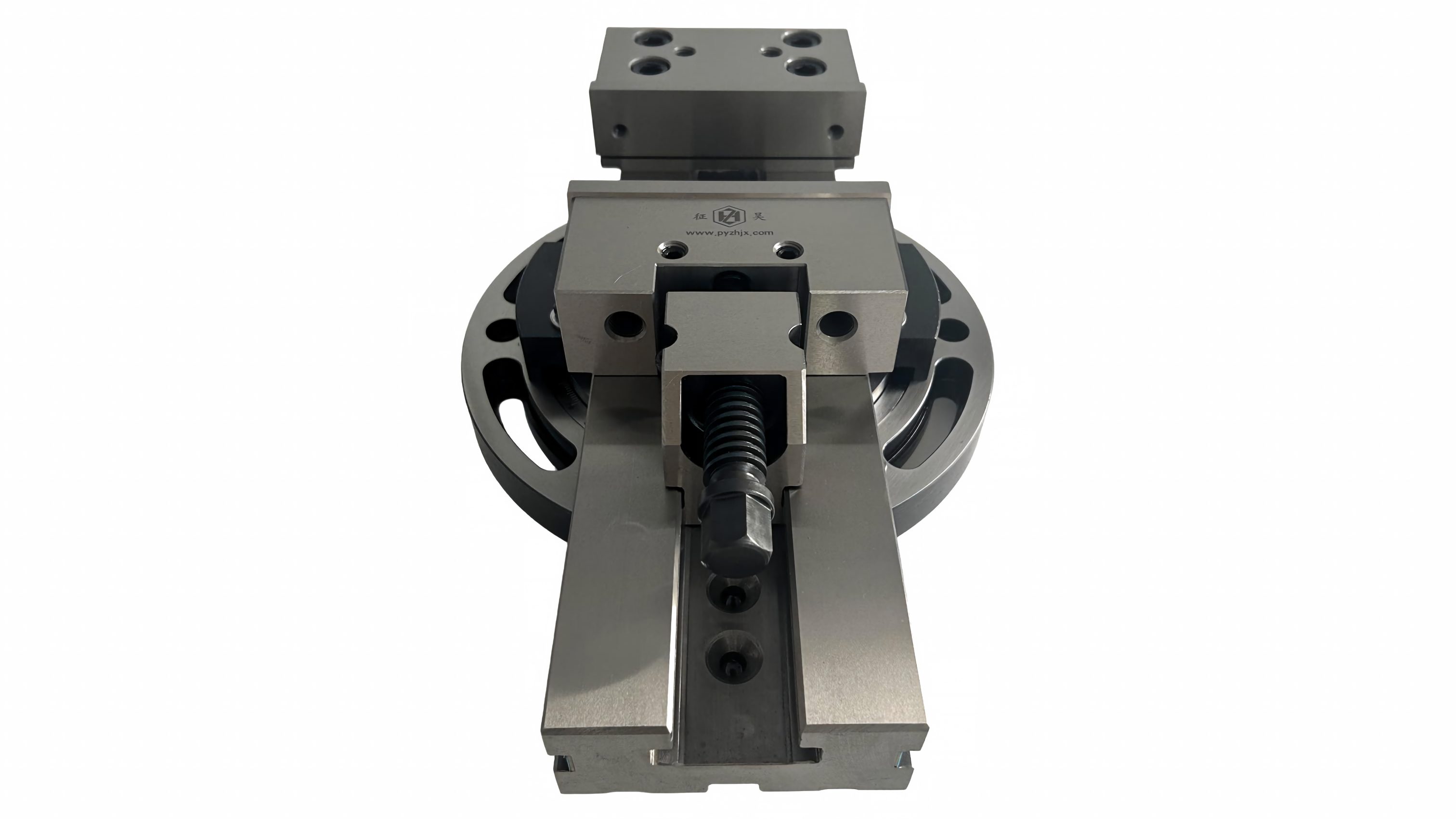

A standard CNC machine vise is suitable for many general milling applications. However, a modular CNC vise system offers more flexibility when the machine shop needs to process different part sizes, increase fixture density, or standardize workholding across multiple machines.
A modular vise system can offer:
Different jaw widths and body lengths
Multiple vise combinations on one machine table
Easier expansion as production volume grows
Flexible positioning for short, long, or irregular workpieces
Better consistency across repeated setups
More efficient table utilization
Compatibility with quick-change jaw solutions

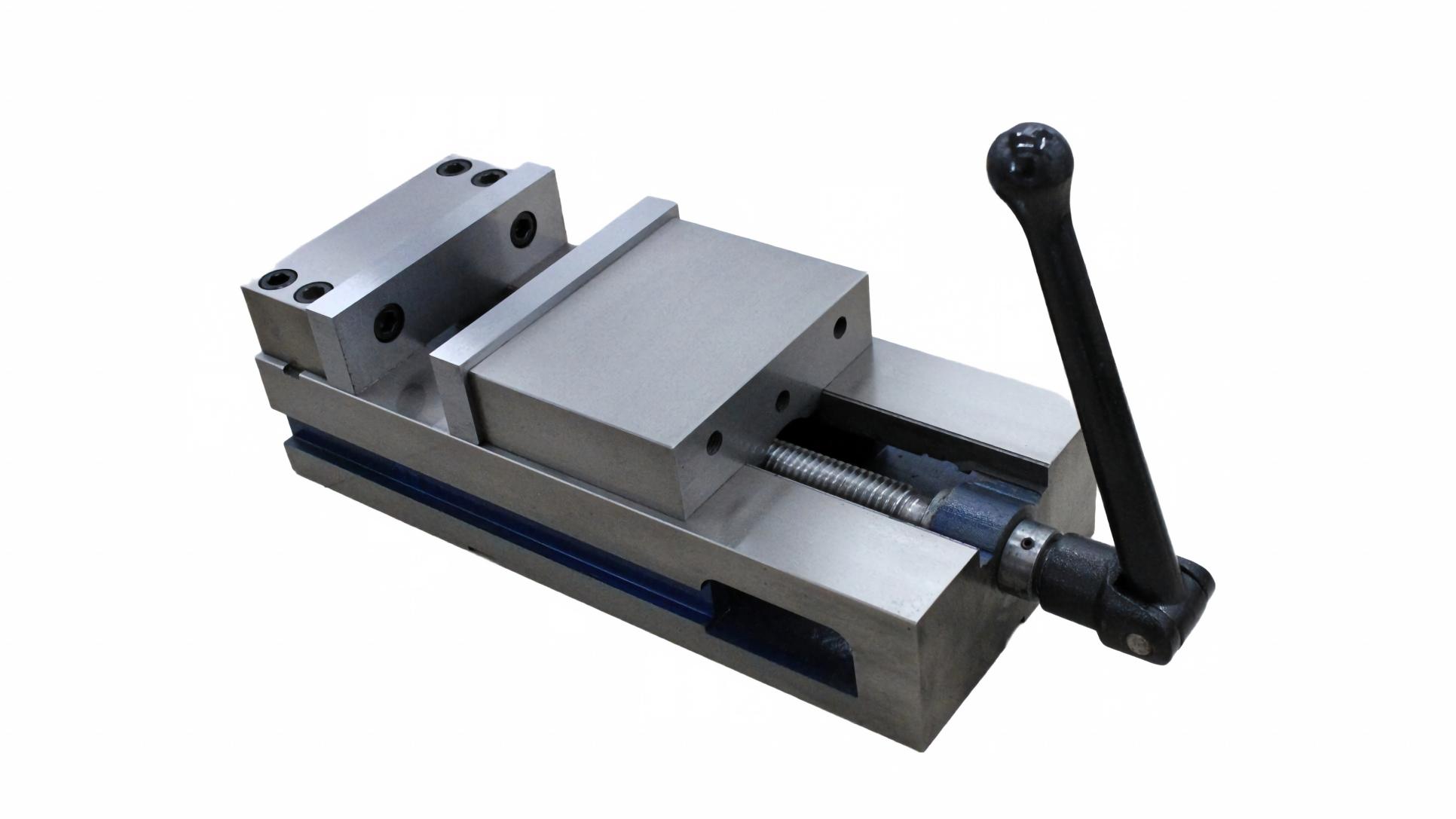

For example, Zhenghao’s GT Precision Modular Vise range is designed for CNC milling applications where accuracy, rigidity, and configuration flexibility are important.
A modular CNC vise is especially suitable when you:
Run repeated production jobs
Need to machine several parts in one cycle
Use multiple CNC machining centers
Frequently change workpiece sizes
Need a scalable workholding platform
Want to reduce setup time through standardized vise arrangements

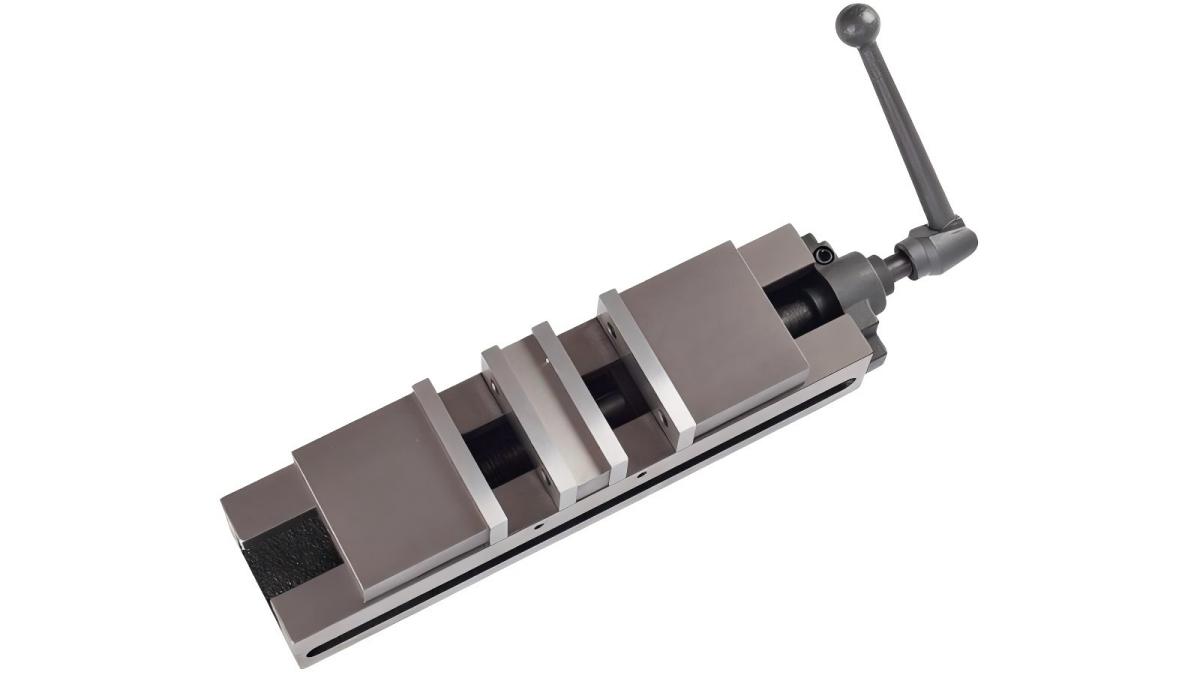

One of the most effective ways to improve CNC machining productivity is to install multiple vises on the machine table.
Instead of loading and machining one workpiece at a time, a machine can process several parts in a single cycle. This reduces non-cutting time and allows operators to load or inspect parts more efficiently.
More parts per machine cycle
Reduced loading and unloading frequency
Better spindle utilization
Improved repeatability in batch production
Easier use of common work offsets
Greater capacity without adding another machine
However, multi-vise machining requires careful planning. Every vise must be aligned correctly, and work offsets must be managed consistently. Vise height, jaw position, locating surfaces, and tool clearance should all be checked before production begins.

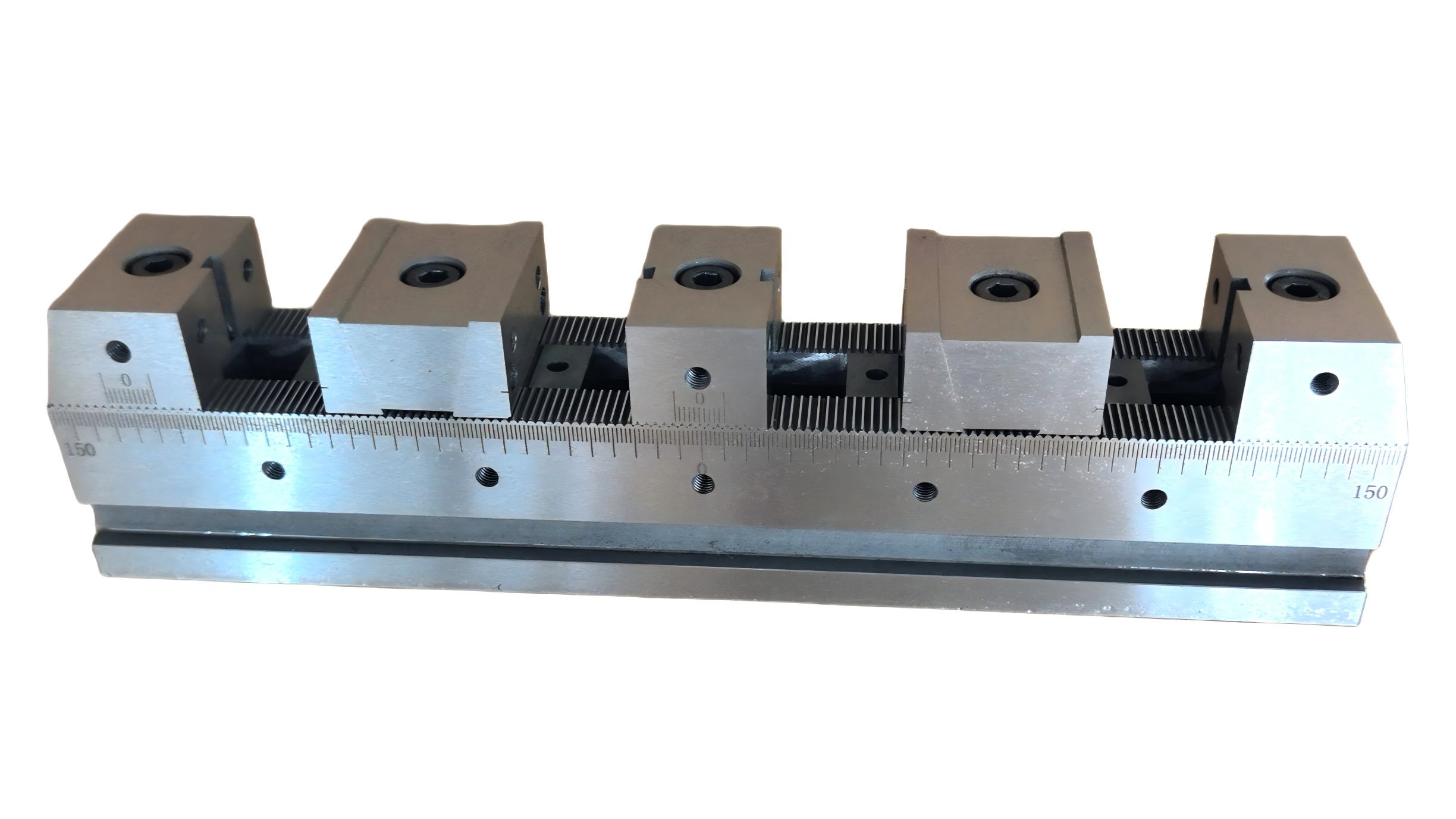

For batch machining, a combination of GT precision modular vises, quick-change jaw systems, or high-density multi-station vises can be a practical solution.
The vise body is only one part of the workholding solution. The jaw type often determines whether a part can be clamped safely, accurately, and efficiently.
Hard jaws are suitable for general clamping and repeated use with standard workpiece shapes. They are durable and convenient for common machining tasks.
Soft jaws are machined to match the shape of a specific workpiece. They are ideal for:
Irregular part profiles
Round or partially machined parts
Thin-wall components
Parts requiring minimal marking
High-repeatability production work
Quick-change jaw systems can reduce setup time when operators frequently switch between products or workpiece sizes. They are particularly useful for flexible manufacturing and low-to-medium batch production.
When selecting a CNC vise, ask whether the supplier can provide:
Standard hard jaws
Soft jaw blanks
Serrated jaws
Step jaws
Quick-change jaws
Custom jaws based on drawings or samples
Zhenghao Machinery can support customers seeking CNC vise solutions with standard accessories and customization options as part of a consolidated purchase order.
Different machining operations place different demands on the vise.
Application | Key Vise Requirements |
Heavy rough milling | High rigidity, stable clamping, strong base support |
Precision finishing | High parallelism, repeatability, low jaw lift |
Aluminum machining | Controlled clamping, soft jaws, scratch prevention |
Mold and die machining | Accuracy, tool access, stable long-cycle performance |
Multi-part production | Modular layout, consistent offsets, quick setup |
Grinding and EDM | Compact precision vise, high squareness, fine adjustment |
Small part machining | Mini vise or QGG precision toolmaker vise |

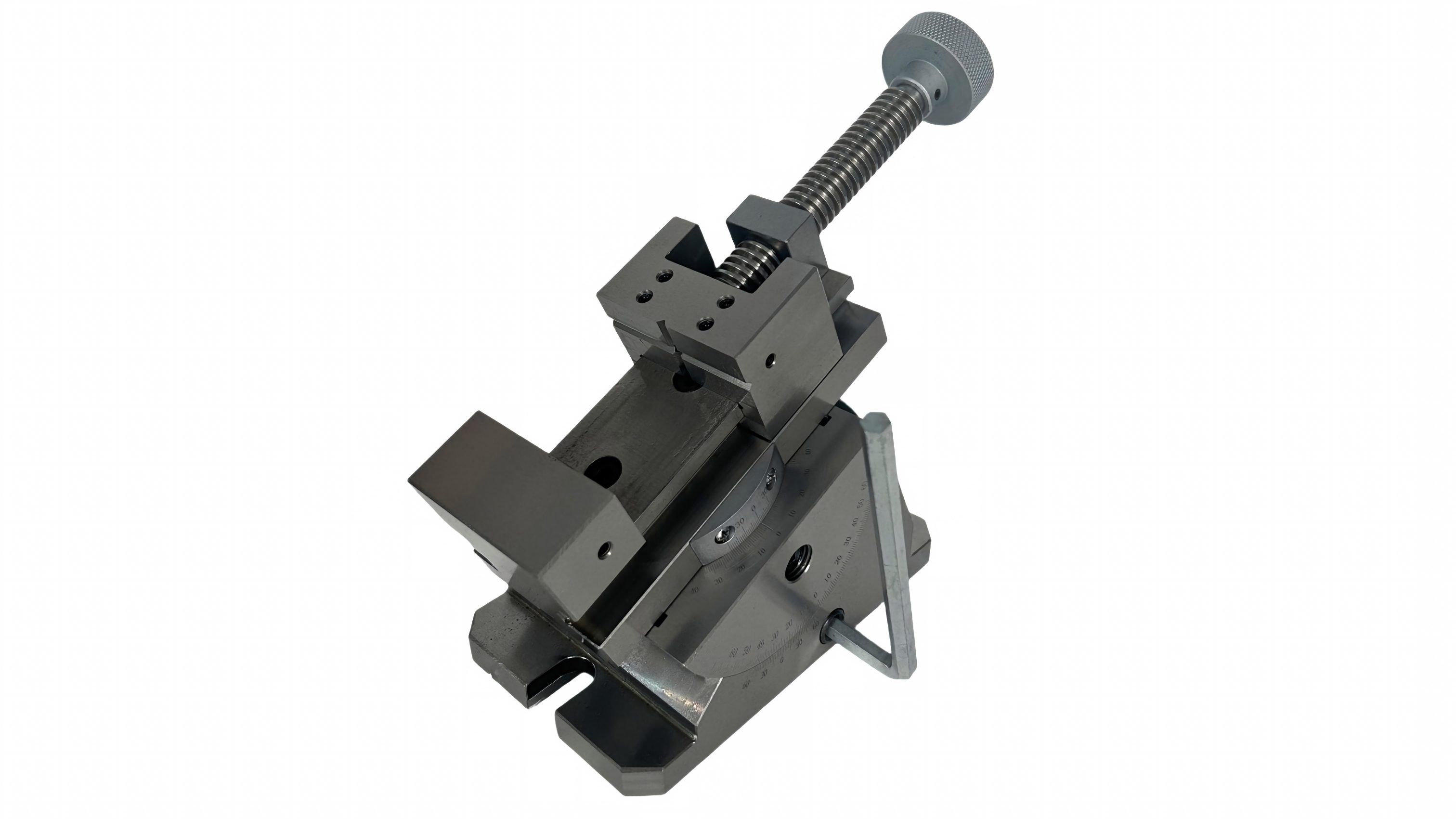

For compact and high-precision operations, our QGG precision toolmaker vises are suitable for applications such as grinding, EDM, inspection, and small-part clamping. You can explore available product categories on our All Products page.
Even a high-quality CNC milling vise requires routine maintenance to preserve accuracy and service life.
Recommended maintenance practices include:
Remove chips after each machining shift
Clean the guide surfaces and screw area
Lubricate moving components according to usage conditions
Inspect jaws for damage, burrs, and wear
Check mounting bolts and alignment periodically
Protect the vise from corrosion during storage or sea shipment
Recheck parallelism after accidental impact or heavy use
Poor maintenance can lead to reduced clamping consistency, increased jaw wear, rust, and inaccurate setups.
For more practical maintenance guidance, please visit the Zhenghao Machinery blog.
Before choosing a CNC vise manufacturer or supplier, ask the following questions:
What are the actual accuracy specifications?
Can you provide product drawings and dimensional data?
What material and heat-treatment process are used?
Are hard jaws, soft jaws, or quick-change jaws available?
Can the vise be customized for our machine or part design?
Can you support OEM branding or custom packaging?
What inspection procedures are performed before shipment?
Can multiple product categories be consolidated into one shipment?
What export packaging is available for sea freight or international delivery?
Can technical support be provided before and after purchase?
A reliable supplier should be able to answer these questions clearly, provide supporting information, and recommend an appropriate solution rather than only offering a catalog model.
Zhenghao Machinery supplies CNC machine vises, toolholders, collets, tapping holders, carbide end mills, clamping kits, and related machine tool accessories for international B2B customers.
Our value for customers includes:
Integrated manufacturing and quality-control processes
CNC workholding and tooling product range in one supply source
Standard and customizable product options
Support for OEM and distributor requirements
Export-oriented packaging and delivery coordination
Technical communication for product selection and applications
Learn more about our manufacturing and service capabilities on the Zhenghao Machinery homepage.
Choose a CNC vise based on your machine table size, workpiece dimensions, jaw opening requirement, machining load, and available travel. The vise should securely support the workpiece without limiting spindle access or occupying unnecessary table space.
A CNC milling vise is designed for machine-tool use. It typically provides higher rigidity, better accuracy, more stable clamping, and mounting features compatible with machining center tables. A standard bench vise is generally not suitable for precision CNC machining.
A modular CNC vise is valuable for shops that run multiple parts, use several machines, frequently change setups, or need scalable workholding. It can improve machine table utilization and reduce setup time over the long term.
Use a high-quality vise with stable jaw movement, keep clamping surfaces clean, use properly machined jaws, place the part firmly against the locating surface, and avoid excessive clamping force. For special shapes or thin-wall parts, custom soft jaws may be required.
Yes. Multiple vises can be mounted on one CNC machining center to process several workpieces in a single cycle. Proper alignment, work offset strategy, tool clearance, and vise spacing are essential.
Yes. Customers can contact Zhenghao Machinery with workpiece drawings, machine information, expected order quantity, and application requirements to discuss suitable vise configurations, jaw options, OEM requirements, and packaging solutions.
Are you selecting a CNC vise for a new machining center, improving a multi-vise production setup, or sourcing a reliable OEM workholding supplier?
Send us the following information:
CNC machine model and table size
Workpiece drawing or dimensions
Material and machining operation
Required vise quantity
Accuracy requirements
Preferred jaw width and opening
Whether custom jaws or OEM branding are needed
Our team can recommend a suitable precision CNC machine vise, GT modular vise configuration, QGG precision vise, or related workholding solution for your application.
