Precision CNC Vise Maintenance Guide: How to Clean, Lubricate & Inspect Your Vise to Maintain 0.005mm Accuracy

Views: 0     Author: Nancy Liu     Publish Time: 2026-08-10      Origin: Zhenghao Machinery

Table of Contents

A precision modular vise is not a consumable. It is a capital investment — one that, with correct maintenance, will hold 0.005 mm parallelism and squareness for years of daily production use. Without correct maintenance, the same vise will degrade in months: the lead screw will develop backlash, the jaw faces will accumulate chips that introduce positioning errors, and the precision-ground surfaces will corrode or wear in ways that cannot be reversed.

The good news is that maintaining a precision vise to its original specification requires neither specialised equipment nor significant time. It requires a consistent routine — daily, weekly, and periodic — applied correctly to the right components.

This guide covers the complete maintenance programme for the GT Series Precision Modular Vise, from end-of-shift cleaning to annual accuracy verification. Every procedure described here is applicable to all GT Series jaw widths (GT100–GT300) and to the ZQ83 Double Action Dual-Station Vise. The principles apply equally to any precision modular vise of comparable construction.

Precision CNC Vise Maintenance Guide: How to Clean, Lubricate & Inspect Your Vise to Maintain 0.005mm Accuracy

Why Maintenance Matters More on a Precision Vise Than on a Standard Machine Vise

A standard machine vise operates to tolerances of 0.02–0.05 mm. At this tolerance level, a small amount of chip contamination, surface oxidation, or lead screw wear has a negligible effect on the vise's functional performance. The vise continues to hold parts adequately even when maintenance is irregular.

A precision modular vise operates to tolerances of 0.003–0.005 mm — an order of magnitude tighter. At this tolerance level, the same contamination, oxidation, or wear that is negligible on a standard vise becomes significant:

  • A 0.01 mm chip trapped between the jaw face and the workpiece introduces a 0.01 mm positional error — twice the vise's rated accuracy

  • A 0.005 mm rust pit on a precision-ground reference surface creates a high spot that tilts the workpiece by a measurable angle

  • Lead screw wear of 0.02 mm produces backlash that causes the movable jaw to shift position under cutting load

The precision that makes a GT Series vise valuable is also what makes it sensitive to maintenance neglect. The 0.005 mm standard is achievable and maintainable — but only if the vise is treated as the precision instrument it is.

The Four Maintenance Domains

Precision vise maintenance covers four distinct domains, each with its own schedule and procedure:

Domain

Primary concern

Schedule

Cleaning

Chip and coolant contamination on precision surfaces

Daily (end of shift)

Lubrication

Lead screw and sliding surface wear

Weekly or per 50 clamping cycles

Rust prevention

Oxidation of precision-ground surfaces

Weekly + before storage

Accuracy inspection

Verification that precision surfaces remain within specification

Monthly + after any impact or crash

Each domain is covered in detail below.

Domain 1: Cleaning — Daily End-of-Shift Procedure

Why chips are the primary enemy of vise precision

During CNC milling and grinding operations, chips and swarf accumulate on and around the vise. Chips that land on the vise bed — the precision-ground surface on which the workpiece sits — are the most damaging. A single chip trapped between the workpiece and the vise bed acts as a fulcrum, tilting the workpiece by an amount determined by the chip height and the workpiece contact length.

For a 100 mm long workpiece resting on a 0.05 mm chip at one end, the tilt angle is:

At the opposite end of the workpiece, this tilt produces a height error of approximately 0.05 mm — ten times the GT Series' rated accuracy. This error is invisible to the operator setting up the next job unless the vise bed is cleaned before clamping.

Chips that enter the lead screw channel or the sliding surfaces between the movable jaw and the vise body cause abrasive wear. Hard chips (from steel or titanium machining) are particularly damaging because their hardness approaches or exceeds the HRC 58–62 surface hardness of the vise components.

Daily cleaning procedure — step by step

Tools required: Air blow gun, soft brass brush, clean lint-free cloth, mild solvent (mineral spirits or equivalent)

Step 1 — Air blow-down (with machine guard closed or operator eye protection)

Direct compressed air across all exposed vise surfaces: the vise bed, the jaw faces (fixed and movable), the top surface of the vise body, and the lead screw channel. Use short, directed bursts rather than continuous flow — continuous flow can drive chips into the lead screw thread rather than clearing them.

⚠️ Safety note: Always wear eye protection during air blow-down. Chips dislodged by compressed air travel at high velocity.

Step 2 — Brush the vise bed and jaw faces

Use a soft brass brush (not steel — steel bristles can scratch precision-ground surfaces) to dislodge any chips adhering to the vise bed, the jaw face surfaces, and the sliding channel of the movable jaw. Pay particular attention to the corners where the jaw face meets the vise bed — chips accumulate in these corners and are not removed by air blow-down alone.

Step 3 — Wipe precision surfaces with solvent-dampened cloth

Dampen a lint-free cloth with mineral spirits or a mild machining solvent. Wipe the vise bed, jaw faces, and the top surface of the vise body. This removes coolant residue, fine swarf particles, and cutting fluid that air blow-down and brushing leave behind. Coolant residue, if left on precision surfaces, accelerates oxidation — particularly in water-based coolant environments.

Step 4 — Dry wipe

Follow the solvent wipe with a dry lint-free cloth to remove solvent residue. Do not leave solvent on precision surfaces — some solvents remove the protective oil film and accelerate rust formation.

Step 5 — Apply a light oil film

Apply a thin film of machine oil (ISO VG 32 or equivalent) to the vise bed and jaw faces using a clean cloth. This film protects the precision-ground surfaces from oxidation during the period between shifts. The film should be thin enough to be invisible — not a visible oil pool, but a light coating that prevents direct air contact with the steel surface.

Cleaning the lead screw channel

The lead screw channel — the recessed area in the vise body through which the lead screw passes — accumulates chips and coolant that are not reached by the standard cleaning procedure. Clean this channel weekly (or more frequently in high-chip-volume operations):

  1. Extend the movable jaw to its maximum opening

  2. Use a brass brush to clean the exposed lead screw thread and the channel walls

  3. Air blow to remove loosened debris

  4. Apply a small amount of grease to the lead screw thread (see Lubrication section)

Domain 2: Lubrication — Weekly Procedure

The lead screw: the most critical lubrication point

The lead screw is the mechanical heart of the vise. It converts the operator's rotational input (turning the handle) into the linear clamping force that holds the workpiece. The lead screw thread engages with the movable jaw nut — a precision-machined interface that determines both the smoothness of the clamping action and the backlash characteristics of the vise.

Without lubrication, the lead screw thread and nut wear through metal-to-metal contact. The wear is initially invisible — the vise continues to function normally — but it accumulates over thousands of clamping cycles into measurable backlash. Backlash in the lead screw means that the movable jaw can shift position under cutting load, introducing a positional error that varies with the direction and magnitude of the cutting force.

With correct lubrication, lead screw wear is reduced to negligible levels. The GT Series lead screw, manufactured from the same 20CrMnTi alloy steel as the vise body and hardened to HRC 58–62, will maintain its precision thread geometry for years of production use under a correct lubrication programme.

Lead screw lubrication procedure

Lubricant selection: Use a medium-viscosity machine grease (NLGI Grade 1 or 2, lithium-based) for the lead screw thread. Do not use light machine oil — it will wash out of the thread under coolant exposure. Do not use heavy gear grease — it will impede the smooth operation of the lead screw and may cause inconsistent clamping force.

Frequency: Every 50 clamping cycles, or weekly — whichever comes first. In high-volume production environments (multiple clamping cycles per hour), weekly lubrication may be insufficient; monitor the lead screw operation and re-lubricate when resistance increases or smoothness decreases.

Procedure:

  1. Clean the lead screw thread with a brass brush and air blow (as described in the daily cleaning procedure)

  2. Apply a small amount of grease to the lead screw thread — approximately 0.5–1 g for a GT150 lead screw, proportionally more for GT200 and GT300

  3. Operate the vise through its full opening range two or three times to distribute the grease evenly across the thread engagement length

  4. Wipe away any excess grease that extrudes from the thread — excess grease attracts chips and accelerates contamination

Sliding surface lubrication

The sliding surfaces between the movable jaw and the vise body guide rails are the second critical lubrication point. These surfaces carry the lateral forces generated during clamping and cutting, and their condition directly affects the smoothness and consistency of the clamping action.

Lubricant selection: Light machine oil (ISO VG 32 or equivalent) applied to the guide rail surfaces. The oil film needs to be renewed more frequently than the lead screw grease because it is more easily displaced by coolant.

Frequency: Daily, as part of the end-of-shift cleaning routine. Apply a thin film of oil to the guide rail surfaces after the cleaning procedure.

Procedure:

  1. After completing the daily cleaning procedure, apply a thin film of ISO VG 32 oil to the guide rail surfaces on both sides of the movable jaw

  2. Operate the vise through its full opening range once to distribute the oil film

  3. The oil film should be just visible — not a visible pool

Quick-Change jaw interface lubrication

For GT Series vises equipped with the Quick-Change Jaw System, the dovetail interface between the jaw insert and the jaw carrier requires periodic lubrication to maintain the smooth, consistent jaw-change action and to preserve the precision of the dovetail fit.

Frequency: Every 20 jaw changes, or monthly — whichever comes first.

Procedure:

  1. Remove the jaw insert from the carrier

  2. Clean the dovetail surfaces on both the insert and the carrier with a lint-free cloth and solvent

  3. Apply a very thin film of light machine oil to the dovetail surfaces

  4. Re-install the jaw insert and operate the locking mechanism through one full lock/unlock cycle

  5. Verify that the jaw insert seats fully and consistently — any resistance or incomplete seating indicates contamination or wear that requires further inspection

Precision CNC Vise Maintenance Guide: How to Clean, Lubricate & Inspect Your Vise to Maintain 0.005mm Accuracy

Domain 3: Rust Prevention — Weekly and Pre-Storage Procedure

Why precision-ground surfaces are rust-vulnerable

The precision-ground surfaces of a GT Series vise — the vise bed, jaw faces, guide rails, and vise body reference surfaces — are ground to a surface finish that removes the natural oxide layer that forms on steel. This ground surface is more vulnerable to rust than an unground surface, because the oxide layer that would normally provide some protection has been removed.

In a CNC machining environment, the combination of water-based coolant, humidity, and temperature cycling creates conditions that accelerate rust formation on exposed precision surfaces. A rust pit that forms on the vise bed is a permanent defect — it cannot be removed without re-grinding the surface, which requires factory-level equipment and will alter the vise's dimensional specifications.

Prevention is the only practical strategy.

Weekly rust prevention procedure

After completing the weekly cleaning and lubrication procedures:

  1. Apply a thin, even film of anti-rust oil (VCI-type or equivalent) to all precision-ground surfaces: vise bed, jaw faces, guide rail surfaces, and all six faces of the vise body

  2. Pay particular attention to the vise bed corners and the jaw face edges — these areas are most vulnerable to coolant pooling and rust initiation

  3. Do not apply anti-rust oil to the lead screw thread — the anti-rust oil will dilute the lead screw grease and reduce its effectiveness. The lead screw grease provides sufficient rust protection for the thread surfaces

Pre-storage rust prevention (for vises removed from the machine)

When a GT Series vise is removed from the machine table for storage — whether for a job change, a machine rebuild, or seasonal storage — apply a heavier anti-rust treatment before storage:

  1. Complete the full cleaning procedure

  2. Apply a generous coating of VCI anti-rust oil to all surfaces, including the bottom mounting surface

  3. Wrap the vise in VCI film (volatile corrosion inhibitor film) — the same packaging standard used for Zhenghao's export shipments

  4. Store in a dry environment, away from direct coolant exposure

  5. Before returning the vise to service, remove the VCI film, wipe off the anti-rust oil with a solvent-dampened cloth, and apply the standard light machine oil film

Rust treatment for early-stage surface rust

If light surface rust (a uniform reddish-brown discolouration without pitting) is detected on a precision surface, it can be removed without damaging the surface:

  1. Apply a rust remover (phosphoric acid-based, diluted to manufacturer's specification) to the affected area

  2. Allow to dwell for the specified time (typically 5–10 minutes)

  3. Wipe clean with a lint-free cloth

  4. Inspect the surface — if the rust has converted to a grey phosphate coating without visible pitting, the surface is acceptable

  5. Apply anti-rust oil immediately after treatment

⚠️ Important: Do not use abrasive materials (sandpaper, wire brush, abrasive cloth) on precision-ground surfaces. Abrasive treatment will alter the surface geometry and degrade the vise's accuracy. If rust pitting is visible — depressions in the surface rather than surface discolouration — the affected surface requires professional re-grinding. Contact Zhenghao technical support for assessment.

Domain 4: Accuracy Inspection — Monthly and Post-Incident Procedure

When to inspect accuracy

Accuracy inspection should be performed:

  • Monthly as part of the regular maintenance schedule

  • After any impact or crash — if the vise is struck by a falling workpiece, a tool crash, or any other impact event, inspect accuracy before returning to production

  • After extended storage — before returning a stored vise to service

  • When unexplained scrap appears — if parts begin to fail inspection without an obvious cause, the vise accuracy should be verified before investigating other causes

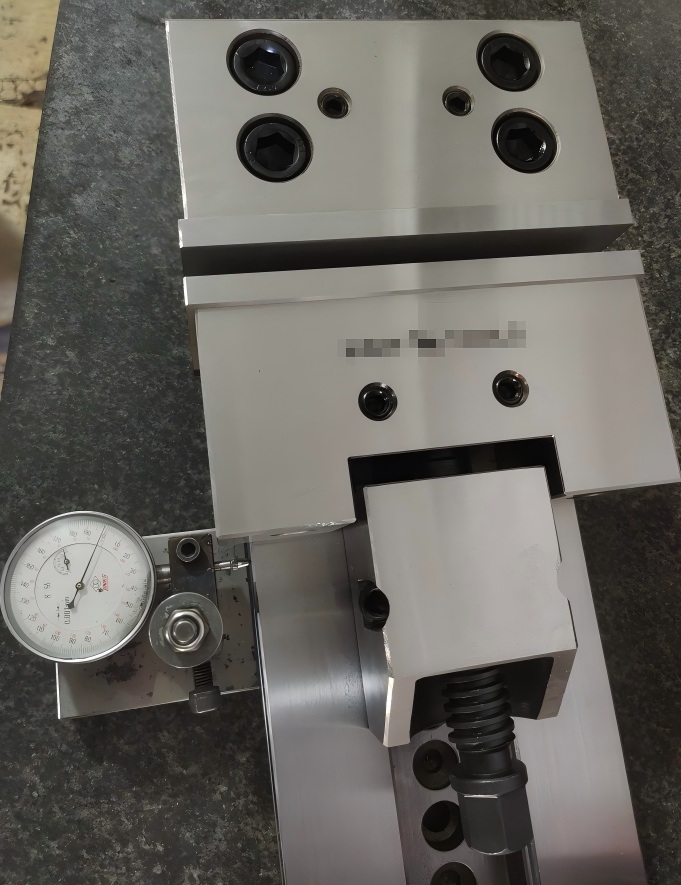

What to inspect and how

Tools required: Dial test indicator (DTI) with 0.001 mm resolution, magnetic base, precision ground reference block (optional)

Inspection 1: Vise bed flatness

The vise bed is the surface on which the workpiece sits. Its flatness directly determines the workpiece's Z-axis positioning accuracy.

Procedure:

  1. Clean the vise bed thoroughly (chips or oil film will give false readings)

  2. Mount the DTI on a magnetic base attached to the machine spindle or a fixed reference

  3. Set the DTI tip to contact the vise bed at one end

  4. Zero the DTI

  5. Move the DTI tip along the vise bed length and record the maximum variation

  6. Acceptance criterion: Maximum variation ≤ 0.005 mm across the full vise bed length

Inspection 2: Jaw face parallelism

The jaw faces must be parallel to each other and perpendicular to the vise bed. Non-parallel jaw faces cause the workpiece to be clamped at an angle, introducing a positional error that varies with workpiece width.

Procedure:

  1. Close the vise jaws to contact (no workpiece)

  2. Mount the DTI on a magnetic base and set the tip to contact the fixed jaw face

  3. Zero the DTI at the top of the jaw face

  4. Move the DTI tip to the bottom of the jaw face and record the variation

  5. Repeat for the movable jaw face

  6. Acceptance criterion: Variation ≤ 0.005 mm / 100 mm of jaw height for each jaw face

Inspection 3: Lead screw backlash

Lead screw backlash is the amount of handle rotation required to reverse the direction of jaw movement. Excessive backlash indicates lead screw or nut wear and will cause the movable jaw to shift under cutting load.

Procedure:

  1. Mount the DTI tip against the movable jaw face

  2. Apply light clamping force (turn the handle clockwise until resistance is felt)

  3. Zero the DTI

  4. Slowly reverse the handle direction (counter-clockwise) and record the DTI reading at the point where the jaw begins to move

  5. Acceptance criterion: Backlash ≤ 0.01 mm for a precision vise in good condition. Backlash > 0.02 mm indicates significant wear; consider lead screw replacement or factory service.

Inspection 4: Movable jaw lift

Jaw lift — the upward movement of the movable jaw under clamping force — is the failure mode that the GT Series pull-down mechanism is designed to prevent. Periodic inspection confirms that the pull-down mechanism is functioning correctly.

Procedure:

  1. Place a precision ground block in the vise jaws

  2. Mount the DTI tip on the top face of the movable jaw

  3. Zero the DTI with the vise in the open (unclamped) position

  4. Apply full clamping force and record the DTI reading

  5. Acceptance criterion: Jaw lift ≤ 0.003 mm under full clamping force. Any positive reading (upward movement) indicates that the pull-down mechanism requires inspection and possible adjustment.

Recording inspection results

Maintain a simple inspection log for each vise — a record of the inspection date, the readings obtained, and any corrective action taken. This log serves two purposes:

  1. Trend detection: A gradual increase in backlash or jaw face variation over successive inspections indicates wear that is progressing toward the rejection threshold. Trend detection allows maintenance to be scheduled before accuracy is lost, rather than after a scrap event.

  2. Traceability: If a precision problem is identified in a batch of parts, the inspection log allows the vise's accuracy history to be reviewed — confirming whether the vise was within specification at the time the parts were produced.

Maintenance Schedule Summary

Task

Frequency

Time required

Air blow-down and brush clean

Daily (end of shift)

3–5 minutes

Solvent wipe and oil film application

Daily (end of shift)

3–5 minutes

Lead screw lubrication

Weekly / per 50 cycles

5 minutes

Sliding surface lubrication

Daily

2 minutes

Quick-Change jaw interface lubrication

Monthly / per 20 jaw changes

5 minutes

Anti-rust oil application

Weekly

5 minutes

Vise bed flatness inspection

Monthly

10 minutes

Jaw face parallelism inspection

Monthly

10 minutes

Lead screw backlash inspection

Monthly

5 minutes

Movable jaw lift inspection

Monthly

5 minutes

Full pre-storage treatment

Before storage

15 minutes

Total daily maintenance time: approximately 10–12 minutes per vise.

Total monthly maintenance time (including inspections): approximately 60–70 minutes per vise.

For a shop running multiple GT Series vises, this investment in maintenance time is small relative to the cost of a single scrap event caused by a vise that has drifted out of specification.

How GT Series Material & Construction Supports Long-Term Accuracy

The maintenance procedures described in this guide are effective because the GT Series vise is built from materials and to a construction standard that responds well to correct maintenance. Understanding the material and construction choices helps clarify why each maintenance step matters.

20CrMnTi alloy steel at HRC 58–62

The GT Series vise body, jaw plates, and lead screw are all manufactured from 20CrMnTi alloy steel, carburized and hardened to HRC 58–62. This hardness level means that:

  • Chips from steel workpieces (typically HRC 20–40) are softer than the vise surfaces — they cannot abrade the precision-ground surfaces under normal operating conditions

  • The lead screw thread retains its geometry under the compressive loads of clamping — thread deformation is negligible

  • The jaw faces resist wear from repeated workpiece clamping cycles — the 0.005 mm jaw face flatness is maintained over thousands of cycles

The hardness also means that the vise surfaces are not self-repairing — a scratch or rust pit that penetrates the hardened layer is permanent. This is why the cleaning and rust prevention procedures are essential: prevention is the only option.

Deep cryogenic stress relief

After heat treatment, GT Series vise bodies undergo a deep cryogenic stress relief process — cooling to sub-zero temperatures to relieve residual stresses introduced by the heat treatment cycle. This process stabilises the vise body's dimensional geometry: the vise body will not distort or change dimensions as residual stresses relax over time.

The practical implication for maintenance is that a GT Series vise that passes the monthly accuracy inspection today will pass the same inspection six months from now — provided it is correctly maintained. The dimensional stability is built in; maintenance preserves it.

All-six-face precision grinding

Every GT Series vise body is precision-ground on all six faces to 0.005 mm parallelism and squareness. This means that the vise body itself is a precision reference — any face can be used as a datum for workpiece coordinate system establishment.

Maintaining this six-face precision standard requires that all six faces are protected from rust and mechanical damage — not just the jaw faces and vise bed. The weekly anti-rust oil application should cover all six faces of the vise body, not just the working surfaces.

Common Maintenance Mistakes — and How to Avoid Them

Mistake

Consequence

Correct practice

Using a steel wire brush on precision surfaces

Scratches the ground surface, introducing high spots

Use brass brush only on precision surfaces

Using compressed air without eye protection

Chip injury risk

Always wear eye protection during air blow-down

Applying anti-rust oil to the lead screw thread

Dilutes the lead screw grease, reducing lubrication effectiveness

Keep anti-rust oil away from the lead screw thread; grease the thread separately

Using water-based coolant as a cleaning agent

Water accelerates rust on precision surfaces

Use mineral spirits or dedicated machining solvent for cleaning

Storing the vise without anti-rust treatment

Rust forms on precision surfaces within days in humid environments

Always apply VCI anti-rust oil and wrap in VCI film before storage

Ignoring gradual backlash increase

Lead screw wear reaches the point where jaw shift under cutting load causes scrap

Record backlash readings monthly; act on trend before threshold is reached

Cleaning only the jaw faces, not the vise bed

Chips on the vise bed cause workpiece tilt errors

Clean the vise bed as thoroughly as the jaw faces at every shift end

Summary: Maintenance Is the Other Half of Precision

Purchasing a GT Series precision modular vise is the first half of achieving 0.005 mm workholding accuracy. Maintaining it correctly is the second half. The precision that Zhenghao builds into every vise — through material selection, heat treatment, deep cryogenic stress relief, and all-six-face precision grinding — is preserved or degraded by the maintenance practices applied in the field.

The maintenance programme described in this guide requires approximately 10–12 minutes per vise per day and 60–70 minutes per vise per month. In return, it preserves the vise's 0.005 mm accuracy specification, prevents the scrap events caused by contamination and wear, and extends the vise's service life from years to decades.

For technical questions about GT Series vise maintenance, jaw replacement, or accuracy restoration, contact the Zhenghao technical team directly.

Explore the full GT Series Precision Modular Vise range, interchangeable jaw accessories, and the Quick-Change Jaw System at www.pyzhjx.com.

Email: zhjx@pyzhjx.com

Phone / WhatsApp: +86-18660185316

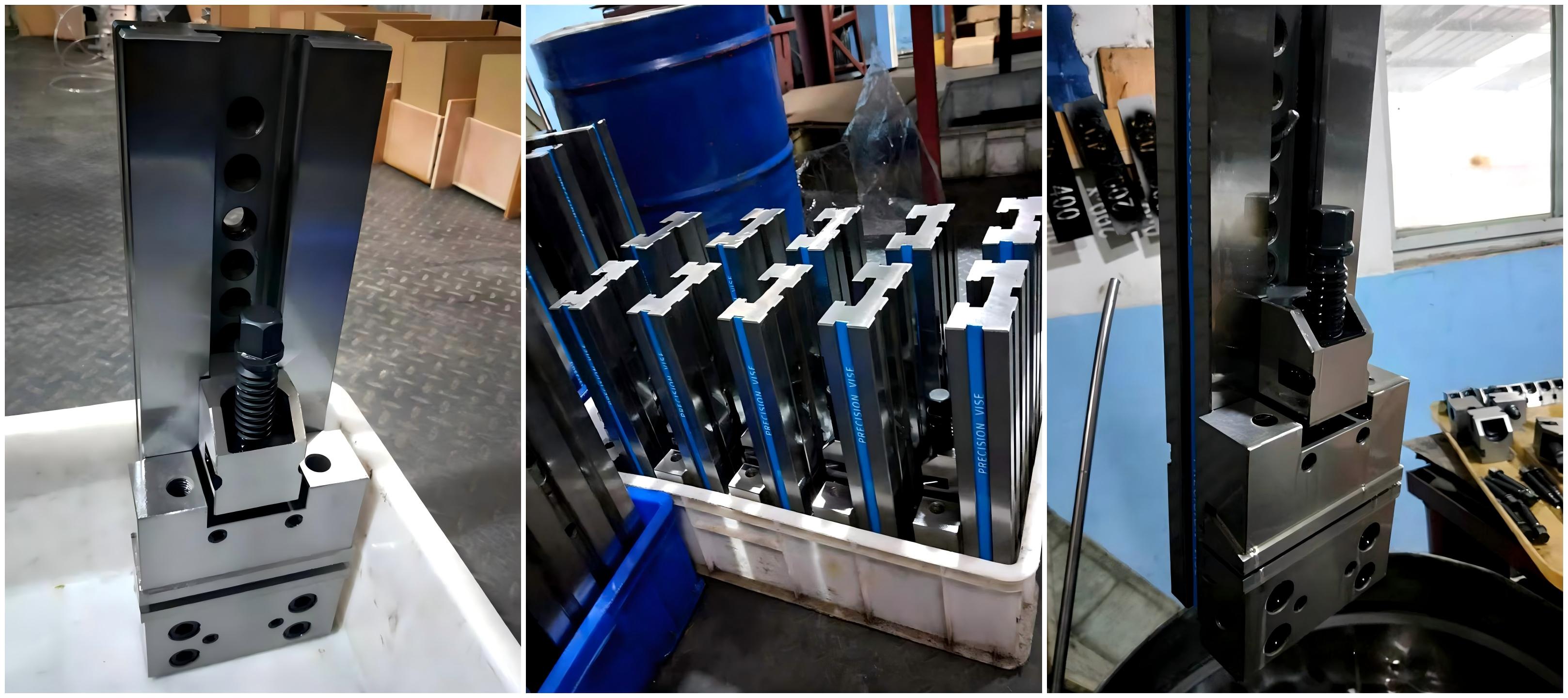

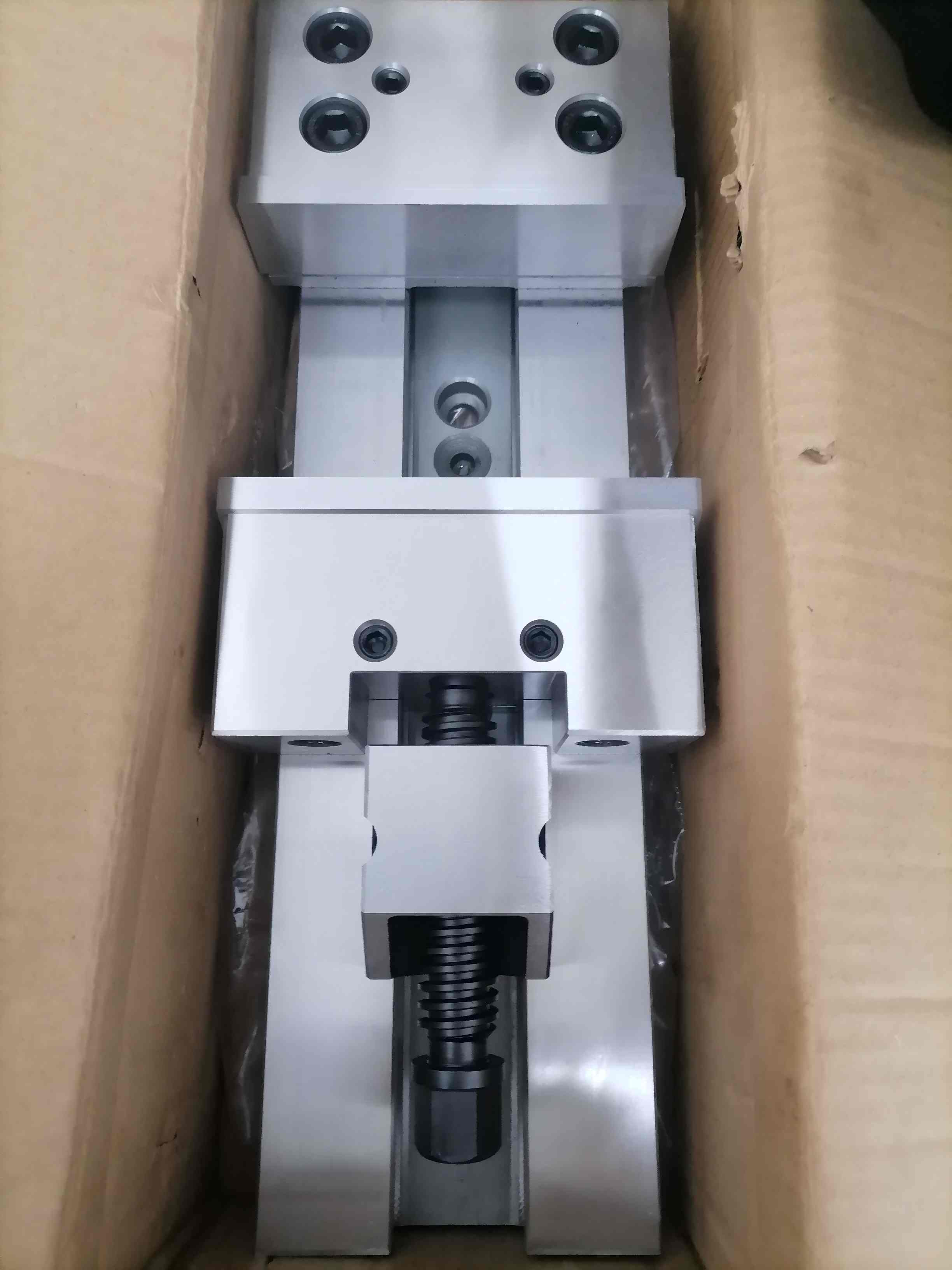

Precision CNC Vise Maintenance Guide: How to Clean, Lubricate & Inspect Your Vise to Maintain 0.005mm Accuracy

FAQ

How often should I lubricate a GT Series vise lead screw?

Every 50 clamping cycles or weekly — whichever comes first. In high-volume production environments where the vise is cycled many times per shift, weekly lubrication may be insufficient. Monitor the lead screw operation: if resistance increases or the clamping action becomes less smooth, re-lubricate immediately regardless of the scheduled interval.

Can I use WD-40 to lubricate the lead screw?

No. WD-40 is a water-displacing solvent, not a lubricant. It will temporarily improve the feel of the lead screw but will evaporate quickly, leaving the thread surfaces unprotected. Use a medium-viscosity lithium-based grease (NLGI Grade 1 or 2) for the lead screw thread.

My vise bed has light surface rust. Can I remove it without affecting the precision?

Light surface rust (uniform discolouration without visible pitting) can be removed with a phosphoric acid-based rust remover without damaging the precision surface. Apply the rust remover, allow to dwell, wipe clean, and immediately apply anti-rust oil. Do not use abrasive materials. If rust pitting is visible, contact Zhenghao technical support — pitted surfaces require professional re-grinding.

How do I know if my vise needs factory service rather than field maintenance?

Factory service is required when: (1) lead screw backlash exceeds 0.02 mm and cannot be reduced by cleaning and lubrication; (2) jaw face parallelism variation exceeds 0.01 mm / 100 mm; (3) vise bed flatness variation exceeds 0.01 mm; (4) rust pitting is visible on any precision surface; (5) the pull-down mechanism no longer functions correctly (jaw lift is measurable under clamping force). Contact Zhenghao technical support for assessment and service options.

Does the maintenance schedule change for the ZQ83 Double Action Vise?

The maintenance principles are identical for the ZQ83 Double Action Vise. The ZQ83 has two clamping stations and a central fixed jaw, which means there are additional sliding surfaces and jaw faces to clean and lubricate. Apply the same daily cleaning and weekly lubrication procedures to all jaw faces and sliding surfaces. The lead screw lubrication frequency is the same as for the GT Series single-station vises.

Can I use the same maintenance procedures for the Quick-Change jaw inserts as for the standard jaw plates?

Yes, with one addition: the dovetail interface on Quick-Change jaw inserts requires periodic lubrication (every 20 jaw changes or monthly) as described in the lubrication section. Standard jaw plates do not have a dovetail interface and do not require this additional lubrication step.

Related Articles
