Choosing the right tool holder has a direct impact on machining stability, tool life, surface finish, spindle performance, and part accuracy. Yet many buyers and machine shops still ask the same practical question:
Should I use a Weldon holder, an ER collet chuck, or a shrink fit holder?
The short answer is simple:
Weldon holders are strong and reliable for heavy milling and secure torque transmission.
ER collet chucks are versatile and economical for general-purpose CNC machining.
Shrink fit holders are best for high-speed, high-precision, and slim-clearance applications.
The best choice depends on your cutting conditions, spindle type, tool shank, required runout, balancing needs, and production priorities.
At Zhenghao Machinery, we supply a wide range of CNC toolholding products, including BT/BBT Weldon holders, ER collet systems, shrink fit holders, tapping holders, and related machine tool accessories for global B2B customers.
Tool Holder Type | Best For | Main Advantage | Main Limitation |
Weldon Holder | Heavy milling, roughing, strong torque transmission | Secure side-lock drive, simple structure | Lower concentricity and balance than precision systems |
ER Collet Chuck | General-purpose milling, drilling, mixed tool sizes | High versatility, broad clamping range, economical | Not the first choice for maximum rigidity or ultra-high speed |
Shrink Fit Holder | High-speed finishing, precision milling, mold work | Excellent concentricity, rigidity, slim nose profile | Requires heating equipment and more process control |
If your shop runs many different tools every day, ER collet chucks are often the most practical solution.
If your work involves aggressive cutting and Weldon shank end mills, side-lock holders remain a dependable choice.
If your priority is runout control, high-speed performance, and tool reach in tight areas, shrink fit holders are usually the premium option.
A cutting tool performs only as well as the system holding it. Even with a good spindle and a high-quality carbide tool, poor holder selection can lead to:
Excessive runout
Poor surface finish
Reduced tool life
Chatter and vibration
Inconsistent dimensional accuracy
Premature spindle stress
Longer setup and tool change time
For distributors and OEM buyers, tool holder selection also affects product positioning. Some customers need a robust and affordable holder for general machining, while others specifically ask for high-speed or high-precision solutions.
That is why comparing Weldon, ER collet, and shrink fit holders is an important step before sourcing.
To explore our broader product range, including vises, collets, tapping holders, and milling accessories, visit our All Products page.
A Weldon tool holder, also called a side-lock end mill holder, uses a set screw to lock onto the flat of a Weldon-shank cutting tool.
This design creates a positive mechanical drive between the holder and the tool shank.
Secure grip for Weldon flat shank tools
Strong torque transmission
Simple and durable structure
Popular in roughing and general milling
Widely used in BT and BBT spindle systems
Weldon holders are commonly selected when users want confidence that the tool will not slip under heavier cutting loads.
Rough milling
Slotting with moderate to heavy load
General steel machining
Shops using standard end mills with Weldon flats
Production environments where durability matters more than extreme runout control
Zhenghao Machinery offers BT and BBT Weldon holders for CNC machining applications, including common sizes used in milling operations.

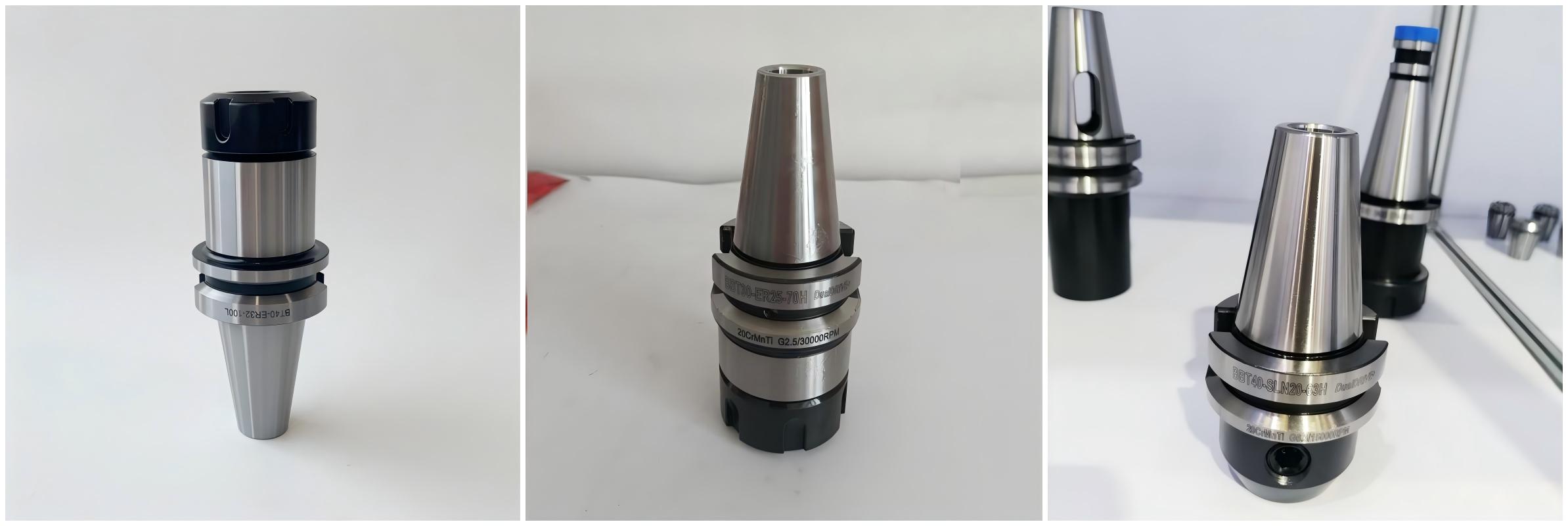

An ER collet chuck uses a collet and nut system to clamp a cylindrical tool shank. It is one of the most widely used and flexible toolholding systems in CNC machining.
The ER system is widely used because one holder can support a range of tool diameters through interchangeable collets.
Key advantages include:
Strong versatility
Wide size coverage
Easy tool changes
Good accuracy for general machining
Lower tooling cost compared with highly specialized systems
Suitable for drills, end mills, reamers, and other shank tools
For job shops and distributors, ER collet systems are often attractive because they serve many daily machining needs with a practical cost structure.
Zhenghao Machinery supplies ER spring collets and matching toolholding products as part of our one-stop sourcing range. You can browse relevant categories on our Products page.

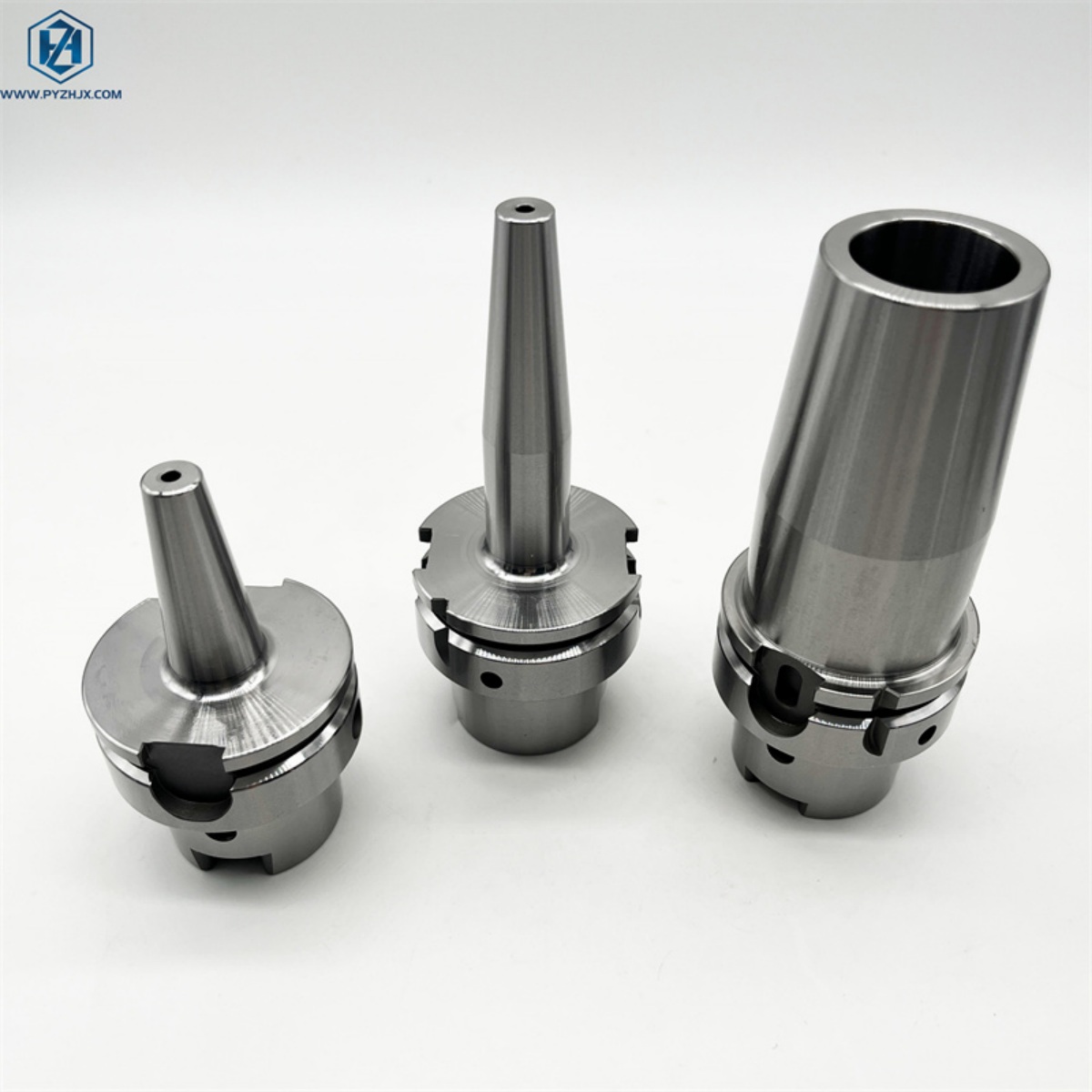

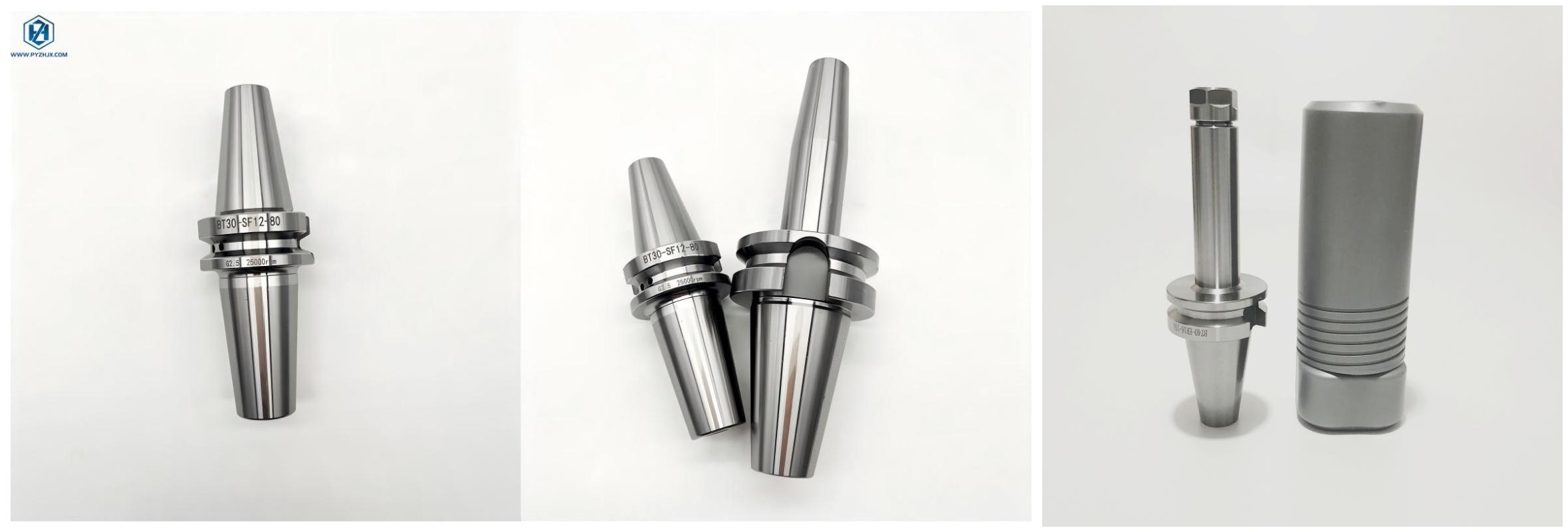

A shrink fit holder uses heat expansion technology. The holder bore is heated so it expands slightly, the tool is inserted, and then the holder cools and contracts tightly around the tool shank.
This creates a very strong and highly concentric clamping connection.
Excellent concentricity
High gripping rigidity
Strong balance characteristics
Slim nose profile for better access
Very suitable for high-speed and high-precision machining
Shrink fit systems are widely preferred in:
Mold and die machining
Aerospace machining
High-speed finishing
Deep cavity milling
Precision contouring
Long-reach tool applications where clearance matters
Zhenghao Machinery supplies BT30, BT40, BT50 shrink fit holders and related CNC tooling products for customers seeking higher-end toolholding solutions.
This is the first major difference.
A Weldon holder locks the tool mechanically against the Weldon flat. This gives very secure torque transmission and strong resistance to slipping in demanding cutting conditions.
An ER collet grips the full circumference of the shank through elastic compression. It is flexible and convenient, but under very heavy cutting conditions it is not always the first choice compared with a positive-drive side-lock holder.
A shrink fit holder grips the tool shank by high-contact, full-surface contraction. It provides strong holding power and high rigidity, especially when tool and holder quality are well matched.
Choose Weldon if anti-slip security under roughing load is the top concern.
Choose ER if versatility across many tool sizes matters most.
Choose shrink fit if you need a high-rigidity precision solution for advanced machining.
Runout affects surface finish, tool wear, cutting consistency, and dimensional accuracy.
In general machining practice:
Shrink fit holders are usually preferred for the best concentricity performance.
ER collet chucks can offer good accuracy when matched with quality collets and proper assembly.
Weldon holders are typically selected more for secure driving than for minimum runout performance.
This does not mean Weldon holders are inaccurate or unusable for precision work. It means that when a buyer's top priority is very low runout for finishing or high-speed milling, shrink fit and high-quality collet systems are more often considered first.
If your business also involves precision workholding, you may find our related article helpful: CNC Vise Accuracy Explained.
As spindle speed increases, holder balance becomes more important.
Because of the side-lock screw design, Weldon holders are generally less ideal for very high-speed balanced applications compared with premium shrink fit systems.
ER systems can be used effectively in a wide range of speeds, but performance depends on holder quality, collet quality, nut design, and assembly condition.
Shrink fit holders are widely recognized for their suitability in high-speed machining because of their symmetry, concentricity, and slim profile.
If your customers are machining aluminum at high spindle speeds or finishing mold cavities, shrink fit holders often offer a stronger product fit.
Rigidity influences cutting stability, chatter resistance, and tool performance.
Shrink fit holders are often favored where high rigidity and compact nose design are both required.
Weldon holders are valued for robust mechanical security in roughing work.
ER collet chucks offer a practical balance of flexibility and performance for general-purpose machining.
When comparing rigidity, buyers should not look only at marketing language. Actual performance depends on:
Holder design
Overhang length
Tool diameter
Clamping quality
Machine spindle condition
Cutting parameters
Tool change efficiency also matters in real production.
Tool changes are simple, but only for tools with compatible Weldon shanks.
ER systems are flexible, but changing tools often involves loosening the nut, replacing the collet or tool, and retightening properly.
Shrink fit systems require heating equipment and a more controlled process. They are not as convenient as ER or Weldon for frequent casual tool changes, but they offer strong performance benefits in the right environment.
For general shops and distributors, ER systems are often the easiest to support.
For simple roughing applications, Weldon remains practical.
For high-performance machining programs, shrink fit justifies the extra handling process.
Cost is often one of the biggest deciding factors.
Factor | Weldon Holder | ER Collet Chuck | Shrink Fit Holder |
Initial holder cost | Moderate | Moderate | Higher |
Accessory cost | Low | Requires collets and nuts | Requires shrink equipment |
Tool size flexibility | Limited to compatible shank type | High | Moderate |
High-speed suitability | Lower | Moderate to good | Excellent |
Precision positioning | Moderate | Good | Excellent |
Best cost value for general use | Good | Excellent | Lower for basic shops, higher for advanced shops |
For many buyers, the right question is not “Which one is cheapest?” but rather:
Which holder gives the best value for my process and customer market?
You use Weldon flat shank end mills
You prioritize anti-slip security
You perform rough milling or heavier cuts
You want a practical and durable holder for general production
Your customers prefer proven side-lock toolholding
This is especially relevant for standard machining environments where robustness matters more than ultra-high-speed balance.
You need one system for many tool diameters
You run mixed jobs and varied tool types
You want a good balance of flexibility, accuracy, and cost
You are building a practical toolholding inventory
You supply general machining customers
ER collet systems are often the best all-around option for distributors and job shops.
You focus on high-speed or high-precision machining
You need excellent concentricity
You want better access in narrow or deep machining zones
You machine molds, aerospace parts, or precision contours
You are willing to invest in shrink fit equipment and process discipline
Shrink fit holders are often the preferred solution when machining performance and finish quality are more important than initial tooling simplicity.
If your market includes many general machining customers, ER collet chucks and Weldon holders are usually essential catalog items. If you serve advanced mold or high-speed machining users, shrink fit holders can help expand your premium product line.
If your workshop does a mix of roughing and finishing, it is common to use more than one system:
Weldon for roughing
ER collet for general tools
Shrink fit for critical finishing operations
If you are sourcing for your own brand, it may be wise to build a layered product structure:
Entry-level practical holders
Mid-range general-purpose holders
Premium high-precision holders
Zhenghao Machinery can support this kind of sourcing strategy with multiple product categories under one supplier.
Learn more about our company and manufacturing capability on our homepage.
Before placing an order for Weldon holders, ER systems, or shrink fit holders, buyers should confirm the following:
What spindle interface is required: BT30, BT40, BT50, BBT30, BBT40, or BBT50?
What tool shank type will be used?
What speed range is expected?
Is roughing, finishing, or mixed machining the main application?
Is runout control a critical requirement?
Is balancing performance important for the job?
Will the holder be used for short standard tools or long-reach tools?
Does the buyer need OEM branding or private label packaging?
Can the supplier provide stable quality across batch orders?
Can the holder be shipped together with collets, vises, and other tooling accessories?
For international buyers, one-stop sourcing can save significant logistics and communication cost.
You can review our full machine tool accessory range on the Products page.
Zhenghao Machinery serves overseas B2B customers with a product range that supports both CNC workholding and toolholding needs.
Our advantages include:
Broad product categories from one supplier
Export-oriented service for international buyers
Standard and customizable product options
Support for OEM and distributor cooperation
Practical understanding of machining applications
Ability to consolidate shipments across multiple product groups
Our product categories include:
BT/BBT Weldon holders
BT/BBT shrink fit holders
ER spring collets
Tapping holders
GT Precision Modular Vises
QGG precision vises
Solid carbide end mills
Clamping kits and accessories
This makes us a practical sourcing partner for customers who want more than a single product item.
For more company updates and export-related content, visit our News & Blog page.
A Weldon holder uses a side-lock screw to engage the Weldon flat on the tool shank, giving secure mechanical drive. An ER collet chuck uses a collet to clamp around the full circumference of the shank, making it more flexible for different tool sizes.
Not in every case. A shrink fit holder is usually better for high-speed, high-precision, and slim-clearance applications. An ER collet chuck is often better for general-purpose use, flexibility, and cost control.
For many rough milling applications, a Weldon holder is a popular choice because of its secure anti-slip mechanical clamping.
For high-speed finishing, especially where concentricity and balance matter, shrink fit holders are often preferred.
Yes. ER collet chucks are one of the most widely used systems for general CNC machining because they combine versatility, reasonable accuracy, and practical cost.
Yes. Zhenghao Machinery supplies BT and BBT tool holders, including Weldon holders, shrink fit holders, and related CNC tooling products.
Yes. We support one-stop sourcing across multiple product categories, including tool holders, ER collets, tapping holders, precision vises, and other machine tool accessories.
Yes. We can discuss OEM requirements, private label cooperation, custom packaging, and product configuration based on your market needs.
If you are comparing Weldon, ER collet, and shrink fit tool holders for your machine shop, distribution business, or OEM program, send us your application details and our team can help recommend a suitable option.
Please share:
Spindle type
Holder standard required
Tool shank type and diameter range
Material being machined
Roughing or finishing application
Speed range
Quantity needed
Whether OEM or custom packaging is required
We can help you evaluate the right solution from our CNC tooling range.
